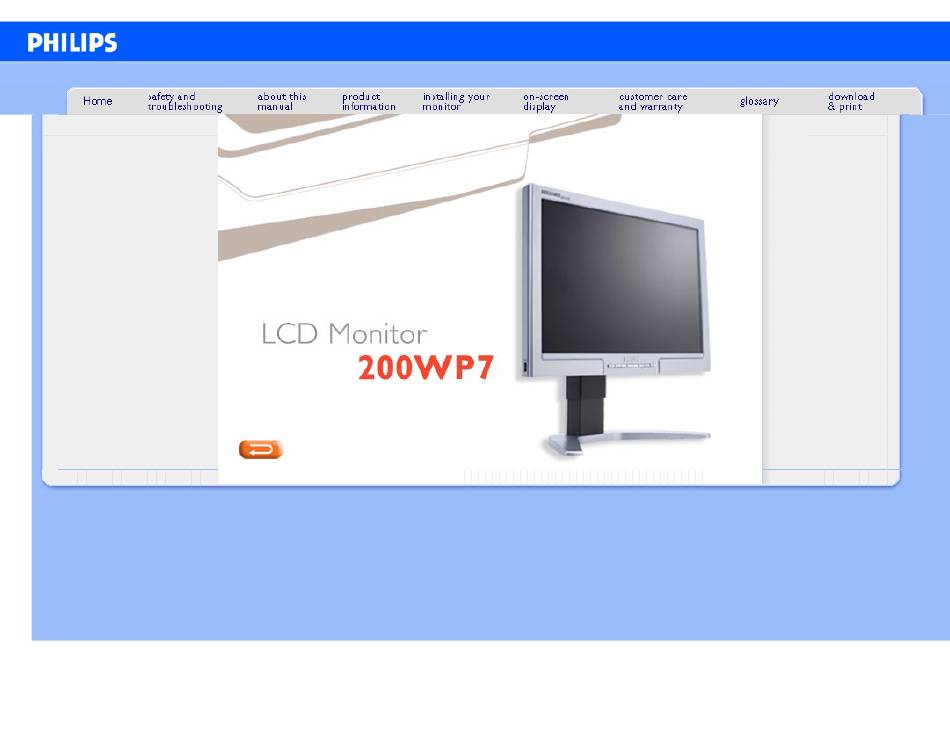

Philips LCD Monitor Electronic User's Manual
file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/index.htm2006-08-04 11:01:04 AM

Advertisement

Table of Contents
loading

Related Manuals for Philips 200WP7E

Summary of Contents for Philips 200WP7E

  • Page 1 Philips LCD Monitor Electronic User’s Manual file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/index.htm2006-08-04 11:01:04 AM...

  • Page 2: Safety And Troubleshooting Information

    DC power cord for normal operation. Please use approved power cord provided by Philips all the time. If your power cord is missing, please contact with your local service center. (Please refer to Customer Care...
  • Page 3 Safety and Troubleshooting Information Using two hands to lift your monitor is strongly recommended. Maintenance: To protect your display from possible damage, do not put excessive pressure on the LCD panel. When moving your monitor, grasp the frame to lift; do not lift the monitor by placing your hand or fingers on the LCD panel.
  • Page 4 Safety and Troubleshooting Information The casing cover should be opened only by qualified service personnel. If there is any need for any document for repair or integration, please contact with your local service center. (please refer to the chapter of "Consumer Information Center") For transportation information, please refer to "Physical Specifications".

  • Page 5: Faqs (Frequently Asked Questions)

    When I install my monitor what should I do if the screen shows 'Cannot display this video mode'? • Ergonomics, Ecology and Safety Standards Recommended video mode for Philips 20": 1680x1050 @60Hz. • Troubleshooting Unplug all cables, then connect your PC to the monitor that you used • Regulatory Information previously.
  • Page 6 FAQs (Frequently Asked Questions) How do I adjust the resolution? Your video card/graphic driver and monitor together determine the available resolutions. You can select the desired resolution under Windows® Control Panel with the "Display properties" What if I get lost when I am making monitor adjustments? Simply press the OK button, then select 'Reset' to recall all of the original factory settings.
  • Page 7 FAQs (Frequently Asked Questions) uses an active element (TFT) to control each individual pixel and the refresh rate is therefore not really applicable to LCD technology. Will the LCD screen be resistant to scratches? A protective coating is applied to the surface of the LCD, which is durable to a certain extent (approximately up to the hardness of a 2H pencil).
  • Page 8 Yes. Philips LCD monitors have this optional feature. Four standard VESA mount holes on the rear cover allows the user to mount the Philips monitor on most of the VESA standard arms or accessories. We recommend to contact your Philips sales representative for more information.
  • Page 9 Compatibility with other Peripherals Can I connect my LCD monitor to any PC, workstation or Mac? Yes. All Philips LCD monitors are fully compatible with standard PCs, Macs and workstations. You may need a cable adapter to connect the monitor to your Mac system.
  • Page 10 FAQs (Frequently Asked Questions) What can I do if my USB peripherals don't work with the USB hub of my monitor? If you experience the problem, just detach and re-attach the USB hub cable between PC and your monitor, then refresh your PC device manager (Start > Setting >...
  • Page 11 FAQs (Frequently Asked Questions) TFT LCD has two glass panels and the space between them is filled with liquid crystal. When each cell is connected with electrodes and impressed with voltage, the molecular structure of the liquid crystal is altered and controls the amount of inlet lighting to display images.
  • Page 12 U.S. National Electrical Code and UL Standards. Does the LCD monitor conform to general safety standards? Yes. Philips LCD monitors conform to the guidelines of MPR-II and TCO 99/03 standards for the control of radiation, electromagnetic waves, energy reduction, electrical safety in the work environment and recyclability.

  • Page 13: Troubleshooting

    • FAQs This page deals with problems that can be corrected by a user. If the problem still persists after you have tried these • Common Problems solutions, contact Philips customer service representative. • Imaging Problems • Regulatory Information Common Problems •...
  • Page 14 Green, red, blue, dark, and white dots crystal used in today’s technology. remains For further assistance, refer to the Consumer Information Centers list and contact your local Philips distributor. RETURN TO TOP OF THE PAGE file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/SAFETY/saf_troub.htm (2 of 2)2006-08-04 11:01:16 AM...

  • Page 15: Regulatory Information

    • Ergonomie Hinweis (nur Ergonomics Deutschland) • Philips End-of-Life Disposal Good visual ergonomics and image quality in order to improve the working environment for the user and • Information for UK only to reduce sight and strain problems. Important parameters are luminance, contrast, resoluction, •...
  • Page 16 Philips establishes technically and economically viable objectives to optimize the environmental performance of the organization's product, service and activities. From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily entails participation in national take-back initiatives and recycling programs whenever possible, preferably in cooperation with competitors.
  • Page 17 RETURN TO TOP OF THE PAGE CE Declaration of Conformity Philips Consumer Electronics declare under our responsibility that the product is in conformity with the following standards - EN60950-1:2001 (Safety requirement of Information Technology Equipment)
  • Page 18 Switch Off < 1 W ® s an NERGY artner, PHILIPS has determined that this product meets ® NERGY guidelines for energy efficiency. We recommend you switch off the monitor when it is not in use for a long time.
  • Page 19 Regulatory Information is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
  • Page 20 Regulatory Information N'utiliser que des câbles RF armés pour les connections avec des ordinateurs ou périphériques. CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. RETURN TO TOP OF THE PAGE EN 55022 Compliance (Czech Republic Only) RETURN TO TOP OF THE PAGE MIC Notice (South Korea Only)
  • Page 21 Regulatory Information The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, monitor, printer, and so on) should have the same power supply source. The phasing conductor of the room's electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A).
  • Page 22 Regulatory Information Placering/Ventilation VARNING: FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS. Placering/Ventilation ADVARSEL: SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE. Paikka/Ilmankierto VAROITUS: SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA.
  • Page 23 Please find out about the local regulations on how to dispose of your old monitor from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury.
  • Page 24 Regulatory Information Information for UK only WARNING - THIS APPLIANCE MUST BE GROUNDING. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows: 1. Remove fuse cover and fuse. 2.
  • Page 25 Regulatory Information is marked with the letter "N" or coloured BLACK. 3. The BROWN wire must be connected to the terminal which marked with the letter "L" or coloured RED. Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the three wires.

  • Page 26: Other Related Information

    Other Related Information Other Related Information • Safety and Troubleshooting • FAQs • Troubleshooting • Regulatory Information Information for Users in the U. S. • Information For units set at 115 V : for Users in the U.S • Information Use a UL Listed Cord Set consisting of a minimum 18 AWG, Type SVT or SJT three conductor cord for Users Outside the U.S a maximum of 15-feet long and a parallel blade, grounding type attachment plug rated 15 A, 125 V.

  • Page 27: About This Manual

    • Notational Descriptions About This Guide This electronic user's guide is intended for anyone who uses the Philips LCD Monitor. It describes the LCD monitor's features, setup, operation and other important information. Its contents are identical to the information in our printed version.
  • Page 28 RETURN TO TOP OF THE PAGE ©2006 Koninklijke Philips Electronics NV All rights reserved. Reproduction, copying, use, modification, hiring, renting, public performance, transmission and/or broadcasting in whole or in part is prohibited without written consent of Philips Electronics NV file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/ABOUT/ABOUT.HTM (2 of 2)2006-08-04 11:01:26 AM...

  • Page 29: Product Information

    RETURN TO TOP OF THE PAGE Lead-free Product Philips eliminated toxic substances like lead from its displays. Lead-free display helps protect your health and promotes environmentally sound recovery and disposal of waste from electrical and electronic equipment.Philips complies with the European Community stringent RoHS Directive mandating restrictions on hazardous substances in electrical and electronic equipment.
  • Page 30 Product Information 1680 x 1050pixels • LCD Panel type R.G.B. vertical stripe Anti-glare polarizer, hard coated • Effective viewing area 433.44 x 270.9mm • Display Colors 8 bits interface (16.7M colors) SCANNING Vertical refresh rate 56Hz-76Hz (Analog / Digital input) Horizontal Frequency 30kHz-98kHz (Analog input) VIDEO...
  • Page 31 Product Information 40 user definable modes 15 factory preset modes: H. freq (kHz) Resolution V. freq (Hz) 31.469 640x350 70.086 31.469 720x400 70.087 31.469 640x480 59.940 35.000 640x480 67.000 37.500 640x480 75.000 35.156 800x600 56.250 37.879 800x600 60.317 46.875 800x600 75.000 48.363 1024x768...

  • Page 32: Energy Star

    Product Information Sleep < 2W Amber Switch Off < 1W ENERGY STAR ENERGY STAR PHILIPS This monitor is ® compliant. As an ® Partner, has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. RETURN TO TOP OF THE PAGE Physical Specifications •...
  • Page 33 Product Information Signal Assignment Signal Assignment Signal Assignment T.M.D.S. Data2- T.M.D.S. Data1- T.M.D.S. Data0- T.M.D.S. Data2+ T.M.D.S. Data1+ T.M.D.S. Data0+ T.M.D.S. Data2/4 Shield T.M.D.S. Data1/3 Shield T.M.D.S. Data0/5 Shield No connect No connect No connect No connect No connect No connect DDC Clock +5V Power T.M.D.S.
  • Page 34 Product Information RETURN TO TOP OF THE PAGE Product Views Follow the links to see various views of the monitor and its components. Front View Product Description RETURN TO TOP OF THE PAGE Physical Function Tilt file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/product.htm (6 of 10)2006-08-04 11:01:33 AM...
  • Page 35 Product Information Swivel Height adjustment file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/product.htm (7 of 10)2006-08-04 11:01:33 AM...
  • Page 36 Product Information Portrait display file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/product.htm (8 of 10)2006-08-04 11:01:33 AM...
  • Page 37 Product Information file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/product.htm (9 of 10)2006-08-04 11:01:33 AM...
  • Page 38 Product Information RETURN TO TOP OF THE PAGE file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/product.htm (10 of 10)2006-08-04 11:01:33 AM...
  • Page 39 In order to qualify for repair or replacement under warranty, the number of pixel defects on a TFT LCD panel must exceed these acceptable levels. For example, no more than 0.0004% of the sub pixels on a 15" XGA monitor may be defective. Furthermore, Philips sets even higher quality standards for certain types or combinations of pixel defects that are more noticeable than others.

  • Page 40: Bright Dot Defects

    Pixel Defect Tolerances In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT LCD panel in a Philips flat panel monitor must have pixel or sub pixel defects exceeding the tolerances listed in the following tables.
  • Page 41 Total bright or black dot defects of all types 5 or fewer Note: * 1 or 2 adjacent sub pixel defects = 1 dot defect Your Philips monitor is ISO13406-2 Compliant RETURN TO TOP OF THE PAGE file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/pixel.htm (3 of 3)2006-08-04 11:01:38 AM...

  • Page 42: Rotating The Monitor

    Rotating the Monitor • Rotating the Monitor • Rotating Your Computer's Rotating the Monitor Operating System Rotating the Monitor Before rotating the monitor, remove the pin on the back of the base and raise the monitor to a higher vertical height adjustment to avoid hitting the bottom edge of the monitor when rotating. file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/rotate.htm (1 of 3)2006-08-04 11:01:39 AM...
  • Page 43 Rotating the Monitor file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/rotate.htm (2 of 3)2006-08-04 11:01:39 AM...
  • Page 44 Rotating the Monitor Rotating Your Computer's Operating System After rotating, the procedures below help rotate the image from your operation system. Right-click on the desktop then click on Properties. Select the Settings tab and click Advanced. then find your graphic card. For ATI graphics cards: Select the Rotation tab and set the preferred rotation.
  • Page 45 Introduction Philips SmartManage is an advanced solution for users, corporate/institution IT administrator in particular, to manage their Philips monitors as part of the asset management environment. The solution includes three essential components, Philips SmartManage Administrator, and Philips SmarControl and Agent.
  • Page 46 SmartManage. Philips SmartControl The SmartControl and SmartManage Agent are deployed and installed in computers using Philips monitors. With SmartControl and SmartManage Agent, monitors and PCs can interact with the administrator's inquiries. Because SmartControl operates on individual PC, end users can also use SmartControl to adjust monitor's performance settings.
  • Page 47 SmartManage Position Users can adjust the horizontal and vertical position of the screen by moving the sliding bar left and right. This function is disabled when using DVI-D (digit) input. Product Information Click Product Information in the left pane to view the product information stored in the monitor's memory.
  • Page 48 SmartManage General Click on General for general information including driver information, device information, and monitor control. Within monitor control, users can click on Auto Setup to achieve optimum performance or click on factory reset to reset the parameters of the monitor. Such choices are disabled when using DVI-D (digit) input.
  • Page 49 If it is still not working, we are sorry that the graphic adaptor is not supported. Please pay attention to Philips’ web site for any updated SmartControl driver available. When I click on Product Information, only partial information is shown, what happened? It might be your graphic card adaptor driver is not the most updated version which fully supporting DDC/CI interface.
  • Page 50 SmartManage file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/PRODUCT/smart.htm (6 of 6)2006-08-04 11:01:40 AM...

  • Page 51: Installing Your Lcd Monitor

    Installing Your LCD Monitor Installing Your LCD Monitor • Front View Produt Description Setting Up and Connecting • Your Monitor Front View Product Description • The Base • Getting Started • Optimizing Performance To switch monitor's power On and Off To access OSD menu To adjust the OSD To adjust brightness of the display...
  • Page 52 Installing Your LCD Monitor Automatically adjust the horizontal position, vertical AUTO position, phase and clock setting RETURN TO TOP OF THE PAGE Rear View 1 AC power input 2 DVI-D input 3 D-sub 4 Kensington anti-thief lock 5 USB upstream and downstream RETURN TO TOP OF THE PAGE file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/INSTALL/install.htm (2 of 3)2006-08-04 11:01:41 AM...
  • Page 53 Installing Your LCD Monitor Optimizing Performance For best performance, ensure that your display settings are set at 1680 x 1050 @60Hz Note: You can check the current display settings by pressing the 'OK' button once. Go into the Product Information. The current display mode is shown on the item called RESOLUTION.

  • Page 54: Setting Up And Connecting Your Monitor

    EDFU pack RETURN TO TOP OF THE PAGE Connect to PC Connect the power cord and DVI cable to the back of the monitor firmly. (Philips has pre-connected VGA cable for the first installation.) file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/INSTALL/connect.htm (1 of 2)2006-08-04 11:01:53 AM...
  • Page 55 Setting up and Connecting Your Monitor Connect the cables to the back of your computer by following these steps: Turn off your computer and unplug its power cord. Connect the monitor signal cable to the video connector on the back of your computer. Plug the power cord on your computer and your monitor into a nearby outlet.
  • Page 56 The Base The Base Your LCD Monitor : • Front View Product Description Place the monitor face down on a smooth surface taking care to avoid scratching or damaging the • Accessory Pack screen. • Setting up and connecting your monitor •...
  • Page 57 The Base 3)Fastening base stand with the monitor. file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/INSTALL/base.htm (2 of 5)2006-08-04 11:01:54 AM...
  • Page 58 The Base VESA Standard Mounting Place monitor face down on a smooth surface. Unscrew the 4 screws at the base. file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/INSTALL/base.htm (3 of 5)2006-08-04 11:01:54 AM...
  • Page 59 The Base VESA mounting holes Install the wall mount RETURN TO TOP OF THE PAGE file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/INSTALL/base.htm (4 of 5)2006-08-04 11:01:54 AM...
  • Page 60 The Base file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/INSTALL/base.htm (5 of 5)2006-08-04 11:01:54 AM...

  • Page 61: Getting Started

    Use the information file ( .inf) for Windows® 95/98/2000/Me/XP or later • Optimizing Performance The built-in VESA DDC2B feature in Philips Monitors supports Plug & Play requirements for Windows® 95/98/2000/Me/XP. This information file ( .inf) should be installed in order that your Philips monitor can be enabled from the 'Monitor' dialog box in Windows®...
  • Page 62 Getting Started Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'. Double click on the 'Display' Icon. Select the 'Settings' tab then click on 'Advanced...'. Select 'Monitor' - If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.
  • Page 63 Getting Started Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F: (CD-ROM Drive). Click on the 'Open' button, then click the 'OK' button. Select your monitor model and click on the 'Next' button. - If you can see the 'has not passed Windows®...

  • Page 64: On-Screen Display

    Description of the On Screen Display What is the On-Screen Display? This is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance of the monitors directly through an on-screen instruction window. The user interface provides user- friendliness and ease-of-use when operating the monitor.
  • Page 65 On-Screen Display file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/OSD/osddesc.htm (2 of 5)2006-08-04 11:02:08 AM...
  • Page 66 On-Screen Display file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/OSD/osddesc.htm (3 of 5)2006-08-04 11:02:08 AM...
  • Page 67 On-Screen Display RETURN TO TOP OF THE PAGE file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/OSD/osddesc.htm (4 of 5)2006-08-04 11:02:08 AM...
  • Page 68 On-Screen Display file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/OSD/osddesc.htm (5 of 5)2006-08-04 11:02:08 AM...
  • Page 69 Customer Care & Warranty Customer Care & Warranty PLEASE SELECT YOUR COUNTRY/AREA TO REVIEW DETAILS OF YOUR WARRANTY COVERAGE WESTERN EUROPE: Austria • Belgium • Denmark • France • Germany • Greece • Finland • Ireland • Italy • Luxembourg •...

  • Page 70: Your Philips F1Rst Choice Warranty

    Philips helpdesk directly to benefit from your Philips F1rst Choice Warranty. This three-year service warranty entitles you to a swap model on-site if your monitor turns out to be faulty or defective. Philips aims at a swap within 48 hours of your call being received.
  • Page 71 Note that products that are not originally designed, manufactured, approved and/or authorized for usage within the Philips F1rst Choice countries, do not apply to the Philips F1rst Choice Warranty. In these cases the Philips global warranty terms are valid.
  • Page 72 Your Philips F1rst Choice Warranty file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/WARRANTY/war_1st.htm (3 of 3)2006-08-04 11:02:19 AM...

  • Page 73: F1Rst Choice Contact Information

    F1rst Choice Contact Information F1rst Choice Contact Information Country Telephone number Tariff Austria 0820 901115 0.20 Belgium 070 253 010 0.17 Denmark 3525 8761 Local call tariff Finland 09 2290 1908 Local call tariff France 08 9165 0006 0.23 Germany 0180 5 007 532 0.12 Greece...

  • Page 74: Your Guarantee In Central And Eastern Europe

    Your Guarantee in Central and Eastern Europe Dear Customer, Thank you for purchasing this Philips product, which has been designed and manufactured to the highest quality standards. If, unfortunately, something should go wrong with this product Philips guarantees free of charge labor and replacement parts during a period of 36 months from date of purchase.
  • Page 75 In order to avoid unnecessary inconvenience, we advise you to read the operating instructions carefully before contacting our dealers or Information Centers In case your Philips product is not working correctly or is defective, please contact your Philips dealer or directly the Philips Service and Consumer Information Centers http://www.philips.com/support...

  • Page 76: Consumer Information Centers

    Consumer Information Centers Consumer Information Centers Antilles • Argentina • Astline • Australia • Bangladesh • Bosnia & Herzegovina• Brasil • Canada • Chile • China • Colombia • Belarus • Bulgaria • Croatia • Czech Republic • Estonia • Dubai •...
  • Page 77 Consumer Information Centers BOSNIA & HERZEGOVINA Megatrend d.o.o. Bosnia&Herzegovina Džemala Bijedica 2/II BA - 71000 Sarajevo Tel: +387 33 613 166 Email: info@megatrend.ba www.megatrend.ba CROATIA Renoprom d.o.o. Mlinska 5, Strmec HR - 41430 Samobor Tel: +385 1 333 0974 ESTONIA FUJITSU SERVICES OU Akadeemia tee 21G EE-12618 Tallinn...
  • Page 78 Consumer Information Centers MACEDONIA AMC - Computers kej Dimitar Vlahov bb MK - 1000 Skopje Tel: +389 2 3125097 www.amc.com.mk LITHUANIA ServiceNet LT Gaiziunu G. 3 LT - 3009 KAUNAS Tel: +370 7400088 Email: servisas@servicenet.lt www.servicenet.lt ROMANIA Blue Ridge Int'l Computers SRL 115, Mihai Eminescu St., Sector 2 RO - 020074 Bucharest Tel: +40 21 2101969...
  • Page 79 PL - 05-500 Piaseczno Tel: +48 22 7501766 Email: servmonitor@zolter.com.pl www.zolter.com.pl RUSSIA Tel: +7 095 961-1111 Tel: 8-800-200-0880 Website: www.philips.ru TURKEY Türk Philips Ticaret A.S. Yukari Dudullu Org.San.Bolgesi 2.Cadde No:22 34776-Umraniye/Istanbul Tel: (0800)-261 33 02 UKRAINE Comel Shevchenko street 32...
  • Page 80 Philips Antillana N.V. Vedia 3892 Capital Federal 1430 Buenos Aires Phone/Fax: (011)-4544 2047 BRASIL Philips da Amazônia Ind. Elet. Ltda. Rua Verbo Divino, 1400-São Paulo-SP CEP-04719-002 Phones: 11 21210203 -São Paulo & 0800-701-0203-Other Regions without São Paulo City CHILE Philips Chilena S.A.
  • Page 81 P.O. Box 605 Phone: (595 21) 664 333 Fax: (595 21) 664 336 Customer Desk: Phone: 009 800 54 1 0004 PERU Philips Peruana S.A. Customer Desk Comandante Espinar 719 Casilla 1841 Limab18 Phone: (01)-2136200 Fax : (01)-2136276 URUGUAY Rambla O'Higgins 5303 Montevideo...
  • Page 82 Consumer Information Centers AUSTRALIA Philips Consumer Electronics Consumer Care Center Level 1, 65 Epping Rd North Ryde NSW 2113 Phone: 1300 363 391 : +61 2 9947 0063 ZEALAND Philips New Zealand Ltd. Consumer Help Desk 2 Wagener Place, Mt.Albert P.O.
  • Page 83 600 006 NEW DELHI Customer Relation Centre 68, Shivaji Marg New Dehli 110 015 INDONESIA Philips Group of Companies in Indonesia Consumer Information Centre Jl.Buncit Raya Kav. 99-100 12510 Jakarta Phone: (021)-7940040 ext: 2100 Fax : (021)-794 7511 / 794 7539...
  • Page 84 PHILIPS ELECTRONICS & LIGHTING, INC. Consumer Electronics 48F PBCOM tower 6795 Ayala Avenue cor VA Rufino Salcedo Village 1227 Makati City, PHILS Phone: (02)-888 0572, Domestic Toll Free: 1-800-10-PHILIPS or 1-800-10-744 5477 Fax: (02)-888 0571 file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/WARRANTY/warcic.htm (9 of 11)2006-08-04 11:02:38 AM...
  • Page 85 Consumer Information Centers SINGAPORE Accord Customer Care Solutions Authorized Philips Service Center Consumer Service 620A Lorong 1 Toa Rayoh Singapore 319762 Tel: +65 6882 3999 Fax: +65 6250 8037 TAIWAN Philips Taiwan Ltd. Consumer Information Centre 13F, No. 3-1 Yuan Qu St., Nan Gang Dist.,...
  • Page 86 Telephone: +27 (0) 11 471 5194 Fax: +27 (0) 11 471 5123 E-mail: customercare.za@philips.com Middle East DUBAI Philips Middle East B.V. Consumer Information Centre P.O.Box 7785 DUBAI Phone: (04)-335 3666 Fax : (04)-335 3999 file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/WARRANTY/warcic.htm (11 of 11)2006-08-04 11:02:38 AM...

  • Page 87: Your International Guarantee

    In the event you require service whilst in another country a dealer address can be given to you by the Philips Consumer Help Desk in that country, the telephone and fax number of which can be found in the relevant part of this booklet.
  • Page 88 International Guarantee file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/WARRANTY/war_intl.htm (2 of 2)2006-08-04 11:02:44 AM...

  • Page 89: Who Is Covered

    Should you encounter any difficulties while installing or using this product, please contact Philips directly to benefit from your Philips F1rst Choice Warranty. This three-year service warranty entitles you to a swap model on-site within 48 hours of your call being received within the first year of purchase.
  • Page 90 Where IS SERVICE AVAILABLE? Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics. In countries where Philips Consumer Electronics does not distribute the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).
  • Page 91 Please contact Philips at: (800) 479-6696 Three years free parts and three years free labor will be provided at Philips Canada depot or any one of its authorized service centers. (In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose.
  • Page 92 The full address to which the swap model should be delivered. Just a phone call away Philips’ customer help desks are located worldwide. Within the U.S. you can contact Philips customer care Monday-Friday from 8:00 AM-9:00 PM Eastern Time (ET) and on Saturdays from 10:00 AM-5:00 PM ET hrs by using one of the contact phone numbers.

  • Page 93: Protect Your Investment

    IMPORTANT - RETURN WITHIN TEN DAYS Month Year Mail This Card Today To Get The Most From Your Purchase! ❏ No, I do not want to receive personalized offers about Philips products or other information from Philips in the future. 3135 015 07803 rev. 7/02...

  • Page 94: Warranty Registration Card

    PHILIPS Warranty Card 8/16/02 12:38 PM Page 2 IMPORTANT Warranty Registration Card RETURN THE ATTACHED CARD WITHIN TEN DAYS TO ENSURE YOUR: ✓ Warranty Verification ✓ Owner Confirmation See Inside For ✓ Model Registration Valuable Benefits!
  • Page 95 Glossary Glossary A B C D E G H I R S T U V W X Y Z Active matrix This is a kind of liquid crystal display structure in which switching transistors are attached to each pixel to control the on/off voltage. It produces a brighter and sharper display with a broader viewing angle than a passive matrix display.
  • Page 96 (degrees Kelvin). Lower Kelvin temperatures such as 2400° K are red; higher temperatures such as 9300° K are blue. Neutral temperature is white, at 6504° K. Philips monitors generally offers 9300° K, 6500° K, and user define. Contrast The luminance variation between light and dark areas in an image.
  • Page 97 Glossary D-SUB A VGA Analog input connector. Your monitor comes with a D-Sub cable. Digital Visual Interface (DVI) The Digital Visual Interface (DVI) specification provides a high-speed digital connection for visual data types that is display technology independent. The interface is primarily focused at providing a connection between a computer and its display device.
  • Page 98 Glossary Gamma Screen luminance as a function of video voltage approximately follows a mathematical power function of the input video signal, the exponent of which is called gamma. Grayscale An achromatic scale ranging from black through a series of successively lighter grays to white. Such a series may be made up of steps, which appear to be equally distant from one another.
  • Page 99 Glossary composed thousands of pixels which can be turned on or off with electrical stimulation. Thus, colorful images/texts can be generated. Liquid crystal The compound found in liquid crystal displays. Liquid crystal reacts predictably when electrically stimulated. This makes it the ideal compound to turn LCD pixels "on" or "off." Liquid crystal is sometimes abbreviated as LC.
  • Page 100 Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen.
  • Page 101 Glossary USB or Universal Serial Bus A smart plug for PC peripherals. USB automatically determines resources (like driver software and bus bandwidth) required by peripherals. USB makes necessary resources available without user intervention. USB eliminates "case anxiety" -- the fear of removing the computer case to install add-on peripherals.
  • Page 102 Glossary Device A logical or physical entity that performs a function. The actual entity described depends on the context of the reference. At the lowest level, device may refer to a single hardware component, as in a memory device. At a higher level, it may refer to a collection of hardware components that perform a particular function, such as a Universal Serial Bus interface device.
  • Page 103 Glossary Vertical refresh rate Expressed in Hz, it is the number of frames (complete pictures) written to the screen every second. RETURN TO TOP OF THE PAGE file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/200WP7/GLOSSARY/glossary.htm (9 of 9)2006-08-04 11:03:25 AM...

  • Page 104: Download And Print

    Download and Print Download and Print • Installing your LCD monitor driver • Download and Printing Instructions Installing Your LCD monitor driver • Installing FPadjust Program System requirements: PC running Windows 95, Windows® 98, Windows® 2000 , Windows® Me, Windows® XP or later Find your driver ".inf/.icm/.cat"...
  • Page 105 Download and Print To print the manual: 1. With the manual file open, follow your printer's instructions and print the pages you need. RETURN TO TOP OF THE PAGE Installing FPadjust Program The FP Adjust program generates alignment patterns which will help you adjust monitor settings such as CONTRAST, BRIGHTNESS, HORIZONTAL &...
  • Page 106 Download and Print RETURN TO TOP OF THE PAGE file:///D|/EDFU/LCD/200WP7/manual/ENGLISH/DOWNLOAD/download.htm (3 of 3)2006-08-04 11:03:32 AM...
