testo · Smart Probes
Instruction manual

Advertisement

Table of Contents
loading

Related Manuals for TESTO 0564 2552 01

Summary of Contents for TESTO 0564 2552 01

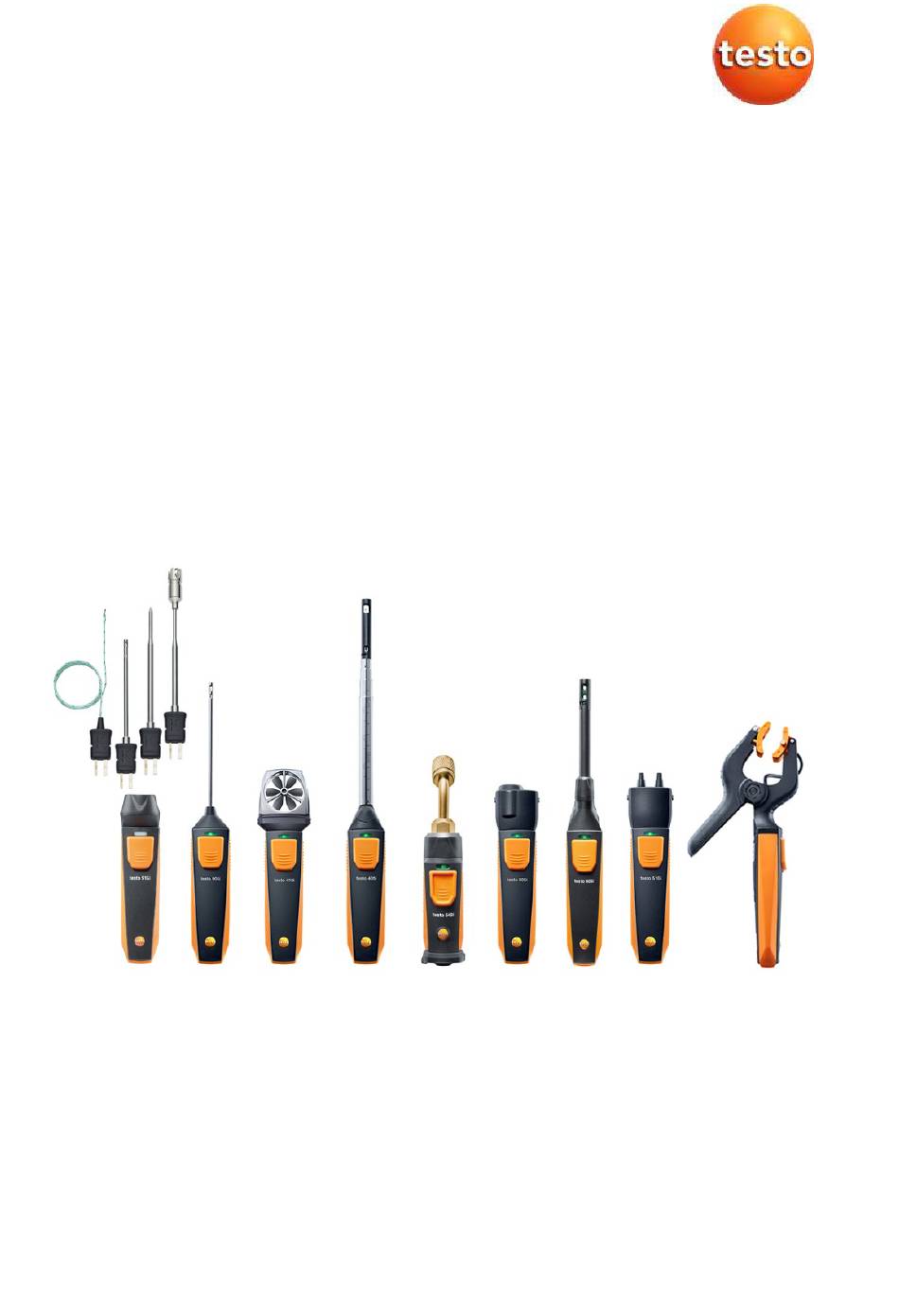

  • Page 1 · Smart Probes Instruction manual...

  • Page 3: Table Of Contents

    Safety and the environment ..............5 2.1. About this document ................ 5 2.2. Ensure safety................... 6 2.2.1. Safety and the testo 510i/605i/915i ................6 2.2.2. Safety and the testo 605i ..................... 6 2.2.3. Safety and the testo 549i/552i..................6 2.2.4.
  • Page 4 405i ........................21 9.2.4. testo 549i ........................22 9.2.5. testo 805i ........................23 9.2.6. testo 605i ........................24 9.2.7. testo 510i ........................24 9.2.8. testo 115i ........................25 9.2.9. testo 915i ........................26 9.2.10. testo 552i ........................27 Certifications ..................28...

  • Page 5: Safety And The Environment

    2 Safety and the environment Safety and the environment 2.1. About this document > Please read this documentation through carefully and familiarize yourself with the product before putting it to use. Pay particular attention to the safety instructions and warning advice in order to prevent injuries and damage to the products.

  • Page 6: Ensure Safety

    Not for condensing atmospheres. For continuous application in high humidity (> 80 %RH at ≤ 30 °C for > 12 h, > 60 %RH at > 30 °C for > 12 h), contact us via www.testo.com. • The sensor must not be exposed to volatile chemicals such as solvents (e.g.

  • Page 7: Safety And The Testo 805I

    2 Safety and the environment > Use with A2L refrigerants Testo measuring instruments (as of July 2020) can be used in compliance with the prescribed laws, standards, directives and safety regulations for refrigeration systems and refrigerants as well as regulations of the manufacturers of refrigerants of safety group A2L as per ISO 817.

  • Page 8: Specifications

    3 Specifications Specifications Testo Smart Probes are different hand-held measuring instruments for various applications that communicate with your mobile terminal devices by means of an app. The respective Smart Probe performs the measurement and is operated by your mobile terminal device.

  • Page 9: Product Description

    3 Key 4 Battery compartment (at the back) 5 Direction of flow testo 405i / testo 410i (not shown) (An arrow on the top of the housing displays the direction of flow in which the measuring instrument has been calibrated and which achieves the best measurement results.

  • Page 10: First Steps

    Establishing Bluetooth connection ® You need a tablet or smartphone with the Testo SMART App already installed on it to be able to establish a Bluetooth connection. You can get the App for iOS instruments in the App Store or for Android instruments in the Play Store.

  • Page 11: Transmitting Readings

    5 First steps The connection between the Smart Probe and your mobile terminal device is established. 5.3. Transmitting readings ✓ The Smart Probe is switched on and connected to your mobile terminal device via Bluetooth. The current readings are automatically displayed in the App.

  • Page 12: Using The App

    6 Using the App Using the App 6.1. Overview of operating controls Choice of applications. 2 Switch between the views (list, graphic diagram, table) 3 Display of connected Smart Probes including readings 4 Start/stop Measurement configuration (the menu changes depending on the Smart Probe connected and the application selected) Smart Probe configuration 6.2.

  • Page 13: Display Tutorial

    6 Using the App 6.2.2. Display Tutorial Tutorial guides you through the first steps when operating the Testo SMART App. 1. Tap -> Help & Information -> Tutorial Tutorial is displayed. In Tutorial, swipe to display the next page. 2. Tap X to close the Tutorial.

  • Page 14: Smart Probe Settings

    6 Using the App 6.4. Smart Probe settings 1. Press -> Sensors. 3. Select the Smart Probe to display the details you would like to see. A list with details about the Smart Probe appears in the Information tab. 4. You can activate the damping in the Settings tab.

  • Page 15: Testo 115I/915I - Surface Increment

    6 Using the App 6.5. testo 115i/915i - Surface increment Surface probes withdraw heat from the measured surface immediately after the initial contact. This makes the measurement result lower than the true surface temperature without the probe (or the reverse if the surface is colder than the environment).

  • Page 16: Settings View

    6 Using the App • Table view In the Table view, all readings are displayed in sequence according to date and time. The different readings from the ◄ ►. individual Smart Probes can be selected by pressing 6.7. Settings view 1.

  • Page 17: Pdf Export

    Create PDF with all readings is only possible up to 30 pages, due to the resulting file size and number of pages. In the testo DataControl software, however, PDF reports can be created for all measurements without any restrictions. ...

  • Page 18: Maintaining The Product

    > Keep connections clean and free of grease and other deposits, clean with a damp cloth as required. Ensuring measuring accuracy > Testo Customer Service would be glad to further assist you if you so wish. > Keep within the permissible measuring range! >...

  • Page 19: Tips And Assistance

    Designation Item number testo Smart Case (Refrigeration) for storing and transporting 0516 0240 2 × testo 115i and 2 × testo 549i, dimensions 250 × 180 × 70 mm testo Smart Case (Heating) for storing and transporting 0516 0270 testo 115i, testo 410i, testo 510i, testo 549i and testo 805i, dimensions 250 ×...

  • Page 20: Technical Data

    9.2. General technical data All accuracy specifications apply at a nominal temperature of 22 °C. 9.2.1. testo 905i Feature Values Measuring range -50 to 150 °C / -58 to 302 °F Accuracy ± 1 digit ±...

  • Page 21: Testo 410I

    9 Technical data 9.2.2. testo 410i Feature Values Measuring range 0.4 to 30 m/s / 80 to 5,900 fpm -20 to 60 °C / -4 to 140 °F Accuracy ± 1 digit ± (0.2 m/s + 2% of m.v.) (0.4 to 20 m/s) ±...

  • Page 22: Testo 549I

    Probe tip diameter 9 mm Directives, standards EU guideline: 2014/30/EU and tests RED: 2014/53/EU RoHS: 2011/65/EU + (EU) 2015/863 9.2.4. testo 549i Feature Values Measuring range 0 to 60 bar (rel) / 0 to 870 psi (rel) Overpressure 65 bar Accuracy ±...

  • Page 23: Testo 805I

    152 mm x 35 mm x 35 mm Directives, standards EU guideline: 2014/30/EU and tests RED: 2014/53/EU RoHS: 2011/65/EU + (EU) 2015/863 9.2.5. testo 805i Feature Values Measuring range -30 °C to 250 °C / -22 to 482 °F Accuracy ± 1 digit ±...

  • Page 24: Testo 605I

    9 Technical data 9.2.6. testo 605i Feature Values Measuring range -20 to 60 °C, -4 to 140 °F, 0 to 100% RH Accuracy ± 1 digit ±0.8 °C (-20 … 0 °C) / ±1.44 °F (-4 … 32 °F) ±0.5 °C (0 … +60 °C) / ±0.9 °F (32 … 140 °F) ±...

  • Page 25: Testo 115I

    148 × 36 × 23 mm Directives, standards EU guideline: 2014/30/EU and tests RED: 2014/53/EU RoHS: 2011/65/EU + (EU) 2015/863 9.2.8. testo 115i Feature Values Measuring range -40 to 150 °C / -58 to 302 °F Accuracy ± 1 digit ±...

  • Page 26: Testo 915I

    9 Technical data 9.2.9. testo 915i Feature Values Measuring range: -60 to +1000 °C handle (0560 1915) -76 to +1832 °F Measuring range with -50 to +400 °C TC probe 0602 1093 -58 to +752 °F Measuring range with -50 to +350 °C TC probe 0602 2093 -58 to +662 °F...

  • Page 27: Testo 552I

    129 x 31 x 31 mm Directives, standards EU Directive: 2014/30/EU and tests RED: 2014/53/EU RoHS: 2011/65/EU + (EU) 2015/863 9.2.10. testo 552i Feature Values Measuring range 0 to 26.66 mbar 0 to 20000 microns ±10 microns + 10% of m.v. (100 to 1000 microns) Accuracy ±...

  • Page 28: Certifications

    10 Certifications Certifications Module Lierda L Series BLE testo 115i, testo 405i, testo 410i, testo 510i, testo 549i, testo 605i, testo 805i, Product testo 905i 0560 1115, 0560 1405, 0560 1410, 0560 1510, 0560 1549, 0560 1605, 0560 1805, Mat.-No.
  • Page 29 CMIIT ID: 2015DP6561 testo 805i CMIIT ID: 2015DP6562 testo 905i CMIIT ID: 2015DP6563 The EU Declaration of Conformity can be found on the testo homepage www.testo.com under the product specific downloads. Europa + EU countries: EFTA Belgium (BE), Bulgaria (BG), Denmark (DK), Germany (DE), Estonia (EE), Finland (FI),...
  • Page 30 10 Certifications testo 905i see Japan Information Korea testo 115i Certification No. MSIP-CRM-Toi-115i testo 405i Certification No. MSIP-CRM-Toi-405i testo 410i Certification No. MSIP-CRM-Toi-410i testo 510i Certification No. MSIP-CRM-Toi-510i testo 549i Certification No. MSIP-CRM-Toi-549i testo 605i Certification No. MSIP-CRM-Toi-605i testo 805i Certification No.
  • Page 31 10 Certifications testo 510i TA-2016/1199 testo 549i TA-2016/1198 testo 605i TA-2016/1204 testo 805i TA-2016/1206 testo 905i TA-2016/1205 Bluetooth Bluetooth® Range 15 m (free field) SIG List (varies with the used mobile device) Bluetooth® type LSD Science & Technology Co., Ltd...
  • Page 32 10 Certifications television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. •...
  • Page 33 10 Certifications Module Lierda LSD4BT-S37 Product testo 115i, testo 549i, testo 605i Mat.-No. 0560 2115, 0560 2549, 0560 2605 Date 17.09.2020 The use of the wireless module is subject to the regulations and stipulations of the respective country of use, and the module may only be used in countries for which a country certification has been granted.
  • Page 34 10 Certifications The EU Declaration of Conformity can be found on the testo homepage www.testo.com under the product specific downloads. EU countries: Belgium (BE), Bulgaria (BG), Denmark (DK), Germany (DE), Estonia (EE), Finland (FI), France (FR), Greece (GR), Ireland (IE), Italy (IT), Latvia (LV), Lithuania (LT),...
  • Page 35 Values List Declaration ID D043363 member company Testo SE & Co. KGaA IC Warnings RSS-Gen & RSS-247 statement: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 36 10 Certifications For your own safety Shielded cables should be used for a composite interface. This is to ensure continued protection against radio frequency interference. FCC warning statement This equipment has been tested and found to comply with the limits for a Class C digital device, pursuant to Part 15 of the FCC Rules.
  • Page 37 E 1561 Canada IC ID: 6127B-05641552 See IC Warnings Europa + EFTA The EU Declaration of Conformity can be found on the testo homepage www.testo.com under the product specific downloads. EU countries: Belgium (BE), Bulgaria (BG), Denmark (DK), Germany (DE), Estonia...
  • Page 38 特征与参数 数值 Declaration ID D043363 member company Testo SE & Co. KGaA IC Warnings CAN ICES-003(B)/NMB-003(B): This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
  • Page 39 10 Certifications Co-Location: This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Attention : exposition au rayonnement de radiofréquences Cet équipement est conforme aux limites d'exposition aux radiofréquences IC fixées pour un environnement non contrôlé...
  • Page 40 10 Certifications keeping the radiator at least 20 cm or more away from person´s body in normal use position to ensure compliance with RF exposure requirement. Co-Location: This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. KCC Warning 해당...
  • Page 41 IC ID: 6127B-05601915 See ISED Warnings Europa + EFTA The EU Declaration of Conformity can be found on the testo homepage www.testo.com under the product specific downloads. EU countries: Belgium (BE), Bulgaria (BG), Denmark (DK), Germany (DE), Estonia (EE), Finland (FI), France (FR), Greece (GR), Ireland (IE),...
  • Page 42 数值 Declaration ID D043363 member company Testo SE & Co. KGaA EU SAR Information The SAR limit of Europe is 2.0 W/kg. The highest SAR value reported for 0560 1915 under testing standard for use in hand is 0.275W/kg. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 43 10 Certifications (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. ISED SAR warning: The highest SAR value reported under this standard during product certification for use in the hand is 0.450W/kg.
  • Page 44 10 Certifications FCC SAR warning: The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification of 0560 1915 (FCC ID:WAF-05601915) for use when properly worn in the hand is 0.450 W/kg.
  • Page 46 Testo SE & Co. KGaA Celsiusstraße 2 79822 Titisee-Neustadt Germany Telefon: +49 7653 681-0 E-Mail: info@testo.de Internet: www.testo.com 0970 4901 en 04...
