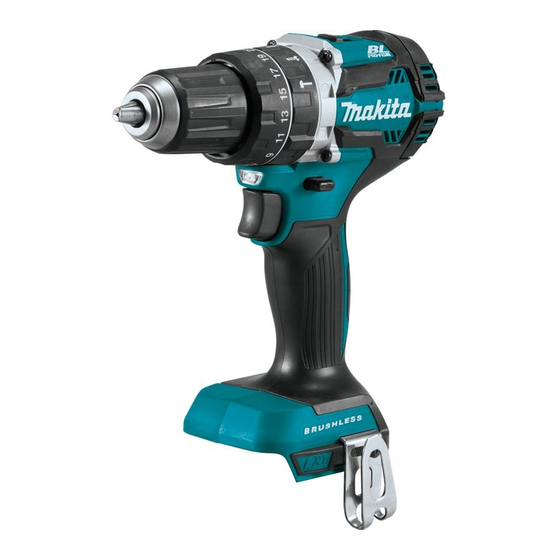

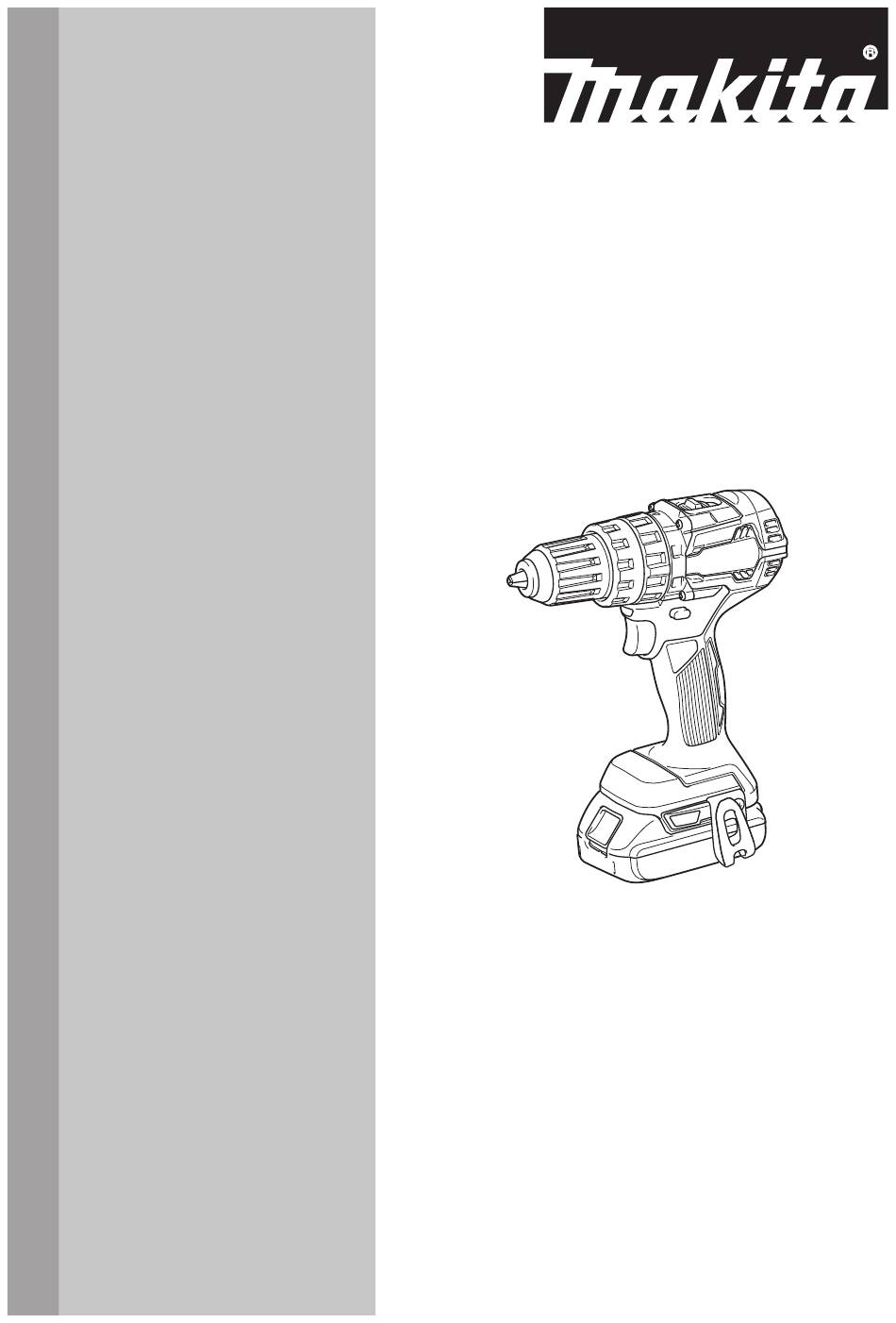

- Page 1 INSTRUCTION MANUAL Cordless Hammer Driver Drill XPH12 IMPORTANT: Read Before Using.
-
Page 2: Specifications
ENGLISH (Original instructions) SPECIFICATIONS Model: XPH12 Drilling capacities Masonry 13 mm (1/2") Steel 13 mm (1/2") Wood 38 mm (1/1/2") Fastening capacities Wood screw 10 mm x 90 mm (3/8" x 3-1/2") Machine screw M6 (1/4") No load speed (RPM) High (2) 0 - 2,000 /min Low (1) - Page 3 Remove any adjusting key or wrench before Under abusive conditions, liquid may be turning the power tool on. A wrench or a key left ejected from the battery; avoid contact. If con- attached to a rotating part of the power tool may tact accidentally occurs, flush with water. If result in personal injury.
-
Page 4: Tips For Maintaining Maximum Battery Life
Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting direct current causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger. no load speed Tips for maintaining maximum battery life revolutions or reciprocation per minute Charge the battery cartridge before completely discharged. -
Page 5: Overload Protection
To remove the battery cartridge, slide it from the tool NOTE: Depending on the conditions of use and the while sliding the button on the front of the cartridge. ambient temperature, the indication may differ slightly To install the battery cartridge, align the tongue on the from the actual capacity. battery cartridge with the groove in the housing and slip it into place. -
Page 6: Switch Action
This tool is equipped with an electric brake. If the tool age the tool. consistently fails to quickly stop after the switch trigger CAUTION: is released, have the tool serviced at a Makita service When not operating the tool, center. always set the reversing switch lever to the neu- tral position. -
Page 7: Adjusting The Fastening Torque
CAUTION: Always set the speed change lever fully to the correct position. If you operate the tool with the speed change lever positioned halfway between the "1" side and "2" side, the tool may be damaged. CAUTION: Do not use the speed change lever while the tool is running. The tool may be damaged. -
Page 8: Installing Hook
Installing driver bit holder ASSEMBLY Optional accessory CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool. Installing or removing driver bit/ drill bit Optional accessory ►... -
Page 9: Screwdriving Operation
NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. ► 1 . Blow-out bulb After drilling the hole, use the blow-out bulb to clean the dust out of the hole. 9 ENGLISH... -
Page 10: Optional Accessories
OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center. - Page 11 < USA only > WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: •...
