T&S B-0695 Installation And Maintenance Instructions Manual

T&S B-0695 Installation And Maintenance Instructions Manual

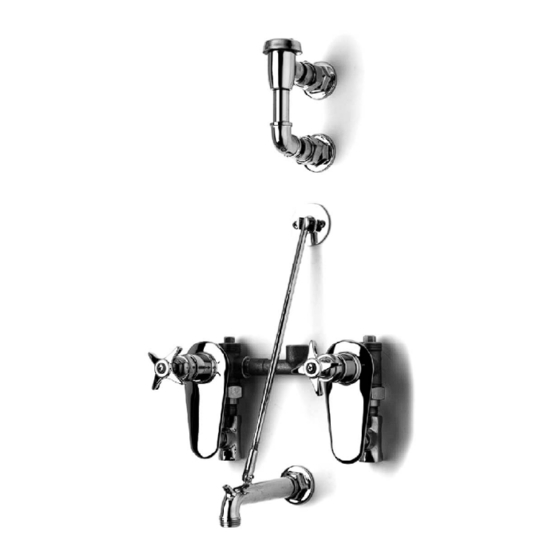

Service sink fittings with concealed by-pass mixing valves

Advertisement

Quick Links

Limited One Year Warranty
T&S warrants to the original purchaser (other than
for purposes of resale) that such product is free from
defects in material and workmanship for a period of
one (1) year from the date of purchase. During this
one-year warranty period, if the product is found to
be defective, T&S shall, at its options, repair and/
or replace it. To obtain warranty service, products
must be returned to...
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other transpor-
tation charges of the product to T&S and the return
of repaired or replaced product to the purchaser are
the responsibility of the purchaser. Repair and/or
replacement shall be made within a reasonable time
after receipt by T&S of the returned product. This
warranty does not cover Items which have received
secondary finishing or have been altered or modi-
fied after purchase, or for defects caused by physi-
cal abuse to or misuse of the product, or shipment
of the products.
Any express warranty not provided herein, and
any remedy for Breach of Contract which might arise,
is hereby excluded and disclaimed. Any implied
warranties of merchantability or fitness for a particu-
lar purpose are limited to one year in duration. Under
no circumstances shall T&S be liable for loss of
use or any special consequential costs, expenses
or damages.
Some states do not allow limitations on how long
and implied warranty lasts or the exclusion or limi-
tation of incidental or consequential damages, so
the above limitations or exclusions may not apply
to you. Specific rights under this warranty and other
rights vary from state to state.
P/N: 098-005910-45 Rev.2
Date: 980504
Drawn: CW
Checked: MAB
7-23-98
Approved: MVW
7-23-98
Installation and
Maintenance
Instructions
B-0695
Service Sink
Fittings with Concealed
By-Pass Mixing Valves
Deutsch:
Installations- und
Wartungsanleitungen
Español:
la Instalación y las
Instrucciones de
Mantenimiento
Français:
les Instructions
d'Installation et
d'Entretien

Advertisement

Table of Contents
loading

Summary of Contents for T&S B-0695

  • Page 1 B-0695 of the products. Service Sink Any express warranty not provided herein, and...
  • Page 2: Exploded View

    Exploded View Some items are listed for instructional purposes and may not be sold as separate parts.
  • Page 3 Part Number Guide Vacuum Breaker Asm, Vacuum Breaker B-0929-A Asm, Coupling Flange 002893-40 Washer, Coupling Nut 001019-45 Mixing Valve Assembly Asm, By-Pass Mixing Valve B-1035 Body, Valve Asm, Spindle (Eterna) Hot 005960-40 Escutcheon Tube Escutcheon Set Screw, Escutcheon Flange Loose Key Stop 009745-45 Nipple, Close 1/2"...
  • Page 4: General Instructions

    General Instructions Installation: (Vacuum Breaker) 5. (For B-0695 ST and B-0696 ST models, add no.10 by using no.11 to 1. Drill holes 3-3/4” center-to-center in join the couplings together.) wall where you will be installing no.1. Make connections to no.4 Note: Please consult applicable B-0695: 1/2”...
  • Page 5: Instrucciones Generales

    Instrucciones Generales 5. (Para modelos B-0695 ST y B-0696 Instalación: (Anti-sifón) ST, agrege la parte No.10 usando la 1. Perfore huecos de 9.5cm de centro a parte No.11 para unir los enganches.) centro en la pared donde la parte No.1 Para Hacer Conecciones a la parte No.4:...
  • Page 6: Instructions Générales

    Instructions Générales L’Installation: La Vanne- 5. (Pour les modeles B-0695 et B-0696 ST, ajouter Nº.10 en utilisant Nº.11 Caisse-Vide pour joindre les raccords ensemble) 1. Percer les trous 9.5cm de centre-à- centre où vous aller installer Nº.1. Faire les branchements à Nº.4: Noter: Prier consulter les codes B-0695: les arrivèes unions IPS (Iron Pipe...
  • Page 7: Allgemeine Anleitungen

    Allgemeine Anleitungen Installation: 5. (Für die Modelle B-0695 ST und Vakuumunterbrecher B-0696 ST Nr. 10 hinzufügen und Nr. 1. Löcher, die von Mitte zu Mitte 9,5 11 verwenden, um die Kupplungen cm entfernt sind, in die Wand bohren, miteinander zu verbinden.
  • Page 8 Flow diagram B-0929A Plumbing supplied Vacuum by others Breaker Wall Upper Nozzle Support Spindle Assembly Concealed By-Pass Mixing Valve Escutcheon Support Rod B-0416 Stop Spout Water Supply Inlet T&S BRASS AND BRONZE WORKS, INC. A firm commitment to application-engineered plumbing products 2 Saddleback Cove, P.O.
  • Page 9 Installation and Maintenance Instructions Limited One Year Warranty T&S warrants to the original purchaser (other than for purposes of resale) that such product is free from defects in material and workmanship for a period of one (1) year from the date of purchase. During this one-year warranty period, if the product is found to be defective, T&S shall, at its options, repair and/ or replace it.
  • Page 10 Exploded View Some items are listed for instructional purposes and may not be sold as separate parts.
  • Page 11 Part Number Guide Mixing Valve Assembly Asm, Concealed By-Pass Mixing Valve B-1030 Body, Valve Chamber Mix, 8" Set Screw, Escutcheon Flange Escutcheon Escutcheon Tube Asm, Spindle Eterna - Hot 005960-40 Handle, 4-Arm Kitchen 002521-45 Index Button, Blue - Cold 001660-45 Index Button, Red - Hot 001661-45 Screw, Lever Handle...
  • Page 12 General Instructions Installation: 1. Shut off water supply and drain lines. Drill (2) two holes, approxi- mately 1-3/8” [34 cm] diameter in wall with 8” [20 cm] center to center. 8” [20 cm] 1/2” 1/2” 3/4” IPS supply supply supply line to l i n e l i n e...
  • Page 13 Instrucciones Generales Instalación: 1. Cierre la fuente de agua y desagüe las tuberias. Perfore (2) dos huecos, aproximadamente de 1-3/8” [34 cm] de díametro en la pared con distancia de 8” [20 cm] de centro a centro. 8” [20 cm] 1/2”...
  • Page 14 Instructions Générales Installation: 1. Fermer la réserve de l’eau et égoutter la tuyauterie. Percer deux (2) trous avec un diamètre environ 34 cm. avec 20cm. de centre à centre. 8” [20 cm] 1/2”tuyau 1/2”tuyau 3/4” tuyau qui fournir qui fournir qui fournir l’eau NPT l’eau NPT...
  • Page 15 Allgemeine Anleitungen Installation: 1. Wasserzulauf absperren und Leitungen entleeren. Zwei ungefähr 3,4 cm große Löcher mit einem Mittenabstand von 20cm in die Wand bohren. 8” [20 cm] 1,75 cm IPS- 1,25 cm 1,25 cm Zuflußrohr NPT- NPT- zur Wanne Zuflußrohr Zuflußrohr 4.
  • Page 16 RELATED T&S BRASS PRODUCT LINE B-1030 Concealed By- Pass Mixing Valve B-1065 Combination Bath and Shower Fitting T&S BRASS AND BRONZE WORKS, INC. A firm commitment to application-engineered plumbing products 2 Saddleback Cove, P.O. Box 1088, T & S Brass-Europe Travelers Rest, SC 29690 ‘De Veenhoeve’...
  • Page 17: Installation And Maintenance Instructions

    Installation and Maintenance Instructions Limited One Year Warranty T&S warrants to the original purchaser (other than for purposes of resale) that such product is free from defects in material and workmanship for a period of one (1) year from the date of purchase.
  • Page 18 Exploded View 3/8" Vacuum Breaker 1/2" Vacuum Breaker Repair Kit Repair Kit B-0968-RK01 B-0969-RK01 B-0968 (3/8") B-0969 (1/2") Some items are listed for instructional purposes and may not be sold as separate parts.
  • Page 19 Part Number Guide B-0968 Vacuum Breaker Assemblies & Kit Screws Nameplate Coverplate Insert Large O-Ring Small O-Ring Piston Body, Vacuum Breaker 3/8” (*) Indicates those items that are included in the B-0968-RK01 Vacuum Breaker Repair Kit B-0969 Vacuum Breaker Assemblies & Kit Screws Nameplate Coverplate...
  • Page 20 General Instructions Typical Installation: Note: Where the device is a separate unit, in the absence of a Single Vacuum Breaker Critical Installation Level (CIL) mark, the extreme bottom of the 1. Vacuum breaker must be installed no.8 casting should be used to with the supply connected to the bot- determine its installed position.
  • Page 21 General Instructions Typical Installation: B-0968-RK01 (Kit) Follow the instructions in the Single 3/8” Vacuum Breaker Vacuum Breaker section, step 1 thru step 5. Two typical T&S unit installations will look as follows: B-0929 Atmospheric Vacuum Breaker Assembly B-0969-RK01 (Kit) 1/2” Vacuum Breaker B-0657 Service Sink Faucet...
  • Page 22 Instruccione Generales Instalación Típica: Nota: Donde el aparato sea una unidad separada, en la ausencia Anti-sifón singular de la marca (CIL) que signifi ca 1. La válvula anti-sifón tiene que ser nivel crítico de instalación, el lado instalada, con la fuente surtidora en la extremo posterior de la parte No.8 parte posterior y la salida conectada a debe ser utilizado para determinar...
  • Page 23 Instruccione Generales Instalción Típica: 3. Destornille y remueva las partes No.4, No.5, No.6 y No.7 del interior Siga las instrucciones en la sección de la parte No.8. de anti-sifón singular, los pasos del 1 al 5. 4. Reemplaze con partes nuevas del estuche de reparo.
  • Page 24 Instructions Générales L’Installation Typique: Noter: Si le dispositif être un élé- ment séparé, avec l’absence d’une La Vanne-Caisse-Vide ligne du Niveau de L’Installation 1. La vanne-caisse-vide devoir Critique (CIL), le fond extrême de être installer avec l’alimentation la coulée de N°.8 devoir être utiliser brancher au fond et la sortie brancher pour déterminer sa position instal- à...
  • Page 25 Instructions Générales L’Installation Typique: B-0968-RK01 (Trousse) 0,96 cm Suivre les instructions dans la sec- tion de la vanne-caisse-vide, de l’étape 1 jusqu’ à l’étape 5. Deux installations typiques des élé- ments de T&S aller avoir l’aspect comme indiqué au-dessous: B-0929 la Vanne-Caisse- Vide Atmosphérique B-0969-RK01 1/2”...
  • Page 26 Allgemeine Anleitungen Normale Installation: Anmerkung: Falls das Gerät eine sepa- Einfacher Vakuumschalter rate Einheit ist, ist, falls eine kritische Einbauebene fehlt (CIL), nach der 1. Bei der Installation des Vakuum- Installation der äußerste untere Rand schalters muß die Zuführung wie des Gußstückens Nr.8 zur Festlegung gezeigt mit dem unteren Ende, und seiner Lage zu verwenden.
  • Page 27 Allgemeine Anleitungen Normale Installation: B-0968-RK01 0,96 cm (Instandsetzungssatz) Die Anleitungen fur den einfachen Vakuumschalter, Schritt 1 bis 5, befolgen. Die Installation von zwei typischen T&S Einheiten sieht wie folgt aus: B-0929 Atmosphariche Vakuu- mechalicrvorrichtung B-0969-RK01 1/2” B-0657 Ausgußhahn- vorrichtung Instandsetzungssatz: 1.
  • Page 28 RELATED T&S BRASS PRODUCT LINE B-0965 Atmospheric Vacuum Breaker Assembly with Exposed Outlet B-0929 Atmospheric Back Flow Preventer B-0456 Atmospheric Vacuum Breaker Assembly T&S BRASS AND BRONZE WORKS, INC. A fi rm commitment to application-engineered plumbing products 2 Saddleback Cove, P.O. Box 1088, T &...
