BATTERIES, CHARGERS, AND OTHER ACCESSORIES Use only batteries, chargers, and other accessories approved by Microsoft Mobile for use with this device. Third-party chargers that comply with the IEC/EN 62684 standard, and that can connect to your device micro USB connector, may be compatible. Do not connect incompatible products.
Page 3
remove the broken glass from the device. Stop using the device until the glass is replaced by qualified service personnel. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use.

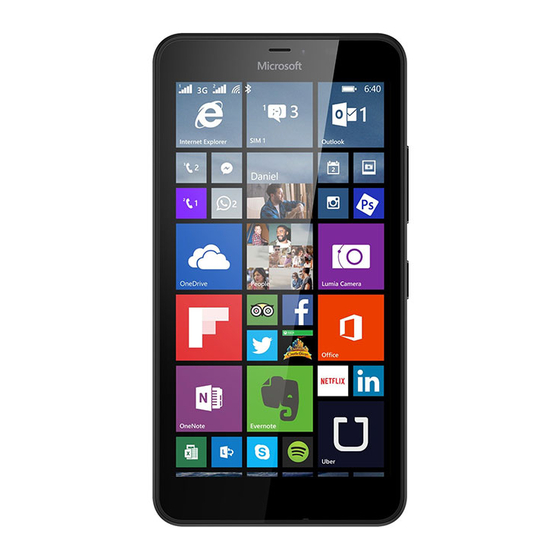

Keys and parts Front camera Earpiece Volume keys Power/Lock key Microphone Micro-USB connector Audio connector AHJ 3.5 mm Camera lens Camera flash Loudspeaker Antenna area Some of the accessories mentioned in this user guide, such as charger, headset, or data cable, may be sold separately.
Get started Before you start using your phone, remove the back cover and battery to insert the micro-SIM cards (also known as mini-UICC cards). Remove the back cover and battery Make sure the phone is switched off. 1. At the top corner of the phone, put your finger in the seam between the screen frame and the back cover.
Insert the SIM and memory card 1. Slide the micro-SIM card into the SIM slot with the metal contact area down. 2. If you have a second SIM card, slide it into the SIM2 slot. 3. If you have a memory card, slide the card into the memory card slot.
Replace the battery and back cover 1. Line up the battery contacts, and put the battery 2. Press the bottom edge of the back cover against the bottom edge of your phone, and snap the cover into place. Charge the battery Plug a compatible charger into a wall outlet, and connect the micro-USB end to your phone.
1. To switch your phone on, press and hold the power key, and follow the instructions shown on your phone. 2. When asked, create your Microsoft account if you don’t have one already, or sign in with your existing Xbox, Hotmail, or Outlook username and password.
Page 10
Explore your tiles and apps The start screen is the main view of your phone. Pin shortcuts to apps, contacts, browser bookmarks, and more, and arrange and resize the tiles. Some tiles may show you notifications and updates. The apps menu is the home to all your apps. To go to the apps menu from the start screen, swipe left.
Navigate by touch To use your phone, simply swipe, tap, or tap and hold the screen. Swipe Place your finger on the screen, and slide your finger in the direction you want. For example, to open the action centre, place a finger at the top of the screen, and slide it down.
+Tips app, or go to www.microsoft.com/mobile/ switch-easy. Tip: If your old phone is a Lumia phone and you've backed up the content and settings to your Microsoft account, sign in to your Microsoft account on your new phone to get the backup.
Make sure to keep the Lumia Help +Tips app up to date. For the online user guide, even more info, and troubleshooting help, go to www.microsoft.com/ mobile/support/. If your phone doesn’t respond To restart the phone without losing your data and settings, press and hold the power key for about 10 seconds.
You can also find the info on your phone label, which is located under the back cover. Product and safety info For info on Microsoft Mobile Service terms and Privacy policy, go to www.microsoft.com/mobile/privacypolicy. Network services and costs You can only use your device on the WCDMA 850, 900, 1900, 2100; and GSM 850, 900, 1800, 1900 MHz networks.
Page 15
• When you switch your phone on for the first time, you are asked to create your Microsoft account and set up your phone. To make an emergency call during the account and phone setup, tap emergency call.
Always keep the battery between 15°C and 25°C (59°F and 77°F) for optimal performance. Extreme temperatures reduce the capacity and lifetime of the battery. A device with a hot or cold battery may not work temporarily. Accidental short-circuiting can happen when a metallic object touches the metal strips on the battery.
Accessibility solutions Microsoft Mobile is committed to making mobile phones easy to use for all individuals, including those with disabilities. For more information, visit aka.ms/phoneaccessibility. Hearing Warning: When you use the headset, your ability to hear outside sounds may be affected. Do not use the headset where it can endanger your safety.
possible. Suspend calls in heavy traffic or hazardous weather. Get to know your cellular phone and its features and make any necessary information inputs prior to driving. Do not input data or engage in text messaging while driving. Cellular telephones should not be used when use may be a distraction to the driver.
To provide the service described above, your mobile phone number, the serial number of your phone, and some identifiers of the mobile subscription may be sent to Microsoft Mobile when you use the phone for the first time. This information may be used as specified in the privacy policy, available at www.microsoft.com/mobile.
Copyrights and other notices Declaration of Conformity Hereby, Microsoft Mobile Oy declares that this RM-1077 product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at www.microsoft.com/mobile/declaration- of-conformity.
Nokia Inc. provides this Manufacturer's Limited Warranty (“Warranty”) for genuine product (the “Product”) which has been released for sale in the United States of America, and Microsoft Mobile Canada Inc. provides this Warranty for Product which has been released for sale in Canada (“Covered Countries”).
Page 23
Some Manufacturer software may be subject to separate license terms that are available with the software or your local section of www.microsoft.com/mobile. Please always back up all data and content stored on your Product before taking your Product in for service since service activities will erase all data from your Product.
Page 24
You must send any Notice of Dispute by U.S. Mail to Nokia Inc., ATTN: LCA ARBITRATION, One Microsoft Way, Redmond WA 98052-6399. A form is available at go.microsoft.com/fwlink/?linkid=245499. Manufacturer will send any Notice of Dispute to you by U.S.
Page 25
Disputes will also apply. For more information, see www.adr.org or call 1-800-778-7879. To commence arbitration, submit the form available at go.microsoft.com/fwlink/?linkid=245497 to the AAA. You agree to commence arbitration only in your county of residence (or if a business your principal place of business) or in King County, Washington.
Page 26
7. OTHER IMPORTANT NOTICES For further information on your Warranty, as well as information needed to process your warranty queries, please visit www.microsoft.com/ mobile. All parts of this Limited Warranty apply to the maximum extent permitted by law or unless prohibited by law.
Page 27
Canada: Microsoft Mobile Canada Inc., 1950 Meadowvale Blvd., Mississauga, ON L5N 8L9...
