TV/DVD Combination
PV-20DF25
PV-27DF25
PV-27DF5
PV-20DF25-K
PV-27DF25-K
© 2005 Matsushita Kotobuki Electronics Industries
LTD. All rights reserved. Unauthorized copying and
distribution is a violation of law.
ORDER NO. MKE0503601C1
B6, B22

Advertisement

Table of Contents
loading

Related Manuals for Panasonic PV-20DF25

Summary of Contents for Panasonic PV-20DF25

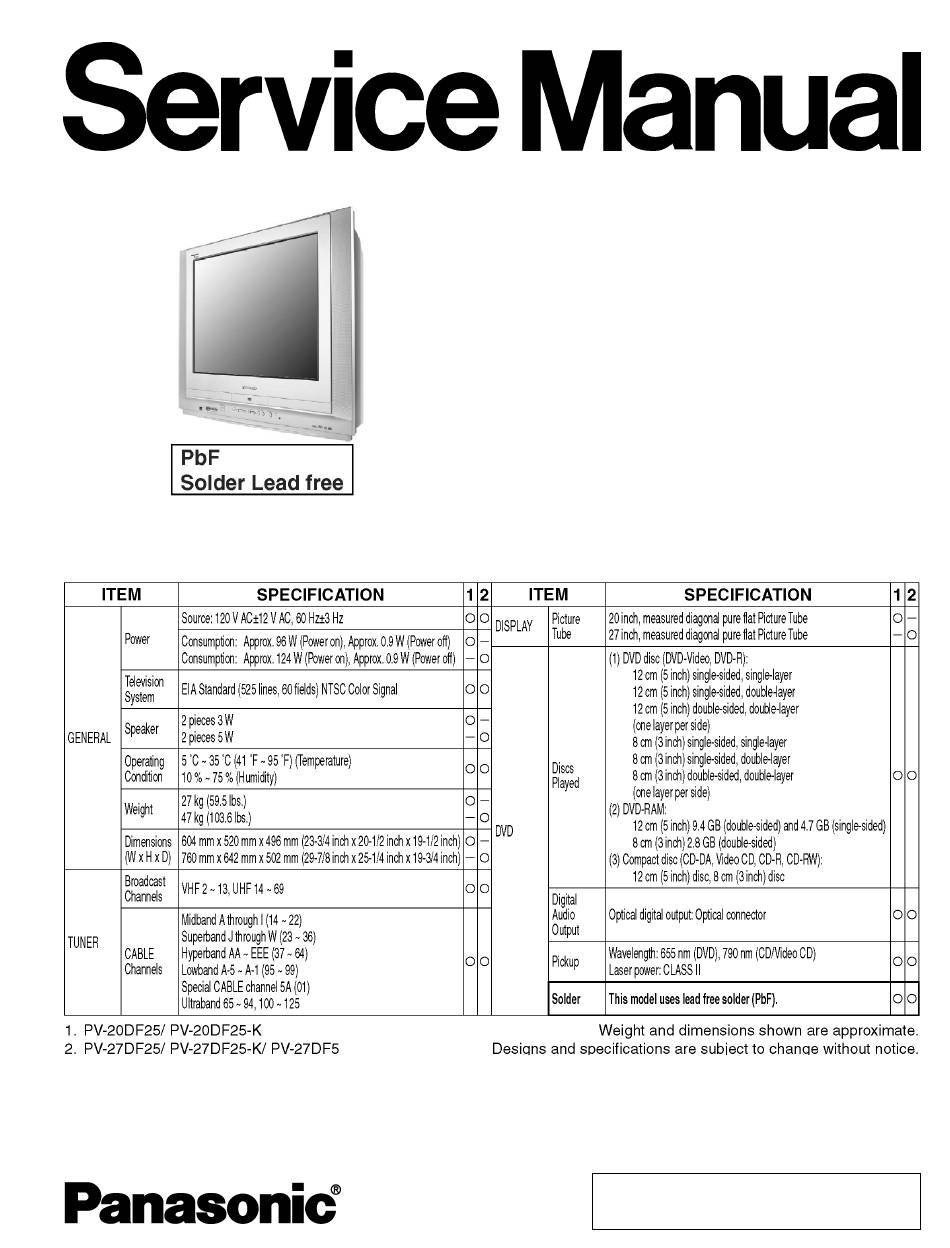

  • Page 1 ORDER NO. MKE0503601C1 B6, B22 TV/DVD Combination PV-20DF25 PV-27DF25 PV-27DF5 PV-20DF25-K PV-27DF25-K © 2005 Matsushita Kotobuki Electronics Industries LTD. All rights reserved. Unauthorized copying and distribution is a violation of law.
