EWW1686SWD
EN
Washer Dryer
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Electrolux EWW1686SWD

Summary of Contents for Electrolux EWW1686SWD

  • Page 1 EWW1686SWD Washer Dryer User Manual...

  • Page 2: Table Of Contents

    17. TECHNICAL DATA..................32 WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.

  • Page 3: Safety Information

    ENGLISH SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.
  • Page 4 Connect the mains plug to the mains socket only at • the end of the installation process. Make sure that the mains plug is accessible after installation. The ventilation opening in the base must not be •...

  • Page 5: Safety Instructions

    ENGLISH Do not dry unwashed items in the wash dryer. • Items such as foam rubber (latex foam), shower caps, • waterproof textiles, and rubber backed articles and clothes, or pillows fitted with foam rubber pads should not be dried in the washer dryer. Fabric softeners, or similar products, should only be •...
  • Page 6 • Do not install or use a damaged • This appliance is for household use appliance. only. • Do not install the appliance where the • Do not put flammable products or appliance door cannot be fully items that are wet with flammable opened.

  • Page 7: Product Description

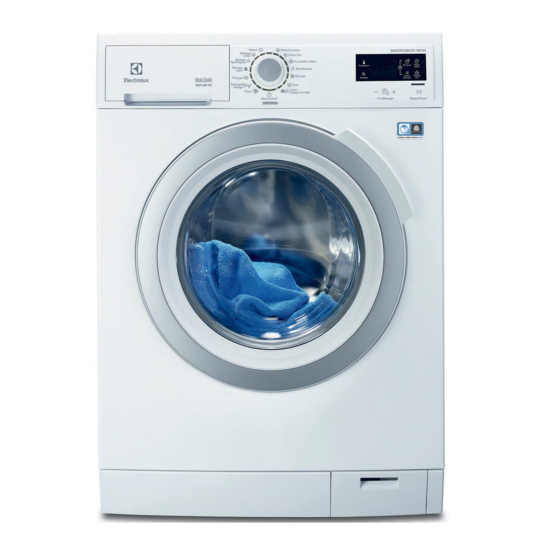

    ENGLISH 3. PRODUCT DESCRIPTION 3.1 Appliance overview Worktop Detergent dispenser Control panel Door handle Rating plate Drain pump filter Feet for levelling the appliance 3.2 Fixing plate kit Read carefully the instructions supplied with the accessory. (4055171146) Available from your authorised dealer. If you install the appliance on a plinth, secure the appliance in the fixing plates.
  • Page 8 Display Start/Pause touch button (Start/ Pause) Drying time touch button (Drying time) Time Manager touch button (Time Manager) Delay start touch button (Delay Start) Prewash touch button (Prewash) Drying level touch button (Drying level) 4.2 Display A. The Temperature area:...

  • Page 9: Programmes

    ENGLISH 5. PROGRAMMES 5.1 Programme Chart Programme Maximum load Programme description Temperature range Maximum spin (Type of load and soil level) speed Washing programmes 8 kg White cotton and coloured cot‐ 1600 rpm ton. Normal, heavy and light soil. Cottons 90°C - Cold 8 kg White cotton and fast-coloured...
  • Page 10 Programme Maximum load Programme description Temperature range Maximum spin (Type of load and soil level) speed 8 kg To spin the laundry and to drain 1600 rpm the water in the drum. All fabrics, Spin/Drain except woollens and delicate fabrics.
  • Page 11 ENGLISH Programme Maximum load Programme description Temperature range Maximum spin (Type of load and soil level) speed 1.5 kg Steam programme for dewrinkling or refreshing cotton and synthet‐ Steam ic items. Press the Time Manager buttons to select one of the available cycles: •...
  • Page 12 5.2 Automatic drying Dryness Level Type of fabric Load Cottons and Linen up to 6 kg Extra Dry (bathrobes, bath towels, For towelling materials etc) Cottons and Linen up to 6 kg Cupboard Dry (bathrobes, bath towels, For items to be stored...

  • Page 13: Consumption Values

    ENGLISH Dryness Level Type of fabric Load Spin Suggested (kg) speed duration (rpm) (mins) Iron Dry Cottons and Linen 1600 150 - 170 Suitable for ironing (sheets, tablecloths, shirts, 1600 85 - 105 etc) 1600 55 - 65 5.4 Woolmark Apparel Care - washed according to the instructions on the garment label and those issued Blue...

  • Page 14: Options

    Programmes Load Energy Water con‐ Approximate pro‐ (kg) con‐ sumption gramme duration sumption (litre) (minutes) (kWh) Cottons 60°C 1.60 1.03 Cottons Eco Cottons 40°C 1.00 Synthetics 40°C 0.60 Delicates 40°C 0.70 Wool/Handwash 30°C 0.35 1) This programme at 60 °C with a load of 8 kg is the reference programme for energy label data, in compliance with UAE.

  • Page 15: Settings

    ENGLISH Use this option for heavy soil. When you set this option the programme duration increases. The related indicator comes on. 7.6 Drying level With this option you can set an automatic ■ ■ ■ level of dryness for the laundry. The display shows the symbol of the set ■...

  • Page 16: Before First Use

    8.3 Acoustic signals If you deactivate the acoustic signals, they The acoustic signals operate when: continue operate when the • The programme is completed. appliance has a malfunction. • The appliance has a malfunction. To deactivate/activate the acoustic signals, press at the same time for 6 seconds.
  • Page 17 ENGLISH 10.3 Detergent compartments CAUTION! Use only specified detergents for washing machine. Always obey the instructions that you find on the packaging of the detergent products. Detergent compartment for prewash phase. Detergent compartment for washing phase. Compartment for liquid additives (fabric conditioner, starch). Flap for powder or liquid detergent.
  • Page 18 • Position A for powder detergent (factory setting). • Position B for liquid detergent. When you use the liquid detergent: • Do not use gelatinous or thick liquid detergents. • Do not put more liquid then the maximum level.
  • Page 19 ENGLISH 10.9 Interrupting a programme After approximately 15 and changing the options minutes from the start of the programme: You can change only some options • The appliance adjusts before they operate. automatically the programme duration 1. Press agree with the laundry The indicator flashes.

  • Page 20: Daily Use - Drying Only

    10.12 At the end of the The appliance drains and programme spins automatically after approximately 18 hours • The appliance stops automatically. (except for Wool • The acoustic signal operates (if it is programme). activated). • In the display comes on.
  • Page 21 ENGLISH • The display shows the set time To have a good drying performance do not exceed value: for example the maximum drying loads • After some seconds the display recommended in the user shows a new time value: . The manual.

  • Page 22: Daily Use - Washing & Drying

    12. DAILY USE - WASHING & DRYING 2. Press to start the programme. WARNING! In the display the indicator of the set Refer to Safety chapters. dryness level stays on. This appliance is an The door locked indicator goes on.

  • Page 23: Hints And Tips

    ENGLISH 3. Close the water tap. • After the drying phase, clean the empty drum, the gasket and the door 12.5 Fluff in the fabrics with a wet cloth. During the washing and/or drying phase, 12.6 How to remove the fluff in some types of fabric, (sponge, wool, the garments sweatshirt) could release fluff.
  • Page 24 13.7 Items not suitable for • To help the environment, do not use more than the correct quantity of drying detergent. • Obey the instructions that you find on Do not set a drying programme for the on packaging of these products.

  • Page 25: Care And Cleaning

    ENGLISH 13.11 General Tips 1. Use fabric conditioner in the washing cycle. Refer to the «Drying programmes» table 2. Use special fabric conditioner for to find the average drying times. tumble dryers. Experience will help you to dry the When the drying programme is laundry better.
  • Page 26 14.5 Cleaning the detergent dispenser 14.6 Cleaning the drain filter Do not clean the drain filter if the water in the appliance is hot. Regularly check the drain pump filter and make sure that it is clean. Repeat the steps 2 and 3 until the water stops flowing out.
  • Page 27 ENGLISH 180°...
  • Page 28 Always keep a rag nearby to Make sure that the impeller dry up any water spillage. of the pump can rotate. If it does not rotate, contact the Authorised Service Centre. Make sure also that you tighten the filter correctly to prevent leakages.

  • Page 29: Troubleshooting

    ENGLISH WARNING! Make sure that the temperature is higher than 0 °C before you use the appliance again. The manufacturer is not responsible for damages caused by low temperatures. 15. TROUBLESHOOTING WARNING! Refer to Safety chapters. 15.1 Introduction The appliance does not start or it stops during operation.
  • Page 30 15.2 Possible failures Problem Possible solution • Make sure that the mains plug is connected to the mains socket. • Make sure that the appliance door is closed. • Make sure that there is not a damaged fuse in the fuse The programme does box.
  • Page 31 ENGLISH Problem Possible solution • Make sure that the couplings of the water hoses are tight and there is not water leakages. There is water on the • Make sure that the water inlet hose and the drain hose floor. have no damages.

  • Page 32: Emergency Door Opening

    After the check, activate the appliance. The programme continues from the point of interruption. If the problem occurs again, contact the Authorised Service Centre. If the display shows other alarm codes. Deactivate and activate the appliance. If the problem continues, contact the Authorised Service Centre.
  • Page 33 ENGLISH Cold water Water supply Water supply pressure Minimum 0,5 bar (0,05 MPa) Maximum 8 bar (0,8 MPa) Maximum wash load Cotton 8 kg Maximum dry load Cotton 6 kg Synthetics 3 kg Spin Speed Maximum 1600 rpm 1) Connect the water inlet hose to a water tap with a 3/4'' thread. 18.
  • Page 34 www.electrolux.com...
  • Page 35 ENGLISH...
  • Page 36 www.electrolux.com/shop...
