Summary of Contents for Elation DMX-BRANCH/4

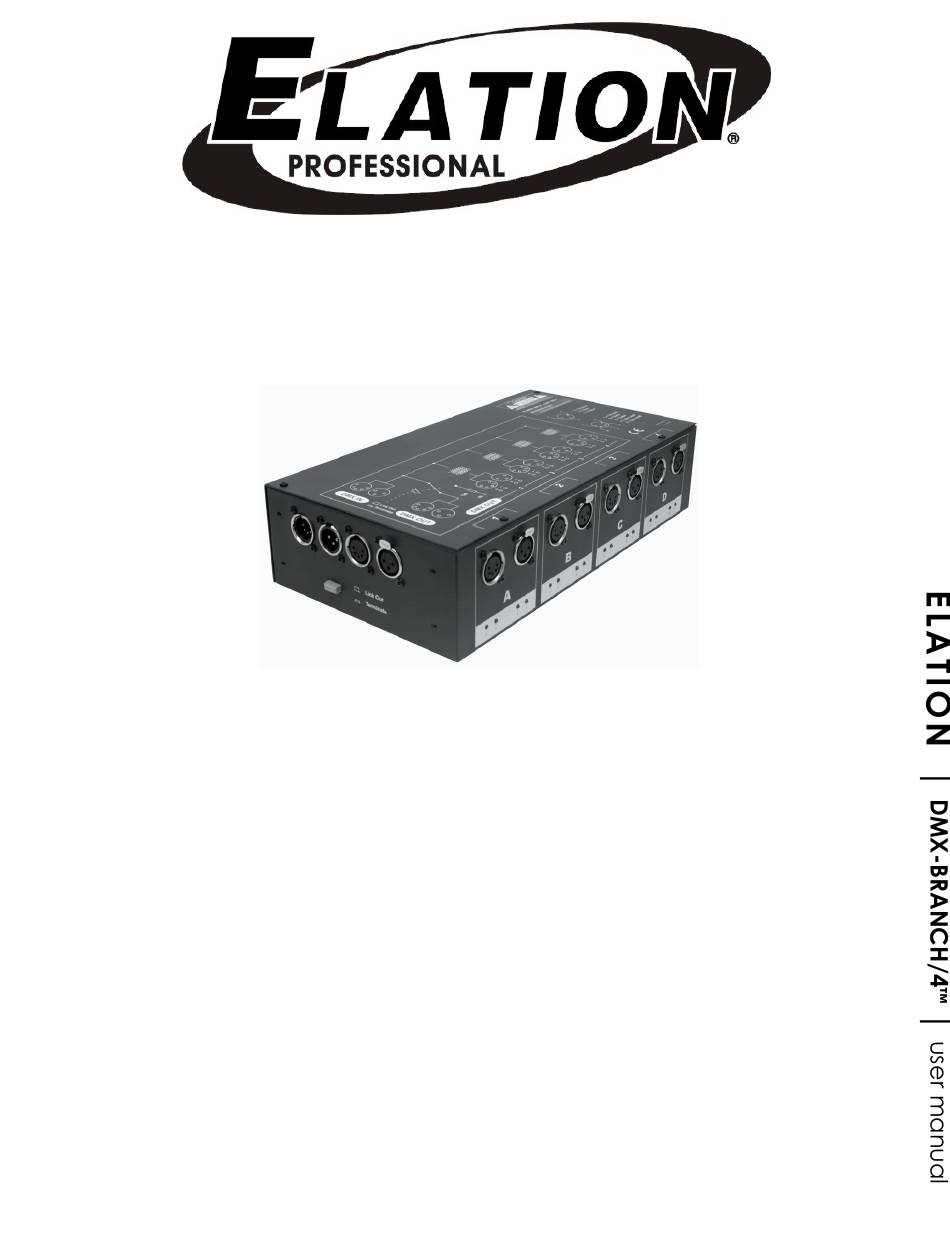

- Page 1 DMX-BRANCH/4™ user manual ...
- Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.
- Page 3 . e l a t i o n l i g h t i n g . c o m C O N T E N T S General Information Warranty Safety Instructions General Guidelines Fixture Overview Device Operation Maintenance Technical Specifications Optional Accessories DMX-BRANCH/4™ User Manual...
- Page 4 Please do not discard the shipping carton in the trash. Please recycle whenever possible. BOX CONTENTS Rack Ears & Screws Manual DMX-BRANCH/4™ User Manual...
- Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...
- Page 6 No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof.
- Page 7 / o r i n s t a l l a t i o n s . DMX-BRANCH/4™ User Manual...
- Page 8 Most damages are the result of operations by nonprofessionals. DO NOT shake device, avoid brute force when installing and/or operating. Use the original packaging and materials to transport the device in for service. DMX-BRANCH/4™ User Manual...
-
Page 9: Device Overview
D E V I C E O V E R V I E W 1. 5pin / 3pin DMX INPUT 2. 5pin/3pin DMX OUTPUT (THRU) 3. Link Out / Terminate Button 4. 4-Way 5pin / 3pin Isolated DMX Outputs (4 sets) 5. DMX Data + /- LED Indicators DMX-BRANCH/4™ User Manual... - Page 10 Use the four output channels to send DMX signal to your DMX fixtures. Link up to (4) DMX-Branch/4 devices together using the DMX Output (thru). If you are not using the DMX Output (thru) port to link multiple DMX-Branch/4’s together, push the terminate button in. (Terminate Mode)
-
Page 11: Maintenance
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this device, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. -
Page 12: Control Connections
Vertical Height: 3.2” (81.2mm) Weight: 7.0 lbs. (3.2 kg) ELECTRICAL AC 120V - 60Hz APPROVALS Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. DMX-BRANCH/4™ User Manual... -
Page 13: Dimensional Drawings
. e l a t i o n l i g h t i n g . c o m DIMENSIONAL DRAWINGS DMX-BRANCH/4™ User Manual... - Page 14 . e l a t i o n l i g h t i n g . c o m DIMENSIONAL DRAWINGS (Rack Kit) DMX-BRANCH/4™ User Manual...
- Page 15 O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM NARROW CLAMP Narrow Style Clamp AC3PDMX5PRO 5 ft. (1.5m) 3pin PRO DMX Cable AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable Additional Cable Lengths Available DMX-BRANCH/4™ User Manual...
