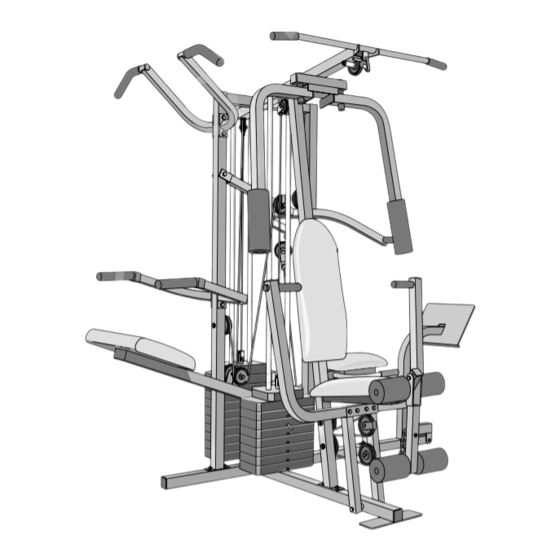

Model No. WESY49201
Serial No.
Write the serial number in the space
above for reference.
Serial Number Decal (Under Seat)
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or find that there
are missing or damaged parts,
we will guarantee you complete
satisfaction through direct assis-
tance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni-
cians on our customer hot line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.-Fri., 6 a.m.-6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manu-
al for future reference.
All manuals and user guides at all-guides.com

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . .24
TROUBLE-SHOOTING AND MAINTENANCE . . . . . . . . . . . . . . . .25
CABLE DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: A PART IDENTIFICATION CHART and a PART LIST/
EXPLODED DRAWING are attached in the center of this manual.
USER'S MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Club Weider WESY49201

Summary of Contents for Club Weider WESY49201

  • Page 1: Table Of Contents

    All manuals and user guides at all-guides.com Model No. WESY49201 USER'S MANUAL Serial No. Write the serial number in the space above for reference. Serial Number Decal (Under Seat) QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction.

  • Page 2: Important Precautions

    All manuals and user guides at all-guides.com IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read the following important precau- tions before using the weight system. 1. Read all instructions in this manual and in 14. Keep your hands away from the assist the accompanying literature before using the upright when the assist arm is being used.

  • Page 3: Before You Begin

    The model number is WESY49201. The serial size and strength, or improve your cardiovascular sys- number can be found on a decal attached to the tem, the CLUB WEIDER ®...

  • Page 4: Assembly

    All manuals and user guides at all-guides.com ASSEMBLY Before beginning assembly, carefully read the • As you assemble the weight system be sure that following information and instructions: all parts are oriented as shown in the drawings. • Place all parts of the weight system in a cleared •...
  • Page 5 All manuals and user guides at all-guides.com 2. Slide the Assist Upright (74) and the Leg Press Upright (56) onto the indicated 5/16” x 2 1/2” Carriage Bolts (1) in the Stabilizer (5). The high side of the brackets on the Assist Upright and Leg Press Upright should be on the side shown.
  • Page 6 All manuals and user guides at all-guides.com 4. Press a 2” Square Inner Cap (27) into the end of the Top Frame (55). Press a 1 3/4” Square Inner Cap (44) into each end of the crossbar on the Top Frame. Press two 1” Inner Caps (113) into the top of the crossbar.
  • Page 7 All manuals and user guides at all-guides.com 7. Press a Weight Tube Bumper (64) into the end of the Short Weight Tube (108). Insert the Holes Weight Tube into the front stack of Weights (25). Be sure that the pin on the Weight Tube is sitting in the pin groove in the top Weight.
  • Page 8 All manuals and user guides at all-guides.com 9. Attach the upper ends of the Short Weight Guides (73) to the Top Frame (55) with a 5/16” x 6” Bolt (60), two 1/2” x 3/4” Spacers (61), and a 5/16” Nylon Locknut (3). Attach the upper ends of the Long Weight Guides (62) to the Top Frame (55) in the same manner.
  • Page 9 All manuals and user guides at all-guides.com 12. Press a 1” Round Inner Cap (49) into one of the Press Arms (46). Press a 1 3/4” Square Inner Cap (44) into the Press Arm. Attach the Press Arm (46) to one side of the Press Frame (17) with two 5/16”...
  • Page 10 All manuals and user guides at all-guides.com 15. See the inset drawing. Attach the Military Press Arm (84) to the Pivot Arm (101) with two 5/16” x 2 1/4” Bolts (33) and two 5/16” Nylon Locknuts (3). Press two 1 1/2” Square Inner Caps (32) into the Military Press Arm (84).
  • Page 11 All manuals and user guides at all-guides.com 17. Attach the Left Pull-up Arm (75) and the Right Pull-up Arm (77) to the Assist Upright (74) with two 5/16” x 2 3/4” Bolts (11) and two 5/16” Nylon Locknuts (3). Attach the Left Dip Arm (78) and the Right Dip Arm (79) to the Assist Upright (74) with two 5/16”...
  • Page 12 All manuals and user guides at all-guides.com 20. Wrap the High Cable (58) around a “V”-Pulley (50). Attach the Pulley and a Long Cable Trap (31) to the indicated bracket on the Front Upright (42) with a 3/8” x 2 1/2” Bolt (86) and a 3/8”...
  • Page 13 All manuals and user guides at all-guides.com 24. See the inset drawing. Attach a 3 1/2” Pulley (15) and a Cable Trap (66) to the upper hole in a Long “U”-Bracket (57) with a 3/8” x 2” Bolt (12) and a 3/8” Nylon Locknut (21). Be sure that the Cable Trap is inside the Long “U”- Bracket.
  • Page 14 All manuals and user guides at all-guides.com 27. Locate the Low Cable (23). Route the Low Cable under the 3 1/2” Low Pulley (102). Be sure that the end of the Cable with the ball is on the indicated side of the Press Frame (17) and that the Cable is between the Pulley and the crossbar on the Press Frame.
  • Page 15 All manuals and user guides at all-guides.com 31. Attach the end of the Low Cable (23) to the Long “U”-Bracket (57) with a 1/4” Nylon Locknut (2) and a 1/4” Washer (10). Do not completely tighten the Nylon Locknut. It should be threaded onto the end of the Cable so only a couple of threads are showing above the Nylon Locknut, as...
  • Page 16 All manuals and user guides at all-guides.com 34. Wrap the Military Press Cable (72) around a “V”-Pulley (50). Attach the Pulley to the Top Frame (55) with a 3/8” x 2 1/2” Bolt (86) and a 3/8” Nylon Locknut (21). Wrap the Military Press Cable (72) around a 3 1/2”...
  • Page 17 All manuals and user guides at all-guides.com 36. Slide a 5/16” Washer (8) onto a 5/16” x 2 3/4” Bolt (11). Insert the Bolt through the indicated hole in the Pivot Arm (101). The Bolt must be inserted from the side shown. Fully tight- en a 5/16”...
  • Page 18 All manuals and user guides at all-guides.com 38. Locate the Leg Press Cable (99). Attach the end of the Leg Press Cable to the Long “U”- Bracket (57) with a 1/4” Nylon Locknut (2) and a 1/4” Washer (10). Do not completely tight- en the Nylon Locknut.
  • Page 19 All manuals and user guides at all-guides.com 40. Locate and open the parts bag labeled “SEAT ASSEMBLY.” Insert a 1/4” x 2 1/2” Carriage Bolt (92) through the center hole in a Seat Plate (37). Attach the Seat Plate to the Rear Backrest (85) with two 1/4”...
  • Page 20 All manuals and user guides at all-guides.com 43. Attach the Front Backrest (41) to the Front Upright (42) with two 1/4” x 2 1/2” Screws (43) and two 1/4” Washers (10). The Backrest must be oriented as shown. Thick 44. Press a 1 1/2” Square Inner Cap (32) into the Front Seat Frame (36).
  • Page 21 Insert the other Pad Tube (28) into the Leg Lever (29). Slide a Foam Foam Pad (30) onto each end of the Pad Tube. 48. Remove the backing from the CLUB WEIDER 16.6ST decal and apply it to the weight sys- tem where shown.

  • Page 22: Adjustments

    All manuals and user guides at all-guides.com ADJUSTMENTS The instructions below describe how each part of the weight system can be adjusted. Refer to the exercise guide accompanying this manual to see how the weight system should be set up for each exercise. IMPOR- TANT: When attaching the lat bar or nylon strap, make sure that the attachments are in the correct start- ing position for the exercise to be performed.
  • Page 23 All manuals and user guides at all-guides.com ATTACHING AND REMOVING THE SEAT To attach the Seat (13), set the bracket on the Front Seat Frame (36) onto the indicated pins on the Front Upright (42). Attach the Front Seat Frame to the Front Upright with the 5/16”...

  • Page 24: Weight Resistance Chart

    All manuals and user guides at all-guides.com WEIGHT RESISTANCE CHART This chart shows the approximate weight resistance at each weight station. “Top” refers to the 6.5 lbs. top weight. The other numbers refer to the 12.5 lbs. weight plates. The butterfly arm resistance listed is the resis- tance for each butterfly arm.

  • Page 25: Trouble-Shooting And Maintenance

    All manuals and user guides at all-guides.com TROUBLE-SHOOTING AND MAINTENANCE Make sure all parts are properly tightened each time you use the weight system. Replace any worn parts immedi- ately. The weight system can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents. TIGHTENING THE CABLES Woven cable, the type of cable used on the weight system, can stretch slightly when it is first used.

  • Page 26: Cable Diagrams

    All manuals and user guides at all-guides.com CABLE DIAGRAMS The cable diagrams on these pages show the proper routing of the High Cable (58), the Low Cable (23), the Military Press Cable (72), and the Leg Press Cable (99). Use the diagrams to be sure that the four cables and the cable traps have been assembled correctly.
  • Page 27 All manuals and user guides at all-guides.com Military Press Cable (72) and Leg Press Cable (99) Military Press Cable (72) 8—Pivot Arm 1—Long “U”-Bracket Rear Weight Stack—1 4—Rear Seat Frame Leg Press Cable (99)

  • Page 28: Ordering Replacement Parts

    Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be pre- pared to give the following information: 1. The MODEL NUMBER of the product (WESY49201) 2. The NAME of the product (CLUB WEIDER ®...
  • Page 29 All manuals and user guides at all-guides.com This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below each part refers to the key number of the part from the PART LIST in the center of this manual. Important: Some parts may have been pre-assembled for shipping purposes.
  • Page 30 All manuals and user guides at all-guides.com PART IDENTIFICATION CHART—Model No. WESY49201 R0602A 1/4" Nylon Locknut (2) 5/16" Nylon Jamnut (93) 3/8" x 1 3/4" Bolt (76) 1/4" x 2" Machine Screw (81) 3/8" Nylon Locknut (21) 5/16" Nylon Locknut (3) 3/8"...
  • Page 31 All manuals and user guides at all-guides.com 1/4" x 2 3/4" Screw (114) 5/16" x 1 3/4" Bolt (24) 5/16" x 2 3/4" Bolt (11) 1/4" x 3/4" Screw (18) 5/16" x 2 3/4" Carriage Bolt (14) #8 x 1/2" Self-tapping Screw (87) 5/16"...
  • Page 32 All manuals and user guides at all-guides.com 1/2" x 3/4" Spacer (61) 5/8" x 9/16" Spacer (7) 3/4" Round Inner Cap (34) 1" Round Cover Cap (70) 1" Round Inner Cap (49) 1 1/4" Round Inner Cap (109) 1" Inner Cap (113) 1 1/2"...
  • Page 33 All manuals and user guides at all-guides.com REMOVE THIS PART LIST/EXPLODED DRAWING FROM THE MANUAL. SAVE THIS PART LIST/EXPLODED DRAWING FOR FUTURE REFERENCE...
  • Page 34 All manuals and user guides at all-guides.com PART LIST—Model No. WESY49201 R0602A Key No. Qty. Description Key No. Qty. Description 5/16” x 2 1/2” Carriage Bolt 3/8” x 8” Bolt 1/4” Nylon Locknut 5/16” x 6” Bolt 5/16” Nylon Locknut 1/2”...
  • Page 35 All manuals and user guides at all-guides.com EXPLODED DRAWING—Model No. WESY49201 R0602A...
