Westinghouse Q75AD1423-06 Quick Start Manual

SAFETY INFORMATION
WARNING:
Read all safety precautions and installation instructions carefully
before installing or servicing this xture. Failure to comply with these instructions
could result in a potentially fatal electric shock and/or property damage.
•Do not expose the light to re or intense heat.
•Do not immerse in water.
•Your motion light and solar panel are both weather-resistant.
•Never look directly into the solar motion light when illuminated.
CAUTIONS: BATTERY INSTRUCTIONS
USE RECHARGEABLE BATTERIES ONLY.
•Always purchase the correct size and grade of battery most suitable for the intended
use.
•Remove batteries from equipment which is not to be used for an extended period of
time.
•Dispose of the battery in accordance with local, state and federal regulations. (Do not
burn or discard the battery in a municipal water system or other body of water.)
CARE AND MAINTENANCE
CARE & MAINTENANCE
•From time to time, ensure the plug between the solar panel and light is securely
connected.
•The solar panel should be cleaned with a damp cotton cloth on a regular basis.
This will ensure optimal performance and battery charging.
•Never let any abrasive material come into contact with the solar panel.

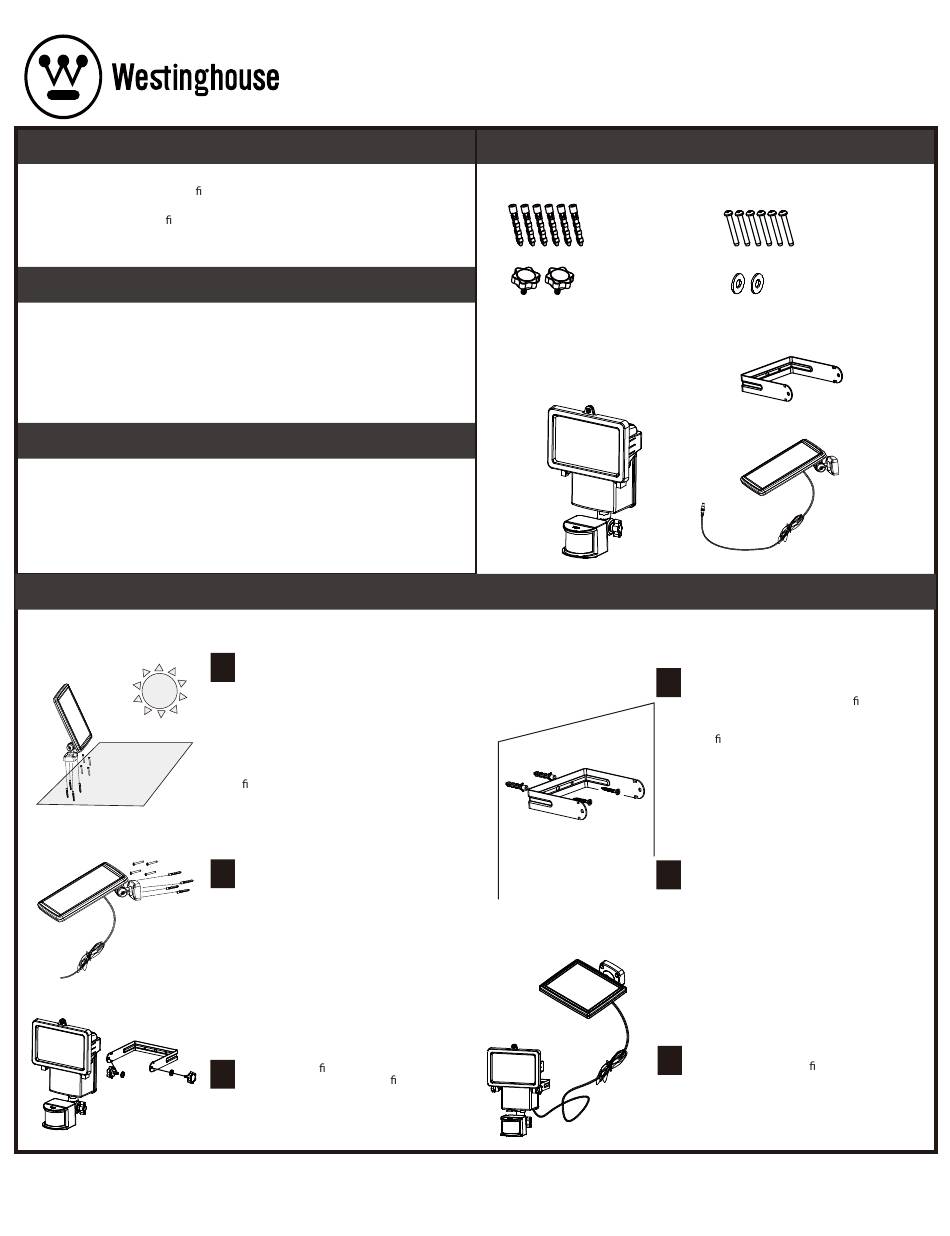

INSTALLATION
INSTALLING THE SOLAR PANEL
1
Ensure your solar panel is placed so
that its exposure to the sun is optimized.
Be aware of objects such as trees or
property overhangs that may impede the
panel's ability to generate a charge. To
adjust the solar panel loosen the wing
nut and position the panel. When desired
position is achieved, tighten wing nut until
secure. The solar panel is equipped with a
9.84 ft. connecting wire, so the light
xture and solar panel can be installed
up to 9.84 ft. apart.
2
Mark the hole locations of the base, then
set the solar panel aside. Check that the
marked areas are clear of obstacles such
as cables and electrical lines. Drill holes
for the enclosed screws and wall anchors.
Insert the wall anchors then secure the
solar panel in place with the screws.
MOUNTING THE LIGHT FIXTURE
ON THE MOUNTING BRACKET
5
Place the light xture on the mounting
bracket and secure the light xture in
place with the star knobs and rubber
washers .
PRE INSTALLATION
HARDWARE INCLUDED
(note: some parts may be pre-assembled)
Wall Anchors (6)
Star Knobs (2)
PARTS
A - Light Fixture
B - Solar Panel
C - Mounting Bracket
INSTALLING THE MOUNTING
BRACKET
3
4
CONNECTING THE WIRES
6
ITEM: Q75AD1423-06
Screws (6)
Rubber Washers (2)
C
A
B
Locate the mounting bracket six to eight
feet above ground on a solid surface
capable of supporting the light xture
and secure enough so that it will not move
when exposed to vibrations or wind.The
light xture must be high enough to allow
for motion detection and light distribution.
Mark the hole locations of the mounting
bracket, then set the mounting bracket
aside. Check that the marked areas are
clear of obstacles such as cables and
electrical lines. Drill holes for the enclosed
screws and wall anchors. Insert the wall
anchors then secure the mounting bracket
in place with the screws.
Carefully route the power cord of the
solar panel to the light xture and plug
into the socket located on the light.
Only use solar panels for power charging.
It is not allowed to access other external
charging equipment.
05/09/2017
1/2 E
