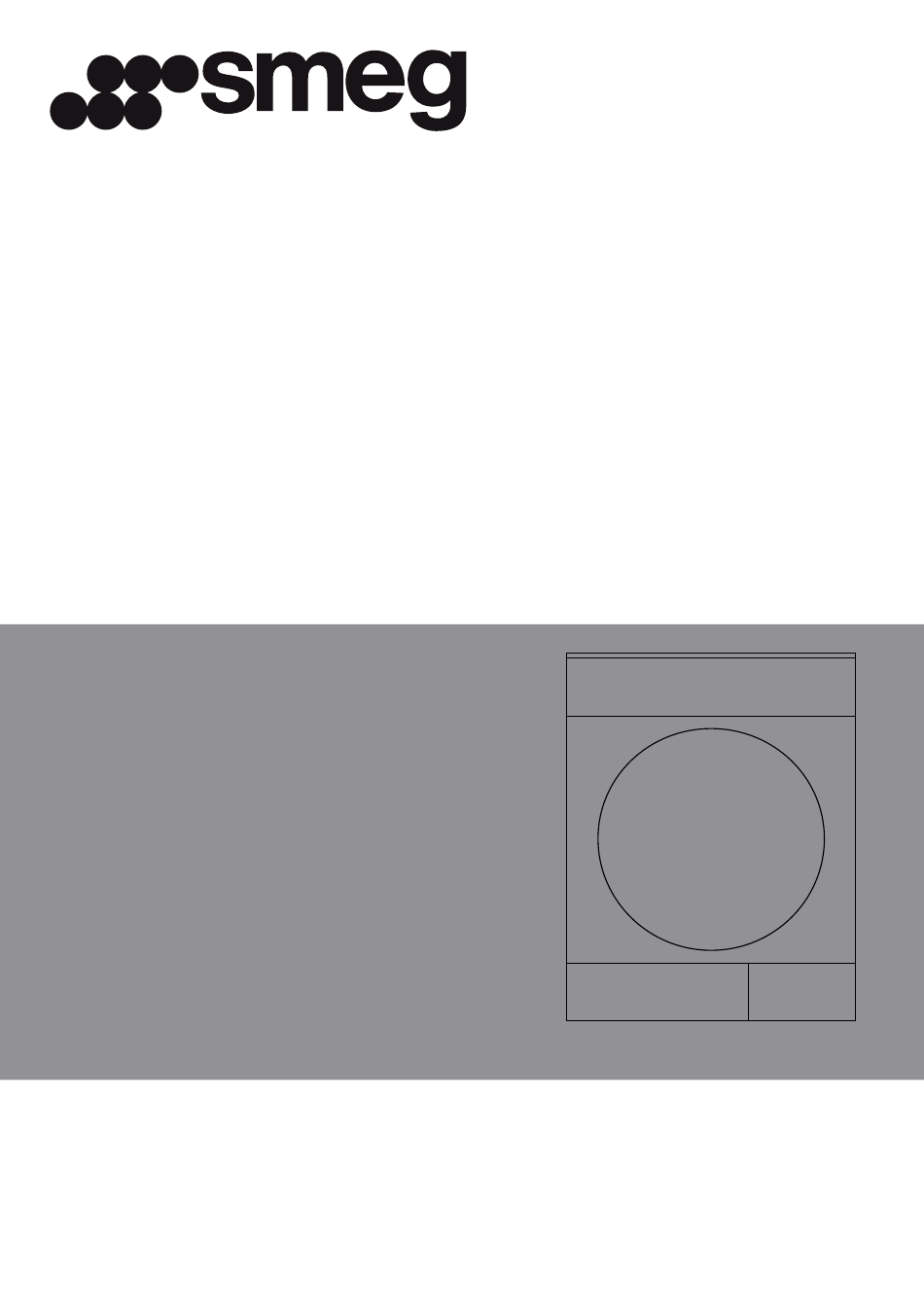

- Page 1 DRF81AUK DHT81LUK Dryer User Manual 2960312563/200120.1433...
-
Page 2: Please Read This User Manual First
Please read this user manual first! Dear Customer, WARNING! Thank you for prefering a Smeg product. We hope that your product which has been • Warning against hot surfaces. manufactured with high quality and technology will give you the best results. We advise you... -
Page 3: Important Instructions For Safety And Environment
1 Important instructions for WARNING! safety and environment Always have the installation and NOTE repairing procedures carried out by the Authorized Service. • This section contains safety Manufacturer shall not be held instructions that will help protect liable for damages that may arise from risk of personal injury or from procedures carried out by property damage. -
Page 4: Electrical Safety
1.1.1 Electrical safety DANGER! DANGER! • Do not use extension cords, multi- • Electrical safety instructions plugs or adaptors to connect the should be followed while electrical dryer to power supply in order to connection is made during the decrease the risk of fire and electric installation. - Page 5 WARNING! DANGER! Never stop your dryer before the Points to be taken into programme completes. If you must consideration for fire hazard: do this, remove all laundry quickly Below specified laundry or items and lay them out to dissipate the must not be dried in the dryer heat.
-
Page 6: Mounting Over A Washing Machine
1.2 Mounting over a washing machine WARNING! • A fixing device should be used between the two machines when installing the • Never attempt to repair the dryer dryer above a washing machine. The by yourself. Do not perform any fitting device must be installed by the repair or replacement procedures authorized service agent. -
Page 7: Compliance With The Weee Directive And Disposing Of The Waste Product
Please visit the following website to get more 1.6 Compliance with RoHS Directive information on the product. The product you have purchased complies http://www.smeg.com with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive. -
Page 8: Your Dryer
2 Your Dryer 3 Installation 2.1 Overview Before the calling the nearest Authorized Service for the installation of the dryer, ensure that electrical installation and water drain is appropriate referring to the user’s manual. If they are not suitable, contact a qualified electrician and technician to make necessary arrangements. -
Page 9: Removing The Transportation Safety Assembly
3.3 Connecting to the drain be adversely affected and it can get damaged. You can directly drain accumulated water through the water drain hose supplied with • The rear surface of the tumble dryer shall the product instead of periodically draining the be placed against a wall. -
Page 10: Transportation Of The Dryer
3.5 Transportation of the dryer Drain all water that has remained in the dryer. If direct water drain connection is made, then remove the hose connections. WARNING! • We recommend carrying the dryer in upright position. If it is not possible to carry the machine in the upright position, we recommend carrying it by tilting towards the right side when looked from... -
Page 11: Laundry Not Suitable For Drying In The Dryer
4 Preparation • For models with a condenser unit: clean the condenser once in a month or after every 30 operations regularly. . 4.1 Laundry suitable for drying in the dryer • Clean the filter periodically.Read the Always obey the instructions given on the Maintenance and cleaning of filters for detalied information. -
Page 12: Operating The Product
5 Operating the product 5.1 Control panel 1. Programme Selection knob 6. Start/Pause button 2. Dryness Level Adjustment button 7. End Time button 3. Audio Warning Level button 8. Favourite button 4. Display 9. Timer Programmes Selection button 5. On /Off/Cancel button 10. -
Page 13: Programme Selection And Consumption Table
5.5 Programme selection and consumption table Programmes Programme Description You may dry your cotton laundry to be ironed in Cottons Iron Dry this program to have them slightly damp for ease of 1000 ironing. (Shirt, T-shirt, tablecloth, etc.) You may dry all your cotton laundry in this program. (T-shirt, pants, pyjamas, baby clothes, underwear, Cottons Cupboard Dry 1000... - Page 14 You can dry both cotton and synthetic laundry with Daily this programme.Sports and fitness clothes may be 1200 dried with this program. You may dry denim pants, skirts, shirts or jackets in Jeans 1200 this program. Energy consumption values Programmes Capacity (kg) Cottons cupboard dry* 1000...
- Page 15 Dryness level adjustment selection NOTE Dryness level adjustment button is used to adjust the required dryness level. • Press Anti-creasing button to activate this Programme duration can change depending on function. the selection. • Anti-creasing symbol will illuminate at the NOTE end of the programme if Anti-creasing function is activated.
-
Page 16: Warning Symbols
At the end of the End Time countdown NOTE process, End Time symbol disappears, drying process starts and the programme duration is displayed. • For detailed information, see Maintenance and cleaning. NOTE • If the filter cleaning symbol flashes continuously, see Troubleshooting. •... -
Page 17: Progress Of Programme
Loading door open • When the programme selection knob is This warning symbol Pause appears and turned and function buttons are pressed programme progress symbol flashes when the Child Lock warning will be displayed. loading door of the dryer is open. •... -
Page 18: End Of Programme
5.13 End of programme NOTE When the programme comes to an end Lint filter cleaning and Water tank warning symbols • Any laundry added after the drying light up in the programme follow-up indicator. process has started may cause the To turn off the dryer press On / Off / Cancel clothes that are already dried in the button. -
Page 19: Maintenance And Cleaning
6 Maintenance and cleaning A layer can build up on the filter pores that can cause clogging Service life of product extends and frequently of the filter after using experienced problems will be reduced if it is the dryer for a while. cleaned at regular intervals. -
Page 20: Draining The Water Tank
6.3 Draining the water tank 6.4 Cleaning the filter drawer Dampness of the laundry is removed and Lint and fiber that could not be captured by the condensed during drying process and the lint filter are blocked in the filter drawer behind water that arise accumulates in the water tank. -
Page 21: Cleaning The Evaporator
• If you observe a • Replace the filter drawer and tighten the layer over the filter cap turning the filter drawer lock turning it which can block in the arrow direction. the filter, remove the layer washing with a water and then cleaning it. -
Page 22: Troubleshooting
7 Troubleshooting Filter cleaning warning symbol/LED is on/flashing. Fibre filter might not be cleaned. >>> Clean the filter. The filter slot might be clogged with lints. >>> Clean the filter slot. Drying operation takes too long. A layer of fluff might have accumulated clogging up the lint filter Fibre filter pores might be clogged. -
Page 23: Electrical Connection
8 Electrical Connection Make sure that you have an earthed power outlet socket rated at 13 amps (minimum). Important Attention! If you use your dryer as built-in, the socket Fitting a different plug must be reachable after installation, or a As the colours of the wires in the mains lead separate switch (which can disconnect the two of this appliance may not correspond with the... - Page 24 PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2012 SMEG Supplier name or trademark DRF81AUK Model name DHT81LUK Rated capacity (kg) Air Vented Type of Tumble Dryer Condenser Energy efficiency class Annual Energy Consumption (kWh) 297,0 Automatic Type of Control...
