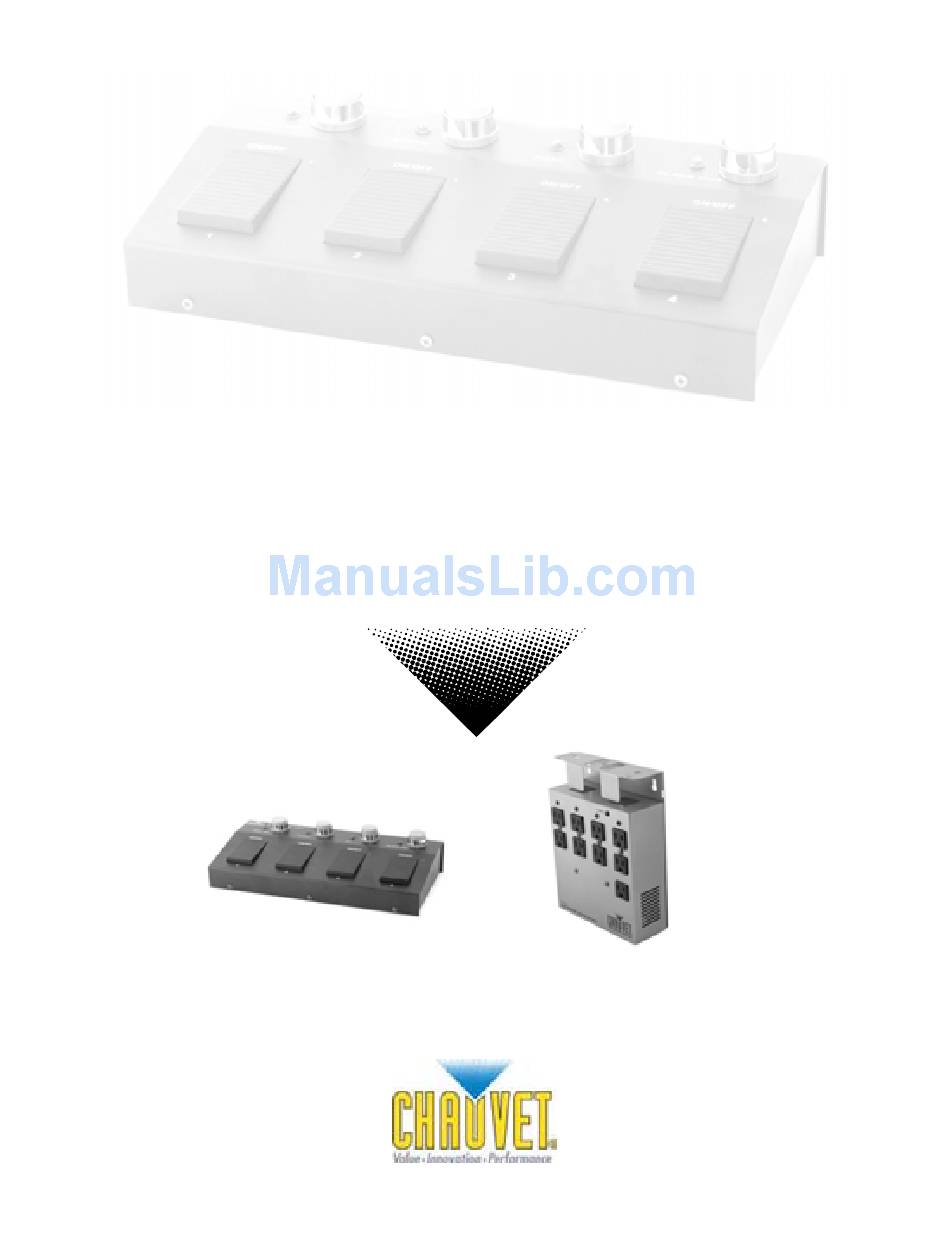

- Page 1 Foot Master™ 4200 FS-4200 USER MANUAL CHAUVET, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com 2007-02-13 14:05...
-
Page 2: Table Of Contents
UPPORT ©CHAUVET, 2006, All Rights Reserved Information and specifications in this User Manual are subject to change without notice. CHAUVET assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. FS-4200 User Manual 2007-02-13... -
Page 3: Before You Begin
World Wide Web FS-4200 User Manual Save the carton and all packing If you should require sending any items back to CHAUVET, call CHAUVET for a (RA) Note: Return Authorization number. The factory will not allow any shipments without an RA. -
Page 4: Safety Instructions
There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET at: 954-929-1115. FS-4200 User Manual usage and maintenance of this product. -
Page 5: Introduction
Includes 1 relay pack with 8 sockets (2 sockets per channel) and SF-EXCB linking cable • Additional linkable relay packs available (max 4 units, model: SR-8) • Additional power output for daisy chaining packs together FS-4200 User Manual 2007-02-13 14:05... -
Page 6: Product Overview
AC VOLTAGE AC VOLTAGE SWITCH SWITCH RESETTABLE RESETTABLE 120V/230V 120V/230V CIRCUIT CIRCUIT BREAKER BREAKER FS-4200 User Manual FS-4200 User Manual AUTO CHASE AUTO CHASE Activates the Activates the auto run chase auto run chase chase chase Built-in Mic. Built-in Mic. -
Page 7: Setup
You must supply your own clamp and make sure the clamp is capable of supporting the weight of the relay pack. You can order C- clamps from any CHAUVET dealer or distributor. Block access below the work area and use suitable and stable platform when installing or servicing the relay pack. -
Page 8: Operating Instructions
4. Operating Instructions Using the FS-4200 The Foot Master™ 4200 comes with a relay pack and foot controller. The relay pack has 16 built in chase patterns that can be triggered either by sound or automatically using the foot controller. The foot controller provides additional control options such as;... -
Page 9: Appendix
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 10: Technical Specifications
Load (110V)...(10A, 1100W) per channel, (15A, 1650W) maximum Load (220V)...(10A, 2200W) per channel, (15A, 3300W) maximum FUSE Main...Resettable Circuit Breaker ORDERING INFORMATION Foot Master™ 4200... FS-4200 Technical Support Address: Service Dept. 3000 N 29th Ct, Hollywood, FL 33020 (U.S.A.) Support (Email): tech@chauvetlighting.com...
