ADEMCO 5802WXT Installation Instructions

ADEMCO 5802WXT Supervised Miniature
Transmitter – Installation Instructions
General Information

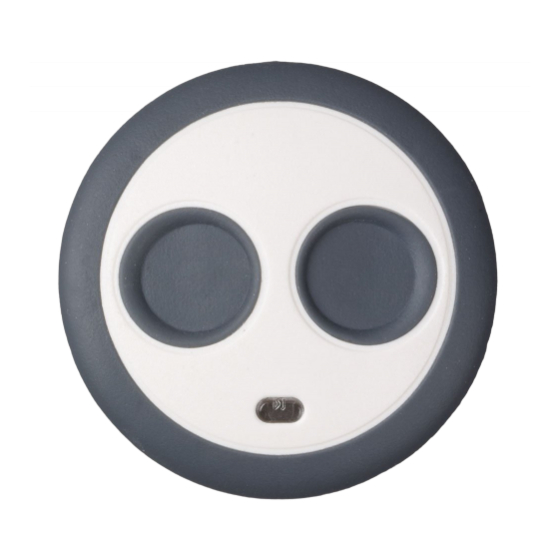

The ADEMCO 5802WXT is a wireless transmitter that may be worn around
the neck, on a wrist band or as an apparel clip that may also may be mounted
to a desk, dresser, etc. (necklace, band, and clip supplied). Pressing and
holding the transmitter button for two seconds sends a signal to the control
receiver. The 5802WXT is intended for use only with wireless alarm systems
that support 5800 Series devices.
The transmitter is supervised, i.e., it automatically sends a message to the
control receiver that includes battery status information every 70-90 minutes.
This transmitter can be programmed as any zone type response (e.g.,
Emergency Panics, Relay Action, etc.).
Programming the Serial Number
The 5802WXT has a unique identification code (serial number) permanently
assigned during manufacture.
You must "enroll" the transmitter's serial number and loop number during
system programming. The 5802WXT may be defined as Input Type "RF"
(supervised RF, for an hourly check-in; do not take out of range) or "UR"
(Unsupervised RF). Its loop number is "1." See the control unit's Installation
Instructions for further details regarding programming. When installation is
complete, verify operation from desired location(s).
Battery Replacement
The 5802WXT is powered by a long-life Lithium battery that may be replaced
when a low battery is eventually indicated by the control unit.
NOTE: When replacing the battery, wait a minimum of 30 seconds prior to installing the
new battery.
NOTE: Although water-resistant, please do not immerse in water at a depth below
10cm for more than 1 hour.
1. Remove 4 screws and lift off
cover.
2. Using a small flat-blade
screwdriver remove old battery.
3. Insert new battery by placing
new battery under the gold tab
and then pressing down.
Ensure the POS + side of
battery is face up after
installation.
4. Align cover and attach with 4
screws.
