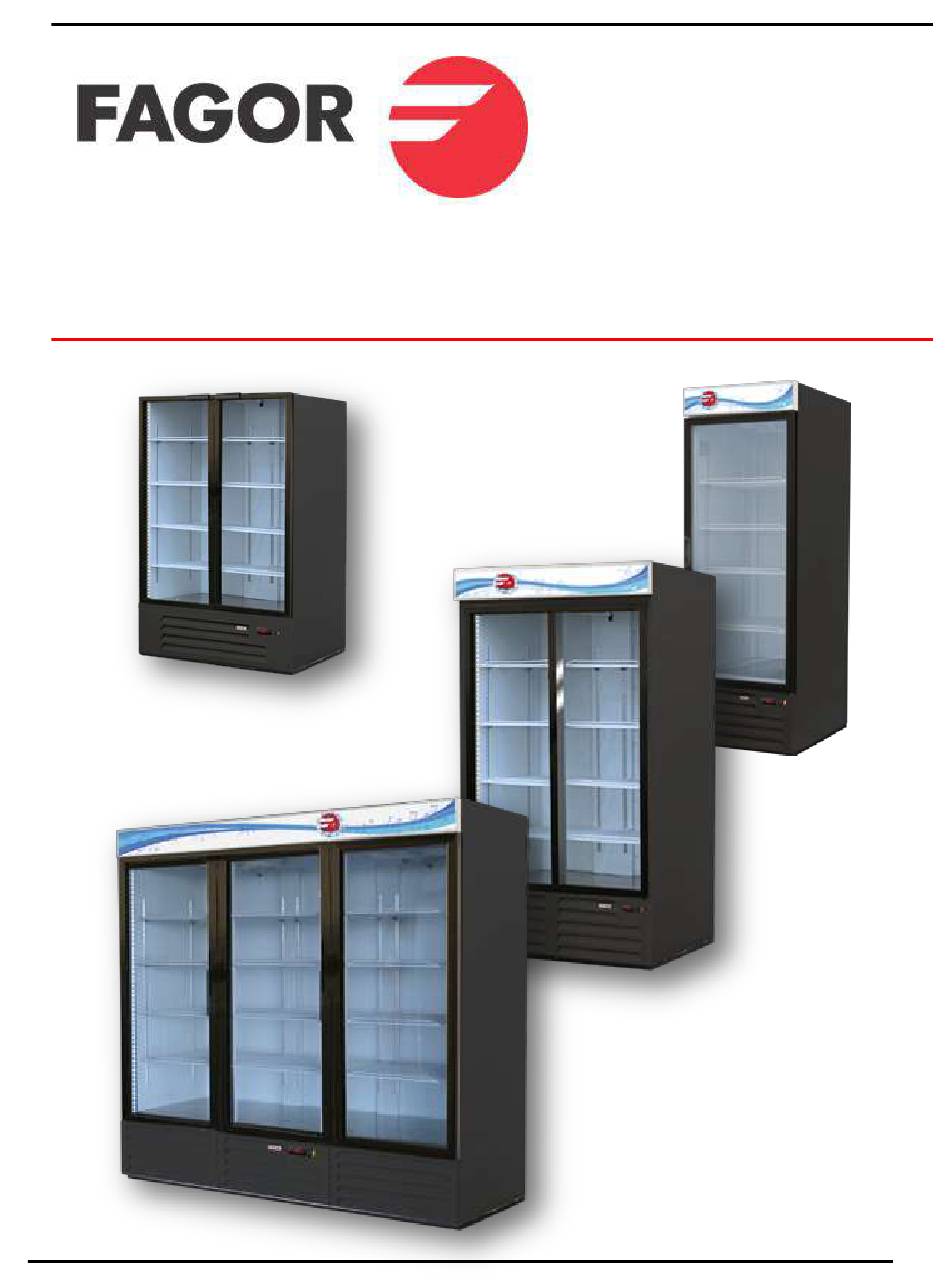

- Page 1 MERCHANDISER REFRIGERATORS AND FREEZERS Manual for installation, use, and maintenance...
-
Page 2: Table Of Contents
MERCHANDSERS OPERATION AND SERVICE MANUAL/ Rev. JUN. 2015 Contents RECEIVING AND INSPECTING THE EQUIPMENT ................3 SPECIFICATIONS........................... 4 DIMENSIONS ..........................6 INSTALLATION ..........................9 UNCRATING ......................... 9 LOCATION ..........................9 DATA PLATE ........................10 ELECTRICAL CONNECTIONS ....................11 SHELVING INSTALLATION ....................11 OPERATION .......................... -
Page 3: Receiving And Inspecting The Equipment
MERCHANDSERS OPERATION AND SERVICE MANUAL/ Rev. JUN. 2015 1 RECEIVING AND INSPECTING THE EQUIPMENT Up on receiving your new Fagor Refrigerator, check the package and the machine for any damages that may have occurred during transportation. Visually inspect the exterior of the package. -
Page 4: Specifications
R-134a FMD-23 0°C/32°F 5°C/41°F 10-16 PSIG 7°C/13°F 1800 9.8 oz R-134a FMD-37 0°C/32°F 5°C/41°F 10-16 PSIG 7°C/13°F 2400 17.28oz R-134a FMD-49 0°C/32°F 5°C/41°F 10-16 PSIG 7°C/13°F 2400 17.28oz R-134a FM-16F -8°C/ 0F -18°C/0°F 12-16PSIG 4°C/7°F 1900 16.6oz R-404A FM-23F -8°C/ 0F -18°C/0°F... - Page 5 10 AWG 10 AWG 8 AWG 2P+TT 10 amp 14 AWG 14 AWG 14 AWG 14 AWG 12 AWG 12 AWG FMD-49 5-15P 15 amp 14 AWG 12 AWG 10 AWG 10 AWG 8 AWG 8 AWG 2P+TT 10 amp...
-
Page 6: Dimensions
MERCHANDSERS OPERATION AND SERVICE MANUAL/ Rev. JUN. 2015 3 DIMENSIONS FM-10 FM-16 www.fagorcommercial.com Page6... - Page 7 MERCHANDSERS OPERATION AND SERVICE MANUAL/ Rev. JUN. 2015 FMD-23 FDM-49 www.fagorcommercial.com Page7...
- Page 8 MERCHANDSERS OPERATION AND SERVICE MANUAL/ Rev. JUN. 2015 FMD-47 SD FMD-37 SD www.fagorcommercial.com Page8...
-
Page 9: Installation
MERCHANDSERS OPERATION AND SERVICE MANUAL/ Rev. JUN. 2015 4 INSTALLATION UNCRATING Remove the outer packaging. Cut the 4 clamps that hold the refrigerator to the skid. Lift the unit off the skid. If machine was laid down during this operation, remember to leave the cabinet up right for 24 hours before connecting to power source. -
Page 10: Data Plate
MERCHANDSERS OPERATION AND SERVICE MANUAL/ Rev. JUN. 2015 DATA PLATE The data plate is located inside the cabinet, near the top front, left corner. Under no circumstances should the data plate be removed from the unit. The data plate is essential to identify the particular features of your machine and i t is of great benefit to installers, operators, and maintenance personnel. -
Page 11: Electrical Connections
Do not, under any circumstances, cut or remove the ground prong from the power cord. Fagor units must be properly grounded. NEVER USE AN EXTENSION CORD! Fagor will not warranty any unit that has been connected to an extension cord. -
Page 12: Operation
MERCHANDSERS OPERATION AND SERVICE MANUAL/ Rev. JUN. 2015 5 OPERATION ELECTRONIC CONTROLLER CAREL CONTROL After connecting your unit, turn ON rocker switch located next to the controller. The display will light up showing the temperature inside the unit. Also, the compressor and fan icons will flash for a period of three minutes. - Page 13 MERCHANDSERS OPERATION AND SERVICE MANUAL/ Rev. JUN. 2015 Changing the Set Point of the temperature on the controller The unit comes with a factory default set point ( 32°F Refrigerators). These set values will make the unit perform at its maximum capacity. Therefore, it is not recommended to change the set point.
- Page 14 MERCHANDSERS OPERATION AND SERVICE MANUAL/ Rev. JUN. 2015 CAREL CONTROL (IR33+) The operating parameters can be modified using the front keypad. Access differs depending on the type: set point, frequently-used parameters (F) and configuration parameters (C). The type of parameter is specified in the table of parameters. Access to the configuration parameters is protected by a password for the configuration parameters that prevents unwanted modifications or access by unauthorised persons.
- Page 15 MERCHANDSERS OPERATION AND SERVICE MANUAL/ Rev. JUN. 2015 Setting type C parameters Type C parameters include the type F parameters plus all the other control parameters. Procedure: 1. Press Prg/Mute one or more times to return to the standard display; 2.
-
Page 16: Maintenance
MERCHANDSERS OPERATION AND SERVICE MANUAL/ Rev. JUN. 2015 6 MAINTENANCE Stainless Steel Care and Cleaning Proper cleaning of stainless steel requires soft cloths or plastic scouring pads. Never use steel pads, wire brushes, or scrapers! Cleaning solutions need to be alkaline or non-chloride cleaners. Any cleaner containing chlorides will damage the protective film of the stainless steel. -
Page 17: Gasket
MERCHANDSERS OPERATION AND SERVICE MANUAL/ Rev. JUN. 2015 If you keep the Condenser clean, you will minimize your service expense and lower your electrical costs. Failure to maintenance clean condenser coil can initially cause high temperatures and excessive run times. Continuous operation with dirty or clogged condenser coils can result in compress or failures. - Page 18 MERCHANDSERS OPERATION AND SERVICE MANUAL/ Rev. JUN. 2015 Units installed in a humid environment will produce large amounts of water in the drain pan. This is NOT a malfunction of the unit. It is the customer’s responsibility to clear the drain pan as necessary to avoid puddles of water underneath the unit.
-
Page 19: Wiring Diagrams
MERCHANDSERS OPERATION AND SERVICE MANUAL/ Rev. JUN. 2015 7 WIRING DIAGRAMS FM-10 www.fagorcommercial.com Page19... - Page 20 MERCHANDSERS OPERATION AND SERVICE MANUAL/ Rev. JUN. 2015 FM-16 / FMD-23 www.fagorcommercial.com Page20...
- Page 21 MERCHANDSERS OPERATION AND SERVICE MANUAL/ Rev. JUN. 2015 FM-16F / FMD-23F www.fagorcommercial.com Page21...
-
Page 22: Trouble Shooting
MERCHANDSERS OPERATION AND SERVICE MANUAL/ Rev. JUN. 2015 8 TROUBLE SHOOTING Follow the next steps before requesting warranty service. Failure to do so, may result in service charges for you and may void your warranty: 1) Refrigerator doesn’t work: a. Check that the machine is still connected. b. -
Page 23: Warranty
User manual supplied with each Fagor unit. The obligation of this warranty is covered by Fagor for a period of three (3) years from the date of installation (Warranty commencement date), but in no event to exceed thirty-nine (39) months from the date of shipment from Fagor. - Page 24 Notwithstanding the foregoing , any claim with reference to the Equipment or any parts therefore for any cause shall be deemed waived unless submitted by the User to Fagor within (30) days after the date the User discovered, or should have discovered, the claim. In connection with all claims under this Warranty, Fagor will have the right, at its own expense, to have its representatives inspect the Equipment at the User’s premises and to request all of the User’s records pertaining to...
- Page 25 Taxes: This price list does not include any Federal, State, City or Local taxes, which may apply and are subject thereto. Shipment: Requested carrier will be used upon request. Fagor has the right to ship via any responsible carrier if requested carrier is unavailable. Shipping charges are payable by consignee and any claims arising as such charges shall be resolved between the carrier and the consignee.
- Page 26 MERCHANDSERS OPERATION AND SERVICE MANUAL/ Rev. JUN. 2015 Fagor Commercial, Inc. 13105NW 47thAve Miami, Fl. 33054 Tel:(305) 7790170 Fax:(305)7790173 1-866-GO-FAGOR www.fagorcommercial.com www.fagorcommercial.com Page26...
