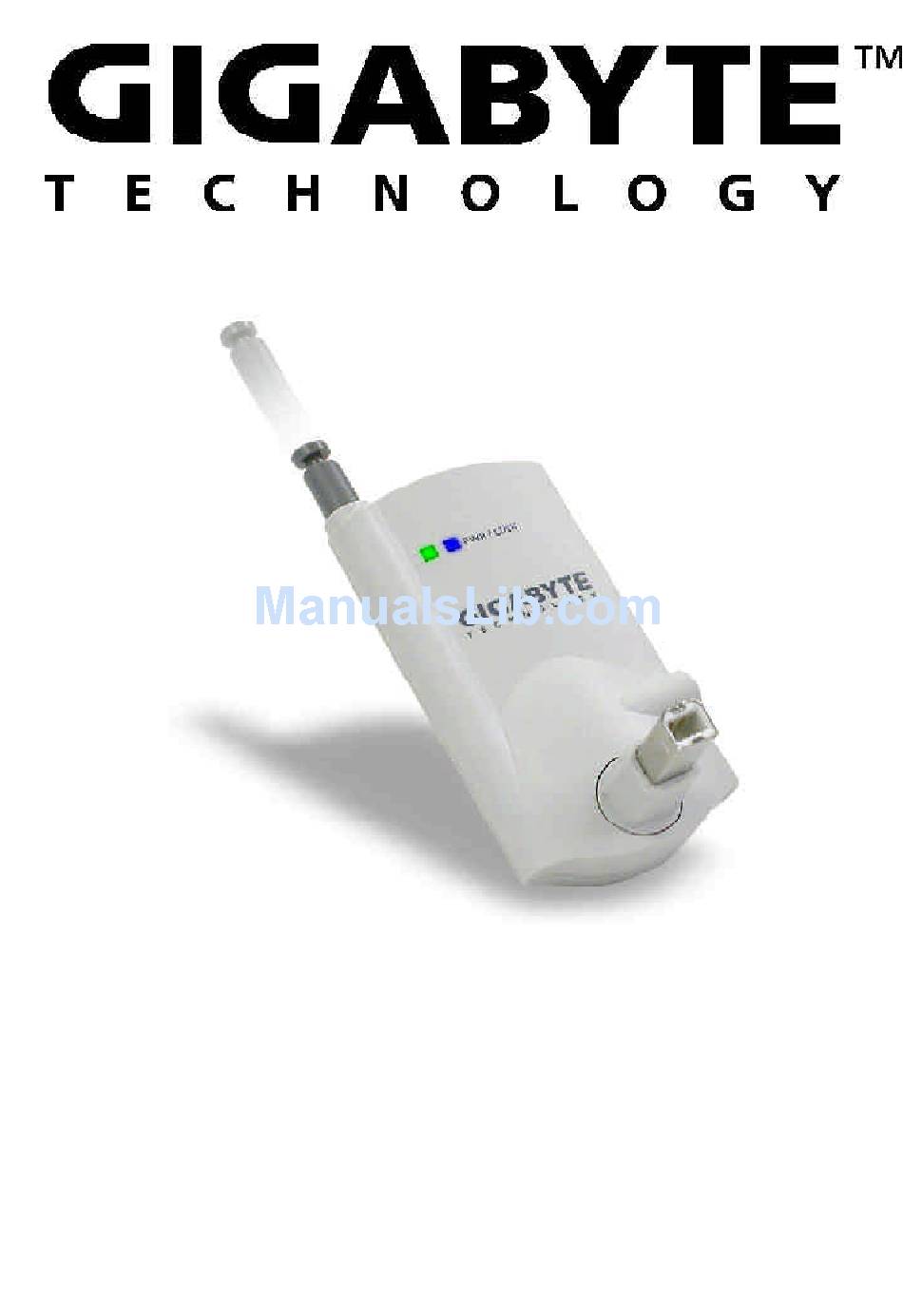

- Page 1 GN-BTP01 Wireless Bluetooth USB Printer Adapter User Guide Rev.1.1 Second Edition...
- Page 2 GN-BTP01 Bluet ooth USB P rinter Adapter This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Table Of Contents
GN-BTP01 Bluet ooth USB P rinter Adapter Contents Chapter1 Introduction... 1.1 Package Contents ...4 1.2 System Requirements ...4 1.3 LED Status ...4 1.4 Feature ...5 1.5 Specification ...5 Chapter2 Getting Started ...6 2.1 Install the Bluetooth USB Printer Adapter ...6 2.2 How to configure the printer for Windows 2000 ...6... -
Page 4: Chapter1 Introduction
The user can print contracts, reports or presentations using your device with Bluetooth wireless technology such as adesktop, laptop, PDA or cell phone to the GN-BTP01 installed printer. No wires. No ac- cess points. You can whatever you need, whenever you need it. -
Page 5: Feature
Channel number Modulation Antenna Coverage RX Sensitivity @ BER 0.1% LED indicators GN-BTP01 Bluet ooth USB P rinter Adapter Fully Bluetooth V1.1 Bluetooth operation USB male B type 2.4~2.483 GHz FHSS( Frequence hopping spreading spectrum ) External antenna supporting diversity 100 meters Typical. -
Page 6: Chapter2 Getting Started
(Windows XP user, please click “Veiw devices in range” button.) or “refresh” the list of devices. Step4. Wait until the search has finished. Step5. Double click the printer icon 'Gigabyte' to pop-up the context menu. Please click “OK” button to install the printer. - Page 7 OK to install printer driver. ) Step7. Select the correct printer name and then click OK to install printer driver. Or click Have Disk to install the printer driver from Disk or CD-ROM. GN-BTP01 Bluet ooth USB P rinter Adapter...
- Page 8 Select the Bluetooth Port of the printer which you have been installed on the Ports page.(For example, ‘ port’ : Gigabyte, ‘ Description’ : Bluetooth Port, ‘ Printer’: hp deskjet 920c series ) And then go to the General page.
- Page 9 Please follow the Step10 ~ Step13. Step10. Click the “Add Port” button. Step11. Select “Bluetooth Printer Port” type and then click “New Port” button. GN-BTP01 Bluet ooth USB P rinter Adapter...
- Page 10 The configuration screen of the printer will appear. Now, you can find the new port “Gigabyte(1)” will appear on the port checked list. Please select the new bluetooth port of the printer which you have been installed, and then click “Apply”...
-
Page 11: An Installed Usb Or Ltp Port Printer Setting
(Windows XP user, please click “Veiw devices in range” button.) or “refresh” the list of devices. Step9. Wait until the search has finished and check if the printer icon ‘ Gigabyte’ is on the list. Step10. Now, start to configure the printer. Please select “Settings” and “Printers” from the Start menu. - Page 12 GN-BTP01 Bluet ooth USB P rinter Adapter Step11. Select the “Ports” page and click the “Add Port” button. Step12. Select “Bluetooth Printer Port” type and then click “New Port” button.
- Page 13 The configuration screen of the printer will appear. Now, you can find the new port “Gigabyte(1)” will appear on the port checked list. Please select the new bluetooth port of the printer which you have been installed, and then click “Apply”...
-
Page 14: Limited Warranty
This warranty does not cover the product if it is damaged in the process of being installed or improperly used. Gigabyte may replace or repair the product with either new or reconditioned parts. Re- paired or replaced products will be returned to you at the same revision level as received or higher at Gigabyte’... - Page 15 GN-BTP01 Bluet ooth USB P rinter Adapter...
- Page 16 25A08-0TP01-F02...
