INSTRUCTION MANUAL
GUIDE FOR USING THE DISHWASHER AND THE WASHING PROGRAMS

Advertisement

loading

Related Manuals for Smeg DF613PW

Summary of Contents for Smeg DF613PW

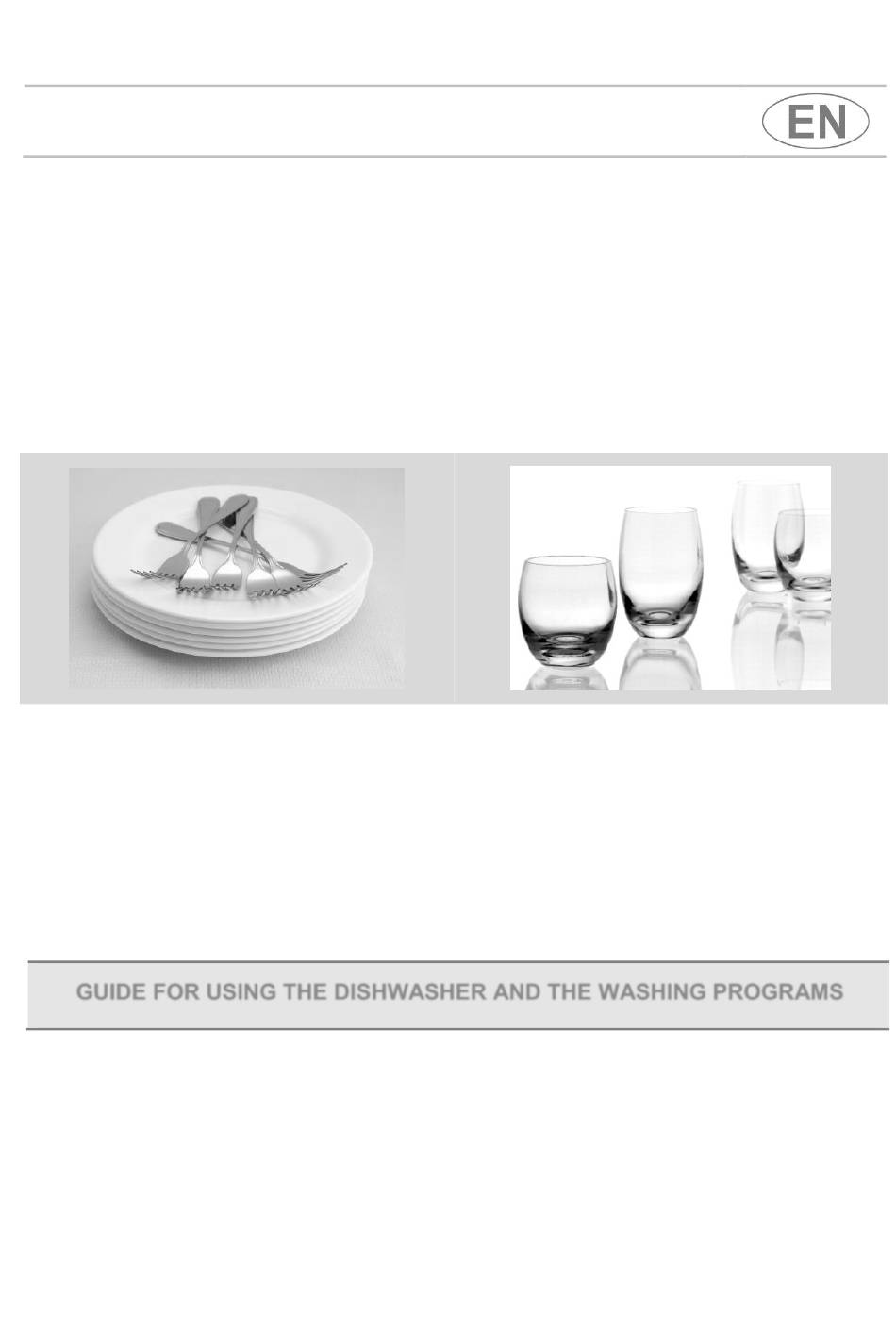

  • Page 1 INSTRUCTION MANUAL GUIDE FOR USING THE DISHWASHER AND THE WASHING PROGRAMS...

  • Page 3: Table Of Contents

    Contents 1. Safety and operating instructions __________________________ 2 1. Installation and hook-up _________________________________ 7 2. Description of the controls ______________________________ 10 3. Operating instructions __________________________________ 21 4. Cleaning and maintenance ______________________________ 36 5. Troubleshooting ______________________________________ 40 Thank you for choosing one of our products. You are advised to read this manual carefully;...

  • Page 4: Safety And Operating Instructions

    Installation instructions 1. Safety and operating instructions THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE; IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER FOR FUTIRE REFERENCE. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS CONTAINED IN THIS MANUAL. THEY CONTAIN IMPORTANT INFORMATION FOR THE INSTALLATION, USE AND MAINTENANCE OF THE APPLIANCE.
  • Page 5 Installation instructions THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNECTION IN ACCORDANCE WITH THE ELECTRICAL SAFETY REGULATIONS IN FORCE. THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO EARTH THE APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION. DURING THE INSTALLATION THE APPLIANCE MUST BE DISCONNECTED FROM THE NETWORK..
  • Page 6 Installation instructions IF THE APPLIANCE IS PROVIDED WITH A PLUGLESS SUPPLY CORD, A CIRCUIT BREAKER PROVIDING A FULL DISCONNECTION IN OVERVOLTAGE PROTECTION CLASS III MUST BE INSTALLED IN AN EASILY ACCESSIBLE POSITION ON THE SUPPLY LINE. THE DISHWASHER MUST ALWAYS BE CONNECTED TO THE WATER SYSTEM USING NEW HOSE SETS.
  • Page 7 Installation instructions CARRIED OUT BY UNAUTHORISED PERSONS WILL INVALIDATE THE WARRANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER. IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP. IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER OR ITS SERVICE AGENT OR A SIMILARLY QUALIFIED PERSON IN ORDER TO AVOID HAZARD.
  • Page 8 Installation instructions LEAST OF 400 M . ALSO, FOR DISUSED DEVICES WITH DIMENSIONS INFERIOR TO 25 CM, FREE DELIVERY TO THE DEALERS IS POSSIBLE, WITH NO PURCHASE OBLIGATION A PROPER SEPARATE WASTE COLLECTION AND THE CONSEQUENT HEADING OF THE DISUSED DEVICE TOWARDS ITS RECYCLING, TREATMENT AND ENVIRONMENTALLY COMPATIBLE DISPOSAL, CONTRIBUTES IN PREVENTING ANY POSSIBLE NEGATIVE EFFECTS ON ENVIRONMENT AND HEALTH;...

  • Page 9: Installation And Hook-Up

    Installation instructions 2. Installation and hook-up Remove the polystyrene basket retainers. Position the appliance in the desired place of installation. The back or sides of the dishwasher may be placed up against walls or other furniture units. If the dishwasher is installed near a heat source, fit the special insulating panel to prevent overheating and malfunction of the appliance.
  • Page 10 Installation instructions Water supply connection Preventing the risk of clogging or damage: if the water pipe is new or has not been used for a long time, before connecting to the water supply check that the water is clear and free of impurities, to prevent damage to the appliance.
  • Page 11 Installation instructions DRAIN CONNECTION Insert the dishwasher’s drain hose into a drain pipe having a diameter of at least 4 cm, or alternatively, place it inside the kitchen sink using the plastic support provided, taking care not to crush or excessively bend the hose.

  • Page 12: Description Of The Controls

    User instructions 3. Description of the controls Front panel All the dishwasher controls are grouped on the front panel. Programming and option selection are only possible with the door closed. ON/OFF BUTTON AND WARNING LIGHT OPTION SELECTION BUTTONS AND WARNING LIGHTS “CHILD LOCK”...
  • Page 13 User instructions Information display The dishwasher is equipped with a practical DISPLAY which provides information on the programmed dishwasher functions. Rinse aid lack warning indicator Salt lack warning indicator (on some models only) End of cycle signal “Child lock” option warning light Delayed start indicator, wash cycle duration and alarms Prewash Program phases warning lights...
  • Page 14 User instructions PROGRAMS TABLE DURATION CONSUMPTION PROGRAMME LOAD CROCKERY AND PROGRAM NUMBER MINUTES POWER CUTLERY PROGRESS WATER & SYMBOL kWh (1) LITRES 1 RAPID 27’ Dishes with light dirt, Wash at 38°C 0,70 washed immediately after Rinse at 50°C Wash at 45°C 2 GLASS Glass, china and mixed Cold rinse...
  • Page 15 User instructions QUICK TIME PROGRAMS (ENERSAVE option non available) (see relevant section for explanation of functioning modes) DURATION CONSUMPTION PROGRAMME PROGRAM LOAD CROCKERY AND NUMBER E PROGRESS WATER MINUTES POWER CUTLERY SYMBOL LITRES KWh (1) 6 SOAK Pans and dishes awaiting 0,02 Cold prewash completion of the load...
  • Page 16 User instructions NOTES AND REFERENCES Only run the soak program with half loads. Options cannot be used with the soak program. Standard programme under EN 50242. See information sheet provided IEC/DIN reference programme. **** Reference program for laboratories: Detergent: 20g in the dispenser + 10g in the door or tablet.
  • Page 17 User instructions Washing programs The dishwasher is equipped with a control panel and an INFORMATION DISPLAY from which it is possible to carry out all the power switch-on, switch-off and programming operations. Before starting a washing program make sure that: The water supply tap is open.
  • Page 18 User instructions SELECTION PROGRAM The program selection is possible through the relative buttons. By pressing the relative button of desired program (see table) it will lid up the relative pilot light to confirm that the operation did occurred on the DISPLAY will appear a program duration forecasting (“h.mm”).
  • Page 19 User instructions INTERRUPTING A PROGRAM In order to interrupt a running program it is necessary:  to press the START/PAUSE for some seconds until when the led START/PAUSE remains lit on (confirmation beep). At this point, it is possible to start the cycle again, otherwise: ...
  • Page 20 User instructions OPTIONS The selection of options is controlled by the relative buttons and indicated by the warning light below the symbol. Please read the paragraphs relating to each option for their usage details. QUICK TIME PROGRAMS Select this option together with any washing program (except the soak program) to SHORTEN the cycle by from a minimum of 10% to a maximum of 55%, depending on the cycle selected.
  • Page 21 User instructions Flexi Tabs Ideal for multi-function detergents, this option allows washing to be optimised, with full benefits from the combined-action tablets. When this option is activated, any salt and rinse aid in the relative containers will not be used. If the option is not provided, we recommend the use of conventional products (separate detergent, salt and rinse aid), because with conventional washing cycles, combined products might create problems...
  • Page 22 User instructions SPREAD HALF LOAD Suitable when there are not many dishes to be washed, it saves energy and reduces the program duration. Place dishes in both baskets then load the detergent dispenser than less than the normal amount for a full load. “CHILD LOCK”...

  • Page 23: Operating Instructions

    User instructions 4. Operating instructions Once the dishwasher has been correctly installed, prepare for use as follows: Adjust the water softening system (on some models only);  Add the regenerating salt (on some models only);  Add the rinse aid and detergent. ...
  • Page 24 User instructions  Do not use table salt as it contains insoluble substances which, over time, may damage the water softening system. When necessary, refill the regenerating salt container before  starting the washing program. In this way, the excess saline solution will be immediately removed by the water;...
  • Page 25 User instructions WATER HARDNESS TABLE WATER HARDNESS SETTING German Degrees (°dH) French Degrees (°dF) 0 - 6 0 - 11 H0 NO SALT 7 - 10 12 - 18 11 - 15 19 - 27 16 - 21 28 - 37 22 - 28 38 - 50 29 - 35...
  • Page 26 User instructions ADDING THE RINSE AID The rinse aid helps the dishes dry faster and prevents the formation of scale deposits and staining; it is automatically added to the water during the final rinse cycle, from the container situated on the inner side of the door. To add rinse aid: Open the door.
  • Page 27 User instructions ADDING THE DETERGENT To open the detergent dispenser cap, lightly press the button P. Add the detergent and close the cap carefully. During the washing cycle, the dispenser will be opened automatically.  When a program with hot prewash is selected (see program table), extra detergent must be placed in the cavity G/H (depending on models).
  • Page 28 User instructions The introduction of detergent into the rinse aid dispenser, even in liquid form, will damage the dishwasher. General warnings and recommendations Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading.
  • Page 29 User instructions WARNING! Make sure that the dishes are securely in place so that they cannot  tip over or obstruct the rotation of the spray arms during the washing cycle.  Do not place very small objects in the baskets as these could fall and obstruct the spray arms or the wash pump.
  • Page 30 User instructions Using the baskets The dishwasher has a capacity of 13 place-settings, including serving dishes. LOWER BASKET The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling. All types and combinations of loads are permitted, provided that the dishes, pots and pans are arranged with all the soiled surfaces...
  • Page 31 User instructions LOADING THE LOWER BASKET Carefully load flat plates, soup plates, dessert and serving dishes, positioning them vertically. Pots, pans and their covers must be loaded upside down. When loading soup plates and dessert bowls, be sure to leave a gap between them. Loading examples: UPPER BASKET It is recommended to load the upper basket with small- or medium-sized...
  • Page 32 User instructions CUTLERY BASKET The basket has removable top grids into which items of cutlery should be inserted to keep them properly spaced and allow water to pass between them effectively. The top grids and central lid are in the bag of accessories.
  • Page 33 User instructions FLEXI DUO TOP RACK (on some models only) This comprises two independent sliding, pull-out tray racks for easier loading/unloading of cutlery. Various loading systems and configurations are possible. For example, tea cups can be loaded with the right-hand rack set in the low position, while the left-hand rack or both can be removed to allow large dishes to be put in the top basket...
  • Page 34 User instructions Examples of loading for intensive dirt...
  • Page 35 User instructions Examples of loading for intensive dirt FLEXI DUO TOP RACK (on some models only)
  • Page 36 User instructions Depending on the models, the basket may be equipped with some or all of the following accessories: Supports for cups or long objects (ladles, spoons…), on the left; can be tipped to the vertical position when not in use. Long-stemmed glass holder, on the left;...
  • Page 37 User instructions ADJUSTING THE UPPER BASKET The height of the top basket can be adjusted to allow large dishes or pans to be placed in the bottom basket. The adjustment procedure may be type A or B, depending on the dishwasher model purchased.

  • Page 38: Cleaning And Maintenance

    User instructions 5. Cleaning and maintenance Before carrying out any work, always unplug the appliance from the electrical supply or switch off the all-pole disconnection device. General warnings and recommendations Avoid the use of acidic or abrasive detergents. Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened with water or with a normal detergent suitable for painted surfaces.
  • Page 39 User instructions CLEANING THE FILTER UNIT  It is advisable to periodically inspect the centre filter C and, if necessary, to clean it. To remove the filter, grip the tabs, turn them anticlockwise and lift upwards;  push the centre filter D from the underside to remove it from the micro- filter: ...
  • Page 40 User instructions BEFORE STARTING THE DISHWASHER AFTER PROLONGED DISUSE:  Check that there are no deposits of sludge or rust inside the water pipe: if there are, allow the water to run from the water supply tap for a few minutes. ...
  • Page 41 User instructions If the dishes fail to dry or remain dull, check that: there is rinse aid inside the special container;   the rinse aid dispenser setting is correct;  the detergent used is of good quality and has not lost its effectiveness (for example, through incorrect storage, with the box left open).

  • Page 42: Troubleshooting

    User instructions 6. Troubleshooting The dishwasher is equipped with a self-diagnostics system that is capable of detecting and signalling a number of possible faults. TABLE OF FAULTS DETECTED BY THE SELF-DIAGNOSTICS SYSTEM FAULT DESCRIPTION The anti-flooding system (where present) has been tripped service. E 01 The water level limitation system has tripped.
