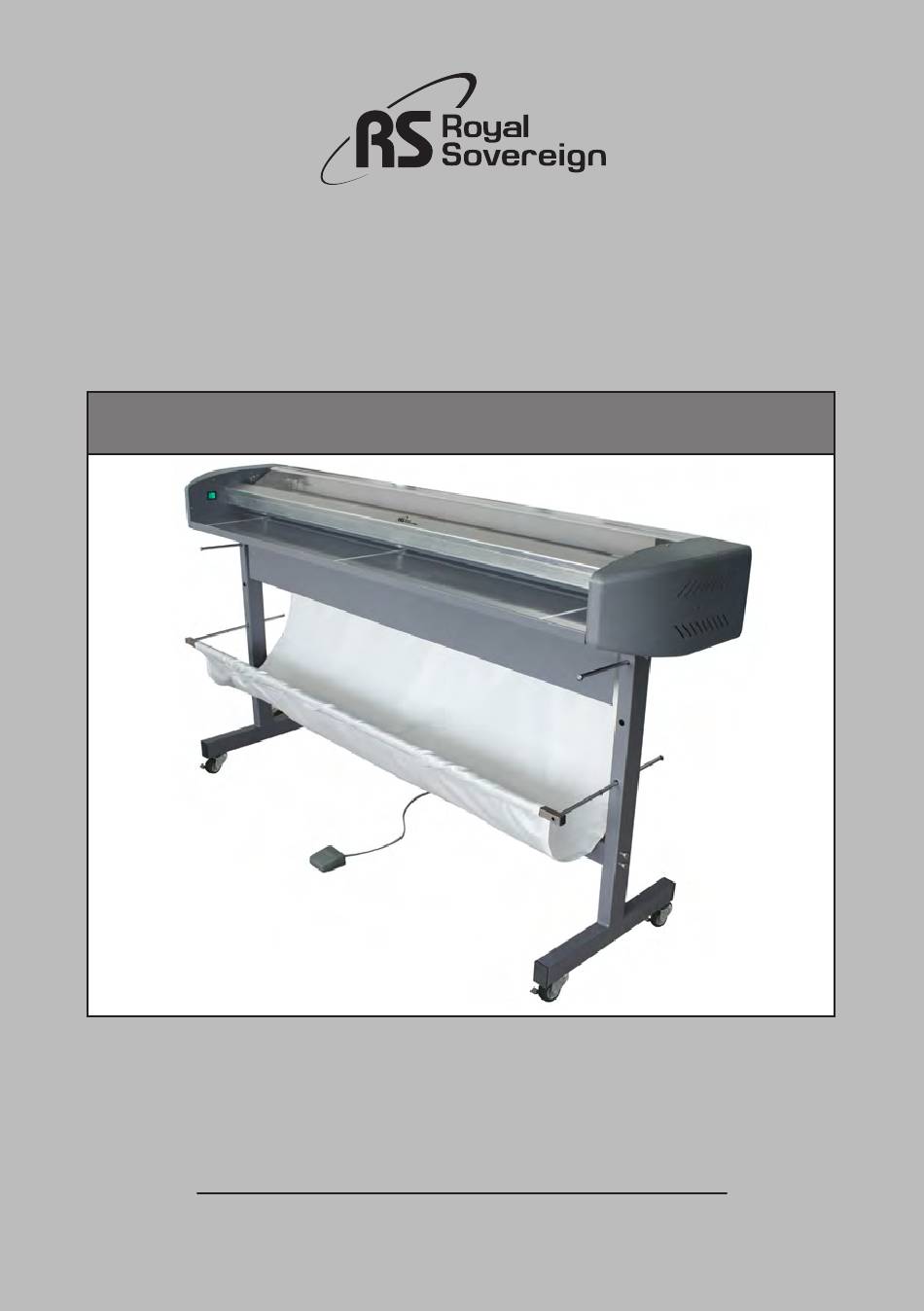

- Page 1 OWNER'S MANUAL RET Series Read all instructions carefully before use. For any Customer Support needs please choose the Customer Support tab on www.royalsovereign.com Royal Sovereign International Inc. www.royalsovereign.com...
-
Page 2: Table Of Contents
RET Series TABLE OF CONTENTS TOPIC∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ PAGE 1. INTRODUCTION∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 2. SAFETY PRECAUTIONS∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 3. PRODUCT IDENTIFICATION ∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5 4. INSTALLATION∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 4.1 Electrical requirements∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙6 4.2 Box contents∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙7 4.3 Assembly∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙8 5. OPERATION∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙11 6. -
Page 3: Introduction
RET Series 1. INTRODUCTION Thank you for choosing a Royal Sovereign trimmer. It has been designed and manufactured to provide years of continuous service. For complete operating and maintenance information please read this manual thoroughly. Upon receipt of your trimmer, please inspect the box, the machine and all other contents for shipping damage. - Page 4 RET Series Dangerous areas and residual risks All the areas around the machine in which people are at risk of injuries or health problems are considered dangerous. Pay close attention to hands when operating the trimmer. During certain intervention procedures on the machine, which are pointed out each time in this manual, residual risks for the operator may arise.
-
Page 5: Product Identification
RET Series 3. PRODUCT IDENTIFICATION PART NAME Left Side Cover Power Switch Feed Table Front Fabric Holder Rod Protection Plate Foot Pedal Floor Stand Waste Catcher Right Side Cover Rear Cover Activation Bar Safety Cover... -
Page 6: Installation
The trimmer should only be used in an area with the following characteristics: •∙Protection∙from∙atmospheric∙agents •∙Proper∙illumination •∙Temperatures∙between∙64°∙F∙and∙95°∙F •∙Amount∙of∙humidity∙from∙30%∙to∙80% 4.1 Electrical requirements Royal Sovereign recommends that a licensed electrician ensures proper power installation to your trimmer in accordance with electrical codes in your area. -
Page 7: Box Contents∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙7
RET Series 4.2 Box contents Thoroughly inspect the parts and the unit. It is imperative that any missing parts are reported and a claim is filed with the reseller immediately upon receipt of shipment. Part Name Quantity Picture Main Trimmer Assembly Floor Stand Side Frame Floor Stand Cross Bar Main... -
Page 8: Assembly∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙8
RET Series 4.3 Assembly 1. Open the box carton and remove all parts. 2. Open the tool-box. (Fig. 4-1) Fig. 4-1 This operation must be carried out by a minimum of two people 3. Attach the lower cross bar to the left floor stand side frame and right floor stand side frame using the supplied screws (M8x55). - Page 9 RET Series 5. Screw the wastecatcher square bars into the previously inserted wastecatcher holder rods, (Fig. 4-5) putting the supplied screws through the largest drilling in the square bar, so that the head of the screw sits flush within the bar itself. (Fig. 4-6) Fig.
- Page 10 RET Series 7. Attach the protection plate (Fig. 4-8) to the upper cross bar with the supplied screws. The protection plate must be assembled on the front part of the upper cross bar, always keeping the table adjustment pin upward. Fig.
-
Page 11: Operation∙ ∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙11
RET Series 5. OPERATION The trimmer must only be used by trained and qualified personnel. The trimmer must be used only for trimming material for which it has been designed. For recommended maximum cutting thickness see page 14. 1. The trimmer should be positioned on a level surface in an area with adequate lighting and enough work space for feeding materials. -
Page 12: Maintenance
RET Series 6. MAINTENANCE Standard maintenance CAUTION: Unplug the trimmer from the power outlet during any maintenance to avoid risk of electric shocks. Note: Only qualified personnel should attempt standard maintenance on the trimmer. Maintenance Procedures Follow below procedures as needed. Frequency of Maintenance Procedure... -
Page 13: Troubleshooting
'ON', but cutter won't move b. Replace either the right after pressing switch button or left micro switch b. If the 'led3' on the PCB is on, either the right or left limit switch is disconnected For more troubleshooting Queries, please contact Royal Sovereign. -
Page 14: Specifications
RET Series 8. SPECIFICATIONS 9.1 Technical information MODEL RET-1652 RET-2002 RET-2502 Power supply 220V(60Hz),220~240V(50Hz),100V(50/60Hz),110~120V(60Hz) Absorbed current max 0.7A-(max1.2A) Max cutting thickness 30mil/1mm Usable cutting length 65inch/1650mm 78inch/2000mm 98inch/2500mm Cutting speed 6.6ft/sec/2m/sec Length 93inch/2370mm 107inch/2720mm 126.7inch/3220mm Width 18.9inch/480mm Height 40.2inch/1020mm Working table height 34.3inch/871mm Unit weight 143lbs/65kg... -
Page 15: Warranty
The warranty made herein is in lieu of all other warranties, expressed or implied, including any warranty or merchantability or fitness for a particular purpose. Royal Sovereign will not be liable for personal damage or personal injury (unless primarily caused by its negligence), loss of profit, or other incidental or consequential damages arising out of the use or inability to use this equipment.
