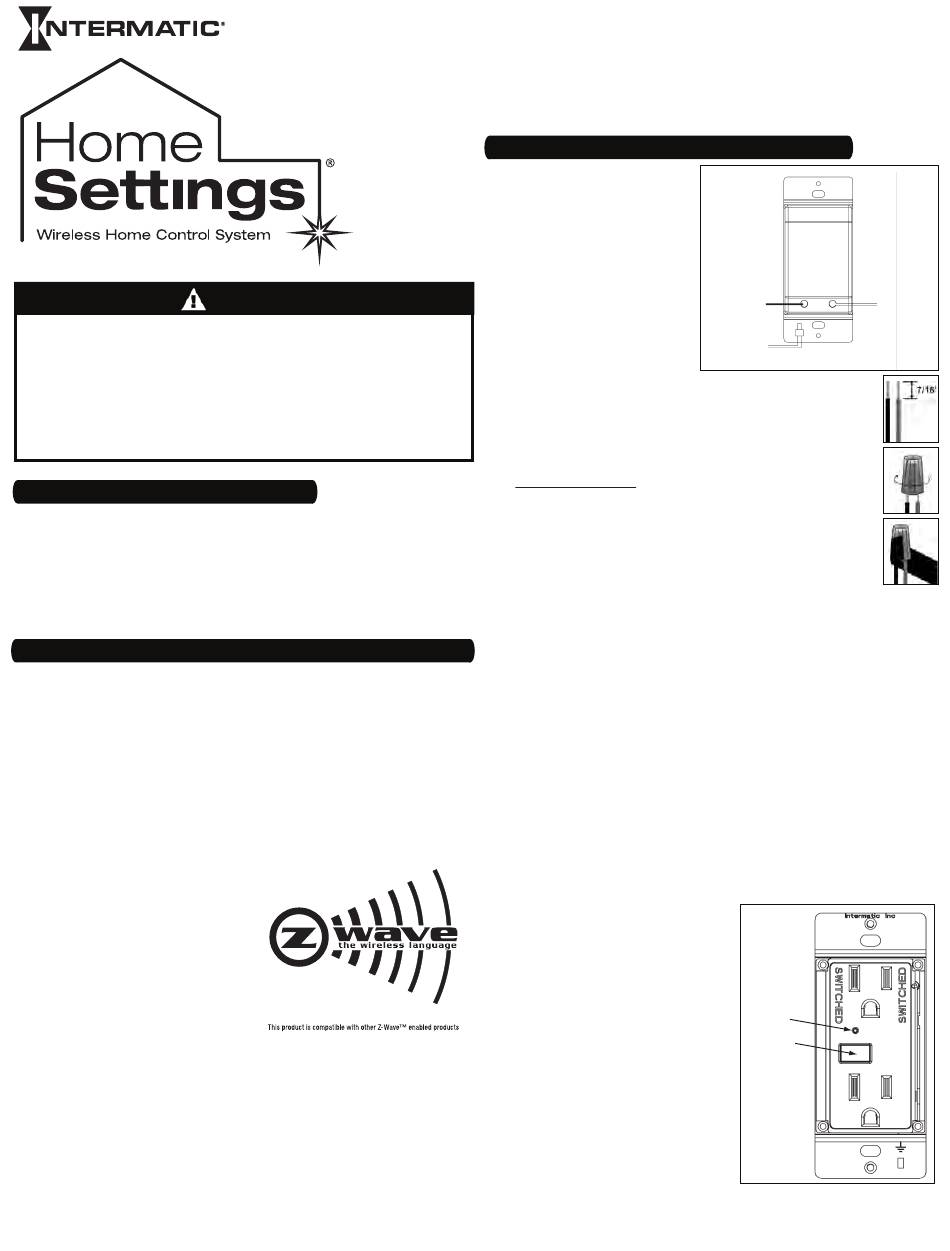

Intermatic Home Settings HA01 Installation And Programming Instructions

• Electrical shock hazard. Risk of injury or death. Remove electrical
power at service panel before installing.
• Follow local electrical codes during installation.
• For indoor use only.
• This device is not a GFCI receptacle and must not be used to replace a
GFCI receptacle, nor be used in any location where a GFCI receptacle
is required, including outdoor installations unless protected by an
upstream GFCI that is in good working order.
Before installing, make sure that you...
• Understand basic wiring principles and techniques (IF NOT, USE A
QUALIFIED ELECTRICIAN FOR THIS INSTALLATION.)
• Can interpret wiring diagrams
• Have circuit-wiring experience
• Read all instructions and documentation and save for future reference
• Are prepared to test your work, making sure you have wired the recep-
tacle according to your local electrical code
Thank you for purchasing an Intermatic HomeSettings device
With HomeSettings devices, you can reliably and remotely
control your lighting and appliances. The outstanding features
of the HomeSettings HA01 In-Wall Receptacle include:
• Two Receptacles—one standard outlet and one Z-Wave™
controlled outlet
NOTE: Both outlets will also work as standard outlets.
• Wireless signal reliability—each HomeSettings product has a
special feature that virtually guarantees that wireless signals
are received
• Feedback that will allow you to see whether your device has
received the ON/OFF signal
• Ease of installation
• Replaces a standard receptacle
Because the HA01 In-Wall Recep-
tacle is a Z-Wave device, it is com-
patible with any HomeSettings
network, other Z-Wave networks,
and all HomeSettings or other
Z-Wave devices displaying the
Z-Wave logo, regardless of manufacturer.
Each module in a Z-Wave network communicates with every
other module, acting as a "repeater" and routing your com-
mands to their destination by the most reliable pathway. When
Z-Wave devices (regardless of manufacturer) are installed
throughout the house, signals are automatically routed around
obstacles or dead spots, strengthening the network as more
devices are added.
Our products are constantly evolving. To see if advanced functionality is
possible with your product, look it up at www.homesettings.com.
Installation and Programming Instructions
WARNING
MODEL HA01
In-Wall Receptacle
1 – Wire and Install the HA01 In-Wall Receptacle
Wire the HA01 In-Wall Recep-
tacle according to the wiring
diagram shown here, and the
instructions below.
1. Turn off power at the ser-
vice panel by REMOVING
FUSE or TURNING THE
CIRCUIT BREAKER OFF.
2. Remove existing re-
ceptacle from the box if
necessary.
3. Trim building wires to 7/16".
4. Connect the BLACK wire of the HA01 to the hot build-
ing wire (the wire leading to the circuit breaker or
fuse box), using a twist connector (provided).
NOTE: Twist connectors provided are suitable for
copper wire only. For aluminum wire, consult an
electrician.
NOTE: Insert wires straight into twist connector,
then twist clockwise. Make sure all twist connectors
are tight. Secure each twist connector with electri-
cal tape. Make sure no bare wire shows below the
wire connector.
5. Connect the WHITE wire of the HA01 to the neutral wire,
using a twist connector (provided).
6. Connect the ground wire from the box to the bare copper
wire on the HA01 In-Wall Receptacle. If there is no ground
wire, ground the HA01 unit to the box. If the box is plastic,
connect the bare copper wire to ground as supplied or con-
tact an electrician.
7. Tuck the wires into the wall box leaving room for the HA01
unit.
8. Using screws provided, mount the HA01 unit to the wall
box, then install the decorator wall plate (not provided).
9. Turn power back on at the service panel.
10. Plug a lamp or appliance into the receptacle marked
"SWITCHED".
11. Turn the knob or switch on the lamp or appliance to the ON
position.
• To manually turn ON the
HA01 In-Wall Receptacle,
press and release the ON/
OFF/PROGRAM button. The
green LED indicator will turn
ON, and the lamp or appli-
ance plugged into the HA01
switched receptacle will also
turn ON.
• To manually turn OFF the
HA01 In-Wall Receptacle,
press and release the ON/OFF/
PROGRAM button. The green
LED indicator will turn OFF,
and the lamp or appliance
plugged into the HA01 switched receptacle will also turn
OFF.
BLACK WIRE
WHITE WIRE
(HOT)
(NEUTRAL)
125VAC @ 50/60 HZ
GROUND WIRE
BARE
COPPER
GREEN LED
INDICATOR
ON/OFF/
PROGRAM
BUTTON
