GBEseries 2
B A S S A M P L I F I C A T I O N
OWNER'S MANUAL

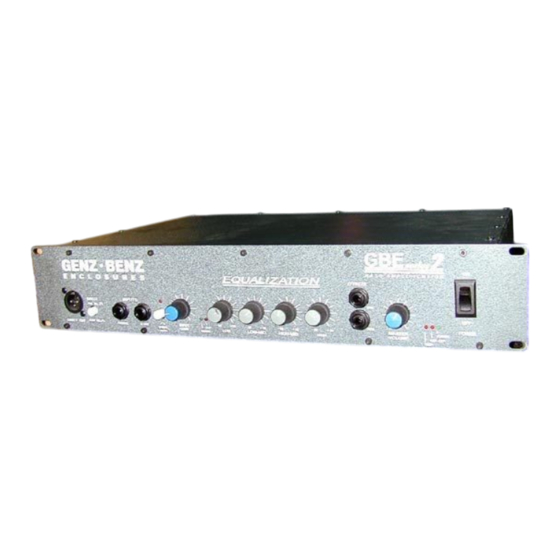

This GENZ BENZ Bass amp has been designed to perform precisely with our
popular bass enclosures, delivering powerful, articulate bass reproduction.
The Series 2 rack mount amp combines proven classic circuitry with state-of-the-
art integrated electronic power modules to deliver the sound quality and features
desired by today's sophisticated bass players.
FEATURES:
250 Watts RMS @ 8 ohms / 375 Watts RMS © 4 ohms, XLR studio quality direct
out with ground lift Passive/Active Inputs with Mute Switch, Input LED s, 4 bands
of Equalization, front panel effects loop, Internal Clip/Limit feature, thermal
protection, forced air fan cooling, heavy 16 gauge 2 space construction.
OPERATION:
XLR Direct Out-Studio quality balanced line level send with a rear-mounted
ground lift switch.
Passive/Active Input - Each input is internally set for either high impedance
passive basses or pie-amp driven active basses.
Input Mute Switch- This feature is provided to cut the input signal to the pie-amp
and direct output. This is a great feature to use when switching inputs to different
instruments.
Input Gain Stage - Allows you to set the input sensitivity to the pie-amp from the
output of the instrument.
LED's are provided to visually sent the input stage. The RED LED should light
only with the hardest notes. Equalization - The active 4 band EQ section used in
the Series 2 combo is comprised of 4 independently tuned asymmetrical band
pass filters, combined through a unique current summing network to create a
smooth, musical sounding equalization system. Freq: Low 80Hz, Low-Mid
500Hz, Mid-high 1K Hz, High 4K HZ.
Effects Loop - Usable for a wide variety of effects. Send (output) and
Return(input) are nominal -10db level. The send jack may be used as an auxiliary
output to drive a tuner, direct box, etc. Output is pre EQ and Master volume.
Master Volume - This post equalization, post effects volume control adjusts the
overall volume of the amplifier.
Temp LED- The temp LED indicates the status of the internal thermal protection
circuit. The power amplifier has been designed with a thermal monitoring system
to protect the amplifier against overheating due to poor air circulation over the
heatsink on the rear of the unit, excessive ambient temperature or short circuited
Advertisement
Related Manuals for Genz Benz GBE Series 2
Summary of Contents for Genz Benz GBE Series 2
- Page 1 B A S S A M P L I F I C A T I O N OWNER’S MANUAL This GENZ BENZ Bass amp has been designed to perform precisely with our popular bass enclosures, delivering powerful, articulate bass reproduction.
- Page 2 This LED will flash for a brief time at turn-on and turn-off, indication that the protection circuits are operating. Clip/Limit LED- This indicates the output status of the power amp. A limit switch is located on the back of the unit. In the DEFEAT position, this LED indicates clipping of the main amplifier.
