LG GM5148AEQV Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
REFRIGERATOR
FREEZER
www.lg.com
P/No.:MFL63264268

Advertisement

loading

Related Manuals for LG GM5148AEQV

Summary of Contents for LG GM5148AEQV

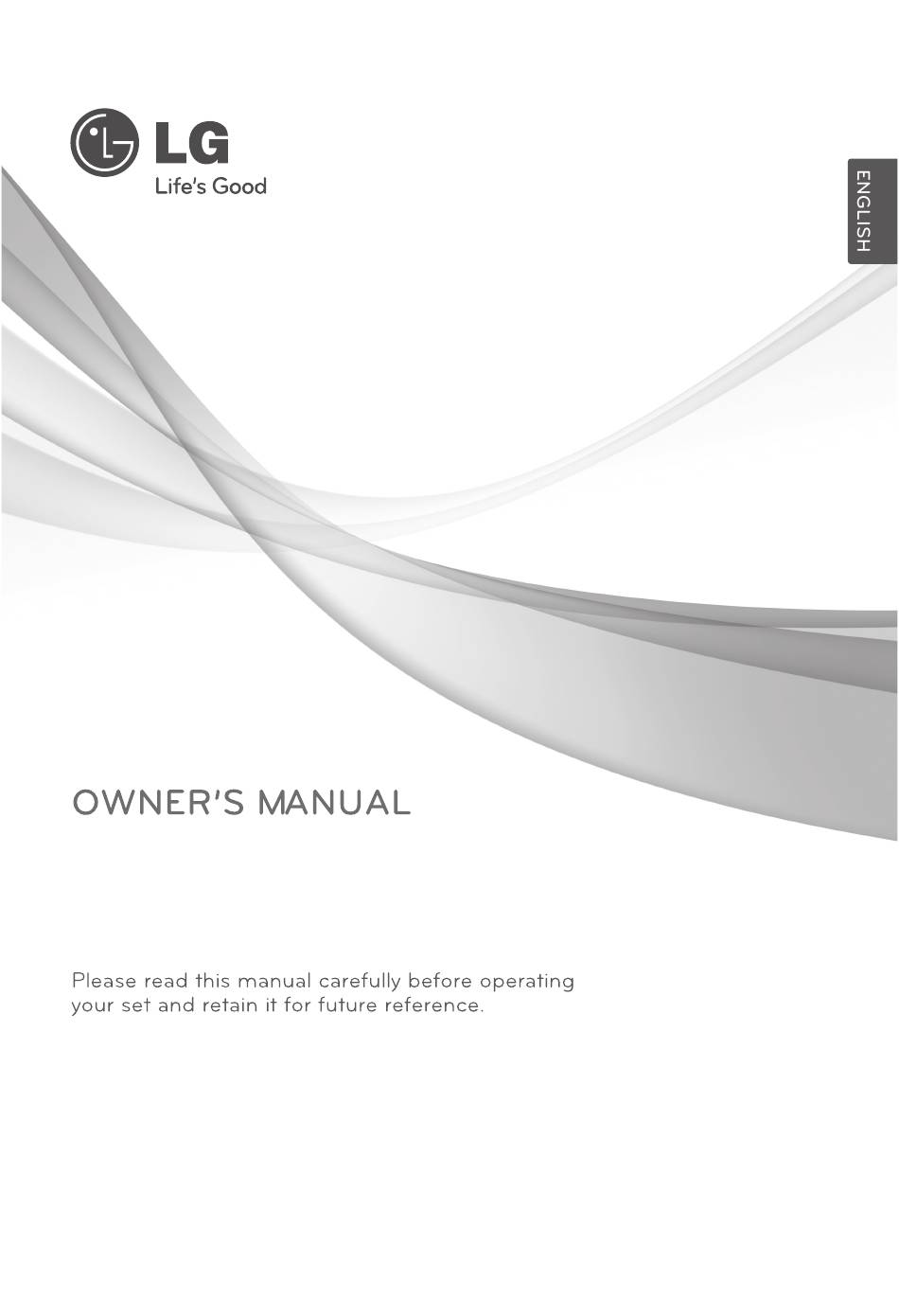

  • Page 1 REFRIGERATOR FREEZER www.lg.com P/No.:MFL63264268...
  • Page 2 (In the UK Only) Important The wires in this mains lead are coloured in accordance with the following code: GREEN AND YELLOW:EARTH BLUE:NEUTRAL BROWN:LIVE This appliance must be earthed As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured Green and Yellow must be connected...
  • Page 3 Refrigerator compartment Chill compartment Energy-Saving Energy-Saving Method Method 220-240V/50Hz.
  • Page 5 The dedicated outlet should be used. • Using several devices at one outlet may cause fire. • The electric leakage breaker may damage food and the dispenser may be leaked. Do not allow the power plug to face upward or to be squeezed at the back of the refrigerator.
  • Page 6 Do not allow the power cord bent or pressed by the heavy object to be damaged. It may damage the power cord to cause fire or electric shock. Do not extend or modify the length of the power plug. It causes electric shock or fire by the electric damage of the power cord or others.
  • Page 7 When the power cord or the power plug is damaged or the holes of the outlet are loosed, do not use them. It may cause electric shock or short circuit to make fire. Wait for 5 minutes or longer when reconnecting the plug.
  • Page 8 Do not place the lit candle within the fridge-freezer to deodorize. Do not use drier to dry the inside, nor light a candle to remove odor. It may cause explosion or fire. Don’t insert the hands into the automatic ice maker. (Only for the model with the automatic ice maker) It may cause injury.
  • Page 9 Use the submerged refrigerator after checking it. It may cause electric shock or fire. In case of thunder and lightning, or not in use for a long period of time, detach the power plug. There is a danger of electric shock or fire. When gas is leaked, do not touch the refrigerator or the outlet and ventilate the room immediately.
  • Page 10 Do not use the refrigerator for non-domestic purpose (storing medicine or testing material, using at the ship, etc.). It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction. When disposing the refrigerator, remove the packing material from the door or take off the doors but leave the shelves in place so that children may not easily climb inside.
  • Page 11 Violating this direction may cause injury or damage house or furniture. Always be careful, please. Do not touch food or containers at the freezer with wet hands. It may cause frostbite. When the electricity is off for long time, remove ice from the ice box.
  • Page 13 Multi-air Flow Duct General shelf Door rack Door rack Rotating Plate General shelf Small drawer Sliding Tray Bottle Door rack Bottle Door rack Small drawer Vegetable drawer Chill Compartment (1 or 2) ice maker Freezer Compartment (Top) Ice box Transparent shallow draw in the freezer Freezer Compartment (Bottom)
  • Page 14 1. Select a good location.Place your fridge-freezer where it is easy to use. 2. Avoid placing the unit near heat sources, direct sunlight or moisture. 3. To ensure proper air circulation around the fridge -freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5cm) from the rear wall.
  • Page 15 Function display board Type-2 Type-1 FRIDGE Temperature FRIDGE FRIDGE adjustment button for Refrigerator REF/FRZ compartment FREEZER CHILL CHILD LOCK 2 SECS Temperature CHILL Adjustment button for Chill compartment FREEZER FREEZER Temperature Adjustment button for freezer compartment CHILD LOCK CHILD 2 SECS LOCK Lock Button 2 SECS...
  • Page 16 You can adjust temperature of the freezer compartment, refrigerator compartment and chill compartment. How to adjust the Refrigerator compartment temperature adjustment temperature in the refrigerator When you press” “ button, the temperature of FRIDGE compartment refrigerator compartment is repeated in the following FRIDGE order: 4°C →...
  • Page 17 Function Refrigerator In order to save electricity when no food needs to be stored in the refrigerator “ECO” compartment, you can select the Refrigerator ECO function, that is, to turn off the refrigerator compartment. To put the refrigerator in the stop state, press “ ”...
  • Page 18 Function Lock • Pressing this button stops operation of other buttons. CHILD • Locking or Unlocking is repeated whenever pressing the “ ” button. LOCK 2 SECS (For “Locking” or “UnLocking” press the “ ” button for 2 secs.) CHILD LOCK 2 SECS CHILD...
  • Page 19 Ice making How to make ice Ice maker Ice box 1. Pour water into the Ice tray. Adding too much water will make it difficult to separate the ice cubes. When water drips into the ice cube container, the ice cubes may stick together. 2.If you want to speed up the ice making, adjust the freezer compartment to”-26°C(SUPER) ”.

  • Page 20: Refrigerator Compartment

    Refrigerator compartment Basket In order to store tall foods, move the door shelves to change the height between the shelves. Remove the shelf by lifting it upwards, and then install it at desired position. General Shelf In order to store tall foods, move the shelves to change the height between them.

  • Page 21: Chill Compartment

    Sliding Tray The sliding tray can slide freely to avoid the inconvenience of accessing the foods placed at the rear side of the shelf. Chill compartment Chill TYPE-1 compartment Adjust the position of the small drawers according to the size of the food. TYPE-2 According to the type of the foods which need to be stored in the chill compartment, place them separately in 2 drawers.
  • Page 22 Energy-Saving Method • Install the fridge in a shady,cool and well-ventilated place. • Do not open and close the door frequently if not necessary. • Please do not keep the door open for a long time, close door in the shortest time.
  • Page 23 Suggestion on food storage Location on foods Refrigerator Compartment Chill Compartment Freezer Compartment TYPE-1 TYPE-2 Suggestions Door rack Bottle door rack on refrigerator Store small packages storage Store water and of milk or spices. beverage. General self (1 or 2) Vegetable drawer Store refrigerated food Store fruits and...
  • Page 24 Suggestion on food storage Suggestions Drawer (1 or 2) on chill compartment Store highly perishable foods. Drawer (top) Ice maker Suggestions on freezer For instructions on Store frozen food for a compartment how to make ice, long time. refer to the user guide.
  • Page 25 Suggestion on food storage Note Chill Store highly perishable foods. compartment...
  • Page 26 Care and maintenance Note shelf • Lift the inside of the shelf and pull it out to remove the shelf; • Wash the removed shelf with water and wipe it clean using a dry soft cloth; • Install the shelf in the reverse order. Door rack Grasp the door rack tightly with one hand and tap it from bottom with another hand to remove...
  • Page 27 Care and maintenance The drawer of 1. For some models, small drawer should be taken out beforehand. 2. Pull the drawer all the way out, lift the outside of the whole set of the chill drawers and pull out slightly, then lift the white plastic drawer and take it compartment out.
  • Page 28 Care and maintenance The drawer 1. Pull the drawer of the freezer (lower) all the way out; (bo ttom) 2. Remove the transparent shallow drawer; 3. Lift the whole set of drawer and pull out to remove it; of freezer compartment 4.
  • Page 29 Care and maintenance Be sure to unplug the power. For products with a stainless steel exterior, use a clean sponge or soft cloth and a mildDetergent in warm water. Do not use abrasive or harsh cleaners. Dry thoroughly with a Soft cloth. Do not use appliance wax, bleach, or other products containing chlorine on stainless steel.
  • Page 30 Care and maintenance When the ice • Discard the water in the water tank; maker is not to • Remove the ice cubes and water in the ice bin; be used for • Turn the switch of the ice maker to OFF position. a long time Replace Lighting specifications of this product: refrigerator compartment lamp power:...

  • Page 31: Troubleshooting

    Care and maintenance Trouble shooting Refrigerator does not run Wait for a while until the refrigerator compartment, chill compartment and freezer compartment reach the set temperature. Gaps may be formed on the refrigerator compartment door, chill compartment drawer or freezer compartment drawer The gaskets of the refrigerator compartment door, chill compartment drawer or freezer...
  • Page 32 Care and maintenance Trouble shooting The freezer compartment Freezer temperature is set too is too cold but the cold. temperatures in other compartments are normal The refrigerator compartment Refigerator temperature is set too is too cold but the cold. temperatures in other compartments are normal The chill compartment is too cold but the temperatures...
  • Page 33 Care and maintenance Trouble shooting...
  • Page 34 Care and maintenance Trouble shooting The door or drawer is closed with so Close the door or drawer gently. The door or drawer much force that other drawers and door are opened. is not closed tightly The drawer is stuck by packing bag or Remove the food that blocks the drawer The drawer is hard the food in the drawer is too heavy.
  • Page 35 LG Customer Information Center ☎ LG SERVICE : (UNITED KINGDOM) 0844-847-5454 Register your product Online! www.lg.com...
