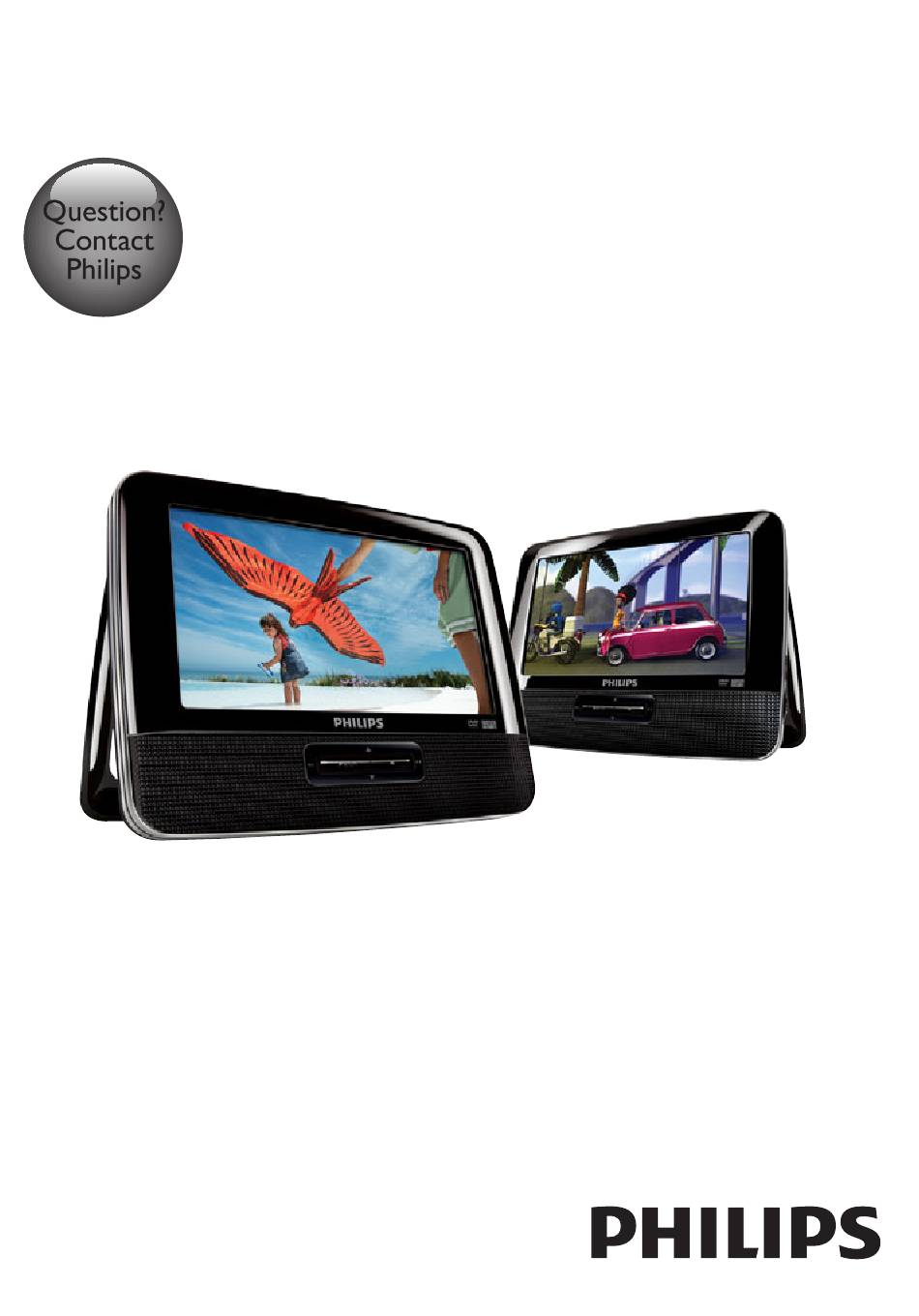

- Page 1 Always there to help you Register your product and get support at www.philips.com/welcome PD9016 Question? Contact Philips User Manual...
-
Page 3: Table Of Contents
Contents 1 Safety and notice Safety Compliance Care of the environment Copyright 2 Your portable DVD player What's in the box Overview of the main unit 3 Get started Prepare Connect power Switch on/off Select OSD language 4 Use your player Play discs Connect additional equipment 5 Adjust settings... -
Page 4: Safety And Notice
Safety and notice Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply. Safety This 'bolt of lightning' indicates uninsulated material within the device may cause an electrical shock. - Page 5 d Follow all instructions. e Do not use this apparatus near water. f Clean only with dry cloth. g Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. h Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Page 6 the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. p Apparatus shall not be exposed to dripping or splashing. q Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).
-
Page 7: Compliance
The type plate is located on the back of the product. Any changes or modifications made to this product that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment. Care of the environment Environmental information All unnecessary packaging has been omitted. -
Page 8: Copyright
Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. -
Page 9: Your Portable Dvd Player
Discs with JPEG files What's in the box Check and identify the contents of your package: • Main unit x 2 • AC power adaptor x 2, ASUC12D-090080 (Philips) • Car adaptor x 1 • AV cable x 2 •... -
Page 10: Overview Of The Main Unit
Overview of the main unit h i j k l m a DVD/AV IN • Switch to DVD/AV IN mode. b ON/OFF • Turns on/off DVD player. c VOL+/VOL- • Increases or decreases volume. • Headphone jack. e AV OUT •... - Page 11 • Navigates menus. • Searches backward/forward at different speeds. • Confirms an entry or selection. • Starts, pauses or resumes disc play. • Stops disc play. h BRIGHTNESS • Adjusts screen brightness. i SETUP • Accesses or exits the setup menu. •...
-
Page 12: Get Started
• Always follow the instructions in this chapter in sequence. If you contact Philips, you will be asked for the model and serial number of your apparatus. The model number and serial number are on the back of the apparatus. -
Page 13: Connect Power
Connect power Connect through the car adaptor Caution • Risk of product damage! Ensure that the power supply voltage corresponds to the voltage pointed on the back or the underside of the player. • Risk of electric shock! When you unplug the AC adapter, always pull the plug from the socket. Never pull the cable. -
Page 14: Switch On/Off
Connect through the AC adaptor Connect the AC adaptor cable to: the DC IN jack on the main unit. • • the power outlet. Switch on/off Slide the ON/OFF switch on the main units to the ON position. To switch off the player, slide the ON/OFF switch to the OFF position. Select OSD language You can choose a different language for the on-screen display text. - Page 15 Password Video Last Memory Espanol Set OSD Language Go to [-- General Setup Page --] > [OSD Language] (on-screen display language). Press to select a language. Press /OK to confirm. Press SETUP to exit.
-
Page 16: Use Your Player
Use your player Play discs Slide the DVD/AV IN switch to DVD. Slide OPEN on the main unit. Insert the disc with label side facing you. Push down to close the disc compartment. » Play starts automatically. If not, press /OK. - Page 17 Select [Subtitle]. Press to select a subtitle. Press /OK to confirm. Repeat During play, you can select different repeat options. Press OPTIONS. » The option menu is displayed. Select [Repeat], then press navigation keys to select a repeat option. For DVD •...
- Page 18 [Title Remain] / [Chapter Remain] Displays DVD title or chapter remaining play time. [Single Elapsed] / [Total Elapsed] Displays VCD/SVCD disc or track elapsed play time. [Single Remain] / [Total Remain] Displays VCD/SVCD disc or track remaining play time. Select an option, then press /OK.
-
Page 19: Connect Additional Equipment
Connect additional equipment Connect the dual DVD players Caution • Turn off the players before you connect the dual DVD players. You can view the same content on dual screens by connecting the dual DVD players together. To view the same display on both DVD players, On one player: Slide the DVD/AV IN switch to DVD, and then inset a disc. - Page 20 Switch ON/OFF to the ON position on both players.. » The play starts simultaneously on both players. Note • Do not connect the AV cable to the headphone jack. Connect to a TV Caution • Turn off your player before connecting to any additional equipment. You can connect the player to a TV or an amplifier to enjoy DVDs.
- Page 21 not supplied • To conserve energy, press AV MODE to turn off the front panel display.
-
Page 22: Adjust Settings
Adjust settings To maximize your play experience, use SETUP to fine tune your settings. In DVD mode, press SETUP. » The setup menu is displayed. Use navigation keys to select an option and press /OK to confirm. [-- General Setup Page --] [OSD Language] Select an onscreen display language. -
Page 23: Product Information
Dimensions - Main unit (each) 240 x 183 x 38 mm Weight - Main unit (each) 0.9 kg AC power adaptor ASUC12D-090080 (Philips) Power supply - AC power adaptor Input: 100-240V~ 50/60Hz 0.3A Output: DC 9V 0,8A - Car adaptor... -
Page 24: Troubleshooting
To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using the player, check the following points before requesting service. If the problem remains unsolved, register your player and get support at www.philips.com/support No power •... - Page 25 The player feels warm • When the player is in use for a long period of time, its surface will be heated. This is normal.
- Page 26 Specifications are subject to change without notice © 2013 Koninklijke Philips Electronics N.V. All rights reserved. PD9016_77_UM_V1.0...
