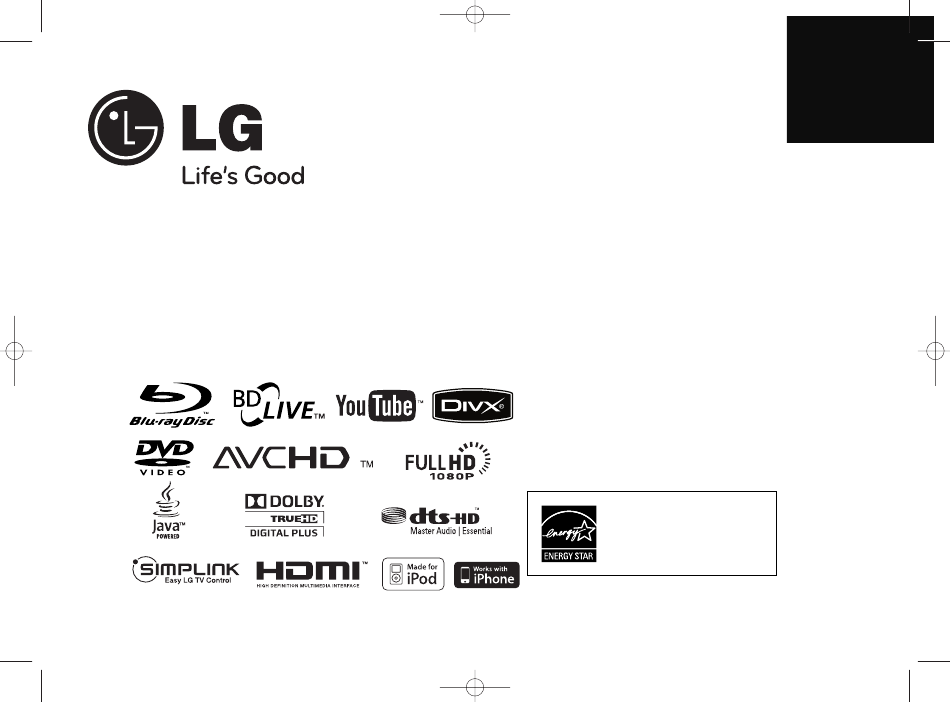

HB954SP-AP_BSGPLL_6406
4/22/09
HB954PB (HB954PB-AD / SB94PB-C/F/S/W)
HB954SP (HB954SP-AP / SB94SP-C/F/S/W)
4:23 PM
Page 1
As an E
S
®
NERGY
TAR
has determined that this product
or product models meet the
E
S
®
guidelines for
NERGY
TAR
energy efficiency.
E
S
®
is a U.S. registered mark.
NERGY
TAR
ENGLISH
Partner, LG
P/NO : MFL62426406

Advertisement

Table of Contents
loading

Related Manuals for LG HB954SP-AP

Summary of Contents for LG HB954SP-AP

  • Page 1 HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 1 ENGLISH HB954PB (HB954PB-AD / SB94PB-C/F/S/W) HB954SP (HB954SP-AP / SB94SP-C/F/S/W) As an E ® Partner, LG NERGY has determined that this product or product models meet the ® guidelines for NERGY energy efficiency. ® is a U.S. registered mark.
  • Page 2 HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 2 proper ventilation is provided or the manufacturer's CAUTION instruction has been adhered to. RISK OF ELECTRIC SHOCK CAUTION: This product employs a Laser System. DO NOT OPEN To ensure proper use of this product, please read CAUTION: TO REDUCE THE RISK OF ELECTRIC this owner’s manual carefully and retain it for future SHOCK DO NOT REMOVE COVER (OR BACK)
  • Page 3 Some functions of this unit are controlled by the certain restrictions are imposed on playback, TV’s remote control when this unit and LG TV’s with “DVD Logo” is trademark of DVD Format/Logo analog signal output, etc., of AACS protected SIMPLINK are connected through HDMI Licensing Corporation.

  • Page 4: Table Of Contents

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 4 Contents Viewing a photo ....... .36-37 Introduction .

  • Page 5: Introduction

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 5 Introduction Handling the Unit When shipping the unit To ensure proper use of this product, please read this owner’s manual Please save the original shipping carton and packing materials. If you need carefully and retain for future reference. to ship the unit, for maximum protection, re-pack the unit as it was This manual provides information on the operation and maintenance of originally packed at the factory.
  • Page 6 LG players when formatting rewritable discs. Audio CD (8 cm / 12 cm disc) When setting the option to Live System, you cannot use it on LG player. Audio CDs or CD-Rs/CD-RWs in audio CD format that can be...
  • Page 7 HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 7 BD-ROM Disc Features Menu sounds When you highlight or select a menu option, sounds can be heard such as BD-ROM Discs can store 25 GB (single layer) or 50 GB (dual layer) on a button clicks or a voice-over explaining the highlighted menu choice.
  • Page 8 HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 8 Regional Code Certain System Requirements This unit has a regional code printed on the rear of the unit. This unit can play For high definition video playback: only BD-ROM or DVD discs labeled same as the rear of the unit or “ALL”. •...

  • Page 9: Remote Control

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 9 Remote control VOL. (+/-): Adjusts speaker volume. POWER POWER INPUT (TUNER): Changes the input source NIGHT ( ): Sets the late night function. (FM, AM, AUX, PORTABLE, OPTICAL, COAXIAL, HDMI IN 1, HDMI IN 2) 0-9 numerical buttons: Select numbered options in a (HDMI IN 1/2: HB954PB only) menu.

  • Page 10: Front Panel

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 10 Front panel a 1 1 /} } (POWER) Button - FUNC. Changes the input source (FM, AM, OSD IPOD, REMOTE IPOD, Switches the unit ON or OFF. AUX, PORTABLE, OPTICAL, COAXIAL, HDMI IN 1, HDMI IN 2) or b Disc Tray displays On-Screen Display.

  • Page 11: Rear Panel

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 11 Rear panel h i j a AC Power Cord i DIGITAL AUDIO IN (OPTICAL) Plug into the power source. Connect to digital (optical) audio equipment. b SPEAKER Connectors j PORT. IN Connect the speakers. Connect to a portable player with audio outputs.

  • Page 12: Assembling The Speakers (Hb954Pb Only)

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 12 Assembling the Speakers (HB954PB only) Speaker Connection Before connecting the speakers, assemble the speakers. Attaching the speakers to the player (The illustrations in the following steps are for the front speakers.) You will have received six speaker cables. Fix the post to the base by rotating the post.

  • Page 13: Positioning The System

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 13 Positioning the System SPEAKER COLOUR POSITION The following illustration shows an example of positioning the system. Grey Rear Behind you and to your right. Note that the illustrations in these instructions differ from the actual unit for Blue Rear Behind you and to your left.

  • Page 14: Connections To Your Tv

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 14 Connections to Your TV Set the TV’s source to HDMI (refer to TV’s Owner’s manual). Notes: Make one of the following connections, depending on the capabilities of your existing equipment. • You must select a HDMI audio output that your TV accepts using [HDMI Audio] options on the [Setup] menu (see page 24).
  • Page 15 HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 15 Additional Information for HDMI Tip: • When you connect a HDMI or DVI compatible device make sure of the When you use COMPONENT VIDEO OUT connection, you can change following: the resolution for the output. (Refer to “Resolution setting” on page 16-17.) - Try switching off the HDMI/DVI device and this player.

  • Page 16: Resolution Setting

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 16 Resolution Setting Available resolution according to the resolution setting The player provides several output resolutions for HDMI OUT and • When the non-copy protected media is playing back COMPONENT VIDEO OUT jacks. You can change the resolution using [Setup] menu or pressing the Video Output HDMI OUT COMPONENT VIDEO OUT...
  • Page 17 HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 17 HDMI OUT connection • For the 576i resolution setting, real output resolution of HDMI OUT will change to 576p. • If you select a resolution manually and then connect the HDMI jack to TV and your TV does not accept it, the resolution setting is set to [Auto]. •...

  • Page 18: Internet Connection

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 18 Internet connection • Since there are various connection configurations, please follow the specifications of your telecommunication carrier or internet service provider. This player can be connected to a local area network (LAN) via the LAN port on the rear panel.

  • Page 19: Setting The Sound Mode

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 19 • A DSL modem is required to use DSL service and a cable modem is [Game] mode: You can enjoy more virtual sound while playing video required to use cable modem service. Depending on the access method games.

  • Page 20: Using Usb Devices

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 20 Notes: Using USB devices • This unit supports only USB Flash Drive and USB External HDD with This unit can play the movie, music and photo ON REMOTE FAT16 or FAT32 format. files contained on the USB device. •...

  • Page 21: Using The Home Menu

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 21 Using the Home Menu Adjust the Setup settings ON REMOTE ON REMOTE 1 Displays the [Home Menu]: HOME 1 Displays the [Home Menu]: HOME b b B B b b B B , ENTER 2 Select an option: 2 Select the [Setup] option: 3 Displays the selected option menu:...
  • Page 22 HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 22 [DISPLAY] Menu Resolution Sets the output resolution of the Component and HDMI video signal. Refer to “Resolution Setting” on page 16-17 for details about the resolution. [Auto] – If the HDMI OUT jack is connected for TVs providing display information (EDID), automatically selects the resolution best suited to the connected TV.
  • Page 23 HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 23 [LANGUAGE] Menu [AUDIO] Menu Speaker Setup Display Menu To obtain the best possible sound, use the Speaker Setup display to Select a language for the [Setup] menu and on-screen display. specify the volume of the speakers you have connected and their distance from your listening position.
  • Page 24 HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 24 HD Audio Effect [LOCK] Menu (Parental Control) The [LOCK] settings affect only BD and DVD playback. Selects whether to mix or not mix primary audio and secondary audio. [Off] – Outputs the primary audio only. [On] –...
  • Page 25 HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 25 Rating Blocks playback of rated disc based on their content. (Not all discs are rated.) [Rating 1-8] – Rating one (1) has the most restrictions and rating eight (8) is the least restrictive. [Unlock] – If you select unlock, parental control is not active and the disc plays in full.
  • Page 26 HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 26 [NETWORK] Menu How to check the network configuration Select [IP Mode] option and check the Network status indicator shown The [NETWORK] settings are needed to use the BD Live and YouTube above the menu. (The Network status indicator changes according to features.
  • Page 27 HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 27 [OTHERS] Menu DivX Registration Code ® DivX is a digital video format created by DivX, Inc. This is an official DivX Certified or DivX Ultra Certified device that plays DivX video. ® This DivX Certified device must be registered in order to play DivX Video- on-Demand (VOD) content.

  • Page 28: Play A Disc

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 28 Resume playback Play a disc During playback, press STOP (x) to stop playback. ON REMOTE The unit records the stopped point, depending on the disc. “Xx” appears on the screen briefly. Press PLAY (N) to resume playback (from the 1 Open the disc tray: OPEN/CLOSE (Z Z ) scene point).
  • Page 29 HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 29 Playing repeatedly Marker Search AVCHD AVCHD DivX During playback, press REPEAT repeatedly to select a desired repeat To enter a Marker mode. The current title, chapter or track will be played back repeatedly. To You can start playback from up to nine memorized points.
  • Page 30 HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 30 Selecting a subtitle language Notes: AVCHD DivX • Settings are stored in memory for use any time. During playback, press SUBTITLE repeatedly to select a desired subtitle • This unit does not memorize settings of a disc if you switch off the unit language.

  • Page 31: Displaying Disc Information

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 31 Moving to another title/chapter Displaying disc information AVCHD DivX ON REMOTE When a disc has more than one title/chapter, you can move to 1 Play the disc loaded on the unit: PLAY another title/chapter/track. Press DISPLAY during playback then use v / V to select the 2 Displays the playback menu: DISPLAY...

  • Page 32: Enjoying Bd-Live

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 32 Caution: Enjoying BD-LIVE™ Do not extract the connected USB device while content is being downloaded or a Blu-ray disc is still in the disc tray. Doing so may damage ON REMOTE the connected USB device and BD-Live features may not operate properly 1 Inserts a BD-ROM disc with BD-LIVE™...

  • Page 33: Playing A Movie

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 33 Playing secondary video (picture-in-picture) Playing a movie Secondary video can be played from a disc compatible with the picture-in- picture function. The player can play DivX files on the disc/USB For the playback method, refer to the instructions for the disc. device and video contents recorded on a ON REMOTE To turn on/off secondary video, press PIP.
  • Page 34 HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 34 Movie List menu options (DVD-RW (VR mode disc)) DivX file requirement DivX file compatibility with this player is limited as follows: Use v / V to select a title on the [MOVIE] menu then press ENTER. The menu options appear.

  • Page 35: Listening To A Music

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 35 • On the [MUSIC] menu, use red (A) or blue (D) button to move to the Listening to a music previous or next page. • The equalizer indicator is not coupled with the music in play back. The player can play Audio CDs and MP3/WMA files.

  • Page 36: Viewing A Photo

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 36 MP3/WMA audio file requirement Viewing a photo File extensions: “.mp3”, “.wma” This unit can play a photo files. Before playing Sampling frequency: within 32 - 48 kHz (MP3), photo files, read “Photo file requirement” on page within 32 - 48 kHz (WMA) ON REMOTE Bit rate: within 32 - 320 kbps (MP3), within 40 - 320 kbps (WMA)
  • Page 37 HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 37 • Select a folder then press ENTER and you can view the files in the Photo file requirement folder. If you want to move to the upper directory, use v/V/b/B to File extensions: “.jpg”, “.jpeg”, “.png” highlight [UP Folder] and press ENTER.

  • Page 38: Playing Youtube Videos

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 38 About the YouTube menu Playing YouTube videos There are various options on the YouTube menu. Use v V b B to select ON REMOTE an option and press ENTER to select the options as described below. 1 Check the network connection and settings: –...
  • Page 39 HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 39 About YouTube playback screen Press DISPLAY to toggle between playback in full screen and playback screen with content detail. When you press PLAY (N) or ENTER at the video you want to watch, the playback screen and content detail will appear on the screen.
  • Page 40 HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 40 Searching videos You can search for videos by entering search words of up to 128 characters. Use b B to select [Search] option from the menu and press ENTER to display the keyboard menu. Use v v V V b b B B to select a character then press ENTER to confirm your selection on the keyboard menu.

  • Page 41: Listening To The Radio

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 41 Listening to the radio Playing the iPod ON REMOTE Be sure that FM and AM antennas are connected. For details about iPod, refer to the iPod User Guide. 1 Select FM or AM: TUNER (INPUT) Preparation 2 Select a radio station: TUN.-/+...
  • Page 42 • The video quality depends on the video sources on your iPod. Start a song or video over Press SKIP (.). • When LG TV’s SIMPLINK is set to On, the audio signals are output to the Play the previous song or video Press SKIP (.) twice. system speakers only.

  • Page 43: Listening To Music From Your Portable Audio Player

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 43 Listening to music from your Listening to the sound from portable audio player your component You can enjoy the sound of your portable audio player from the speakers You can enjoy the sound of your component with the analog audio of the system.

  • Page 44: Using Hdmi In Jacks (Hb954Pb Only)

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 44 Using HDMI IN jacks (HB954PB only) Using DIGITAL AUDIO IN jacks You can enjoy the pictures and sound of your component with the HDMI You can enjoy the sound of your component with the digital OUT jack.

  • Page 45: Reference

    Reference Setting up the remote to control your TV You can operate your LG/GoldStar TV with the supplied remote control. Controlling a TV with the Supplied Remote Control While holding down TV POWER button, press PR/CH v v or V V .

  • Page 46: Language Codes

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 46 Language Codes Use this list to input your desired language for Disc Audio, Disc Subtitle and Disc Menu. Language Code Language Code Language Code Language Code Language Code Language Code Afar 6565 Croatian 7282 Hausa 7265 Lingala...

  • Page 47: Troubleshooting

    HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 47 Troubleshooting Possible Cause Correction Symptom • The power cord is disconnected. • Plug the power cord into the wall outlet securely. No power. The power is on, but the • No disc is inserted. •...
  • Page 48 The unit is plugged in, but the power will not turn on or off. To obtain the latest software for this player (if updates have been made), • The front panel display is not working. please visit http://lgservice.com or contact LG Electronics customer care cen- • The unit is not operating normally. tre.

  • Page 49: Specifications

    HB954SP-AP_BSGPLL_6406 4/22/09 4:59 PM Page 49 Specifications System aser: Semiconductor laser, General wavelength: 405nm / 650 nm Power requirements: AC 110 - 240 V, 50/60 Hz Signal system: Standard PAL/NTSC colour TV system Power consumption: 130 W Dimensions (W x H x D): Approx.
  • Page 50 HB954SP-AP_BSGPLL_6406 4/22/09 4:23 PM Page 50 Speakers (HB954SP) Front Rear Center Passive speaker Speaker Speaker Subwoofer Type 2 Way 2speaker 1 Way 1 speaker 2 Way 2 speaker 1 Way 1 speaker Impedance 4Ω 4Ω 4Ω 3Ω Rated Input Power 155 W 155 W 155 W 225 W...

  • Page 51: Open Source Software Notice

    DirectFB, iconv, cairo, blowfish, mpg123 Centrum, Amsterdam, The Netherlands. LG Electronics offers to provide source code to you on CD-ROM for a • Copyright © 1990 The Regents of the University of California. charge covering the cost of performing such distribution, such as the cost •...
  • Page 52 HB954SP-AP_BSGPLL_6406 4/22/09 4:59 PM Page 52...
