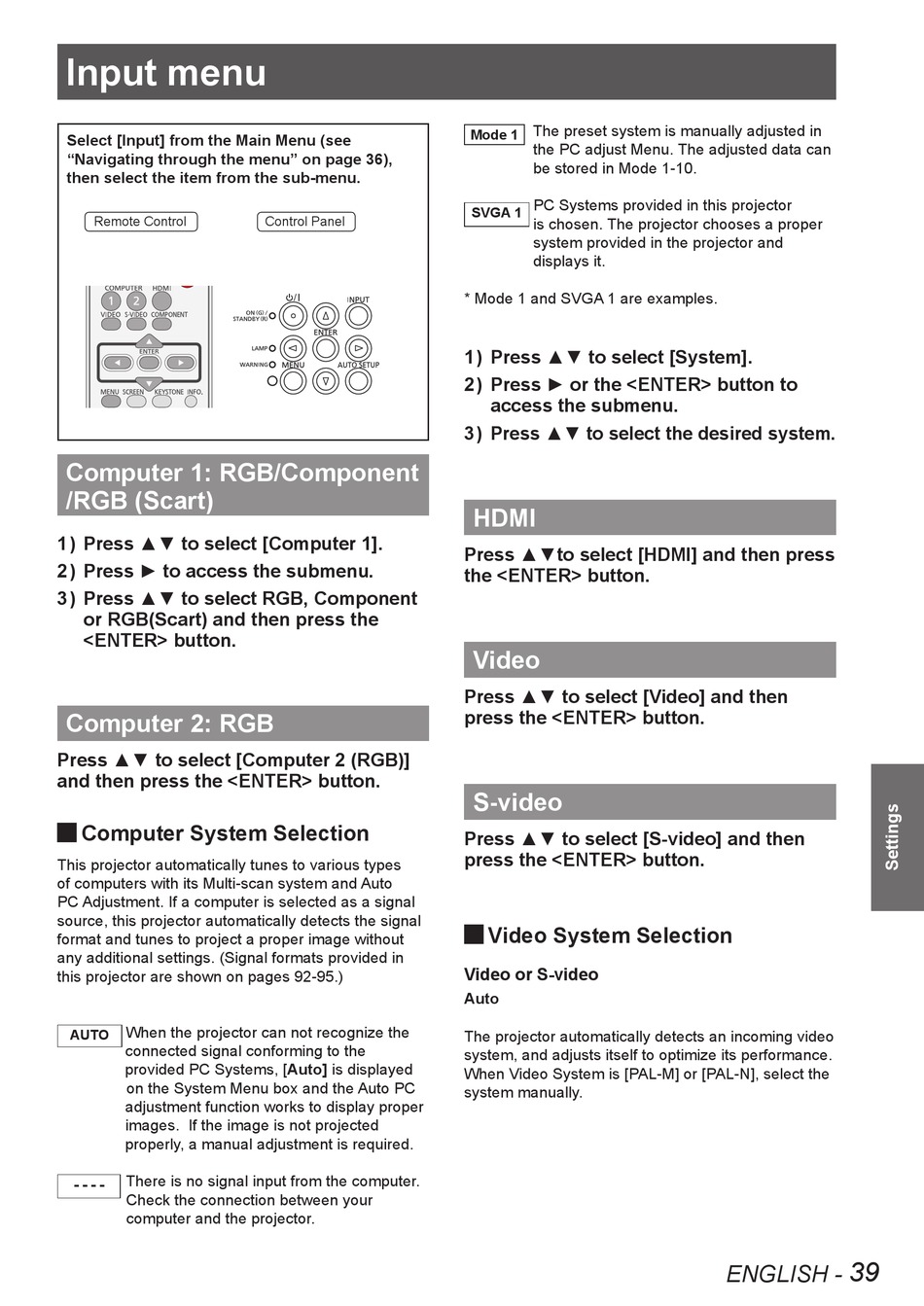

Input menu

Select [Input] from the Main Menu (see
"Navigating through the menu" on page 36),
then select the item from the sub-menu.
Remote Control
Computer 1: RGB/Component
/RGB (Scart)
1 ) Press ▲▼ to select [Computer 1].
2 ) Press ► to access the submenu.
3 ) Press ▲▼ to select RGB, Component
or RGB(Scart) and then press the
<ENTER> button.

Computer 2: RGB

Press ▲▼ to select [Computer 2 (RGB)]
and then press the <ENTER> button.
Computer System Selection
J
This projector automatically tunes to various types
of computers with its Multi-scan system and Auto
PC Adjustment. If a computer is selected as a signal
source, this projector automatically detects the signal
format and tunes to project a proper image without
any additional settings. (Signal formats provided in
this projector are shown on pages 92-95.)
When the projector can not recognize the
AUTO
connected signal conforming to the
provided PC Systems, [Auto] is displayed
on the System Menu box and the Auto PC
adjustment function works to display proper
images. If the image is not projected
properly, a manual adjustment is required.
There is no signal input from the computer.
- - - -
Check the connection between your
computer and the projector.
Control Panel
The preset system is manually adjusted in
Mode 1
the PC adjust Menu. The adjusted data can
be stored in Mode 1-10.
PC Systems provided in this projector
SVGA 1
is chosen. The projector chooses a proper
system provided in the projector and
displays it.
* Mode 1 and SVGA 1 are examples.
1 ) Press ▲▼ to select [System].
2 ) Press ► or the <ENTER> button to
access the submenu.
3 ) Press ▲▼ to select the desired system.

HDMI

Press ▲▼to select [HDMI] and then press
the <ENTER> button.

Video

Press ▲▼ to select [Video] and then
press the <ENTER> button.

S-video

Press ▲▼ to select [S-video] and then
press the <ENTER> button.
Video System Selection
J
Video or S-video
Auto
The projector automatically detects an incoming video
system, and adjusts itself to optimize its performance.
When Video System is [PAL-M] or [PAL-N], select the
system manually.
39
ENGLISH -
