Summary of Contents for Lenovo ThinkVision T2224z

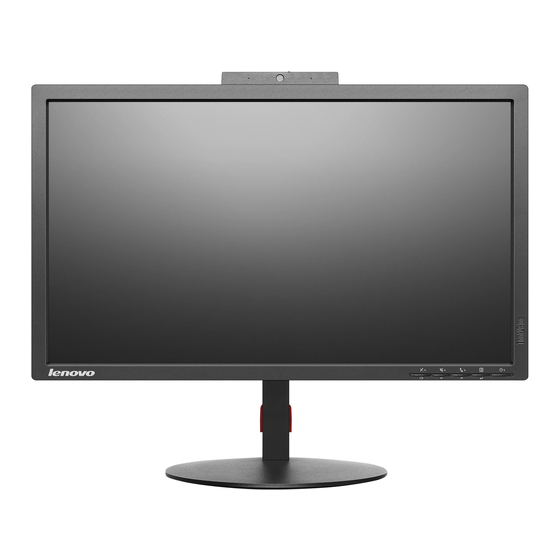

- Page 1 T2224zD Flat Panel Monitor User’s Guide...
- Page 2 All rights reserved. LENOVO products, data, computer software, and services have been developed exclusively at private expense and are sold to governmental entities as commercial items as defined by 47 C.F.R. 2.101 with limited and restricted rights to use, reproduction and disclosure.
-
Page 3: Table Of Contents
Online technical support ......................................A‐2 Telephone technical support....................................A‐2 Worldwide telephone list ....................................... A‐2 Appendix B. Notices.........................................B‐1 Recycling information .......................................B‐2 Collecting and recycling a disused Lenovo computer or monitor......................B‐2 Disposing of Lenovo computer components..............................B‐2 Trademarks...........................................B‐3 Turkish statement of compliance ..................................B‐4 Ukraine RoHS..........................................B‐4 India RoHS............................................B‐4... -
Page 4: Safety Information
Safety information General Safety guidelines For tips to help you use your computer safety, go to: http://www.lenovo.com/safety Before installing this product, read the Safety Information. © Copyright Lenovo 2014... -
Page 5: Safety And Maintenance Guidelines
■ Do not open your monitor cabinet or attempt to service this product yourself. If your monitor is not operating properly or has been dropped or damaged, contact your Lenovo authorized dealer, reseller, or service provider. ■ Adjust only those controls that are described in the operating instructions. -
Page 6: Chapter 1 Getting Started
Chapter 1 Getting started This User’s Guide contains detailed information on the ThinkVision T2224zD Flat Panel Monitor. For a quick overview, ® please see the Setup Poster that was shipped with your monitor. Shipping contents The product package should include the following items: Information Flyer ●... -
Page 7: Product Overview
Product overview This section will provide information on adjusting monitor positions, setting user controls, and using the cable lock slot. Types of adjustments Tilt Please see the illustration below for an example of the tilt range. Swivel With the built-in pedestal, you can tilt and swivel the monitor for the most comfortable viewing angle. Height Adjustment After pressing the top of the monitor, you can adjust the height of the monitor. -
Page 8: User Controls
Monitor Pivot - Adjust height to the top position before rotation the monitor. - Rotate clockwise until the monitor stops at 90°. User controls Your monitor has controls on the front which are used to adjust the display. For information on how to use these controls, please see “Adjusting your monitor image” on page 2-3. Cable lock slot Your monitor is equipped with a cable lock slot located on the rear of your monitor. -
Page 9: Web-Camera
Web-Camera Your monitor has embedded FHD Web-Camera Module; you can use it on living meeting and other net communication. Speaker Your monitor has embedded a pair of speaks with 3W, and it can support DP audio output and USB audio output. The USB cable need plug in when you use USB audio channel (picture2). DP audio output doesn't need USB cable but DP cable (picture 1). -
Page 10: Setting Up Your Monitor
Setting up your monitor This section provides information to help you set up your monitor. Connecting and turning on your monitor Note: Be sure to read the Safety Information located in the Flyer before carrying out this procedure. 1. Power off your computer and all attached devices, and unplug the computer power cord. 2. - Page 11 3. Connect one end of the DP cable to the DP connector on the back of the computer, and the other end to the DP connector on the monitor. Lenovo recommends that customers who require to use the DisplayPort input on their monitor purchase the "Lenovo DisplayPort to DisplayPort cable 0A36537".
- Page 12 5. Connect one end of the HDMI cable to the HDMI connector on the back of the computer, and the other end to the HDMI connector on the monitor. Lenovo recommends that customers who require to use the HDMI input on their monitor purchase the “Lenovo HDMI to HDMI cableOB47070”.
-
Page 13: Registering Your Option
Please take a few moments to register your ® product and provide us with information that will help Lenovo to better serve you in the future. Your feedback is valuable to us in developing products and services that are important to you, as well as in developing better ways to communicate with you. -
Page 14: Chapter 2 Adjusting And Using Your Monitor
Chapter 2 Adjusting and using your monitor This section will give you information on adjusting and using your monitor. Comfort and accessibility Good ergonomic practice is important to get the most from your personal computer and to avoid discomfort. Arrange your workplace and the equipment you use to suit your individual needs and the kind of work that you perform. -
Page 15: Quick Tips For Healthy Work Habits
Accessibility information Lenovo is committed to providing greater access to information and technology to people with disabilities. With assistive technologies, users can access information in the way most appropriate to their disability. Some of these technologies are already provided in your operating system;... -
Page 16: Adjusting Your Monitor Image
Adjusting your monitor image This section describes the user control features used to adjust your monitor image. Using the direct access controls The direct access controls can be used when the On Screen Display (OSD) is not displayed. Table 2-1 Direct access controls Icon Control Description... - Page 17 Table. 2-2 OSD functions OSD Icon on Main Controls and Submenu Description Menu Adjustments Brightness Adjusts overall brightness Brightness/Contrast Adjusts difference between Contrast Brightness/Contrast light and dark areas. Enable dynamic contrast ratio. Brightness/Contrast Horizontal Position Moves the image left or right. Vertical Position Moves the image up or Down.
- Page 18 Table 2-2 OSD functions OSD Icon on Main Description Submenu Menu Shows resolution, refresh rate, and product details. Information Note: This screen does not allow any changes to the settings. Options This section lists the languages supported by your monitor. Note: The language chosen only affects the language of the OSD.
-
Page 19: Selecting A Supported Display Mode
Selecting a supported display mode The display mode the monitor uses is controlled by the computer. Therefore, refer to your computer documentation for details on how to change display modes. The image size, position and shape might change when the display mode changes. This is normal and the image can be readjusted using automatic image setup and the image controls. -
Page 20: Audio Description
Audio description If your Operation System(OS) is XP, for the XP limitation, 2 phenomena will be happened: A) The USB audio is recognized as a speaker phone by PC, Speaker volume control icon will be disappeared when you plug in the USB cable. B) Because PC doesn't set the USB audio as the prior audio output automatically when you first plug in the USB cable, and the monitor will not audio output. -
Page 21: Detaching The Monitor Stand
Detaching the monitor stand After placing the monitor face down on a clean and soft surface, push the hook of the stand and lift the stand up to remove it from the monitor . Wall Mounting (Optional) Refer to the instructions that come with the VESA compatible base mounting kit. 1. -
Page 22: Chapter 3 Reference Information
Chapter 3 Reference information This section contains monitor specifications, instructions to manually install the monitor driver, troubleshooting information, and service information. Monitor specifications Table 3-1. Monitor specifications for type-model 60CB-MAR6-WW Dimensions Height 356.79 mm (14.05 in.) Depth 244.01 mm (9.61 in.) With 512.86 mm (20.19 in.) Stand... -
Page 23: Troubleshooting
5% to 95% Troubleshooting If you have a problem setting up or using your monitor, you might be able to solve it yourself. Before calling your dealer or Lenovo, try the suggested actions that are appropriate to your problem. Table3-2.Troubleshooting... - Page 24 Table3-2.Troubleshooting(continued) Problem Possible cause Suggested action Reference Screen is blank The monitor is in ● Press any key on the “Understanding power and power Standby/Suspend keyboard or move the management” on page indicator is mode mouse to restore steady amber or operation.
-
Page 25: Manually Installing The Monitor Driver
13. Select the “T2224zD.inf” file and click the Open button. Click the OK button. 14. Select Lenovo T2224zD and click Next. The files will be copied from the directory to your hard disk drive. 15. Close all open windows. - Page 26 Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display quality. Lenovo recommends using either 1920 x 1080 at a refresh rate of 60 Hz, or 640 x 480 at refresh rate of 60 Hz.
- Page 27 13.Select the " T2224zD.inf "file and click the Open button. Click the OK button. 14. Select Lenovo T2224zD and click Next. The files will be copied from the directory to your hard disk drive.
- Page 28 14. Select the “T2224zD.inf” file and click the Open button. Click the OK button. 15. Select Lenovo T2224zD and click Next. The files will be copied from the directory to your hard disk drive.
-
Page 29: Service Information
Appendix A, “Service and Support” on page A-2. Service parts The following parts are for use by Lenovo service, or Lenovo authorized dealers to support the customer warranty. Parts are for service use only. The table below shows information for model 60CB-MAR6-WW. -
Page 30: Appendix A. Service And Support
Product replacement assistance or exchange of defective components also is available during the warranty period, assistance for replacement or exchange of defective components is available. In addition, if your option is installed in a Lenovo computer, you might be entitled to service at your location. Your technical support representative can help you determine the best alternative. - Page 31 Warranty service and support: +358-800-1-4260(Finnish) France Warranty service and support (hardware): 0810-631-213(French) Germany Warranty service and support: 0800-500-4618 (toll-free)(German) Greece Lenovo Business Partner (Greek) Guatemala Dial 999-9190, wait for operator, and request to reach 877-404-9661 (Spanish) Dial 800-0123 Honduras (Spanish)
- Page 32 Netherlands 020-513-3939 (Dutch) New Zealand 0508-770-506 (English ) Nicaragua 001-800-220-2282 (Spanish) Norway 8152-1550(Norwegian) Lenovo Customer Support Center: 001-866-434(Toll-Free)(Spanish) Panama Peru 0-800-50-866 (OPCION 2) (Spanish) 1-800-8908-6454 (GLOBE subscribers) Philippines 1-800-1441-0719 (PLDT subscribers) (Tagalog, English) Laptops and tablets branded with logo Think: 48-22-273-9777...
-
Page 33: Appendix B. Notices
Web sites. The materials at those Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at your own risk. -
Page 34: Recycling Information
Collecting and recycling a disused Lenovo computer or monitor If you are a company employee and need to dispose of a Lenovo computer or monitor that is the property of the company, you must do so in accordance with the Law for Promotion of Effective Utilization of Resources. -
Page 35: Trademarks
Trademarks The following terms are trademarks of Lenovo in the United States, other countries, or both: Lenovo The Lenovo logo ThinkCentre ThinkPad ThinkVision Microsoft, Windows, and Windows NT are trademarks of the Microsoft group of companies. Other company, product, or service names may be trademarks or service marks of others. -
Page 36: Turkish Statement Of Compliance
The Lenovo product meets the requirements of the Republic of Turkey Directive on the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment (EEE). Lenovo and the Lenovo logo are trademarks of Lenovo in the United States, other countries, or both. Ukraine RoHS India RoHS RoHS compliant as per E-Waste(Management &...
