Char-Broil SANTA FE 10301569 Product Manual

Char-Broil SANTA FE 10301569 Product Manual

Char-broil charcoal grill user manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Product Guide

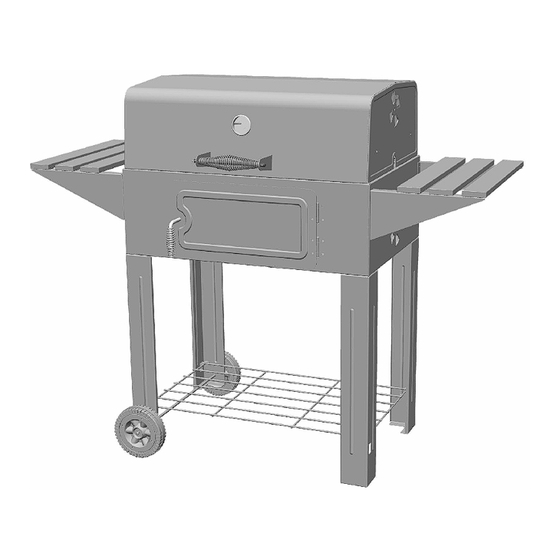

Model 10301569
Santa Fe
Tools needed for assembly:
Phillips Screwdriver
Flat Head Screwdriver
Two adjustable wrenches
Hammer
IMPORTANT: Fill out the product record information below.
Serial Number
Date Purchased
CAUTION:
Read and follow all safety statements, assembly
instructions, and use and care directions before
attempting to assemble and cook.
INSTALLER/ASSEMBLER:
Leave this manual with consumer.
CONSUMER:
Keep this manual for future reference.
WARNING:
CARBON MONOXIDE HAZARD
Burning charcoal inside can kill you. It gives off
carbon monoxide, which has no odor. NEVER burn
charcoal inside homes, vehicles, or tents.
The following are trademarks registered by W.C. Bradley Co. in the U.S. Patent and Trademark Office: Caldera®; Charcoal2Go®; Char-Broil®; America's Legendary Barbeque Company®; American Gourmet®;
Bandera®; Brush Hawg®; CB 940®; Char-Diamonds®; Char-Broil Charcoal/Gas®; Everybody Grills®; Everybody Outside®; FastStart®; Grill 2 Go®; Grill 2 Go® Express®; Grill Lovers®; Infrared Grilling That's
All About U®; Keepers of the Flame®; New Braunfels Smoker Company®; Patio Bistro®; Patio Caddie®; Patio Kitchen®; Pro-Sear®; RED®; Quantum®; Santa Fe®; Sear and Grill®; Sierra®; Signature
Series®; Sure2Burn®; The Big Easy®; Trentino®; U®; Wild West Tradition®; and the following marks:
The following are trademarks of W.C. Bradley Co.: Advantage Series™; Auto-Clean™;Chef Tested™; Commercial Series™; Designer Series™;; Diamond Flame™; Double Chef™; Fireball™; Firenzy™;
FlavorMaster™;Front Avenue™; Grill 2 Go® Advantage™; Hog and Yard Bird™; H20 Smoker™; Infrared. Grilling's Juicy Little Secret™; Incredible Taste. Infallible Results™; Infrared Inside™; Insure™; Let's
Grill Something Together™; Lev-Alert™; Longhorn™; Magneto™; Precision Flame™; Quick2Burn™; QuickSet™; Ready When You Are™; Season, Set, And Savor™; Sizzle On The Grill™; Signature Series™;
SureFire™; The Minute Grill™;Torchfork™; Universal Grill Parts™; You Bring the Party™
Protected under one or more of the following U.S. Patents: 5,421,319; 5,458,309; 5,579,755; 5,996,573; 6,135,104; 6,279,566; 6,331,108; 6,484,900; 6,526,876; 6,595,197; 6,640,799; 6,640,803; 6,729,873; 6,739,473; 6,749,424; 6,792,935; 6,951,213;
7,047,590; 7,516,693; D364,535; D372,637; D373,701; D377,735; D383,035; D397,910; D405,643; D406,005; D406,009 ; D413,043; D413,229; D414,982; D415,388; D416,164; D416,441; D417,587; D417,588; D422,516; D423,274; D423,876;
D428,303; D430,772; D435,396; D436,004; D438,059; D438,060; D438,427; D439,110; D442,505; D443,179; D443,354; D443,464; D447,384; D447,385; D447,909; D448,610; D448,614; D448,615; D448,616; D448,975; D449,492; D450,544;
D451,759; D454,028; D454,031; D455,205; D455,206; D456,202; D456,222; D456,223; D457,789; D458,520; D458,760; D458,802; D459,088; D459,148 D459,149; D459,161; D459,163; D459,586; D459,943; D460,312; D460,313; D460,318; D461,359;
D465,123; D465,693; D466,307; D466,439; D466,752; D473,414; D474,371; D477,498; D477,501; D477,504; D477,506; D477,746; D478,471; D478,472; D480,914; D491,410; D494,009; D494,413; D498,523; D500,359; D504,048; D530,098;
D535,000; Canada:D97,504;D99,355; D102,037; D104,200;D108,377; 2,315,567; France:D010,231;D010,422;D010,590;D010,849; 1,089,646; South Korea: 384,565; United Kingdom: 2,099,402. Other Patents Pending. © 2009 W.C. Bradley Company
If you have questions or need assistance during assembly, please call
To insure your satisfaction and for follow-up service, register your appliance online at www.charbroil.com/register
FOR OUTDOOR USE ONLY
®
®
TEC™ is a trademark of Tec Infrared Grills.
Estimated Assembly Time: 1 Hour
WARNING:
Failure to follow all manufacturer's instructions could
result in serious personal injury and/or property
damage.
CAUTION:
Some parts may contain sharp edges – especially as
noted in the manual! Wear protective gloves if
necessary.
CAUTION:
THIS UNIT IS HEAVY! DO NOT attempt to
assemble without a helper.
1-800-241-7548
.
42804531 - 10/27/09

Advertisement

Table of Contents
loading

Related Manuals for Char-Broil SANTA FE 10301569

Summary of Contents for Char-Broil SANTA FE 10301569

  • Page 1: Product Record Information

    The following are trademarks registered by W.C. Bradley Co. in the U.S. Patent and Trademark Office: Caldera®; Charcoal2Go®; Char-Broil®; America's Legendary Barbeque Company®; American Gourmet®; Bandera®; Brush Hawg®; CB 940®; Char-Diamonds®; Char-Broil Charcoal/Gas®; Everybody Grills®; Everybody Outside®; FastStart®; Grill 2 Go®; Grill 2 Go® Express®; Grill Lovers®; Infrared Grilling That’s All About U®;...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Product Record Information ......1 For Your Safety ........2 Safety Symbols.

  • Page 3: Preparing To Use Your Grill

    PREPARING TO USE YOUR SANTA FE GRILL Before cooking with your Santa Fe Grill, the following steps should be closely followed to both cure the finish and season the interior steel. Failure to properly follow these steps may damage the finish and/or impart metallic flavors to your first foods.

  • Page 4: Cooking Tips

    COOKING TIPS Building Your Fire Stack charcoal briquettes or wood into a pyramid-shaped pile on top of the charcoal grate or ash pan. We recommend using 4 pounds (approximately 60 briquettes) to start your fire, adding more as needed. If using lighter fluid, saturate the charcoal briquettes with lighter fluid and let it soak in for approximately 5 minutes.
  • Page 5 Direct and Indirect Grilling Direct Grilling - For most grilling, the ignited coals are spread in a single layer under the food. This is called direct grilling and is appropriate for relatively quick-cooking items such as hamburgers, steaks and most seafood. The single layer of coals emits even, steady heat, whether the grill lid is open or closed, and represents the way most people grill.

  • Page 6: Limited Warranty

    LIMITED WARRANTY This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this product shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase*.

  • Page 7: Parts List/ Parts Diagram

    PARTS LIST Key Qty Description 1 Firebox Assembly 1 Rear Panel 1 Lid 1 Logo Plate 1 Grease Can holder 2 Long Leg 2 Short Leg 2 Side Shelf Bracket, LHF/RHR 2 Side Shelf Bracket, LHR/RHF 4 Daisy Wheel Damper 1 Lid Handle 2 Door Stop Wire 1 Wood Rack...

  • Page 8: Assembly

    ASSEMBLY • Open carton and place contents onto a clean floor. • Place bottom on ground with clean out door opening facing ground. • Attach rear panel to the bottom with (3) 1/4-20x1/2” hex screws. • With lower section still in position from previous step, attach (1) short leg to the right end and (1) Long leg to left end of the bottom assembly using (3) 1/4-20x1/2”...
  • Page 9 This may require at least two people Attach (1) short leg and (1) long leg to front of bottom assembly using (3) 1/4- 20x1/2" hex screws from outside and flange nuts from the inside. Assemble the wood rack to the legs using (4) 1/4-20x ½" hex screws and flanges nuts as shown in Figure A •...
  • Page 10 Attach Handle Bracket to top assembly using (2) 1/4-20x1/2” screws through Bracket placing screws through front holes and attaching with (2) 1/4-20 flange nuts. Place temperature gauge through the hole above the front handle. • Place top assembly on top of bottom assembly. Align hinge hole on back of unit. With aid of a helper attach hinges to top Assembly using (4) 1/4-20x1/2”...
  • Page 11 • Slide hook end of (1) wire door stop into slot in end panel of top assembly with hook facing back of the grill. • Attach (2) daisy wheel dampers to bottom assembly and (2) daisy wheel Dampers to firebox and lid assembly using (1)1/4-20x1/2” hex screw, (2) flat washers and (1) reversible lock nuts as shown.
  • Page 12 Attach left and right shelf brackets to both ends of grill using (2) 1/4-20x1/2” long hex screws and (2) 1/4” flange nuts each. • Attach a wire ash pan hanger to each end of the ash pan. Once attached hanger hooks should be facing away from ash pan. Lid shown removed for clarity.
  • Page 13 Insert the swing away grate rod into the hole on the left side of the lid, then insert the rod into the hole on the right side of the lid. Shown A Carefully insert the swing away grate support rods into the holes in the fire box. Shown B.

  • Page 14: Hardware List

    HARDWARE LIST Hardware is shown actual size. You may have spare hardware after assembly is complete. #1/4-20 1/4-20 1/4” Reversible Lock Nut Flanged Lock Nut Flat Washer Qty. 6 Qty.33 Qty.10 Cotter Pin Qty:2 1/4-20x1/2” 1/4-20x3/4” #10-24x1/2” Hex Screw Hex Screw Screw Qty.37 Qty.6...

  • Page 16: Registration Card

    Warranty Registration Department P.O. Box 1240 Columbus, GA 31902-1240 REGTEMP REV02...
