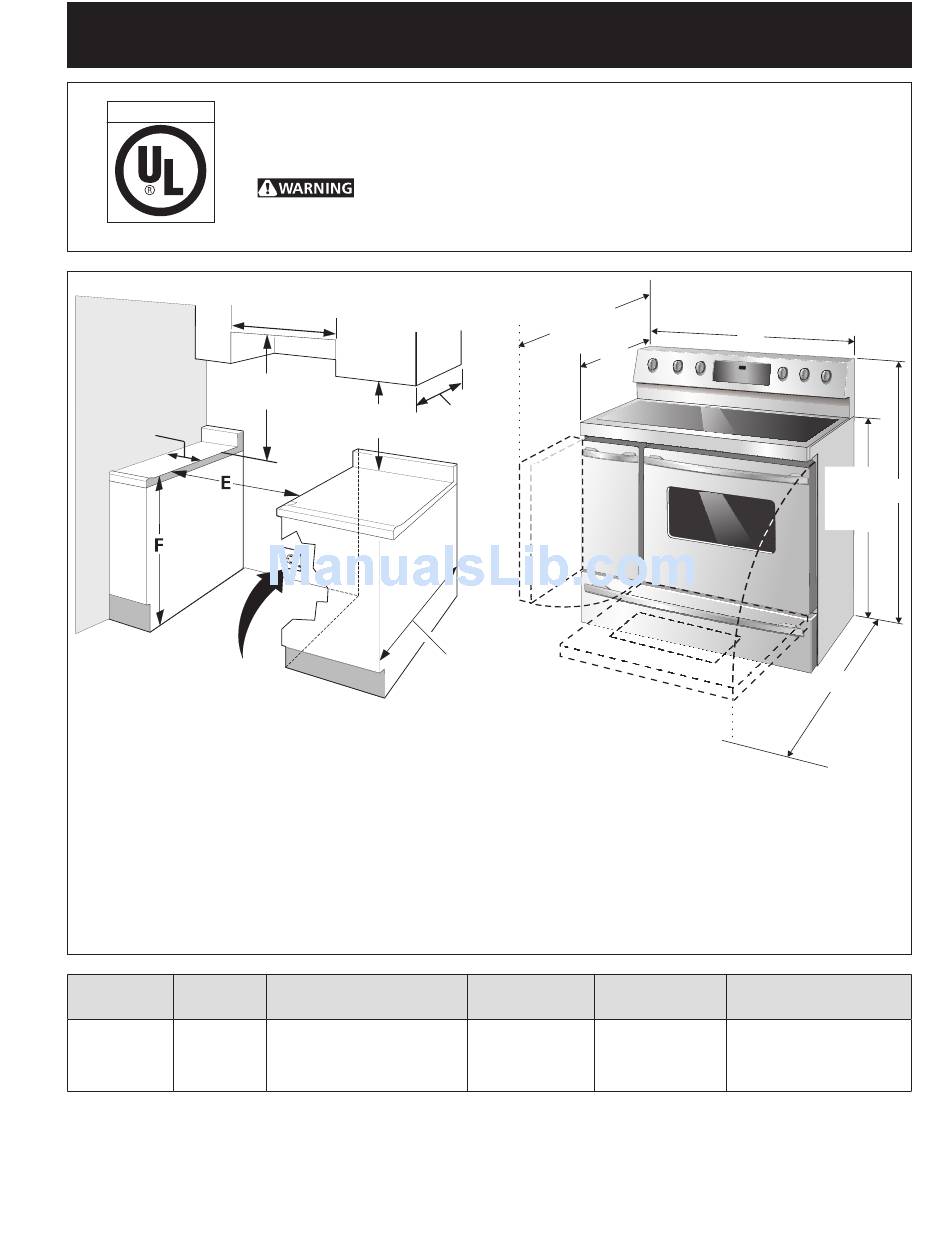

40" ELECTRIC RANGE INSTALLATION INSTRUCTIONS
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
United States
flammable vapors and liquids in the vicinity of this or any other appliance.
40 1/8" Min.
(101.9cm)
2¾" Min.
(7cm Min.) for
30" Min.**
open door.
(76.2cm Min.)
On left side
only, if there is a
wall
Grounded
Wall Outlet
Do not pinch the power supply cord between the range
and the wall.
Do not seal the range to the side cabinets.
A. HEIGHT
B. WIDTH
48 1/8"
40 1/8"
(122.2cm)
(101.9cm)
IMPORTANT: SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other
13" Max.
18" Min.
(33cm Max.)
(45.7cm Min.)
24" Min.
(61cm Min.)
24½" max.
(62.2cm Max.)
C. DEPTH TO FRONT OF
RANGE
26 1/4" (66.7cm)
with Handle 28 1/2" (72.4cm)
36 3/8"
(92.4cm)
C
**NOTE: 24" (61 cm) minimum clearance between
the cooktop and the bottom of the cabinet when the
bottom of wood or metal cabinet is protected by not less
than 1/4" (0.64 cm) flame retardant millboard covered
with not less than No. 28 MSG sheet metal, 0.015"
(0.4 mm) stainless steel, 0.024" (0.6 mm) aluminum, or
0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance when the cabinet is
unprotected.
D. DEPTH WITH
E. MINIMUM
DOOR OPEN
CUTOUT WIDTH
44 5/8 (113.3cm) 40 1/4" (102.2cm)
1
B
36"
A
(91.4cm)
feet
extended
D
F. HEIGHT OF
COUNTERTOP
36" (91.4cm) standard
35 7/8" (91.1cm) min.
P/N 318201704 (0907) Rev. B
English - pages 1 - 8
Español - páginas 9 - 16

Advertisement

Table of Contents
loading

Summary of Contents for Frigidaire Professional FPEF4085KF

  • Page 1 (45.7cm Min.) wall Grounded Wall Outlet Do not pinch the power supply cord between the range and the wall. Do not seal the range to the side cabinets. C. DEPTH TO FRONT OF A. HEIGHT B.
  • Page 2: Important Notes To The Installer

    Never leave the oven door open when the range is unattended. Stepping, leaning or sitting on the door(s) or drawer of this range can result in serious injuries and can also cause damage to the range. • Do not store items of interest to children in the cabinets above the range.
  • Page 3: Model And Serial Number Location

    Electrical failure or loss of electrical connection may occur. NOTE: Range is shipped from factory with 1 1/8" dia. hole as shown in figure 3. If a larger hole is required, punch out the knockout.
  • Page 4: Electrical Connection To The Range

    1. Remove the 3 screws at the lower end of the rear wire cover, then bend the lower end of the rear wire cover (access cover) upward to expose range terminal connection block (see Figure 2). 2. Using the nuts supplied in the literature package,...
  • Page 5: Direct Electrical Connection To The Circuit Breaker, Fuse Box Or Junction Box

    40" ELECTRIC RANGE INSTALLATION INSTRUCTIONS Direct Electrical Connection to the Circuit Breaker, Fuse Box or Junction Box If the appliance is connected directly to the circuit breaker, fuse box or junction box, use flexible, armored or nonmetallic sheathed copper cable (with grounding wire).
  • Page 6: Range Installation

    (the location of the outlet may not allow the range to be positioned against the wall), draw a line on the floor where the back edge of the range will be. Now install anti-tip brackets (see "Anti-Tip Bracket Installation, page 8).
  • Page 7: Leveling The Range

    4 leg levelers with a wrench (see Figure 11). 3. Slide range into cut-out opening and double check for levelness. If the range is not level, pull unit out and readjust leveling legs, or make sure floor is level. Check Operation...
  • Page 8: Important Safety Warning

    3/16" (4.8 mm) Diameter Masonry Drill Bit (if installing in concrete) Anti-Tip Brackets Installation Instructions Brackets attach to the floor at the back of the range to hold both rear leg levelers. When fastening to the floor, be sure that screws do not penetrate electrical wiring or plumbing.
  • Page 9 INSTRUCCIONES DE INSTALACIÓN PARA LA ESTUFA ELÉCTRICA DE 40" LA INSTALACIÓN Y EL SERVICIO DEBEN SER EFECTUADOS POR UN Estados Unidos IMPORTANTE: GUARDE ESTAS INSTRUCCIONES PARA USO DEL INSPECTOR LOCAL DE ELECTRICIDAD. LEA Y GUARDE ESTAS INSTRUCCIONES PARA y líquidos inflamables en la proximidad de este o de cualquier otro artefacto. 40 1/8"...
  • Page 10: Notas Importantes Para El Instalador

    INSTRUCCIONES DE INSTALACIÓN PARA LA ESTUFA ELÉCTRICA DE 40" Notas importantes para el Instalador Lea todas las instrucciones contenidas en este manual antes de instalar la estufa. Saque todo el material usado en el embalaje del compartimiento del horno antes de conectar el suministro eléctrico a la estufa.
  • Page 11: Estuche De Cable Del Suministro Eléctrico

    INSTRUCCIONES DE INSTALACIÓN PARA LA ESTUFA ELÉCTRICA DE 40" Ubicación del Número de Modelo y de Serie La placa con el número de serie está ubicada en el marco delantero del horno detrás de la puerta del horno grande. Cuando haga pedidos de repuestos o solicite información con respecto a su estufa, esté...
  • Page 12 INSTRUCCIONES DE INSTALACIÓN PARA LA ESTUFA ELÉCTRICA DE 40" Conexión eléctrica a la cocina Conexión del cable a tres alambres la cocina Si los códigos locales permiten la conexión del conductor a tierra del armazón al alambre neutral del cable de bronce del suministro eléctrico (vea figura 3).
  • Page 13 INSTRUCCIONES DE INSTALACIÓN PARA LA ESTUFA ELÉCTRICA DE 40" Conexión eléctrica directa al cortacircuito, a la caja de fusibles o la caja de empalmes Si el aparato está conectado directamente al cortacircuito, a la caja de fusibles o a la caja de empalmes, use un cable blindado flexible o no metálico recubierto de cobre (con alambre a tierra).
  • Page 14: Instalación De La Estufa

    Si se usa un cordón de servicio, el receptáculo de pared debe estar localizado según las medidas que se indican abajo. Construcción de los Armarios Center Line of DE LA ESTUFA Range 20" (50.8 cm) 10" (25.4 cm) 7" Max. (17.8 cm Max.) UBIQUE LO ELÉCTRICO...
  • Page 15: Nivelación De La Estufa

    INSTRUCCIONES DE INSTALACIÓN PARA LA ESTUFA ELÉCTRICA DE 40" Nivelación de la estufa Nivele la estufa y ajuste la altura de la estufa antes de instalarla en la abertura. 1. Coloque una parrilla del horno en el centro del horno. 2.
  • Page 16 Antivuelco 1/2" (1.3 cm) Lados de la Sides of estufa range ¾" Figura 10 (1.9 cm) 1. Desdoble la plantilla de papel y colóquela plana en el piso con los bordes laterales y el trasero colocados exactamente donde la parte trasera y los lados de la estufa serán colocados cuando sea instalada.
