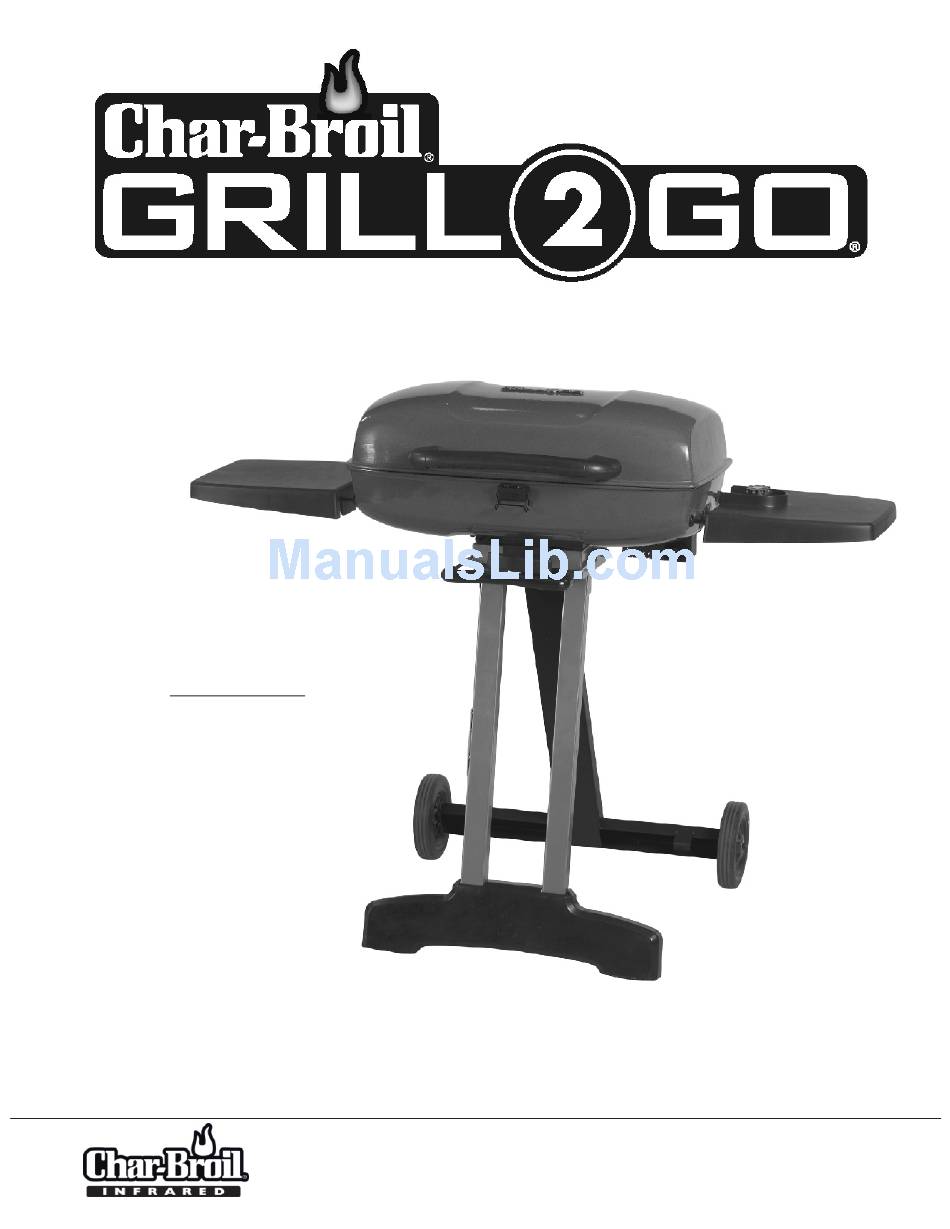

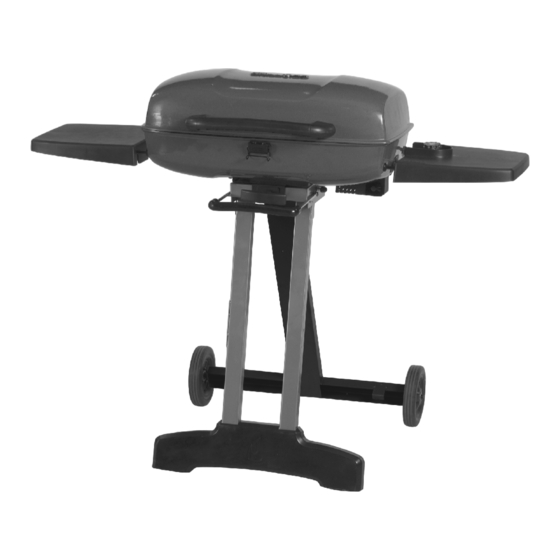

- Page 1 Assembly Guide Model Numbers: 11401587 Propane cylinder sold separately. Allow approximately 10 minutes for assembly. PROPANE (English) 42804597 • 01/07/2011...
-
Page 2: Assembly Guide
A light coat of oil on the grate will help prevent foods like fish and vegetables from sticking to the grate. TOOLS REQUIRED FOR ASSEMBLY NONE © 2010 Char-Broil, LLC A, B, Assembly: NOTE…. Installer: Leave instructions with the grill. -
Page 3: Grill Parts Diagram
ASSEMBLY GUIDE NOT Pictured … … … … … … … NOTE: Some grill parts shown in the assembly steps may differ slightly in appearance from those on your particular model. However, the method of assembly remains the same. Description Description GRILL LID HANDLE, F/ LID... -
Page 4: Grill Assembly
ASSEMBLY GUIDE Part – Handle – Heat Sheld Step 1: Choose a location suitable for assembling your grill. Carefully cut the carton open and use it as a pad to prevent scratching or damaging your grill. Next, verify that you have all of your parts. Assemble the Handle and Heat Shield as shown using 4 #8 Fiber Washers and 4 #10-24x5/8"... - Page 5 ASSEMBLY GUIDE Part – Grill Stand – Axle Rod – Grill Head – Wheels Step 3: Install a wheel retaining clip to one end of the axle. install one flat washer as shown below. After the flat washer, install a wheel. Be sure to orient the wheel as shown. Now insert the axle (with wheel installed) through the grill stand axle holes as shown below.
-
Page 6: Grill Head Assembly
ASSEMBLY GUIDE Step 1: Unfold the grill stand. Ensure that the locking clip engages at the rear of the stand. Attach the grill head to the grill stand by inserting the tab shown into the grill stand, then allow the grill head to rotate forward while pulling the latch handle. - Page 7 ASSEMBLY GUIDE Step 2: Install the Regulator Control Valve by first sliding the regulator lock toward the rear of the grill, inserting the Regulator Control Valve fully into the exposed burner tube, and then releasing the regulator lock. Step 3: Place the Trough and Cooking Grate in position as shown below. Assemble the Side Shelves by inserting the side shelf mounting rods into the side shelf busing.
- Page 8 GRILL CARRY POSITION To transport your grill, first allow the grill to cool completely. Remove the propane cylinder from the grill head. Remove and store the side shelves inside the grill head. Then be sure that the grill lid latch is locked down securely. Remove the grill head and set it aside.
