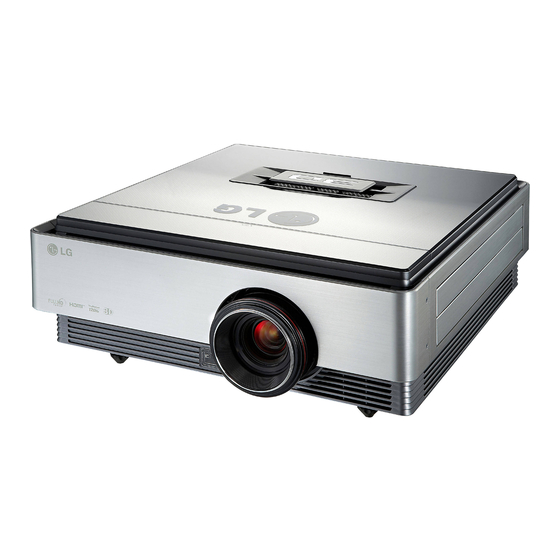

LG CF3D Owner's Manual

Lcos projector
Hide thumbs Also See for CF3D:
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
LCOS PROJECTOR
Please read this manual carefully before operating
your set and retain it for future reference.
CF3D
www.lg.com

Advertisement

Table of Contents
loading

Related Manuals for LG CF3D

Summary of Contents for LG CF3D

  • Page 1 OWNER’S MANUAL LCOS PROJECTOR Please read this manual carefully before operating your set and retain it for future reference. CF3D www.lg.com...
  • Page 2 LCOS PROJECTOR LCOS PROJECTOR Warning - Class B (b) For a Class B Digital device or peripheral, the instructions furnished the user shall include the fol- lowing or similar statement, placed in a prominent location in the text of the manual: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 3: Table Of Contents

    Contents Safety Instructions ... 4 Names of parts Main Body ...7 Control Panel ...7 Connecting Part ... 8 Remote Control ... 9 Installing Batteries ... 9 Projector Status Indicators ...10 Accessories ... 11 Optional Extras ... 11 Installing and Composition Installation Precautions ...12 Positioning the Projector ...13 Kensington Security System ...14...

  • Page 4: Safety Instructions

    Safety Instructions Please take note of the safety instructions to prevent any potential accident or misuse of the projector. ꔈ Safety Instructions are given in two forms as detailed below. WARNING : The violation of this instruction may cause serious injuries and even death. NOTES : The violation of this instruction may cause injuries or damage to the projector.
  • Page 5 Power Never touch the power plug with a wet hand. This may cause an electric shock hazard! Power Hold the plug firmly when unplugging. If you pull the cord, it may be damaged. This may cause a fire hazard! Place the projector where people Do not turn the projector On/Off by plugging-in or unplugging the will not trip or tread on the power power plug to the wall outlet.
  • Page 6 Using If the projector is in a room that experiences a gas leak, do not touch the projector. It can cause a fire or a burn by a spark. Using Do not place heavy objects on top of projector. This may cause mechanical failure or personal injury! Do not use any sharp tools on the projector as this will damage...

  • Page 7: Names Of Parts

    Names of parts Main Body Remote Control Sensor Camera Sensor * It is used to operate Camera Calibration function. Control Panel LENS SHIFT Dial Move the screen image up or down. Filter Cover * Do not block this filter when using the projector.

  • Page 8: Connecting Part

    Names of parts Connecting Part RGB OUT RGB IN USB (SVC ONLY) HDMI IN 1, 2, 3 Kensington Security System Connector AC IN IR (Remote control sensor) VIDEO IN * Do not block the IR port for normal operation COMPONENT IN of remote control.

  • Page 9: Remote Control

    Remote Control POWER Button KEYSTONE Button L/R Button PATTERN Button LIGHTING Button (Illuminates the remote control buttons.) MENU Button OK◉, ∧/∨/＜/＞ Button PICTURE Button Select Direct Input Buttons Installing Batteries CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED WITH AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

  • Page 10: Projector Status Indicators

    Projector Status Indicators * Lamp indicator, operation indicator and temperature indicator at the top of the projector show the user the operating status of the projector. Blue Green (Blinking) Operation Green Cyan (Blinking) Red (Blinking) Yellow Temperature Yellow (Blinking) Magenta Lamp Magenta (Blinking) Air Vent Door...

  • Page 11: Accessories

    Accessories Remote Control Power Cord Polishing Cloth Top Filter Optional Extras * Contact your dealer to purchase these items. * Optional parts can be changed without notice to improve the quality of the product, and new optional parts can be added. Projection Screen Lamp for 3D...

  • Page 12: Installing And Composition

    Installing and Composition Installation Precautions Provide proper ventilation for this projector. • The projector is equipped with ventilation holes(intake) on the bottom and ventilation holes(exhaust) on the front. Do not block or place anything near these holes. Internal heat build-up may occur, causing picture degradation or dam- age to the projector.

  • Page 13: Positioning The Projector

    Positioning the Projector 1. Place the projector on a sturdy and horizontal surface with the PC or AV source. 2. The distance between the projector and the screen determines the actual size of the image. 3. Position the projector so that the lens is set at a right angle to the screen. If the projector is not set at a right angle, the screen image will be crooked.

  • Page 14: Kensington Security System

    Kensington Security System • This projector has a Kensington Security System Connector on the back or side panel. Connect the Kensington Security System cable as below. • For the detailed installation and use of the Kensington Security System, refer to the user’s guide included with the Kensington Security System set.

  • Page 15: Focus And Position Of The Screen Image

    Focus and Position of the Screen Image When an image appears on the screen, check if it is in focus and fits the screen properly. • To adjust the focus of the image, rotate the focus ring. • To adjust the size of the image, rotate the zoom ring. When you need to move the screen image up or down, use the zoom ring on the projector to adjust the height as shown below.

  • Page 16: Connection

    Connection Connecting to a Desktop PC * You can connect the projector to a computer with VGA, SVGA, XGA, SXGA output. * Refer to page 33 for resolutions the projector supports. < How to connect > Connect the RGB IN of the projector and the RGB out- put port of the computer with a computer cable.

  • Page 17: Connecting To A Dvd Player

    Connecting to a DVD Player * Depending on the equipment, the component output jacks (Y, P < How to connect a HDMI source > 1. Connect the HDMI IN 1 (or HDMI IN 2/3) of the pro- jector and the HDMI output port of the DVD Player with an HDMI cable.

  • Page 18: 3D Video Function

    3D Video Function * 3D video is the technology of using a different video frame for each eye to add depth to the video. * The following is required is required to view 3D video: 3D TV or projector, 3D glasses, and 3D external input (a BD Player, Sat, or Cable box with a 3D program or movie).

  • Page 19: How To Watch 3D Video

    How to Watch 3D Video 1. Input the 3D video from an external 3D compatible device using one of the following formats. The default settings on the playing device should work. Signal Resolution 720p 1280x720 1080i HDMI 1920x1080 1080p • Media content and player need to support HDMI (V. 1.4 with HDMI 3D) Frame Packing to play Frame Packing format ste- reoscopic.
  • Page 20 < Remote Controller Function only operational in 3D mode > 3D Mode Top & Bottom Resolution 720p, 1080i, 1080p Vertical Frquency 24 Hz, 30 Hz, 50 Hz, 60 Hz Power Input PATTERN KEY.S BLANK RATIO SLEEP MENU AUTO Q.MENU PICTURE STILL BACK VIDEO...

  • Page 21: Function

    Function * The On-Screen Display (OSD) in this manual may be slightly different from your projector. * This operating guide mostly operation of RGB(PC) mode. PICTURE Menu Options Picture Mode * Use the Picture mode function to set the projector for the best picture appearance. 1.

  • Page 22: Adjusting Picture Mode

    Adjusting Picture Mode 1. Press the MENU button. Then, move to PICTURE with the ∧, ∨, ＜, ＞ buttons and press the ◉OK button. 2. Press the ∧, ∨ buttons to move to a desired function and press the ◉OK button. 3.
  • Page 23 * The categories that can be set vary according to input signal and video setting. - This function enables Vivid/Standard/Natural/Cinema/Sport/Game. Color Temperature ꔈ Set to warm to enhance hotter colors such as red, or set to cool to make the video more blue.

  • Page 24: Picture Reset Function

    Picture Reset Function * Settings of the selected PICTURE function for each input and Picture Mode return to the default factory settings. 1. Press the MENU button. Then, move to PICTURE with the ∧, ∨, ＜, ＞ buttons and press the ◉OK button. 2.

  • Page 25: To Change Pjt Mode

    To Change PJT Mode * This function turns the projected image upside down or flips horizontal. 1. Press the Q.MENU button on the remote control. 2. Press the ＜, ＞ buttons to move to PJT Mode. 3. Press the ∧, ∨ button to select a desired item. •...

  • Page 26: Auto Configure Function

    Auto Configure Function * This function assures you of getting the best video quality by automatically adjusting the horizontal size and synchronization of the image. * Auto Tracking function works in RGB PC input only. Press the AUTO button of the remote control. •...

  • Page 27: Time Menu Options

    TIME Menu Options Sleep Time Function * The sleep timer turns the projector off at the preset time. 1. Press the SLEEP button on the remote control. 2. Press the ∧, ∨ buttons to select a desired preset time. 10 min. 240 min.

  • Page 28: Option Menu Options

    OPTION Menu Options Selecting Language 1. Press the MENU button. Then, move to OPTION with the ∧, ∨, ＜, ＞ buttons and press the ◉OK button. 2. Press the ∧, ∨ buttons to move to Menu Language and press the ◉OK button. 3.

  • Page 29: To Calibrate The Camera

    To Calibrate the Camera * 3D video is video from two separate cameras interwoven together. If the luminance of each frame is not the same, you may notice some flickering. This setting will help equalize the luminance of each frame. 1.

  • Page 30: High Altitude Mode

    High Altitude Mode * High Altitude Mode is used when the environment is higher than 4,000 feet. 1. Press the MENU button. Then, move to OPTION with the ∧, ∨, ＜, ＞ buttons and press the ◉OK button. 2. Press the ∧, ∨ buttons to move to High Altitude and press the ◉OK button.
  • Page 31 < How to connect > Connect the LAN of the projector and the LAN port of the PC or network with a LAN cable (Cross cable). < PC > LAN Cable < Router > Connecting PC OPTION ꔂMove ꔉOK Menu Language Network does not exist.

  • Page 32: Setting Input Label

    Network Setting 3D Mode HDMI2 Input Label HDMI3 Power Sound : On Close Power Sound INFORMATION Model Name : CF3D-JS Lamp Time (L) : 29 Lamp Time (R) : 29 Input : HDMI1 Resolution : 1080p Fh/Fv : 67 Khz/60 Hz IP Address : 223.212.145.0...

  • Page 33: Information

    Information Supported Monitor Display * The following table lists the display formats supported by the projector. Format Vertical Freq.(Hz) * If the projector does not support the input signal, “Invalid Format” message appears on the screen. * The projector supports DDC1/2B type as Plug & Play function. (Auto recognition of PC monitor) * PC synchronization signal types supported :Separate type synchronization.

  • Page 34: Maintenance

    Maintenance * You should keep the lens, case and air vent clean because any dirt or stains may appear on the screen. If any parts need to be replaced, contact your dealer. When cleaning any part of the projector, always turn the power off and unplug the projector first.

  • Page 35: Replacing The Lamp

    LED is lit up constantly (blue). • Allow the lamp to cool for 1 hour before replacing it. • Replace only with the same type lamp from an LG Electronics Service Center. Using another manufacturers lamp may cause damage to the projector and lamp.
  • Page 36 To obtain a replacement Lamp unit Lamp model number is on page 38. Check the lamp model and then purchase it from an LG Electronics Service Center. Using another manufacturers lamp may cause damage to the projector. Lamp unit disposal Dispose of the used lamp by returning it to the LG Electronics Service Center.
  • Page 37 Using another manufacturers lamp may cause damage to the projector or lamp. Make sure the lamp cover is securely fastened. If the lamp cover is not installed correctly the unit will not power on. If this fault persists contact an LG Authorized Service Center. Lamp cover screw...

  • Page 38: Specifications

    In operation : 0 % - 80% relative humidity Not in operation : 0 % - 85% relative humidity Elevation In operation : 0 m - 2,500 m CF3D (CF3D-JS) 1920 (Horizontal) x 1080 (Vertical) pixel 16:9 (horizontal:vertical) 15.4 Wide: 0.88 m - 9.08 m (76.2 cm - 762.0 cm) Tele: 1.14 m - 11.8 m (76.2 cm - 762.0 cm)

  • Page 39: Open Source Software Notice

    MPL LIBRARIES: nanox LG Electronics offers to provide source code to you on CD-ROM for a charge covering the cost of performing such distribution, such as the cost of media, shipping and handling upon e-mail request to LG Electronics at: opensource@lge.com This offer is valid for a period of three (3) years from the date of the distribution of this product by LG Electronics.
  • Page 40 The model and serial number of the projector is located on the back or one side of the projector. Record it below should you ever need service. MODEL SERIAL...
