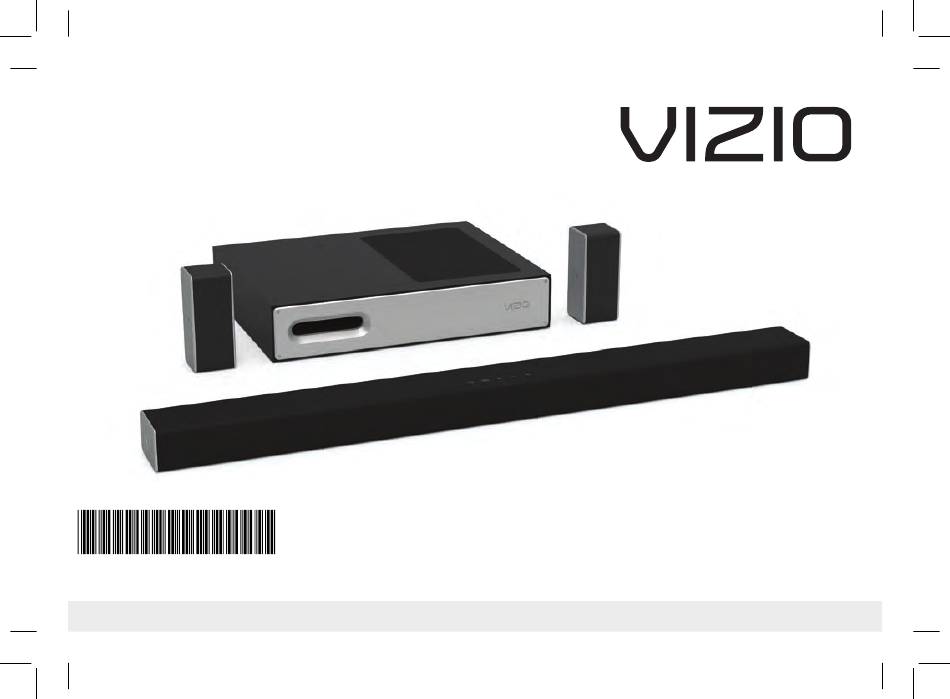

- Page 1 USER MANUAL Model: SB3651n-G6 1202-0001822 VIZIO 36" 5.1 Channel Sound Bar Home Theater System with Bluetooth Please read this guide before using the product.
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Your Unit is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent your Unit from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Unit. Keep these instructions in a safe place for future reference.
- Page 3 • The wall socket should be located near your Unit and be easily accessible • Keep your Unit away from moisture. Do not expose your Unit to rain or moisture. If water penetrates into your Unit, unplug the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Package Contents ............................5 Controls & Connections ..........................6 First-Time Setup...............................10 Using the Remote ............................16 Proper Placement ............................17 LED Indicators ..............................19 Using Button Combinations ...........................23 Programming the Sound Bar .........................24 Bluetooth Audio Pairing ..........................25 Using Bluetooth mode ............................26 Advanced Setup ...............................27 Advanced Setup - HDMI ..........................28 Connecting with HDMI ARC ..........................29 Connecting a Subwoofer ..........................31... -
Page 5: Package Contents
Front Back Side PACKAGE CONTENTS Angle ...5 ...6 ...10 VIZIO 2 x Satellite Remote Control ...16 Wireless Subwoofer Sound Bar Speakers with 2x AAA Batteries ...17 ...19 ...23 ...24 ...25 ...26 Stereo RCA to 3.5mm to 3.5mm HOME THEATER DISPLAY | QUICK START GUIDE... -
Page 6: Controls & Connections
CONTROLS & CONNECTIONS Back of Sound Bar OPTICAL Power Port Digital Optical Audio In Digital Coaxial In 3.5mm IN Analog Audio In (Stereo 3.5mm) English - 6... - Page 7 Back USB* HDMI IN HDMI In USB In HDMI OUT Side HDMI Out (ARC) * Supports .WAV and .MP3 file format playback only. English - 7...
- Page 8 Side Top of Sound Bar Angle Power Press to turn soundbar on or off . Input Press to change the audio source. Volume Increase or decrease the loudness of the audio. Bluetooth Input Hold to pair. (See ‘Bluetooth Audio Pairing’ for more information.) English - 8...
- Page 9 Back of Satellite Speaker Back of Subwoofer LED Indicator Power Port Satellite Speaker Ports Power Button Connects to Left (blue cable) / Right (gray cable) Satellite Speakers Satellite Speaker Port (Connects to subwoofer) English - 9...
-
Page 10: First-Time Setup
FIRST-TIME SETUP Back of Sound Bar CHOOSE ONE CABLE* and connect it to your tv 3.5MM TO DIGITAL COAXIAL DIGITAL OPTICAL CABLE RCA CABLE † CABLE † GOOD BETTER BETTER † When using either of the Digital Inputs, if there is * Not all TVs/Displays have the audio outputs shown no audio: (A) try setting the TV/Display output to above. - Page 11 Back Side Do not use HDMI IN for First-Time Setup. See Advanced Setup if you would like to connect HDMI ARC HDMI devices (such as Blu-ray™ players, cable CABLE boxes, and game consoles) to your Sound Bar. BEST Connect the Sound Bar to your TV/Display* using HDMI cables send Video (Out) and receive Audio from the TV/Display.
- Page 12 Back of Sound Bar Connect the power cable to the sound bar AC IN as shown. Plug the power cable into an electrical outlet. English - 12...
- Page 13 Connect the satellite speakers to the subwoofer using the included satellite speaker audio cables. Back Side Match the color coded speaker cable to the matching speaker port color. Blue for left surround and grey is for right surround. English - 13 Angle...
- Page 14 Back of Subwoofer Connect a power cable Plug the power cable into The subwoofer should to the subwoofer. a power outlet. automatically power on and link to the sound bar when plugged in. The LED will glow to solid to confi rm. *Occurs **Auto d do a Fac...
- Page 15 Insert the included batteries and gently sliding it away from the remote. slide the battery cover back into place. When needed, VIZIO recommends replacing the batteries that came with this remote with two, new Duracell ‘AAA’ alkaline batteries. Turn on your TV and sound bar. The sound bar will automatically begin searching for an active input.*...
-
Page 16: Using The Remote
USING THE REMOTE Display Displays Sound Bar Settings Power Press to turn on or off . Menu Press to access the menu Input settings. *Press to change the input source Enter/Play/Pause Press to select an option. Press to play or pause. Previous Press to return to previous track. -
Page 17: Proper Placement
PROPER PLACEMENT For the best surround sound experience, position the sound bar and subwoofer as shown. The sound bar should be close to ear level. You'll get the best sound eff ect if your ceiling is fl at and 7.5 ft to 12 ft high. OPTION 1 You can stand the subwoofer upright with the ports facing out. - Page 18 OPTION 2 If your couch permits, you can place the subwoofer underneath it. Make sure there is sufficient room to freely place the subwoofer underneath your couch. Do not place the couch directly on top of the subwoofer if there isn't enough room.
-
Page 19: Led Indicators
(When searching for Bluetooth Pairing device) Flash from minutes. You can now search for the sound bar (VIZIO SB3651) using your Bluetooth BT Pair Bottom to Top and back Device. The sound bar will power down if no device is found. - Page 20 Function LED Behavior Description Press the Next/Previous button to increase/decrease the surround balance level on Two center LEDs Surround Balance indicate Surround each side. The LED indicators will move to the top with balance levels to the right and Balance is centered. down with balance levels to the left.
- Page 21 Press the Next/Previous button to enable/disable VIZIO TV Remotes. When enabled TV Remote On (On), you can use a VIZIO TV remote control to turn on the sound bar (using the TV VZtv Rmt On Volume Up button) and control volume.
- Page 22 Function LED Behavior Description AV Delay LED at the bottom Press the Next/Previous button to increase/decrease the amount of audio delay. The AV Delay indicates no delay LED indicators will move to the top with increasing audio delay levels. Press the Next/Previous buttons to reset either Audio or All settings. Press the Play button to select.
-
Page 23: Using Button Combinations
Note: This will erase all settings and preferences that you have set. Angle Enable VIZIO Enable/disable the use of a VIZIO TV remote control to power on and adjust the VIZIO TV Remote TV Remote volume of the sound bar. To enable/disable this function, Press and Hold the Power... -
Page 24: Programming The Sound Bar
PROGRAMMING THE SOUND BAR You can program your sound bar to accept TV remote IR commands. Press the Menu button on the remote, then use the Up/Down buttons to navigate to Prg Remote. Use the Next/Previous buttons to toggle through Learn Vol -, Learn Vol +, and Learn Mute. -
Page 25: Bluetooth Audio Pairing
Indi- flashing. Top of Sound Bar You can now search for the sound bar (VIZIO SB3651n) using your Bluetooth device. For more information, refer to the user documentation that came with the device. Play audio from your Bluetooth device. Volume can be controlled on your source device and the sound bar. -
Page 26: Using Bluetooth Mode
USING BLUETOOTH MODE Your sound bar supports music streaming from smartphones, tablets, and computers with Bluetooth capability. Device compatibility will vary, see your device’s documentation for more information. Once you have paired your source device to the sound bar, as long as you stay within range of the sound bar, your device should remain paired. -
Page 27: Advanced Setup
Front ADVANCED SETUP Back of Sound Bar Back Side DIGITAL OPTICAL DIGITAL COAXIAL 3.5MM TO HDMI CABLE Angle CABLE CABLE RCA CABLE evice USB Thumb Drive* Tablet/MP3 Player/Laptop Media Player Game Console Supports .WAV and .MP3 file format playback only. English - 27... -
Page 28: Advanced Setup - Hdmi
ADVANCED SETUP - HDMI Connect to HDMI (ARC) port on your TV Back HDMI cables transmit both audio and video. To view video from these devices, turn the sound bar on, then set the HDMI CABLE sound bar input to HDMI In. Set your TV input to the HDMI port to which the Side sound bar is connected. -
Page 29: Connecting With Hdmi Arc
The following steps are for use with a VIZIO TV, steps may diff er by TV manufacturer. See your TV’s user manual for more information. CEC Function naming may diff er by TV manufacturer. See your TV’s user manual for more information. - Page 30 Front Back of TV* Connect to HDMI (ARC) port on your TV Back * HDMI ARC port location may diff er by TV manufacturer. See your TV’s user manual for more information. English - 30 Side...
-
Page 31: Connecting A Subwoofer
Front The subwoofer has already been paired with the sound What does pairing mean? bar by VIZIO. However, the subwoofer may need to be Back Pairing means to wirelessly connect. re-linked to the sound bar if there is no sound coming from the subwoofer. -
Page 32: Wall-Mounting The Sound Bar
Front WALL-MOUNTING THE SOUND BAR Wall-Mount Screw Holes Back of Sound Bar Back Insert the two wall-mount screws into the wall-mount screw holes, and then Side tighten them with a Phillips screwdriver. Angle Place the included wall mounting template against the wall under your TV. Mark the two bracket holes using a pencil. - Page 33 Be sure your screws are attached to wood studs, drywall anchors (for drywall), or concrete anchors (for brick/concrete walls). Screws for attaching the brackets to the wall are not included. Choose the screw type and length appropriate to your home’s construction. If in doubt, consult a professional installer. *Bracket Screw Not Included with sound bar Suggested screw size: 3.5 mm diameter,...
-
Page 34: Wall-Mounting The Satellite Speakers
WALL-MOUNTING THE SATELLITE SPEAKERS *Bracket Screw To wall-mount the satellite speakers: Not Included with sound bar Attach the wall mount screw to the back of Suggested screw size: 3.5 mm diameter, the satellite speaker. 1.63" minimum length Secure the wall mount bracket to the wall. Bracket screw is not included. - Page 35 Why register? Customized Support Get assistance quickly with your information on hand. News and Offers Take advantage of the latest news and special offers from VIZIO. Safety and Satisfaction Stay up-to-date with important product updates and notifications. English - 35...
- Page 36 Award-Winning Customer Care At Your Convenience NEED HELP? Go to: support.vizio.com Find help with: New product setup • • Connecting your devices • Technical problems • Product updates and more Live chat support available You can also contact our support team at:...
-
Page 37: Help & Troubleshooting
HELP & TROUBLESHOOTING • Press the POWER button on the remote control or on the top of your Sound Bar. There is no power. • Ensure the power cord is securely connected. • Plug a different device into the electrical outlet to verify that the outlet is working correctly. •... -
Page 38: Limited Warranty
VIZIO’s Responsibilities If VIZIO determines that a product is covered by this warranty, VIZIO will (at its option) repair or replace it, or refund the purchase price to you. There will be no charge for parts or labor during the warranty period. - Page 39 What to Do If You Are Not Satisfied With Service If you feel VIZIO has not met its obligations under this warranty, you may attempt to resolve the issue informally with VIZIO. If you are unable to resolve the issue informally and wish to file a formal claim against VIZIO, and if you are a resident of the United States, you must submit your claim to binding arbitration according to the procedures described below, unless an exception applies.
-
Page 40: Specifications
General No employee or agent of VIZIO may modify this warranty. If any term of this warranty, other than the class action waiver, is found to be unenforceable, that term will be severed from this warranty and all other terms will remain in effect. If the class action waiver is found to be unenforceable, then the entire section titled “Binding Arbitration Agreement; Class Action Waiver (U.S. Residents Only)”... -
Page 41: Legal & Compliance
You must dispose of this product properly, according to local laws and regulations. Because this product contains electronic components and/ or a battery, it must be disposed of separately from household waste. Contact local authorities to learn about disposal and recycling options. For more information, visit www.vizio.com/ environment. - Page 42 © 2019 VIZIO, Inc. All Right Reserved. This User Manual may not be copied in whole or in part without the written permission of VIZIO, Inc. VIZIO, Inc. has made reasonable efforts to ensure the accuracy of the information provided herein. All product specifications, functionality, features, configurations, performance, design and other product information described herein are subject to change without notice.
- Page 43 Bluetooth SIG, Inc. and any use of such marks by ® VIZIO,Inc. is under license. Other trademarks and trade names are those of their respective owners. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license from Dolby Laboratories.
- Page 44 © 2019 VIZIO INC. ALL RIGHTS RESERVED. 190503SL...
