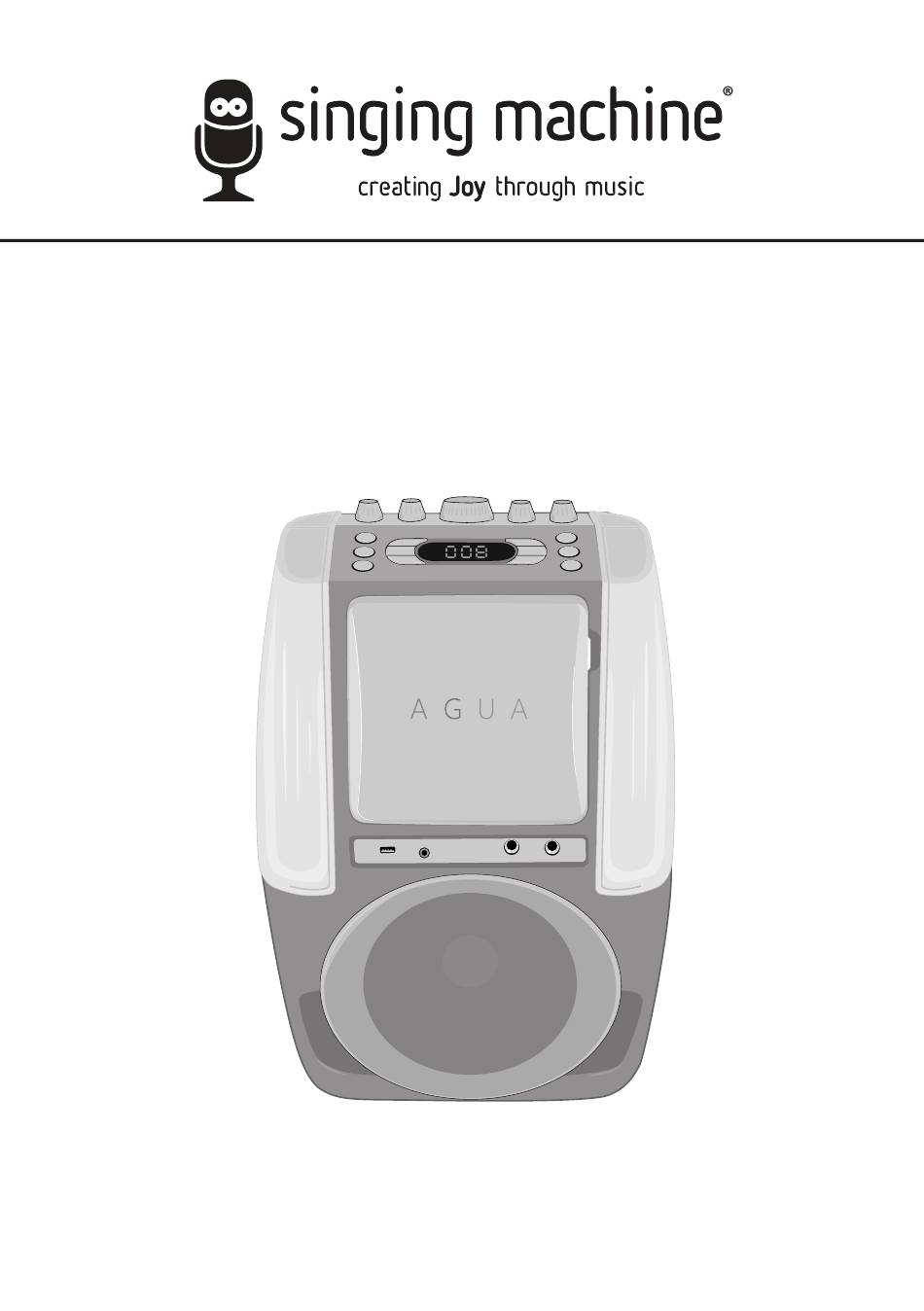

- Page 1 SML605BK/W/P INSTRUCTION MANUAL www.singingmachine.com The Singing Machine® is a registered trademark of The Singing Machine Co., Inc.
-
Page 2: Important Safety Instructions
Warnings WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE CAUTION THIS UNIT TO RAIN OR MOISTURE. RISK OF ELECTRIC SHOCK FCC WARNING: This equipment may generate or use radio frequency DO NOT OPEN energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT instruction manual. - Page 3 Included Please make sure the following items are included. Main Unit Wired Microphone AC Adapter Manual Detacheable Cradle — 2 —...
- Page 4 Location of Controls (Top/Front) 1. MASTER VOLUME Control 15. Disco Lights/Speaker 2. BALANCE Control 16. ECHO Control 3. AVC (Auto Voice) Control 17. MIC VOLUME Control 4. Play/Pause Button 18. Stop Button 5. POWER ON/OFF Button 19. DISCO LIGHT Button 6.
- Page 5 Location of Controls (Rear) 1. Detachable Cradle 3. Right/Left Audio Out Jacks 2. Video Out Jack 4. DC In Jack Location of Controls (Display) PLAY/ PAUSE PROG 1. CDG Indicator 4. PLAY/PAUSE Indicator 2. Display 5. PROGRAM Indicator 3. REPEAT Indicator —...
- Page 6 Connection Connecting the Microphone(s) Microphones: Connect a microphone into Mic jack 1 u as well as Mic jack 2 v (when desired). Note: Do not drop or tap the Mic as damage to the Mic or speakers may occur. Do not twirl the microphone by cord as it will cause damage to the encased wiring.
- Page 7 Connection Connecting to AC Power Insert the AC power cord into a conveniently located AC outlet having 120V AC, 60Hz. Note: Make all connections before connecting to AC power. Connecting to Line In Jack Connect an external device To External Unit AUDIO OUTPUT by using an appropriate cable / HEADPHONE JACK...
- Page 8 Operation Disco Lights/Water Lights The disco lights on the front of the unit will light up/down and the water lights will bounce up and light depending on the music being played or the live singing performance. The louder the music/ singing, the higher the water lights will bounce.
- Page 9 Operation Playing a CD Connect the unit as described previously; it should be connected to a TV (see page 5). Press the POWER ON/OFF button to turn the unit on. Lift open the CD door and insert a CD (with standard or MP3+G files) or a CD+G by gently pressing it on the center spindle.
- Page 10 Operation Playing a CD (Continued) Adjust the volume to a comfortable level using the MASTER VOLUME control. Notes: • Never place anything other than a CD in the compartment, as foreign objects can damage the unit. • If no disc is inserted, “no” will appear on the display.
- Page 11 Operation Playing a CD (Continued) AUTO VOICE CONTROL can be activated by rotating the AVC (Auto Voice Control.) The higher this control is set to, the more the vocals on the multiplex recording will be muted when the singer starts to sing through the microphone.
- Page 12 Operation Playing a CD (Continued) PROGRAM: You can program up to 20 tracks on any disc for playback in any desired order. While in the Stop mode, press the Repeat/Program button; the Program indicator will blink and “01” will appear on the display indicating the first program is ready to program.
- Page 13 Operation Playing Songs from the USB Connect the unit as described previously; it should be connected to a TV (see page 5). Press the POWER ON/OFF button to turn the unit on. Insert a USB flash drive into the USB slot on the unit so it faces upward.
- Page 14 Operation Playing Songs from the USB (Continued) Connect microphone(s) as shown on page 5, and slide the ON/OFF switch on the microphone to the ON position. Adjust the MIC VOLUME control as desired. Increasing this control will increase the volume of both microphones.
- Page 15 Operation Playing Songs from the USB (Continued) SKIP: Advance or go back one track by pressing the Skip Back 9/Skip Forward : buttons. You can also skip ahead 10 files/ tracks using the 10+ button. REPEAT: During playback, press the Repeat/Program button once to repeatedly play the selected song;...
- Page 16 Operation Playing Songs from the USB (Continued) PAUSE: During playback, if you wish to pause the music momentarily, press the Play/ Pause button; the PLAY/ PAUSE indicator will blink. Press again to resume normal playback. Press the Stop button to stop playback.
- Page 17 Operation Using a Bluetooth Device Connect the unit as described previously. Press the POWER ON/OFF button to turn the unit on. Repeatedly press the FUNCTION button to select the Bluetooth; “bt” will appear in the display. The Bluetooth indicator will blink as the unit automatically searches for and pairs a previously paired Bluetooth device (if previously paired).
- Page 18 Forward : buttons. Press the POWER ON/OFF button to turn the unit off. Note: Use the cradle to hold your Bluetooth device while using the Singing Machine. To install the cradle, see the instructions on page 6. — 17 —...
- Page 19 Operation Using the LINE IN Jack Connect the unit as described previously (see page 6). Press the POWER ON/OFF button to turn the unit on. Connect the external unit to the LINE IN Jack on the front of this unit. Connecting an external unit will allow the audio to be played through your Singing Machine.
- Page 20 Operation Using the LINE IN Jack (Continued) Adjust the MIC VOLUME control as desired. Increasing this control will increase the volume of both microphones. Rotate the ECHO control to add an echo effect to your voice. Rotate towards MAX to increase the echo effect. Adjust the balance between the speakers using the BALANCE control.
-
Page 21: Operation
USB flash drive. • Remove (eject) the USB flash drive from your computer. Download your selected purchase(s) Turn on the Singing Machine and connect the USB from the Singing Machine Digital Locker flash drive. to your USB flash drive. Insert the USB flash drive as shown on •... -
Page 22: Troubleshooting Guide
Troubleshooting Guide Should this unit exhibit a problem, check the following before seeking service: No Power • Power is not on; press the POWER ON/OFF button to turn power on. • Confirm the AC adapter is connected securely to the back of the unit. •... -
Page 23: Specifications
Specifications AUDIO Output Power ........................5 Watts (RMS) Output Impedance ........................4 Ohms CD SECTION Frequency Response ..................... 100Hz - 20kHz Signal-to-Noise Ratio ....................50dB (A-WTD) Number of Programs ............20 Step Random Access Programming Sampling System ....................8 Times Over Sampling BLUETOOTH Bluetooth Version ........................V2.1 + EDR Working Distance ...........Up to 30 feet/10 meters measured in open space Format ..............................FAT32... - Page 24 Visit Our Website: www.singingmachine.com The Singing Machine Company, Inc. 4060 E Jurupa Street, Unit B Ontario, CA 91761-1413 USA Copyright © 2016 - All Rights Reserved. PRINTED IN CHINA 605-1603-ENG01 — 23 —...
