Lorex LNW16XF Quick Start Manual

Installation Tips
To ensure the best possible wireless performance, it is
recommended to keep the following installation tips in mind when
choosing a location for the camera:
• Place the camera as close to your Wi-Fi router or access point as possible.
• Reduce the number of obstructive materials between the camera and
the router or access point. Concrete, brick, metal and wood are the most
common materials in your house that can cause poor signal strength.
• The camera uses the 2.4GHz band exclusively. Most new routers support
both 2.4GHz and 5GHz bands. It is recommended to use other Wi-Fi
devices on the 5GHz band when possible to ensure the 2.4GHz band is not
overcrowded.
• Other electronic devices such as microwaves, TVs, cordless phones, and
baby monitors can cause signal interference. It is recommended to install
the camera as far away from these devices as possible.
Additional Positioning Tips
• Point the camera where there is the least amount of obstructions (i.e.,
tree branches).
• Install the camera where vandals cannot easily reach.
• This camera is rated for outdoor use. Installation in a sheltered location
is recommended.
Disclaimers
• Not intended for submersion in water. Installation in a sheltered location
recommended.
• This camera includes an Auto Mechanical IR Cut Filter. When the camera
changes between Day/Night viewing modes, an audible clicking noise may
1
be heard from the camera. This clicking is normal, and indicates that the
camera filter is working.
• Audio recording without consent is illegal in certain jurisdictions. Lorex
2
Corporation assumes no liability for use of its products that does not
conform with local laws.
3
Need Help?
Visit us online for up-to-date software and
complete instruction manuals.
1
Visit lorex.com
Search for the model number
2
of your product
Click on your product in the
3
search results
4
Click on the Downloads tab
Copyright © 2018 Lorex Corporation
As our products are subject to continuous improvement, Lorex reserves the
right to modify product design, specifications and prices, without notice and
without incurring any obligation. E&OE. All rights reserved.
Troubleshooting
Problem Solution
Cannot set up • Ensure you are using a 2.4GHz Wi-Fi network to
camera configure the camera. The camera does not work
with 5GHz networks.
• Ensure your mobile device is within 1ft (30cm) of
the camera during setup.
No picture / • Ensure the LED indicator on the camera is
signal glowing steady green. See 'LED Behavior' section
for details if otherwise.
• Ensure the camera is properly connected to
power using the included USB power adapter.
• Try repositioning the camera, router, or both to
improve signal strength.
Picture is not • Check the camera lens for dirt, dust, spiderwebs.
clear Clean the lens with a soft, clean cloth.
• Remove the vinyl cover on the camera lens.
No audio • Ensure audio function on camera is turned on.
• Ensure audio is turned up on viewing device.
The warning • Ensure that you have enabled and configured
light is not white light deterrence.
switching on
automatically
The siren is not • The camera siren cannot switch on automatically.
switching on You can control the camera siren manually using
automatically the Lorex Home app.
LED Behavior
See table below for definitions of camera's LED behaviors:
Behavior Meaning
Steady green Operating correctly
Flashing green Connecting to network
Steady red Device malfunction. Try resetting the camera
(see 'Camera Overview' for details) and
repeating the setup.
Flashing red Network connection failed. Try resetting the
camera (see 'Camera Overview' for details) and
repeating the setup.
Rapid flashing red microSD error. Try removing and re-inserting
the included microSD card, or try a different
card.
Safety Precautions
• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use and handling of the product.
• Use the camera within given temperature, humidity and voltage levels
noted in the camera's specifications.
• Do not disassemble the camera.
• Do not point the camera directly at the sun or a source of intense
light.
• Periodic cleaning may be required. Use a damp cloth only. Do not use
any harsh, chemical-based cleaners.

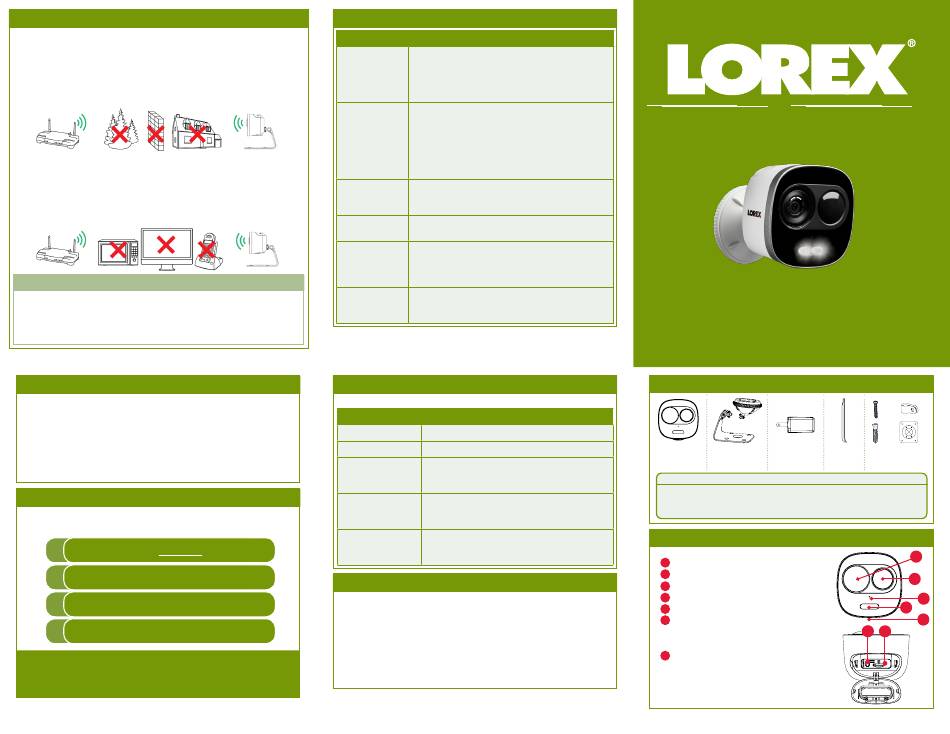

HD Wi-Fi Active Deterrence Camera
Quick Start Guide
www.lorex.com
Package Contents
HD Wi-Fi Mounting USB Power Access
Camera Stands Adapter
ATTENTION:
A REGULATED UL / CSA APPROVED power supply is REQUIRED for use
with this camera (included). Use of a non-regulated, non-conforming
power supply can damage this product and voids the warranty.
Camera Overview
Lens
A
Motion (PIR) Sensor
B
Microphone
C
Spotlights
D
Speaker
E
Reset Button: Press and hold
F
for 10 seconds to restore default
settings.
microSD Slot: microSD card pre-
G
inserted (expandable up to 128GB).
* Use the included access tool to remove the
service compartment cover.
×9 ×4
×9 ×1
Mounting Kit
Tool
Mounting Kit
A
B
C
D
E
F G
*
