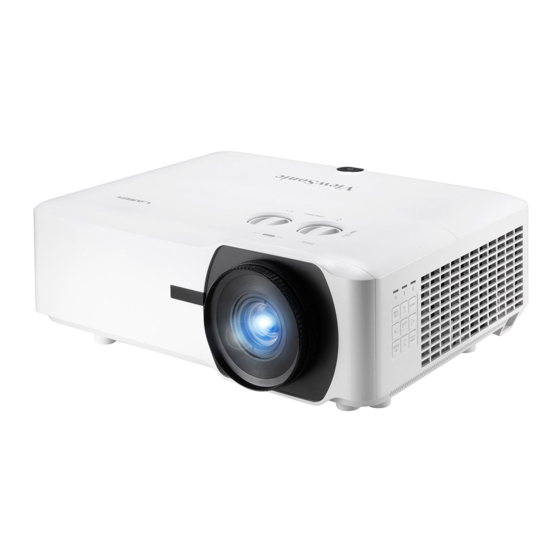

LS750WU/LS850WU/LS860WU
Projector
User Guide
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product
in a safe manner, as well as registering your product for future service. Warranty information contained in this
User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right
corner of our website. "Antes de operar su equipo lea cu idadosamente las instrucciones en este manual"
Model
No. VS17804/VS17805/VS17889
Model Name: LS750WU/LS850WU/LS860WU

Advertisement

Table of Contents
loading

Related Manuals for ViewSonic LS850WU

Summary of Contents for ViewSonic LS850WU

  • Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website.
  • Page 2 At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well. Once again, thank you for choosing ViewSonic®!

  • Page 3: Safety Precautions - General

    Safety Precautions - General Please read the following Safety Precautions before you start using the projector. • Keep this user guide in a safe place for later reference. • Read all warnings and follow all instructions. • Allow at least 20“ (50 cm) clearance around the projector to ensure proper ventilation.
  • Page 4 (UPS). • If smoke, an abnormal noise, or a strange odor is present, immediately switch the projector off and call your dealer or ViewSonic®. It is dangerous to continue using the projector. • Use only attachments/accessories specified by the manufacturer.
  • Page 5 Safety Precautions - Ceiling Mounting Please read the following Safety Precautions before you start using the projector. If you intend to mount the projector on the ceiling, we strongly recommend that you use a proper fitting projector ceiling mount kit and that you ensure it is securely and safely installed.

  • Page 6: Table Of Contents

    LS750WU ....................... 16 16:10 Image on a 16:10 Screen ................... 16 16:10 Image on a 4:3 Screen ..................17 LS850WU/LS860WU ....................18 LS850WU ....................... 19 16:10 Image on a 16:10 Screen ................... 19 16:10 Image on a 4:3 Screen ..................19 LS860WU .......................
  • Page 7 Auto-Adjusting the Image ................... 36 Fine-Tuning the Image Size and Clarity ..............36 Correcting Keystone ....................37 Controllability of the Projected Image (LS850WU/LS860WU) ......38 Hiding the Image ....................39 Controlling the Projector through a LAN Environment ........40 Configuring the LAN Control Settings ..............40 Controlling the Projector through a Web Browser ..........
  • Page 8 Menu Functions ............50 On-Screen Display (OSD) Menu Tree ..............51 DISPLAY Menu ......................57 IMAGE Menu ......................60 POWER MANAGEMENT Menu ................64 BASIC Menu ......................67 ADVANCED Menu ....................70 SYSTEM Menu .......................74 INFORMATION Menu ...................76 Specifications ......................77 Appendix ..............77 Projector Dimensions .................... 78 Timing Chart ......................78 Analog RGB ......................
  • Page 9 Compliance Information ..................99 FCC Compliance Statement ................... 99 Industry Canada Statement ................... 99 CE Conformity for European Countries ..............99 Regulatory and Service Information ......99 Declaration of RoHS2 Compliance............... 100 Indian Restriction of Hazardous Substances ............101 Product Disposal at End of Product Life .............. 101 Copyright Information ..................102 Customer Service ....................

  • Page 10: Features

    HDBaseT input*, which allows the projectors to receive uncompressed HD video and audio over long distances (up to 200 feet) through a single network cable. NOTE: *Only the LS850WU & LS860WU support the H/V lens shift & HDBaseT input & Portrait function. Features • 2nd generation laser phosphor technology •...

  • Page 11: Product Overview

    (up/down) Light Source Indicator Light Lens shift (left/right) MENU BLANK Remote IR sensor EXIT ENTER LS850WU COLOR MODE Focus Ring Zoom Ring LS860WU Projection Lens Description Toggles the projector between standby mode and Power On. Power Manually corrects distorted images resulting from an angled / / ] Keystone projection.

  • Page 12: Connection Ports

    Connection Ports LS850WU / LS860WU LS750WU Security Slot AC Power Cord Inlet Security Bar Ceiling Mount Holes Adjuster Foot Port Description [1] HDMI 1 HDMI port. [2] HDMI 2 HDMI port. [3] USB 5V/1.5A OUT (Service) USB Type A port for power supply and serivce.

  • Page 13: Remote Control

    Remote Control Button Description Selects the desired menu Left/ Right items and makes adjustments. Controls and Functions Down Menu Turns on/off the On-Screen Display (OSD) Menu or goes back to previous OSD Menu. Emits visible laser pointer light (Laser) for presentation purposes. Exit Exits and saves menu settings.

  • Page 14: Remote Control Effective Range

    Remote Control Effective Range To ensure proper function of the remote control follow the steps below: The remote control must be held at an angle within 30° perpendicular to the projector’s IR remote control sensor(s). The distance between the remote control and the sensor(s) should not exceed 8 m (26 ft.) NOTE: Refer to the illustration for the location of...

  • Page 15: Choosing A Location

    Initial Setup This section provides detailed instructions for setting up your projector. Choosing a Location Personal preference and room layout will decide the installation location. Consider the following: • Size and Position of your screen. • Location of a suitable power outlet. •...

  • Page 16: Projection Dimensions

    Projection Dimensions NOTE: See “Specifications” on page 77 for the native display resolution of this projector. LS750WU • 16:10 Image on a 16:10 Screen • 16:10 Image on a 4:3 Screen NOTE: (e) = Screen / (f) = Center of Lens 16:10 Image on a 16:10 Screen (a) Screen (b) Projection Distance...

  • Page 17: 16:10 Image On A 4:3 Screen

    16:10 Image on a 4:3 Screen (a) Screen (b) Projection Distance (c) Image (d) Vertical Offset Size minimum maximum Height minimum maximum 1366 1776 1016 1594 2072 1270 1822 2368 1016 1524 2049 2664 1143 1778 2277 2960 1270 2032 2505 3256 1397...

  • Page 18: Ls850Wu/Ls860Wu

    LS850WU/LS860WU 16:10 Image on a 16:10 Screen • • 16:10 Image on a 4:3 Screen NOTE: (e) = Screen / (f) = Center of Lens...

  • Page 19: Ls850Wu

    LS850WU 16:10 Image on a 16:10 Screen (a) Screen (b) Projection Distance (c) Image (d) Vertical Offset Size minimum maximum Height minimum maximum 1401 -202 1016 1168 1869 -269 1270 1460 2336 -337 1524 1752 2803 -404 1778 2044 3270...

  • Page 20: Ls860Wu

    LS860WU 16:10 Image on a 16:10 Screen (a) Screen (b) Projection Distance (c) Image (d) Vertical Offset Size minimum maximum Height minimum maximum -202 1016 -269 1270 -337 1524 1041 1146 -404 1778 1215 1336 -471 2032 1389 1527 1077 -538 2286 1562...

  • Page 21: Mounting The Projector

    If you buy a third-party mount, please use the correct screw size. Screw size can vary depending on the thickness of the mounting plate. To ensure the most secure installation, please use a ViewSonic® wall or ceiling mount. 2. Ensure the screws used to attach a mount to the projector meet the following specifications: •...

  • Page 22: Preventing Unauthorized Use

    Preventing Unauthorized Use The projector has several built-in security features to prevent theft, access, or accidental setting changes. Using the Security Slot To help prevent the projector from being stolen, use a security slot locking device to secure the projector to a fixed object. Below is an example of setting up a security slot locking device: NOTE: The security slot can also be used as a safety anchor if the projector is...

  • Page 23: Using The Password Function

    Using the Password Function To help prevent unauthorized access or use, the projector offers a password security option. The password can be set through the On-Screen Display (OSD) Menu. NOTE: Make note of your password, and keep it in a safe place. Setting a Password Press Menu to open the OSD Menu and go to: SYSTEM...

  • Page 24: Changing The Password

    Changing the Password Press Menu to open the OSD Menu and go to: SYSTEM > Security Settings > Change Password. 2. Press Enter, the message, ‘INPUT CURRENT PASSWORD’ will appear. 3. Enter the old password. ͫ If the password is correct, the message, ‘INPUT NEW PASSWORD’ will appear.

  • Page 25: Forgetting The Password

    Forgetting the Password If the password function is activated, you will be asked to enter the six-digit password every time you turn on the projector. If you enter the wrong password, the password error message, as pictured to the right, will appear for 5 seconds, and the message ‘INPUT PASSWORD’...

  • Page 26: Locking The Control Keys

    Locking the Control Keys With the control keys on the projector locked, you can prevent your settings from being changed accidentally (by children, for example). NOTE: When the Panel Key Lock is On, no control keys on the projector will operate except Power.

  • Page 27: Connecting To Power

    Making Connections This section guides you on how to connect the projector with other equipment. Connecting to Power 1. Connect the power cord to the AC IN jack at the rear of the projector. 2. Plug the power cord into a power outlet. NOTE: When installing the projector, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible...

  • Page 28: Connecting To Video Sources

    HDMI Connection Connect one end of an HDMI cable to the HDMI port of your video device. Then connect the other end of the cable to the HDMI 1 or HDMI 2 port of your projector. LS850WU / LS860WU LS750WU...

  • Page 29: S-Video Connection

    S-Video Connection Connect one end of an S-Video cable to the S-Video port of your video device. Then connect the other end of the cable to the S-VIDEO port of your projector. LS850WU / LS860WU LS750WU...

  • Page 30: Composite Video Connection

    Composite Video Connection Connect one end of a Video cable to the Video port of your video device. Then connect the other end of the cable to the VIDEO port of your projector. LS850WU / LS860WU LS750WU...

  • Page 31: Connecting To Computer Sources

    VGA Out Connection After establishing the VGA Connection, connect one end of a VGA cable to the VGA port of your monitor. Then connect the other end of the cable to the MONITOR OUT port of your projector. LS850WU / LS860WU LS750WU...

  • Page 32: Connecting To Audio

    Connecting to Audio The projector is equipped with speakers, however, you can also connect external speakers to the AUDIO OUT port of the projector. NOTE: The audio output is controlled by the projector’s Volume and Mute settings.

  • Page 33: Turning The Projector On/Off

    Operation Turning the Projector On/Off Starting Up the Projector 1. Press the Power button to turn on the projector. 2. The light source will light up, and a “Power On/Off Ring Tone” will play. 3. The Power Indicator Light stays green when the projector is On.

  • Page 34: Shutting Down The Projector

    Shutting Down the Projector 1. Press the Power or Off button and a confirmation message will appear to prompt you to press the Power or Off button a second time. Additionally you can press any other button to cancel. NOTE: If you do not respond in a few seconds after the first press, the message will disappear.

  • Page 35: Selecting An Input Source

    Selecting an Input Source The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time. If you want the projector to automatically search for the input source, ensure the Quick Auto Search function in the SYSTEM menu is On.

  • Page 36: Adjusting The Projected Image

    COMPUTER IN) is selected. Fine-Tuning the Image Size and Clarity To adjust the projected image to the size that you need, rotate the Zoom Ring. LS750WU LS850WU/LS860WU To improve the clarity of the image, rotate the Focus Ring. LS750WU LS850WU/LS860WU...

  • Page 37: Correcting Keystone

    Correcting Keystone Keystoning refers to the situation where the projected image becomes a trapezoid due to angled projection. To correct this, besides adjusting the height of the projector, you may also: 1. Use the keystone keys on the projector or remote control to display the keystone page.

  • Page 38: Controllability Of The Projected Image (Ls850Wu/Ls860Wu)

    Controllability of the Projected Image (LS850WU/LS860WU) By using the lens shift knobs on the projector , you can adjust the vertical lens shift by +/- 50% or horizontal lens shift by +/-23%, which offers the convenience of not needing to physically move or interact with the projector.

  • Page 39: Hiding The Image

    Hiding the Image In order to draw the audience’s full attention to the presenter, you can press Blank on the projector or remote control to hide the screen image. Press any key on the projector or remote control to restore the image. CAUTION: Do not block the projection lens as this could cause the blocking object to become heated and deformed or even cause a fire.

  • Page 40: Controlling The Projector Through A Lan Environment

    Control Settings menu, you can manage the projector from a computer using a web browser when the computer and the projector are properly connected to the same local area network. LS850WU / LS860WU LS750WU Configuring the LAN Control Settings • If you are in a DHCP environment: 1.
  • Page 41 • If the Projector IP Address still does not appear, contact your network administrator. • If the RJ45 cables are not properly connected, the Projector IP Address, Subnet Mask, Default Gateway and DNS Server settings will display 0.0.0.0. Make sure the cables are properly connected and perform the procedures above again. •...

  • Page 42: Controlling The Projector Through A Web Browser

    Controlling the Projector through a Web Browser Once you have the correct IP address for the projector and the projector is on or in standby mode, you can use any computer that is on the same local area network to control the projector.
  • Page 43 Enter. The main page of the Network Control will appear. NOTE: Accessing the Network Settings, Email Alert page, or Projector/LAN Firmware Update page requires the Administrator’s password. The default password is “0000”. 2. This page allows you to make adjustments to the AMX and SNMP settings. In the AMX device discover row, when ON is selected, the projector can be detected by controllers of AMX connected to the same network.
  • Page 44 4. The Crestron (e-Control)® page displays the Crestron e-Control user interface. 5. Projector Firmware Update i. Visit ViewSonic’s website to download the Projector Software Update Firmware by LAN: https://www.viewsonic.com. ii. Upload the Projector Firmware file to the Network Control website.
  • Page 45 NOTE: If the download process fails, please refer to the “Projector Software Update Firmware by USB” below. Visit ViewSonic’s website to download the Projector Software Update https://www.viewsonic.com Firmware : Connect the USB A cable to the projector and computer. Continuously press the projector’s Power Key and...

  • Page 46: About Crestron E-Control

    About Crestron e-Control® 1. The Crestron e-Control® page provides a variety of virtual keys to control the projector or adjust the projected pictures. You can press reveal more buttons. i. These buttons function the same as the ones on the OSD menus or remote control.
  • Page 47 i. This section is only used with the Crestron Control System. Please contact Creston or refer to its user manual for setup information. ii. You can name the projector, keep track of its location and the person in charge of it. iii.
  • Page 48 Category Item Input Length Maximum Number of Characters DHCP (Enabled) (N/A) IP Address Subnet Mask Network Configuration Default Gateway DNS Server Enabled (N/A) New Password User Password Confirm Enabled (N/A) New Password Admin Password Confirm 3. The Info page displays the information and status of the projector. Press “Exit”...

  • Page 49: Pjlink™, Snmp, Amx And Xpanel Formats Supported

    Crestron RoomView On the “Edit Room” page, enter the IP Address (or hostname) as shown on the projector’s on-screen display (OSD) menu, and “02” for IPID, “41794” for the reserved Crestron control port. Please go to the below website to get the RoomView™ User Guide and more information: http://www.crestron.com/products/roomview_connected_embedded_ projectors_devices/resources.asp...

  • Page 50: General On-Screen Display (Osd) Menu Operation

    Menu Functions This section will introduce the On-Screen Display (OSD) Menu and its options. General On-Screen Display (OSD) Menu Operation NOTE: The OSD screenshots in this manual are for reference only and may differ from the actual design. Some of the following OSD settings may not be available. Please refer to the actual OSD of your projector.

  • Page 51: On-Screen Display (Osd) Menu Tree

    On-Screen Display (OSD) Menu Tree Main Menu Sub-menu Menu Option DISPLAY Aspect Ratio Auto 16:9 16:10 Native Keystone Vertical -40~40 Horizontal -40~40 Corner Adj. Top-Right 45°/90° Top-Left 45°/90° Bottom-Right 45°/90° Bottom-Left 45°/90° Position X: -5 ~ 5, Y: - 5 ~ 5 Phase 0~31 H.
  • Page 52 Main Menu Sub-menu Menu Option IMAGE Color Temp. 8000K/6500K/5500K Red Gain 0~100 Green Gain 0~100 Blue Gain 0~100 Red Offset -50~+50 Green Offset -50~+50 Blue Offset -50~+50 Advanced Color -50~50 Tint -50~50 Sharpness 0~31 Gamma 1.8/2.0/2.2/2.35/ 2.5/Cubic/sRGB Brilliantcolor Off/1/2/3/4/ 5/6/7/8/9/10 Noise Reduction 0~31 Color Management...
  • Page 53 Main Menu Sub-menu Menu Option Auto Power On Signal Disable/VGA/HDMI/ Disable/Enable Direct Power On Disable/Enable Smart Energy Auto Power Off Disable/10 min/20 min/30 min Sleep Timer Disable/30 min/1 hr/2hr/3 hr/4 hr/ 8 hr/12 hr Power Saving Disable/Enable Standby Settings VGA Loop Through Off/On Audio Pass Through Off/On...
  • Page 54 Sound Reminder Off/On Start Counting/Off Pattern Test Card Blank Timer Disable/5 min/10 min/15 min/20 min/25 min/30 Message Splash Screen Black Blue ViewSonic ADVANCED 3D Settings 3D Glasses DLP/3D VESA 3D Format Auto Frame Sequential Frame Packing Top-Bottom Side-by-Side 3D Sync Invert...
  • Page 55 Main Menu Sub-menu Menu Option ADVANCED LAN Control Settings LAN Settings DHCP ON/Static IP Projector IP Address Subnet Mask Default Gateway DNS Server Standby LAN Control Off/On Apply Light Source Settings Light Source Mode Normal/Eco/ Dynamic Eco/Custom Light Source Power 20%~100% Reset Light Source Hours Reset/Cancel Light Source Hours Information Light Source Usage Time...
  • Page 56 Quick Auto Search Security Settings Change Password Power On Lock Off/On Panel Key Lock Remote Control Code 1/2/3/4/5/6/7/8 Control Method RS-232 HDBaseT (only for LS850WU/LS860WU) Baud Rate 2400/4800/9600/14400/19200/38400/57600/ 115200 INFORMATION Source Color Mode Resolution Color System IP address MAC address...

  • Page 57: Display Menu

    DISPLAY Menu 1. Press the Menu button to display the On-Screen Display (OSD) Menu. 2. Press to select the DISPLAY menu. Then press Enter or use to access the DISPLAY menu. 3. Press Enter to select the menu option. Then press to display its sub-menu, or press to adjust/select the setting.
  • Page 58 Menu Option Description Aspect Ratio Auto Scales an image proportionally to fit the projector’s native resolution in its horizontal width. This is suitable for the incoming image which is neither in 4:3 nor 16:9 and you want to make most use of the screen without altering the image’s aspect ratio.
  • Page 59 Menu Option Description H. Size Adjusts the horizontal width of the image. NOTE: This function is only available when a PC input signal is selected. Zoom Magnifies the projected image and allows you to navigate the image. OverScan Adjusts the overscan rate from 0% to 5%. NOTE: This function is only available when a Composite Video or HDMI input signal is selected.

  • Page 60: Image Menu

    IMAGE Menu 1. Press the Menu button to display the On-Screen Display (OSD) Menu. 2. Press to select the IMAGE menu. Then press Enter or use to access the IMAGE menu. 3. Press to select the menu option. Then press to display its sub-menu, Enter or press...
  • Page 61 Menu Option Description Color Mode Brightest Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms. Presentation Designed for presentations under daylight environment to match PC and notebook coloring.
  • Page 62 Menu Option Description Color Temp. 8000K Images appear bluish white. 6500K Images maintain a normal white appearance. 5500K Images appear reddish white. To set a custom color temperature, you can further adjust the following items: Red Gain/Green Gain/Blue Gain Adjusts the Contrast levels of Red, Green, and Blue. Red Offset/Green Offset/Blue Offset Adjusts the Brightness levels of Red, Green, and Blue.
  • Page 63 Menu Option Description Advanced Noise Reduction This function reduces electrical image noise caused by different media players. The higher the setting, the less the noise. (Not available when input signal is HDMI.) Color Management Only in permanent installations with controlled lighting levels such as boardrooms, lecture theaters, or home theaters, should color management be considered.

  • Page 64: Power Management Menu

    POWER MANAGEMENT Menu 1. Press the Menu button to display the On-Screen Display (OSD) Menu. 2. Press to select the POWER MANAGEMENT menu. Then press Enter or use to access the POWER MANAGEMENT menu. 3. Press to select the menu option. Then press Enter to display its sub-menu, or press...
  • Page 65 Menu Option Description Auto Power On Signal Selecting VGA/HDMI allows the projector to turn on automatically once the VGA/HDMI signal is fed through the VGA/HDMI cable. You can also select All and the projector will turn on automatically upon receiving either a VGA or HDMI signal.
  • Page 66 Menu Option Description Standby Settings The functions below are available in standby mode (plugged in, but not turned on). VGA Loop Through When selecting On, the projector outputs the signal received only from COMPUTER IN. Audio Pass Through When selecting On, the projector outputs an audio signal when the Audio In and Audio Out sockets are correctly connected to a proper device.

  • Page 67: Basic Menu

    BASIC Menu 1. Press the Menu button to display the On-Screen Display (OSD) Menu. 2. Press to select the BASIC menu. Then press Enter or use to access the BASIC menu. 3. Press to select the menu option. Then press Enter to display its sub-menu, or press...
  • Page 68 Menu Option Description Audio Settings Mute Select to temporarily turn off the projector’s internal speaker or the volume being output from the audio output jack. Audio Volume Adjusts the volume level of the projector’s internal speaker or the volume being output from the audio output jack. Power On/Off Ring Tone Turns on/off the ring tone during the starting up and shutting down process.
  • Page 69 Menu Option Description Pattern Helps adjust the image size and focus, and checks for distortion in the projected image. Blank Timer Allows the projector to return the image automatically after a period of time when there is no action taken on the blank screen.

  • Page 70: Advanced Menu

    ADVANCED Menu 1. Press the Menu button to display the On-Screen Display (OSD) Menu. 2. Press to select the ADVANCED menu. Then press Enter or use access the ADVANCED menu. 3. Press to select the menu option. Then press to display its sub-menu, Enter or press to adjust/select the setting.
  • Page 71 Menu Option Description 3D Settings This projector features a 3D function which enables you to enjoy 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images. You need to wear a pair of 3D glasses to view 3D images. 3D Glasses Chooses the appropriate type of 3D glasses.
  • Page 72 Menu Option Description LAN Control Settings LAN Settings ͫ DHCP ON: Select this if you are in a DHCP environment and Projector IP Address, Subnet Mask, Default Gateway, DNS Server settings will be automatically retrieved. ͫ Static IP: Select this if you are in a non-DHCP environment and make adjustments to below settings.
  • Page 73 Menu Option Description Closed Caption Closed Caption Enable Activates the function when the selected input signal carries closed captions. NOTE: • Captions: An on-screen display of the dialogue, narration, and sound effects of TV programs and videos that are closed captioned (usually marked as “CC” in TV listings). •...

  • Page 74: System Menu

    SYSTEM Menu 1. Press the Menu button to display the On-Screen Display (OSD) Menu. 2. Press to select the SYSTEM menu. Then press Enter or use to access the SYSTEM menu. 3. Press to select the menu option. Then press to display its sub-menu, Enter or press...
  • Page 75 Menu Option Description Language Sets the language for the On-Screen Display (OSD) Menu. Projector Position Selects a proper position for the projector. Menu Settings Menu Display Time Sets the length of time the OSD Menu will remain active after your last interaction. Menu Position Sets the OSD Menu’s position.

  • Page 76: Information Menu

    INFORMATION Menu 1. Press the Menu button to display the On-Screen Display (OSD) Menu. 2. Press to select the INFORMATION menu and display its contents. Menu Option Description Source Shows the current input source. Color Mode Shows the selected mode in the IMAGE menu. Resolution Shows the native resolution of the input source.

  • Page 77: Specifications

    Weight Physical 5.9 kg (13 lbs) 6.4 kg (14.1 lbs) 6.6 kg (14.6 lbs) Power Saving 460W (Typical) Modes < 0.5W (Standby) Please use the power adapter from ViewSonic® or an authorized source only. The test condition follows EEI standards.

  • Page 78: Projector Dimensions

    Projector Dimensions 405 mm (W) x 305 mm (D) x 144 mm (H) 405 mm 305 mm 144 mm 75.5 mm (LS750WU), 101.9 78.2 mm (LS850WU/LS860WU) Timing Chart Analog RGB Resolution Mode Refresh Clock 3D Sync rate (Hz) frequency (MHz)
  • Page 79 Resolution Mode Refresh Clock 3D Sync rate (Hz) frequency (MHz) Frame Sequential Top-Bottom Side-by-Side (kHz) 1280 x 800 WXGA_60 59.81 49.702 83.5 Supported Supported Supported WXGA_75 74.934 62.795 106.5 WXGA_85 84.88 71.554 122.5 WXGA_120 (Reduce 119.909 101.563 146.25 Supported Blanking) 1280 x 1024 SXGA_60 60.02...

  • Page 80: Hdmi (Pc)

    HDMI (PC) Resolution Mode Refresh Clock 3D Sync rate (Hz) frequency (MHz) Frame Sequential Top-Bottom Side-by-Side (kHz) 640 x 480 VGA_60 59.94 31.469 25.175 Supported Supported Supported VGA_72 72.809 37.861 31.5 VGA_75 37.5 31.5 VGA_85 85.008 43.269 720 x 400 720 x 400_70 70.087 31.469...

  • Page 81: Hdmi (Video)

    Resolution Mode Refresh Clock 3D Sync rate (Hz) frequency (MHz) Frame Sequential Top-Bottom Side-by-Side (kHz) 1680 x 1050 1680x1050_60 59.954 65.29 146.25 Supported Supported 640 x 480@67Hz MAC13 66.667 30.24 832 x 624@75Hz MAC16 74.546 49.722 57.28 1024 x 768@75Hz MAC19 74.93 60.241...

  • Page 82: Component Video

    Component video Video mode Resolution Horizontal Vertical frequency Clock (MHz) 3D Sync frequency (Hz) Frame Sequential (KHz) 480i 720 x 480 15.73 59.94 13.5 Supported 480p 720 x 480 31.47 59.94 Supported 576i 720 x 576 15.63 13.5 Supported 576p 720 x 576 31.25 Supported...

  • Page 83: Ir Control Table

    IR Control Table Format Byte 1 Byte 2 Byte 3 Byte 4 NEC-F2 NEC-F2 COMP NEC-F2 HDMI/HDMI 1 NEC-F2 HDMI 2 NEC-F2 Auto Sync NEC-F2 Source NEC-F2 NEC-F2 NEC-F2 Left/ NEC-F2 Enter/ NEC-F2 Right/ NEC-F2 Down/ Menu NEC-F2 NEC-F2 (INFORMATION) Exit NEC-F2 Aspect...

  • Page 84: Address Code

    Format Byte 1 Byte 2 Byte 3 Byte 4 (Presentation Timer) VIDEO Address Code Code 1 83F4 Code 2 93F4 Code 3 A3F4 Code 4 B3F4 Code 5 C3F4 Code 6 D3F4 Code 7 E3F4 Code 8 F3F4...

  • Page 85: Rs-232 Command Table

    Write Blue 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x01 0x68 Splash Screen Write ViewSonic 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x0A 0x02 0x69 Splash Screen Read Status 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x0A 0x68...
  • Page 86 Function Type Action Command Light Source Mode Write Custom 60 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x06 0x73 Light Source Mode Write Custom 80 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x07 0x74 Light Source Mode Write Custom 100 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x10 0x08 0x75 Light Source Mode Read...
  • Page 87 Function Type Action Command Horizontal position Read Get Value 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x06 0x65 Vertical position Write Shift Up 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x07 0x00 0x65 Vertical position Write Shift Down 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x07 0x01 0x66 Vertical position Read...
  • Page 88 Function Type Action Command Color temperature- Read Get value 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x41 0xA0 Blue offset Blank Write 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x09 0x01 0x68 Blank Write 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x09 0x00 0x67 Blank Read Status...
  • Page 89 Function Type Action Command Gain Read Get value 0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x12 0x13 0x72 Sharpness Write Decrease 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0E 0x00 0x6C Sharpness Write Increase 0x06 0x14 0x00 0x04 0x00 0x34 0x12 0x0E 0x01 0x6D Sharpness Read Get value...
  • Page 90 Function Type Action Command Language Write Finnish 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x11 0x72 Language Write Arabic 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x12 0x73 Language Write Indonesia 0x06 0x14 0x00 0x04 0x00 0x34 0x15 0x00 0x13 0x74 Language Write Hindi...
  • Page 91 Function Type Action Command Remote Control Write code 3 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x02 0xA2 Code Remote Control Write code 4 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x03 0xA3 Code Remote Control Write code 5 0x06 0x14 0x00 0x04 0x00 0x34 0x0C 0x48 0x04 0xA4 Code Remote Control...

  • Page 92: Glossary

    Glossary This section describes the standard glossary of terms used in projector models. All terms are listed in alphabetical order. NOTE: Some terms may not be applicable to your projector. Aspect Ratio Refers to the ratio of the image width to the image height. Auto Sync Built-in intelligent auto adjustment function that will re-adjust the frequency and clock values to provide the best picture quality.
  • Page 93 Activating it will improve projector cooling and performance. INFORMATION Displays the timing mode (video signal input), the projector model number, the serial number, and the ViewSonic® website URL. Input Select Toggles between the various input options that are available for the projector.

  • Page 94: Troubleshooting

    Light Source Settings The projector’s light source information and settings can be viewed and adjusted by viewing the “Light Source Hours Information” or adjusting the “Light source Mode”. Lens Shift The projector’s lens can be shifted vertically by adjusting the “Lens Shift” menu.

  • Page 95: Common Problems

    Common Problems This section describes some common problems that you may experience when using the projector. Problem Possible Solutions The projector does not turn on • Ensure the power cord is properly attached to the projector and to the power outlet. •...

  • Page 96: Led Indicators

    LED Indicators Light Status and Description Power Green Stand-by mode Flashing Green Powering up Green Normal operation Green Normal power-down cooling Flashing Downloading Green Green Green Burn in off Light source Green First light source-lit error cooling Flashing Light source error in normal operation Green Color wheel start has failed Heating/Cooling...

  • Page 97: Maintenance

    • ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the lens or case. Some chemical cleaners have been reported to damage the lens and/or case of the projector. • ViewSonic® will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.

  • Page 98: Light Source Information

    Light Source Information This section will provided a better understanding of your projector’s light source. Light Source Hour When the projector is being used, the duration (in hours) of light source usage is automatically calculated by the built-in timer. To obtain the light source hour information: 1.

  • Page 99: Compliance Information

    Regulatory and Service Information Compliance Information This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit. FCC Compliance Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 100: Declaration Of Rohs2 Compliance

    The following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

  • Page 101: Indian Restriction Of Hazardous Substances

    Schedule 2 of the Rule. Product Disposal at End of Product Life ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic®...

  • Page 102: Copyright Information

    Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries. ViewSonic® and the three birds logo are registered trademarks of ViewSonic® Corporation. VESA is a registered trademark of the Video Electronics Standards Association.

  • Page 103: Customer Service

    For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product’s serial number. Country/ Region Website Country/ Region Website Asia Pacific & Africa Australia Bangladesh www.viewsonic.com/au/ www.viewsonic.com/bd/ 中国 (China) www.viewsonic.com.cn 香港 (繁體中文) www.viewsonic.com/hk/ Hong Kong (English) India www.viewsonic.com/hk-en/ www.viewsonic.com/in/...

  • Page 104: Limited Warranty

    If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.
  • Page 105 (e) the serial number of the product. 3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic. 4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic. Limitation of implied warranties:...
  • Page 106 Exclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for: 1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.

  • Page 107: Mexico Limited Warranty

    If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components &...
  • Page 108 Exclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for: 1. Damage to other property caused by any defects in the product, damages based...
  • Page 109 Tel: (52) 999-925-1916 Tel: 01(52)95-15-15-22-22 E-Mail: rrrb@sureste.com Fax: 01(52)95-15-13-67-00 E-Mail. gpotai2001@hotmail.com FOR USA SUPPORT: Tijuana: ViewSonic Corporation Av Ferrocarril Sonora #3780 L-C 14035 Pipeline Ave. Chino, CA 91710, USA Col 20 de Noviembre Tel: 800-688-6688 Tijuana, Mexico E-Mail: http://www.viewsonic.com Projector Mexico Warranty Term Template In UG...
  • Page 110 C0 M91 Y72 K24 Process Color Process Color C0 M0 Y0 K100 C0 M91 Y72 K24 Process Color Spot Color Pantone Black C Pantone 187 C Spot Color...
