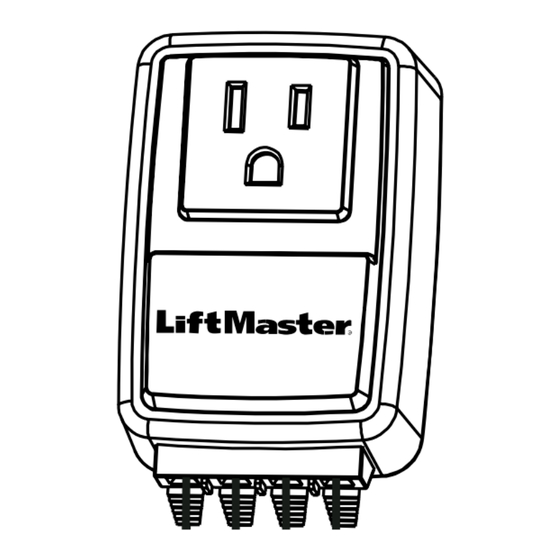

Chamberlain LIFTMASTER 990LM Owner's Instructions

Owner's Instructions:
The Garage Door Opener Surge Protector is designed to protect LiftMaster
damage from lightning and power surges. The Surge Protector will stop radiated surge currents from
coming through wall control and safety sensors, as well as surge currents from coming through AC power
line according to the rating chart shown below.
Plug the Surge Protector into grounded (3-wire) 120V AC outlet within four (4) feet of the garage door
opener. Plugging Surge Protector into a GFCI (Ground Fault Circuit Interrupter) is acceptable, but not
recommended as power surges may cause the GFCI to trip and you will need to reset the outlet in order
to operate the garage door opener.
To prevent possible SERIOUS INJURY or DEATH from electrocution:
• Unplug garage door opener from AC outlet and be sure power is disconnected BEFORE
installing the Surge Protector.
• Connect terminals ONLY to 24 VOLT low voltage wires.
• The Surge Protector is ONLY for indoor Use.
• DO NOT perform installation during a lightning storm (visible lightning)
Installing the wall control wires:
• At the garage door opener, remove the white-white/red wires (for wall control) from Quick-Connect terminals.
• Using a 5' piece of white-white/red 22 AWG bell wire (not included), strip 7/16" of insulation from both ends.
• With existing wall control wire and new wire, use pliers to twist same colored wires together.
• Referring to wiring diagram, insert wall control wires into red and white connectors on Surge Protector.
• Insert opposite ends of new wire into Quick-Connect terminals located on garage door opener as follows:
white to white and white/red to red.
Installing the safety sensor wires:
• At the garage door opener, remove the white-white/black wires (for safety sensors) from Quick-Connect terminals.
• Using a 5' piece of white-white/black 22 AWG bell wire (not included), strip 7/16" of insulation from both ends.
• With existing safety sensor wires and new wire, use pliers to twist same colored wires together.
• Referring to wiring diagram, insert safety sensor wires into white and gray connectors on Surge Protector.
• Insert opposite ends of new wire into Quick-Connect terminals located on garage door opener as follows:
white to white and white/black to gray.
Installing the Surge Protector:
• Plug Surge Protector into AC outlet
• Plug garage door opener into outlet on front of Surge Protector
• Test garage door opener for proper operation. Be sure to test all functions including wall control, keypad, safety
sensors (Door Reversal Test - See garage door opener manual for instructions) and any other accessories.
LED Indicator: The indicator light should be illuminated when the surge protector is plugged into AC power and is
protecting your garage door opener system. If the indicator light goes out, the surge protector has sacrificed
(depleted) itself to protect the garage door opener system and should be replaced immediately.
RATING CHART / TECHNICAL SPECIFICATIONS
Energy Dissipation: 761 joules Line Voltage: 120 VAC, 50/60Hz
Protection Indicator Light: Yes Maximum Surge Current: 16kA
Catastrophic Surge Circuit: Yes Maximum Surge Voltage: 6kV
Thermal Fusing: Yes Line Current: 15 Amp
© 2005, All Rights Reserved The Chamberlain Group, Inc.
Model 990LM
Garage Door Opener
Surge Protector
garage door openers against
®
WARNING
Power: 1800 Watts
UL1449 Suppression Rating: 800V
Protection Modes: L-N, N-G, L-G
3
3
2
2
7/16"
Strip wire both ends
of the wires 7/16"
White/Black Wire
Garage Door
SAFETY SENSORS
FOR TECHNICAL SUPPORT, DIAL OUR TOLL FREE NUMBER: (USA) 1-800-528-2817
