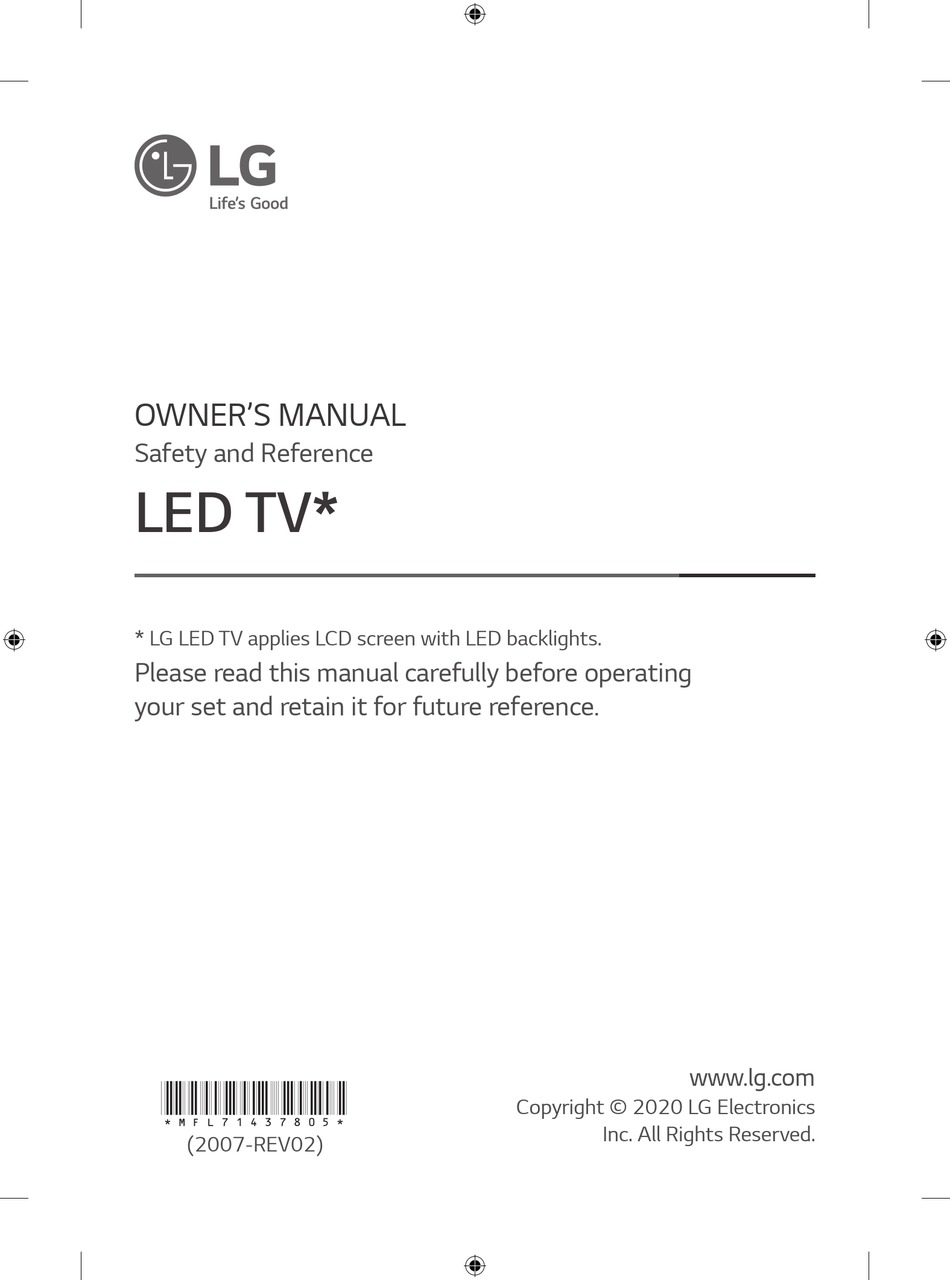

OWNER'S MANUAL
Safety and Reference
LED TV*
* LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating
your set and retain it for future reference.
www.lg.com
*MFL71437805*
Copyright © 2020 LG Electronics
Inc. All Rights Reserved.
(2007-REV02)
Advertisement
Related Manuals for LG 75UN71006LC.AMCB
Summary of Contents for LG 75UN71006LC.AMCB
- Page 1 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com *MFL71437805* Copyright © 2020 LG Electronics Inc. All Rights Reserved.
- Page 2 Warning! Safety • TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER ITEMS WITH OPEN Instructions FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES. • Do not place the TV and/or remote control in the following environments: CAUTION - Keep the product away from direct RISK OF ELECTRIC SHOCK sunlight.
- Page 3 • Ventilation • Disconnecting the Device from the - Install your TV where there is proper Main Power - The power plug is the disconnecting ventilation. Do not install in a confined space such as a bookcase. device. In case of an emergency, the power - Do not install the product on a carpet or plug must remain readily accessible.
- Page 4 TV and wall socket if not any way without written authorization from secured damage to the Plug and socket may LG Electronics. Accidental fire or electric occur and in extreme cases a fire may break shock can occur. Contact your local customer out.
- Page 5 • Batteries • Cleaning - Store the accessories (battery, etc.) in a - When cleaning, unplug the power cord safe location out of the reach of children. and wipe gently with a soft/dry cloth. Do - Do not short circuit, disassemble, or allow not spray water or other liquids directly the batteries to overheat.
- Page 6 Preparing • For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an • If the TV is turned on for the first time after extension cable that supports USB 2.0 if the it was shipped from the factory, initialization USB cable or USB memory stick does not fit of the TV may take a few minutes.
- Page 7 Separate Purchase Wall Mounting Bracket (Depending on model) Make sure to use screws and wall mount Separate purchase items can be changed or bracket that meet the VESA standard. Standard modified for quality improvement without any dimensions for the wall mount kits are notification.
- Page 8 Lifting and moving • When transporting a large TV, there should be at least 2 people. the TV • When transporting the TV by hand, hold the TV as shown in the following illustration. Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.
- Page 9 Mounting on the • Do not apply foreign substances (oils, lubricants, etc.) to the screw parts Table when assembling the product. (Doing so may damage the product.) • If you install the TV on a stand, you 1 Lift and tilt the TV into its upright position on need to take actions to prevent the a table.
- Page 10 When 2 Mount the wall brackets with the bolts to the you do not use LG’s wall mount bracket, please wall. use a wall mount bracket where the device is...
- Page 11 • Remove the stand before installing 70UN74* the TV on a wall mount by performing the stand attachment in reverse. • For more information of screws and wall mount bracket, refer to the Separate purchase. • If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product.
- Page 12 Connections • When installing the wall mounting bracket, it is recommended to cover the stand hole using tape, in order to prevent the influx of Connect various external devices to the TV and dust and insects. (Depending on model) switch input modes to select an external device. For more information of external device’s connection, refer to the manual provided with each device.
- Page 13 CI module [Picture] [Additional Settings] [HDMI Ultra HD Deep Colour] View the encrypted (pay) services in digital TV (Only 86/82/75/65UN85*) mode. (Depending on model) - On: Support 4K @ 50/60 Hz (4:4:4, 4:2:2, • Check if the CI module is inserted into the 4:2:0), PCMCIA card slot in the right direction.
- Page 14 Using Button External Devices Available external devices are: Blu-ray player, HD receivers, DVD players, VCRs, audio systems, You can simply operate the TV functions, using USB storage devices, PC, gaming devices, and the button. other external devices. • The external device connection may differ from the model.
- Page 15 Using Remote ** To use the button, press and hold for more than 1 second. Control (POWER) Turns the TV on or off. Selects Radio, TV and DTV (Depending on model) programme. The descriptions in this manual are based on (SEARCH) Check for recommended the buttons on the remote control.
- Page 16 Using Magic Clears on-screen displays and returns to TV viewing. Remote Control Navigation buttons (up/down/left/right) Scrolls through menus or options. (OK) Selects menus or options and (Depending on model) confirms your input. (Teletext buttons) These The descriptions in this manual are based on buttons are used for teletext.
- Page 17 ** To use the button, press and hold for more than 1 second. (POWER) Turns the TV on or off. You can turn your set-top box on or off by adding the set-top box to the universal remote control for your TV. Number buttons Enters numbers.
- Page 18 Registering Magic Remote (Q. Settings) Displays the [All Settings] Control menu. Wheel (OK) Press the center of the How to register the Magic button to select a menu. You can change Remote Control programmes by using the button. (up/down/left/right) Press To use the Magic Remote, first pair it with your the up, down, left or right button to scroll the menu.
- Page 19 User Guide • Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak. For more information about this TV, read the • Failure to match the correct polarities USER GUIDE embedded in the product. of the battery may cause the battery to burst or leak, resulting in fire, personal →...
- Page 20 Abnormal Display Generated Sound • If the product feels cold to the touch, there • “Cracking” noise: A cracking noise that may be a small “flicker” when it is turned on. occurs when watching or turning off the TV This is normal, there is nothing wrong with is generated by plastic thermal contraction product.
- Page 21 • When cleaning the product, be careful not to allow any liquid or foreign objects to enter the gap between the upper, left or right side of the panel and the guide panel. (Depending on model) • Make sure to wring any excess water or cleaner from the cloth.
- Page 22 Specifications (Depending on country) Broadcasting Specifications Digital TV Analogue TV DVB-T/T2 PAL/SECAM Television DVB-C B/G/I/D/K system DVB-S/S2 SECAM L DVB-S/S2 DVB-C DVB-T/T2 VHF III: 174 ~ 230 UHF IV: 470 ~ 606 Channel UHF V: 606 ~ 862 coverage 46 ~ 862 MHz 950 ~ 2,150 MHz 46 ~ 890 MHz (Band) S Band II: 230 ~ 300...
- Page 23 (Only 86/82/75/65UN85*) Wireless module (LGSBWAC92) specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency Range Output Power (Max.) 2400 to 2483.5 MHz 18 dBm 5150 to 5725 MHz 18 dBm 5725 to 5850 MHz 12 dBm Bluetooth Frequency Range Output Power (Max.) 2400 to 2483.5 MHz 8 dBm As band channels can vary per country, the user cannot change or adjust the operating frequency.
- Page 24 Environment condition Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 % Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 % • For information of the power supply and power consumption, refer to the label attached to the product.
- Page 25 In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
- Page 26 The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service. Model Serial No.
