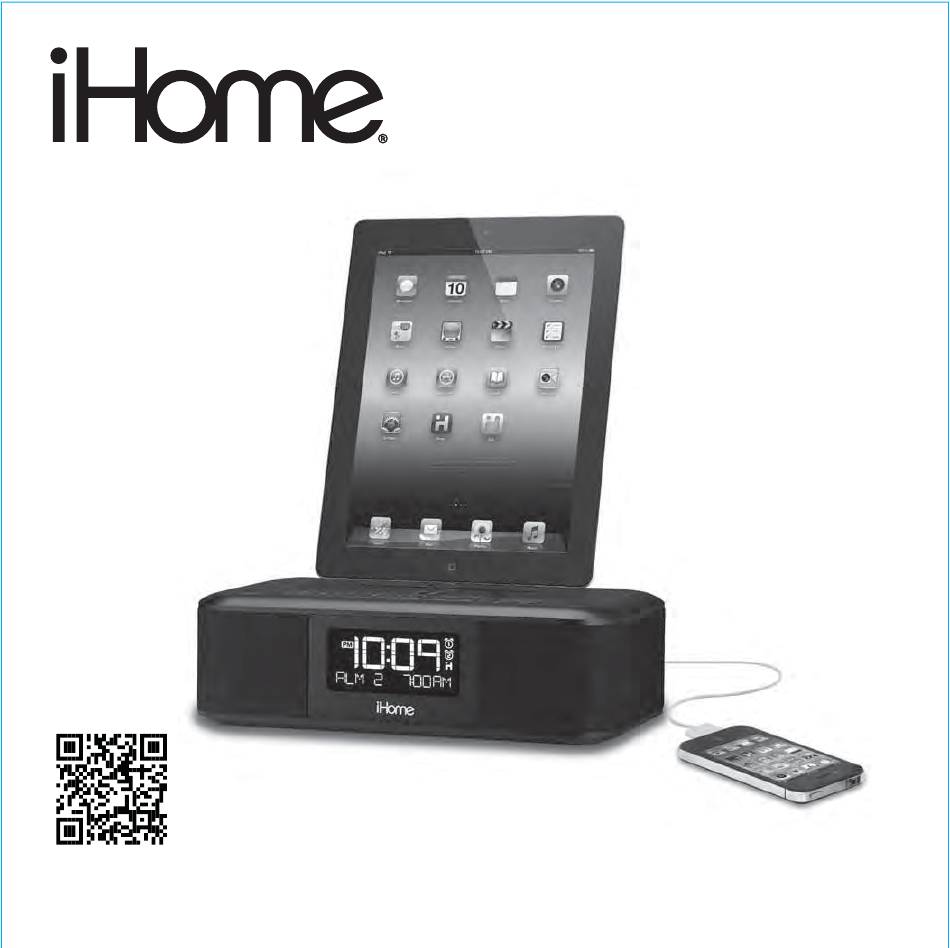

- Page 1 Model iDL95 Dual Charging FM Clock Radio Stereo System with Lightning Dock and USB Port Questions? For latest instructions, visit www.ihome.com/support...
-
Page 2: Table Of Contents
Table of Contents Controls and Indicators / Display............................1 Quick Start..................................2 Using the Unit ..................................3 Using the Alarms ................................4 Listening to iPad/iPhone/iPod / Listening to Radio......................5 Using the Unit in Other Countries / Listening to other portable audio devices / Sleep Operation / Nap Operation....6 Dimmer Operation / Charging a Device with USB Port/ Replacing Clock Backup Battery..........7 A Consumer Guide to Product Safety ..........................8 Troubleshooting..................................9... -
Page 3: Controls And Indicators / Display
DC 12V 3.5A Display Time Display PM Indicator Alarm Indicators iHome App Indicator AM Indicator Battery Low Indicator Alarm Time /EQ/ Mode Display (Dock/USB Dock/FM/Aux-in) NOTE: AM/PM indicators will not appear when clock is set to 24 hour display mode... -
Page 4: Quick Start
Quick Start 1: Power 2: docking your iPad/iPhone/iPod in the Lightning dock OR USB Port RESET TEST Gently dock your iPhone 5 or iPod touch 5th generation onto the Lightning dock on top of the unit. The iPhone or iPod will Attach AC adaptor cable to DC jack on back of charge while docked. -
Page 5: Using The Unit
Updating your iDL95 firmware For best performance, make sure to update the iDL95 firmware. To do so, download the free iHome Set app from the App Store. Launch the app, scroll to “Search for Update”, then follow directions to update the firmware. -
Page 6: Using The Alarms
Wake. By default, the Dock alarm wakes to the last track played on a docked device (“Normal Wake”). You can also wake to a custom playlist. To do so you must first create a playlist named “iHome” in iTunes and have it on your iPad/iPod/iPhone. -
Page 7: Listening To Ipad/Iphone/Ipod / Listening To Radio
2. Press and release the EQ Button as needed to select Treble, Bass, Balance or 3D sound effect, then press the + or – Button to adjust settings. TIP: You can also adjust EQ with the iHome Set app. Listening to Radio Setting up the Antenna Extend FM wire antenna fully for best reception. -
Page 8: Using The Unit In Other Countries / Listening To Other Portable Audio Devices / Sleep Operation / Nap Operation
1. Plug one end of a 3.5mm stereo audio cable (available at http//:www.ihomeaudio.com) into the headphone or line-out jack on your device and the other end of the patch cord into the iDL95 Aux-in Jack, located on the back of the unit. -
Page 9: Dimmer Operation / Charging A Device With Usb Port/ Replacing Clock Backup Battery
Dimmer Operation During normal operation, press and release the Snooze/Dimmer Button to control the brightness of the LCD display. Charging a Device with the USB Port A USB port is located on the back of the unit for charging devices while the unit is connected to AC power. Connect one end of a compatible USB cable (not included) into the standard USB port on the unit and the other end into the device you wish to charge. -
Page 10: A Consumer Guide To Product Safety
14. Servicing – The user should not attempt to service the unit beyond those methods described in the user’s operating instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel. Questions? Visit www.ihome.com or call 1-800-288-2792 Toll Free... -
Page 11: Troubleshooting
Troubleshooting Symptom Possible Problem Solution Unit does not turn on AC adaptor isn't plugged into a working wall Plug the AC adaptor into a working wall socket and plug the connector socket or not plugged into the power supply into the supply jack on the unit jack on back of the unit Unit doesn’t respond Unit requires a reset... - Page 12 Troubleshooting Symptom Possible Problem Solution Sound is distorted Volume level is set too high Decrease the volume Sound source is distorted If the iPad/iPhone/iPod original sound source (MP3) is old or of poor quality, distortion and noise are easily noticed with high-power speakers. Try a different file from a trusted source such as iTunes.
-
Page 13: Warranty Information
Limited 1 Year Warranty Information iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI), warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of one (1) year from the date of original purchase.
