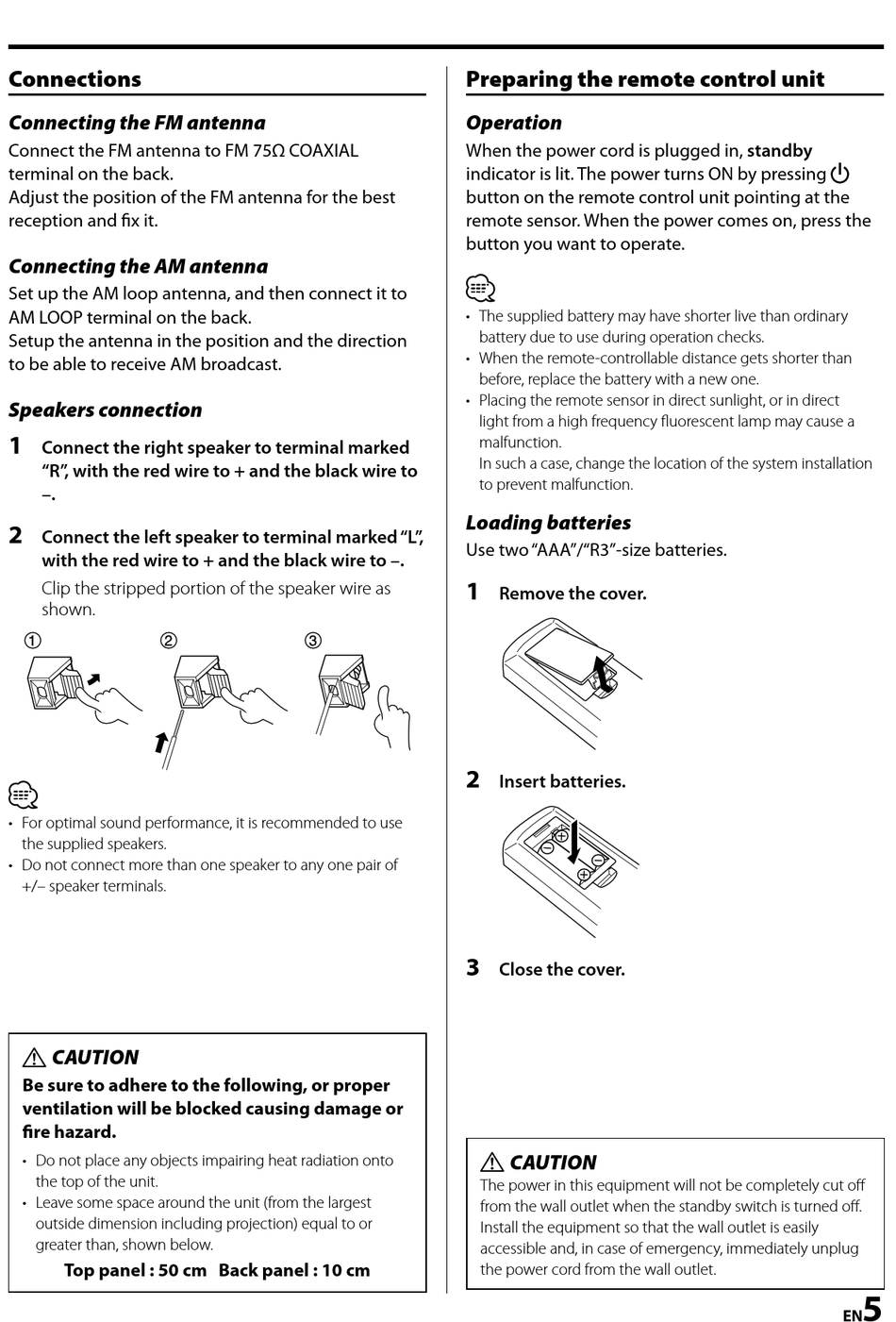

Connections
Connecting the FM antenna
Connect the FM antenna to FM 75Ω COAXIAL
terminal on the back.
Adjust the position of the FM antenna for the best
reception and fi x it.
Connecting the AM antenna
Set up the AM loop antenna, and then connect it to
AM LOOP terminal on the back.
Setup the antenna in the position and the direction
to be able to receive AM broadcast.
Speakers connection
1
Connect the right speaker to terminal marked
"R", with the red wire to + and the black wire to
–.
2
Connect the left speaker to terminal marked "L",
with the red wire to + and the black wire to –.
Clip the stripped portion of the speaker wire as
shown.
⁄
• For optimal sound performance, it is recommended to use
the supplied speakers.
• Do not connect more than one speaker to any one pair of
+/– speaker terminals.
¤
CAUTION
Be sure to adhere to the following, or proper
ventilation will be blocked causing damage or
fi re hazard.
• Do not place any objects impairing heat radiation onto
the top of the unit.
• Leave some space around the unit (from the largest
outside dimension including projection) equal to or
greater than, shown below.
Top panel : 50 cm Back panel : 10 cm
Preparing the remote control unit
Operation
When the power cord is plugged in, standby
indicator is lit. The power turns ON by pressing
button on the remote control unit pointing at the
remote sensor. When the power comes on, press the
button you want to operate.
⁄
• The supplied battery may have shorter live than ordinary
battery due to use during operation checks.
• When the remote-controllable distance gets shorter than
before, replace the battery with a new one.
• Placing the remote sensor in direct sunlight, or in direct
light from a high frequency fl uorescent lamp may cause a
malfunction.
In such a case, change the location of the system installation
to prevent malfunction.
Loading batteries
Use two "AAA"/"R3"-size batteries.
1
Remove the cover.
2
Insert batteries.
3
Close the cover.
¤
CAUTION
The power in this equipment will not be completely cut off
from the wall outlet when the standby switch is turned off .
Install the equipment so that the wall outlet is easily
accessible and, in case of emergency, immediately unplug
the power cord from the wall outlet.
5
EN
