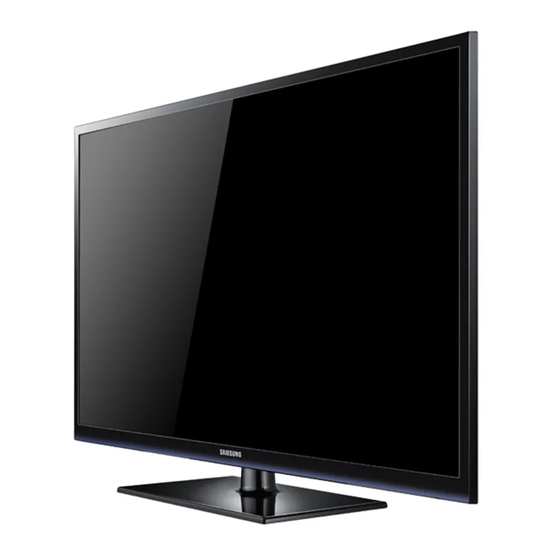

Samsung PN51E530A3F Quick Start Manual

Plasma TV

quick start guide

1. Accesories and Cables
Accessories
The following accessories are included with your TV:
• Remote Control (AA59-00600A) & Batteries (AAA x 2)
• Warranty Card / Safety Guide
• Owner's Guide
• Quick Start Guide
• Cleaning Cloth (BN63-01798B)
• Power Cord
Input Cables (Sold Separately)
You will need one or more of theses cables to connect your TV to your antenna or cable outlet and your peripheral
devices (Blu-ray players, DVD players, etc.)
• Audio
• HDMI
• HDMI-DVI
✎ Make sure you have the correct cable before plugging it in. Illustrations of common plugs and jacks are below.
Cable Plugs
HDMI
USB
Optical
Do not plug a cable in upside down.
Make sure the orientation of the plug is correct before plugging it in.
3. Making Connections
Connect your TV to an antenna or cable connection, and then connect your peripherals. When done, connect the
power cord to the TV, and then connect the power cord to an AC wall outlet. If you are connecting your TV to a cable
or satellite box using HDMI, Component, or Composite connections, you do not need to connect the ANT IN jack to an
antenna or a cable connection.
y For the best picture and audio quality, connect digital devices
using an HDMI cable.
y If you connect an external device to the TV that uses an older
version of HDMI, the video and audio may not work. If this
occurs, ask the manufacturer of the device about the HDMI
version and, if it is out of date, request an upgrade.
y Be sure to purchase a certified HDMI cable. Otherwise, the
picture may not display or a connection error may occur.
y PC/DVI AUDIO IN input is not supported.
y For an HDMI to DVI cable connection, you must use the
IN 1(DVI) jack.
Power Input
VHF/UHF Antenna
or
ANT OUT
Cable
Media Play
(5V 0.5A)
Using a USB Drive
OPTICAL
Digital Audio System
Audio Device
Using an Optical (Digital) Cable
[PE535-ZA-QSG]BN68-04422A-ENG.indd 1
• Component
• Composite (AV)
• Coaxial (RF)
Ports/Jacks
BN68-04422A-00
BN68-04422A
- 1 -
y For PCs with DVI video out jacks, use an HDMI to DVI cable to
connect the DVI out on the PC to the HDMI IN 1 jack on the
TV. Use the PC's speakers for audio.
y EX-LINK: Connector for service only.
y The PDP device may interfere with an amateur radio or AM
radio.
y When using two-way radio mobile and portable units or
amateur radio or AM radio near by your TV, this may cause the
TV to malfunction.
HDMI
AV Device (1)
Using an HDMI Cable
(up to 1080p)
HDMI OUT
Blu-ray player / DVD /
cable box / sat box
PC
Using an HDMI Cable or an
HDMI to DVI Cable. Use the
PC speakers for audio.
R W
R B R G R W
R W
R B R G R W
AUDIO OUT
COMPONENT OUT AUDIO OUT
R-AUDIO-L
P P Y R-AUDIO-L
R B
Blu-ray player
AV Device (3)
AV Device (2)
Using a Component Cable
Using Audio/Video Cables
(up to 1080p)
- 3 -
2. Getting Started
Provide Ventilation for Your TV
When you install your TV, maintain a distance of at least 4 inches between the TV and other objects (walls, cabinet sides,
etc.) to ensure proper ventilation. Failing to maintain proper ventilation may result in a fire or a problem with the product
caused by an increase in its internal temperature.
✎ When using a stand or wall-mount, use parts provided by Samsung Electronics only.
x Using parts provided by another manufacturer may cause difficulties with the product or result in injury caused
by the product falling.
✎ Be careful when you contact the TV because some parts can be somewhat hot.
Installation with a stand.
4inches
Installing Batteries into the Remote (Battery size: AAA)
Match the polarity of the
batteries to the symbols in the
batter compartment
✎ NOTE
x Use the remote control within 23 feet of the TV.
Bright light may affect the performance of the remote control. Avoid use when near fluorescent lights or neon
x
signs.
x The color and shape of the remote may vary depending on the model.
4. The Remote Control
Learn where the function buttons are on your remtoe. Especially note POWER, SOURCE, VOL, CH, MENU, TOOLS,
ENTER, CH LIST, RETURN and EXIT.
Turns the TV on and off.
Press to access channels directly..
Press to select additional digital
channels being broadcasted by the
same station. For example, to select
channel '54-3', press '54', then press
Adjusts the volume.
Displays the channel list on the
Displays Media Play.
Quickly select frequently used
PC
ENTERE and Direction buttons.
Select the on-screen menu items and
change the values seen on the menu.
Returns to the previous menu.
P.SIZE: Lets you choose the picture
R Y
MTS: Press to choose stereo, mono
or Separate Audio Program (SAP
Y
CC: Controls the caption decoder.
VIDEO OUT
VCR
✎ This remote control has Braille points on the Power, Channel, and Volume buttons and can be used by visually
impaired persons.
Installation with a wall-mount.
4inches
4inches
4inches
- 2 -
'-' and '3'.
screen.
MEDIA.P SLEEP
functions.
size.
broadcast).
- 4 -
4inches
4inches
4inches
Displays and selects the available video
sources.
Turns the remote control light on or
off. When on, the buttons become
illuminated for a moment when
pressed. (Using the remote control with
this button set to On will reduce the
battery usage time.)
Returns to the previous channel.
Cuts off the sound temporarily.
Changes channels.
Displays the main on-screen menu.
Automatically shuts off the TV at a
preset time.
Displays information on the TV screen.
Exit the menu.
Use these buttons according to the
directions on screen.
Use these buttons in a specific feature.
