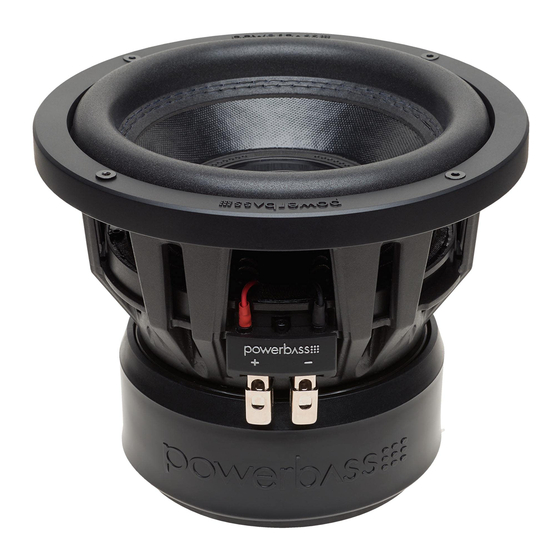

- Page 1 3XL-810D 3XL-820D 3XL-1210D 3XL-1220D 3XL-1510D 3XL-1520D 3XL SUBWOOFER SERIES Application Guide...
- Page 3 170 dB. Please observe all local sound ordinances while listening to your PowerBass Xtreme system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result...
- Page 4 To prevent damage to your speakers, please observe the following caution: Your PowerBass Xtreme Subwoofer is made with the highest quality materials designed for years of trouble free performance. However, damage to the speaker can occur when the amplifier, regardless of output power, is made to play at levels higher then it was intended.
- Page 5 CCAW wire and looped through the spider 3.5" (3XL-1510D/3XL-1520D) BASV Voice Coil Former 3.0" (3XL-1210D/3XL-1220D) BASV Voice Coil Former 2.5" (3XL-810D/3XL-820D) BASV Voice Coil Former High Roll Foam Surround allows maximum excursion while maintaining the precise centering of the voice...
-
Page 6: Wiring Guidelines
All PowerBass Xtreme 3XL Series Subwoofers use dual voice coils. The use of dual voice coils offers you more versatility in system configuration. It is important to know the limits of your amplifier to optimize its performance. - Page 7 DUAL 2-OHM VOICE COIL WIRING PARALLEL SERIES Amplifier Amplifier Series wiring a dual 2 ohm sub = 4 ohm Parallel wiring a dual 2 ohm sub = 1 ohm SERIES-PARALLEL Amplifier Series-Parallel wiring two dual 2 ohm subs = 2 ohm NOTE: Never connect only one coil of a Dual Voice Coil (DVC) speaker.
- Page 8 Installation of PowerBass Xtreme Speakers requires experience with a variety of mechanical and electrical procedures. This manual provides only general installation and operation instructions. If you have any reser- vations about your installation skills or lack of the proper tools, please contact your local PowerBass Xtreme dealer for assistance.
- Page 9 Minor deviations from design recommendations however may result in frequency response and distortion problems. (If you are intending to use multiple subwoofers in your system, PowerBass recommends having separate chambers for each subwoofer if the subwoofers will be operated by two different amplified signals.
-
Page 10: Break-In Period
TIPS TO GET THE MOST OUT OF YOUR 3XL WOOFER Your PowerBass Xtreme subwoofer has been meticulously engineered and designed to handle high power musical reproduction. Despite their rugged construction, it is possible to damage your speaker if they are improperly used. - Page 11 SUBWOOFER CROSSOVER SETTING Your PowerBass Xtreme Subwoofer will perform best if it is used in conjunction with a subwoofer crossover of some kind. Using a crossover will remove unwanted high frequencies and allow them to concentrate only on bass.
-
Page 12: Power Recommendations
RMS power handling of the speaker, when actually the “Max” is generally the breaking point of the speaker. In an effort to minimize any confusion, PowerBass has chosen to rate our Super Subs in the following manner: NOMINAL POWER HANDLING Playing your woofer at levels below the Pe-RMS spec will allow the woofer to operate at optimum conditions and cause the speaker minimal mechanical degradation over time. - Page 13 PARAMETERS FOR POWERBASS 3XL SERIES SUBWOOFER (Due to Constant Improvements, Specifications and Parameters are subject to change without notice.) 3XL-1510D 3XL-1520D VC Impedance (ohms) Dual 1-OHM Dual 2-OHM Test Impedance (ohms) 1.99 4.02 Fs (Hz) 29.4 29.6 SD (sqCM) 881.41 881.41...
-
Page 14: Recommended Enclosures
To calculate the internal airspace required, take the internal dimensions of the box. First multiple these number by themselves and then divide this sum by 1728. (W x H x D) / 1728. Please contact your authorized PowerBass dealer for other designs and specifications. 3XL-810D/3XL-820D... - Page 15 To calculate the internal airspace required, take the internal dimensions of the box. First multiple these number by themselves and then divide this sum by 1728. (W x H x D) / 1728. Please contact your authorized PowerBass dealer for other designs and specifications. 3XL-1210D/3XL-1220D...
- Page 16 3XL-1510D/3XL-1520D SEALED ENCLOSURES Minimum Volume Recommended Volume Maximum Volume Sealed Box Gross* (cu.ft / liters) 1.75 cu ft. / 49.6 L 2.25 cu ft. / 63.7 L 2.75 cu ft. / 77.9 L F-3 (-3 dB roll off Hz) 0.726 0.670 0.631 Driver Displacement (cu.ft / liters)
- Page 17 WOOFER IS PROPERLY PACKED FOR SHIPPING! This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc. Copyright 2020 PowerBass USA, Inc.
- Page 18 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.
- Page 20 PowerBass Xtreme (PBX) – A division of PowerBass USA, Inc. 2133 S. Green Privado – Ontario, CA 91761 Tel. (909) 923-3868 – Fax (909) 923-8048 www.powerbassusa.com...
