- Page 1 DVD PLAYER/ VIDEO CASSETTE RECORDER OWNER’S MANUAL MODEL : VLK9320W Before connecting, operating or adjusting this product, please read this instruction booklet carefully and completely.
- Page 2 Notes on copyrights: CAUTION It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public, or rent copyright material without RISK OF ELECTRIC SHOCK DO NOT OPEN permission. This product features the copy protection function developed CAUTION: TO REDUCE THE RISK by Macrovision.
-
Page 3: Table Of Contents
Contents Playing a DVD ......21-24 General Features ......21 Introduction . -
Page 4: Introduction
Introduction To ensure proper use of this product, please read this Notes on Discs owner’s manual carefully and retain for future reference. Handling Discs Do not touch the playback side of the disc. Hold the This manual provides information on the operation disc by the edges so that fingerprints do not get on and maintenance of your DVD player. -
Page 5: Types Of Playable Discs
Types of Playable Discs Regional code This DVD player is designed and manufactured for playback of region “2” encoded DVD software. This unit can play (8 cm / 12 cm disc) only DVD discs labeled “2” or “ALL”. Audio CD (8 cm / 12 cm disc) Notes on Regional Codes •... -
Page 6: Disc-Related Terms
Disc-related terms Chapter (DVD video discs only) A chapter is a segment of a title such as a scene in a film or one interview in a series. Each chapter is DVD ±R / DVD ±RW assigned a chapter number, enabling you to locate the DVD -R and DVD +R are two different standards for chapter you want. -
Page 7: Front Panel

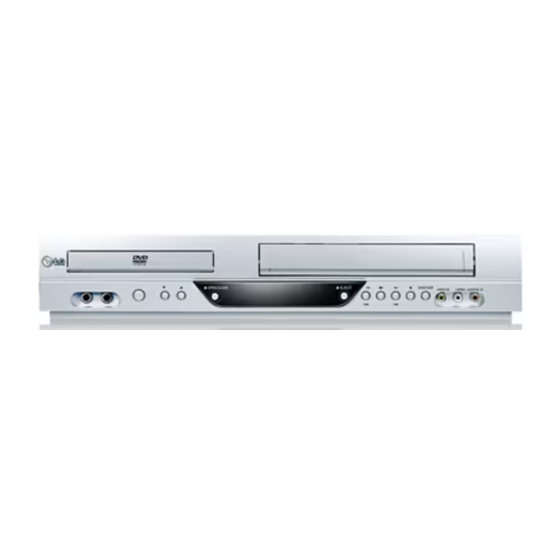

Front Panel Microphone jacks (MIC1, MIC2) Connect a microphone to MIC1 or MIC2 or to both sockets. Forward Skip/Scan, Fast-Forward ( Go to NEXT chapter/track. Press and hold for two seconds for a fast forward search. Winds the tape forwards. Reverse Skip/Scan, Rewind ( Go to beginning of current chapter/track or to PREVIOUS Tape Compartment... -
Page 8: Remote Control
Remote Control POWER OPEN/CLOSE Switch this unit ON or OFF. EJECT DVD/VCR select button - Open or close the the disc tray. Selects operational mode of - Tape Eject. remote control. 0-9 numerical buttons Select input source for recording into tape. Select numbered items in a menu. -
Page 9: Rear Panel
Rear Panel AUDIO IN (Left/Right) (VCR IN AV1) Receive the audio signals from an external source to VCR. AUDIO OUT (Left/Right) (DVD/VCR OUT) Connect to an amplifier, receiver or stereo system. COMPONENT/PROGRESSIVE SCAN VIDEO OUT (Y Pb Pr) (DVD EXCLUSIVE OUT) Connect to a TV with Y Pb Pr inputs. -
Page 10: Installation And Setup
Installation and Setup Progressive Scan connection Tips: Depending on your TV and other equipment you If your television is a high-definition or “digital ready” wish to connect, there are various ways you could television, you may take advantage of the DVD connect the unit. -
Page 11: Connecting To Optional Equipment
Connecting to Optional Equipment Notes: If the audio format of the digital output does not match Connecting to an amplifier equipped with two the capabilities of your receiver, the receiver will channel analog stereo or Dolby Pro Logic produce a strong, distorted sound or no sound at all. II/Pro Logic To see the audio format of the current DVD in the Connect the Left and Right AUDIO OUT jacks on this... -
Page 12: Before Operation-Vcr Part
Before Operation-VCR part Setting the clock Manually How to using the main menu The clock in your VCR controls time and date This VCR can easily be programmed by using settings for your VCR. the menus displayed on screen. 1. Switch on your TV set and video recorder by 1. -
Page 13: Before Operation-Dvd Part
Before Operation-DVD part On-Screen Display Example: On-Screen Display during playing DVD Video You can display the general playback status on the TV Items Selection Method screen. Some items can be changed using the menu. To use the on-screen display: b / B, Numbers Title Number 1 / 3 ENTER... -
Page 14: Initial Settings
Initial Settings LANGUAGE LANGUAGE By using the Setup menu, you can make various adjustments to items such as picture and sound. You English Menu Language can also set a language for the subtitles and the Disc Audio Original Setup menu, among other things. For details on each Disc Subtitle Disc Menu Original... -
Page 15: Display
DISPLAY 4. When the confirm menu appears on your screen Cancel is highlighted as default. Use the b button DISPLAY to highlight Enter. TV Aspect 16 : 9 Wide Display Mode Widescreen 5. Pressing ENTER will set this unit to Progressive Progressive Scan scan mode. -
Page 16: Audio
AUDIO Each DVD disc has a variety of audio output options. Set this unit AUDIO options according to the type of audio system you use. AUDIO Dolby Digital Bitstream Bitstream MPEG Sample Freq. 48KHz Vocal Move Select DivX Dolby Digital / DTS / MPEG Bitstream: Select “Bitstream”... -
Page 17: Others
OTHERS DivX(R) VOD DivX The PBC, Auto Play and DivX(R) VOD settings can be You can display the DivX DRM (Digital Rights changed. Management) Registration code for your unit only. OTHERS DivX(R) Video On Demand Auto Play Your registration code is : XXXXXXXX DivX(R) VOD Select To learn more visit... -
Page 18: Lock (Parental Control)
LOCK (Parental Control) Password (Security Code) You can enter or change password. LOCK Rating Unlock 1. Select Password on the LOCK menu then press B. Password Area Code 2. Follow step 2 as shown left (Rating). “Change” or “New” is highlighted. 3. -
Page 19: Operation
Operation Playing a tape Logic search: During fast forwarding or rewinding press and hold You will only be able to load and eject video cassettes FORWARD or BACKWARD the picture will be when your VCR is plugged into the mains. played back at 7 times normal playback speed. -
Page 20: Recording
Recording 5. Press LP if you wish to record in Long Play or Standard Play. SP will produce improved picture and sound quali- Your VCR allows you to make recordings connect- ty, however LP will provide twice as much record- ing to a TV equipped with audio out and video out ing time as SP. -
Page 21: Playing A Dvd
Playing a DVD General Features Note: Playback Setup Unless stated otherwise, all operations described use 1. Turn on the TV and select the video input source the remote control. Some features may also be connected to the DVD player. available on the Setup menu. 2. -
Page 22: Still Picture And Frame-By-Frame Playback
Still Picture and Frame-by-Frame Playback Repeat DivX DivX You can play a title/chapter/all/track on a disc. 1. Press PAUSE/STEP on the remote control during Press REPEAT during playback to select a desired playback. Advance the picture frame-by-frame by repeat mode. pressing PAUSE/STEP repeatedly. -
Page 23: Zoom
Special DVD Features Zoom DivX Checking the contents of DVD discs: Menus Use zoom to enlarge the video image. DVDs may offer menus that allow you to access 1. Press ZOOM during playback or still playback to special features. To use the disc menu, press DISC activate the Zoom function. -
Page 24: Playing An Audio Cd Or Mp3/Wma Disc
Playing an Audio CD or MP3/WMA MP3 / WMA disc compatibility with this player is limited as follows: Disc • Sampling frequency: within 8 - 48 kHz (MP3), within 32 - 48kHz (WMA) The DVD player can play MP3/WMA formatted •... -
Page 25: Audio Cd And Mp3 / Wma Disc Features
Audio CD and MP3 / WMA Disc Random Features 1. Press RANDOM during playback or when playback is stopped. Random Playback begins Pause immediately and RANDOM appears on the menu screen. 1. Press PAUSE/STEP during playback. 2. To return to normal playback, press RANDOM 2. -
Page 26: Programmed Playback
Programmed Playback Repeat Programmed Tracks 1. Press REPEAT when playing a disc. The repeat icon appears. The program function enables you to store your favorite tracks from any disc in the player memory. 2. Press REPEAT to select a desired repeat mode. A program can contain 30 tracks. -
Page 27: Viewing A Jpeg Disc
Viewing a JPEG Disc JPEG Moving to another File Press . or > or cursor b or B once while Using this DVD Player you can view discs with JPEG viewing a picture to advance to the next or files. previous file. -
Page 28: Playing A Dvd Vr Format Disc
Playing a DVD VR format Disc Maintenance and Service This unit will play DVD-R/RW discs recorded using Refer to the information in this chapter before the DVD-Video format that have been finalized using contacting a service technician. a DVD-recorder. Handling the Unit •... -
Page 29: Playing A Divx Movie Disc
Playing a DivX Movie Disc DivX disc compatibility with this player is limited as follows: Using this DVD Player you can play DivX disc. • Available resolution size of the DivX file is under 1. Insert a disc and close the tray. The MOVIE menu 720x576 (W x H) pixel. -
Page 30: Additional Features-Vcr Part
Additional Features-VCR part On Screen Display Video Doctor (Self-Diagnosis) This feature informs you that there is a problem with your You may easily display the current time or tape DVD+VCR. These error messages will appear on the TV counter, amount of tape left, day, month, year, day of screen. -
Page 31: Additional Features
Additional Features Controlling other TVs with the remote control You can control the sound level, input source, and power switch of your LG TV with the supplied remote Last Scene Memory control. You can control the sound level, input source, and This player memorizes last scene from the last disc power switch of non-LG TVs as well. -
Page 32: Using The Karaoke Function
Using the Karaoke Function Use 1 1 /2 2 to adjust value of the item selected. Note: ECHO: You can adjust the echo volume by You cannot enjoy Karaoke in VCR mode. pressing the 1 1 /2 2 buttons. Load a karaoke disc. MELODY: If you wish to sing only to the backing band or orchestra unaccompanied by a vocal guide Connect a microphone to MIC socket. -
Page 33: Copying From Dvd To Vcr
Copying from DVD To VCR Recording from another video player This unit allows you to copy the contents of a DVD to a Video tape with a press of the REC/ITR button. With this video player you can make recordings from an external source, such as copying from another Notes: video player or a camcorder. -
Page 34: Reference
Reference Language Codes Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu. Language Code Language Code Language Code Language Code Abkhazian 6566 Fiji 7074 Lingala 7678 Singhalese 8373 Afar 6565 Finnish 7073 Lithuanian... -
Page 35: Troubleshooting
Troubleshooting Check the following guide for the possible cause of a problem before contacting service. Cause Correction Symptom DVD or VCR button is not switched Refer to page 2. DVD or VCR do not work properly. properly. Plug the power cord into the wall No power. -
Page 36: Specification
Specification General Power requirements AC 110-240V, 50/60 Hz Power consumption Dimensions (approx.) 430 X 78.5 X 265 mm (w/h/d) Mass (approx.) 4.2 kg Operating temperature 5˚C to 35˚C (41˚F to 95˚F) Operating humidity 5 % to 90 % Timer 24 hours display tape System Laser Semiconductor laser, wavelength 650 nm... - Page 37 P/NO : MFL56842693...
