Overview
The Outdoor Multi-Unit Telephone Interface uses a
900 Mhz secure digital radio link that allows secure
conversations and gate operator control.
The Outdoor Multi-Unit Telephone Interface
(MUOTIU-EX) is compatible with various Liftmaster
Wireless Products.
Carton Inventory
Outdoor Multi-Unit Telephone
Interface (MUOTIU-EX)
Antenna

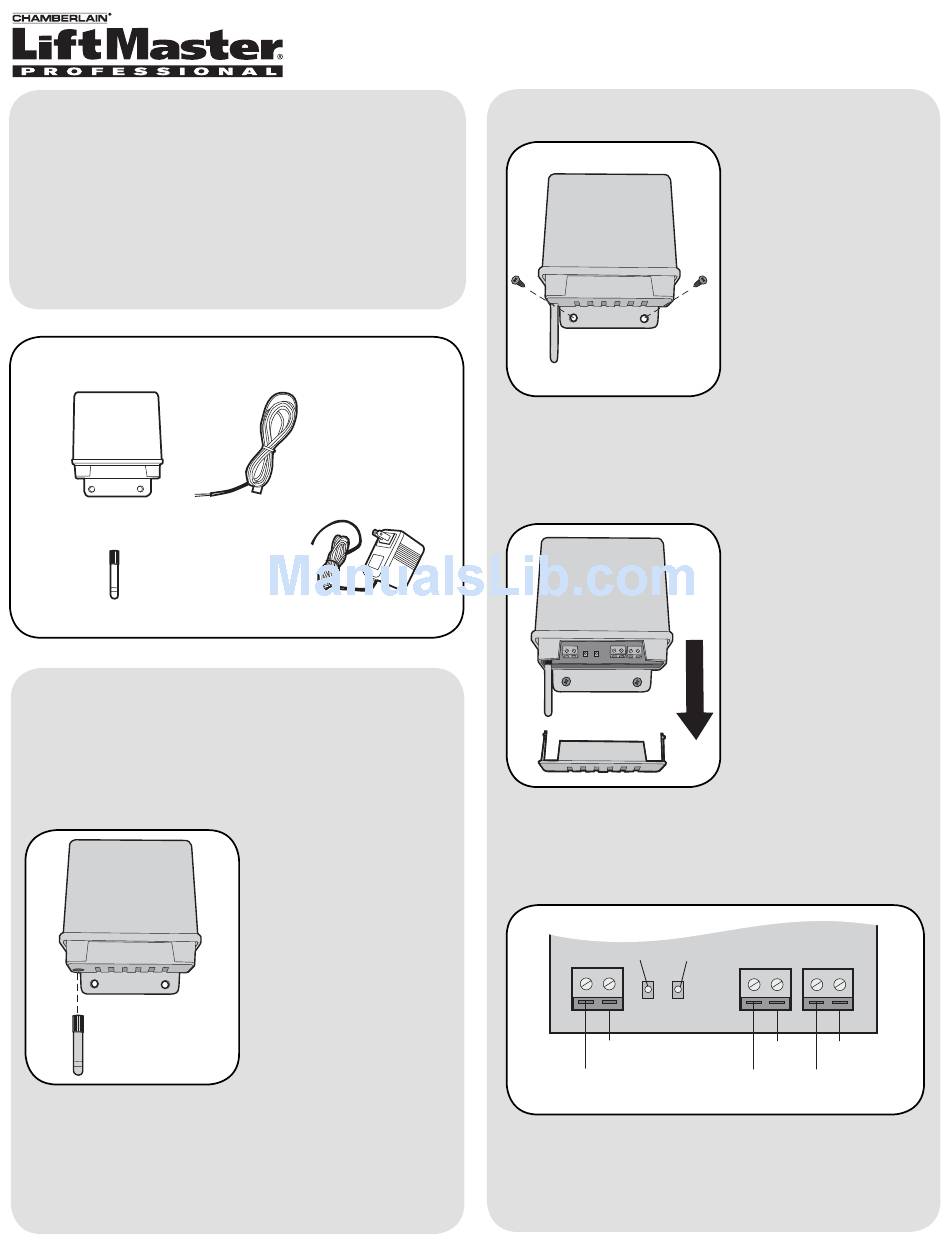

Assembly & Installation
Choose location near the de-mark location.
Step 1
Screw in antenna.
Test/Program Cord
AC Adapter
1
Outdoor Multi-Unit Telephone Interface
Step 2
Mount to solid surface.
Wiring to AC Adapter
ACTIVE
POWER
Line IN
Line OUT
PWR GND
Connect the Solid Black Wire to the GND Terminal
(shown below).
Connect the Striped Wire to the +18V Terminal
(shown below).
Power
GND
+18V
Use the supplied Test/Program Cord for programming
and testing before completing connections to phone
company's de-mark box.
Model MUOTIU-EX
Remove bottom panel
of the MUOTIU-EX.
Active
LINE
PHONE
TIP
TIP
RING
RING
