USER MANUAL
ALCATEL OT-356C
1

Advertisement

Table of Contents
loading

Related Manuals for Alcatel OT-356C

Summary of Contents for Alcatel OT-356C

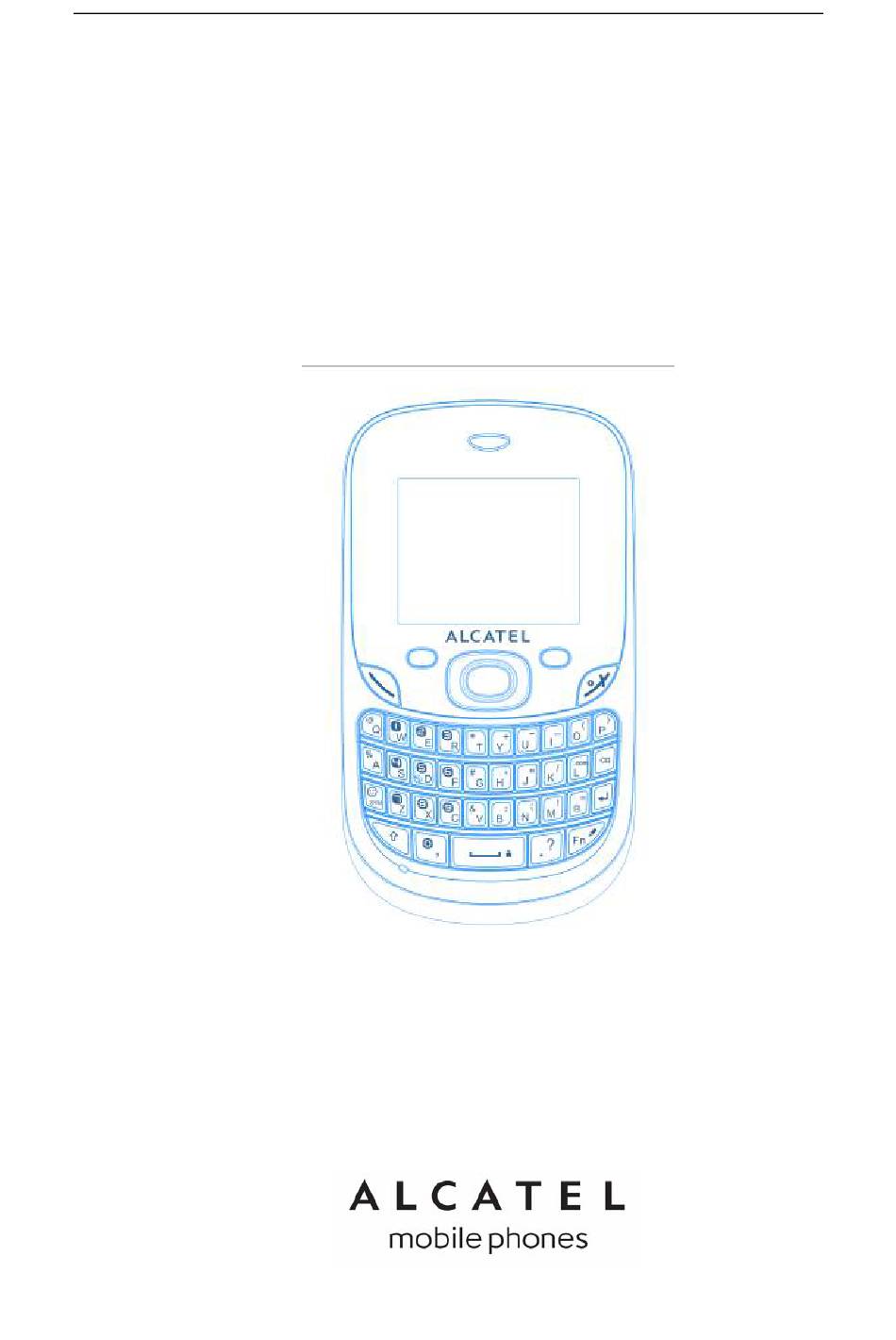

  • Page 1 USER MANUAL ALCATEL OT-356C...

  • Page 2: Table Of Contents

    Safety and use................... 23 Friendly reminder: This user manual applies to the OT-356C mobile phone. If there are minor differences in the description or illustrations between the manual and the actual product，the actual product shall take precedence. Customers will not be notified separately of any upgraded model of this mobile phone. Please contact our Customer service.

  • Page 3: Your Mobile

    1. Your mobile 1.1 Basic specifications Item Specifications Size: 103mm[L]×58mm[W]×12.8mm[Thickness] Mobile Phone Weight: 80g (Battery included) Screen resolution 160*128 pixels Contacts 500 entries Recent calls 20 entries Messages 500 entries Operating temperature -20℃~50℃ Type: Lithium Capacity: 800mAh Battery Talk time: 240 minutes (approx.) Standby time: 180 hours (approx.) Charging time: 3.5 hours (approx.) Explanation:...
  • Page 4 Number Item Function Left Soft Key Enter menu Confirm an option Send Key Recent Call Answer/Send a call Right Soft Key Contacts List In Menu: Back/Delete END--PWR Key Power on/Power off End a call Back to the idle screen Left: Schedule Navigation Keys Right: Messages Up: TATA Apps Store...
  • Page 5 Shift Key When you edit a message, press this key once/twice to switch between the upper chars and lower chars. Space Key Lock/unlock the phone. When you edit a message, press this key to enter space. When you edit a message, short press this Del Key key to delete the character one by one;...
  • Page 6 Contacts List Music Player Notes Search Opera Stopwatch Add New Facebook Alarm Groups Twitter Schedule Speed Dial Entertainment Calculator Contacts Management FM Radio World Time Recent Calls Tetris Recorder Missed Calls Brick Attack 1.4 Screen Icons Battery power indicator. More bars indicate a higher power level. The more bars, the stronger signal No service You have received one or more text messages...

  • Page 7: Getting Started

    2. Getting started 2.1 Removing and installing the back cover 2.2 Inserting and removing the UIM card 2.3 Installing and removing the battery...

  • Page 8: Basic Functions

    3. Basic functions 3.1 Power on/off When power is sufficient, press and holds the end key to power on. If you have activated a password, you will be prompted to enter it. Normally the phone is ready for use as soon as you enter the password;...

  • Page 9: Messages

    3.4 Input mode You may enter letters, numbers and symbols in the Contact, SMS, Note and other menu functions. 3.4.1 Entering letters There are six text modes: Abc, abc, ABC, En, en, EN. Please use the Fn key to change input modes. 3.4.2 Entering numbers Press Shift Key once to input one number, and twice to lock in number input status.
  • Page 10 Settings: Set the send mode, priority，delivery report and Message Validity. 4.2 Inbox Select Menu/Messages/Inbox to access the list of messages in this box. Press the left soft key for the following options: View, Reply, Forward, Delete, Copy to UIM Card/Copy to Phone, Move to UIM Card/Move to Phone.
  • Page 11 create a reserved message, you can only input one recipient and you have to set the date and time for it. Reserved Messages: When you create a new reserved message, it will be saved here. Failed Messages: If reserved messages can’t send successfully, they will be saved here. When the reserved time is arriving, the phone will register to send the message.

  • Page 12: Contacts

    Message Validity: Choose the validity of message. ： Reserved Messages You can set reserved messages auto send or not when alert time out. Auto delete: You can turn on the function. When the inbox is full, the newest message will instead the oldest message.
  • Page 13 the following options: View, Edit, Add New, Send Messages, Send Contacts, Copy/Move to UIM Card (for phone contacts), Copy/Move to Phone (for UIM card contacts), Delete, Send Voice SMS, Make Fun Call and Make Music Call. View: Check the contact’s personal information. Edit: Edit the contact data.
  • Page 14 Business. You can select any group to view all the contacts in that group; you can also rename the group. 5.5 Speed Dial Select Menu/Contacts/Speed Dial to set keys 1 to 9 for speed dialing. If the number key has not been set, press the left soft key and select a phone number from Contacts. If the number key has been set, press the left soft key and the following options will be available: Add New, Delete.

  • Page 15: Recent Calls

    6. Recent Calls From the idle screen, press the send key to display the list of dialed numbers. Press the left and right keys to toggle between: Dialed Calls, Missed Calls and Received Calls. In the “Recent calls” menu you can also access the following options: Missed Calls, Received Calls, Dialed Calls, Call Time, Last Call and Delete All.

  • Page 16: Tata Zone

    7.1 Camera OK key to capture. Press the Left soft key to set some parameters: environment, fun (fun frame), quality, size, shutter tone, self timer, color effect, storage and banding. When a picture is captured, you can press the Left Soft Key to save the picture, and the Right Soft Key to delete the picture.

  • Page 17: Music Player

    9. Music Player Access this feature from the main menu by selecting Music Player. You will have full flexibility of managing music from your memory card. Inserting the memory card: You should add songs manually to the playlist, then press: OK Key to play and pause the song.

  • Page 18: Opera

    10. Opera Once press Opera Mini icon, you can browse websites from bookmarks and also you can input your favorite websites and enjoy yourself. 11. Facebook Once press Facebook icon, Facebook interface comes and you can login your facebook account and surf in the Facebook world. 12.

  • Page 19: Settings

    channels. Save: select Option/Save, you can save current channel into channel list. Minimize: Select Option/Minimize to make FM screen invisible, meanwhile you can use other functions (SMS, Games, Add names, and etc.). In the FM Radio screen, press the PWR key to close the FM Radio. The quality of FM radio depends on the coverage of the radio station in that particular area.
  • Page 20 Keypad Light Set: You can turn on/off the keypad light and set the start time and end time of using the keypad light. 14.3 Phone Language: English only. Time Format: Set 12-hour mode and 24-hour mode. Date Format: Set date format and you may have three options: dd/mm/yy, mm/dd/yy, yy/mm/dd.
  • Page 21 256 files can be shown by phone) in the music file in the memory card. Mass Storage Service: While phone with memory card insertion, you can select Settings/Gallery/ Mass Storage Service to use memory card as an Udisk. You can see the UI of Mass Storage Running.

  • Page 22: Tools

    Recent Calls Lock: setting protective code for Recent Calls, the default code is the same as phone code. Messages Lock: setting protective code for SMS service, the default code is the same as phone code. Call Barrings: setting the restriction of dialed calls and received calls Restore Factory Setting: chosen this item, the phone will be resumed to original settings when it came out from the factory.

  • Page 23: Faq

    you have selected 24-hour Time Format under Settings-Phone, then you can input 00:00 to 23:59; if you have selected 12-hour Time Format, you can choose AM or PM for time by pressing OK key, if the number you input is out of the range, the phone will not show. The available modes are: Once, Every day, Monday to Friday, Monday to Saturday and any day of workday and weekend.
  • Page 24 Item to be checked The telephone does not Make sure that the charger is correctly connected to the charge properly phone and the power socket. Make sure you are using a charger specifically designed for this phone. The phone does not Check the battery charge level.

  • Page 25: Safety And Use

    Item to be checked The phone displays “out Check if you are in an area where the signal is weak (in a of network” or “network tunnel or surrounded by building). Move to another failure”. location and try again. Make sure you are not trying to use a service that you haven’t subscribed to.
  • Page 26 Pay attention to the settings of the sound volume and the vibration to avoid disturbing the patients. Flammable or explosive areas Turn off your phone near flammable or explosive areas. Do not install/remove or charge the battery or use the phone in these areas to prevent any explosion or fire. Flammable and explosive areas include: chemical plants, facilities with chemical substances or particles in the air (grains, dust and metal powder ), petrol stations and fuel depots, fuel storage areas (for example, under a ship’s deck), areas with explosion warning signs,...
  • Page 27 such as an electromagnetic pot or a microwave oven, to avoid causing the phone to malfunction, catch fire or explode. Do not subject the phone, battery or charger to heavy impact or vibration to avoid battery leakage, phone malfunction, overheating, fire or explosion Do not place sharp metallic items such as needles, near the receiver because the receiver will attract them and you may be injured when using the phone.
  • Page 28 for a long period of time, please seek medical assistance immediately. Move your mobile phone away from your ear while using the hands-free mode, because the amplified volume might cause hearing damage. Make sure you switched off your phone in areas where mobile phone use is prohibited! Cleaning and maintenance Switch off the phone before cleaning and maintenance.
  • Page 29 calls. Using the battery/charger Only use batteries and chargers approved by the manufacturer. Do not use batteries or chargers that are not compatible with your model to avoid any explosion. Do not throw a battery in a fire as it might catch fire or explode. Do not cause a short circuit to the charger as it might result in malfunction, smoke or fire.
  • Page 30 Warning: The manufacturer disclaims any liability for damage, which may result as a consequence of improper use of this mobile phone or use contrary to the instructions contained in this manual. ALCATEL is trademark of Alcatel-Lucent and is used under license by TCT Mobile Limited.
  • Page 31 digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
