Baumatic GEH6009 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

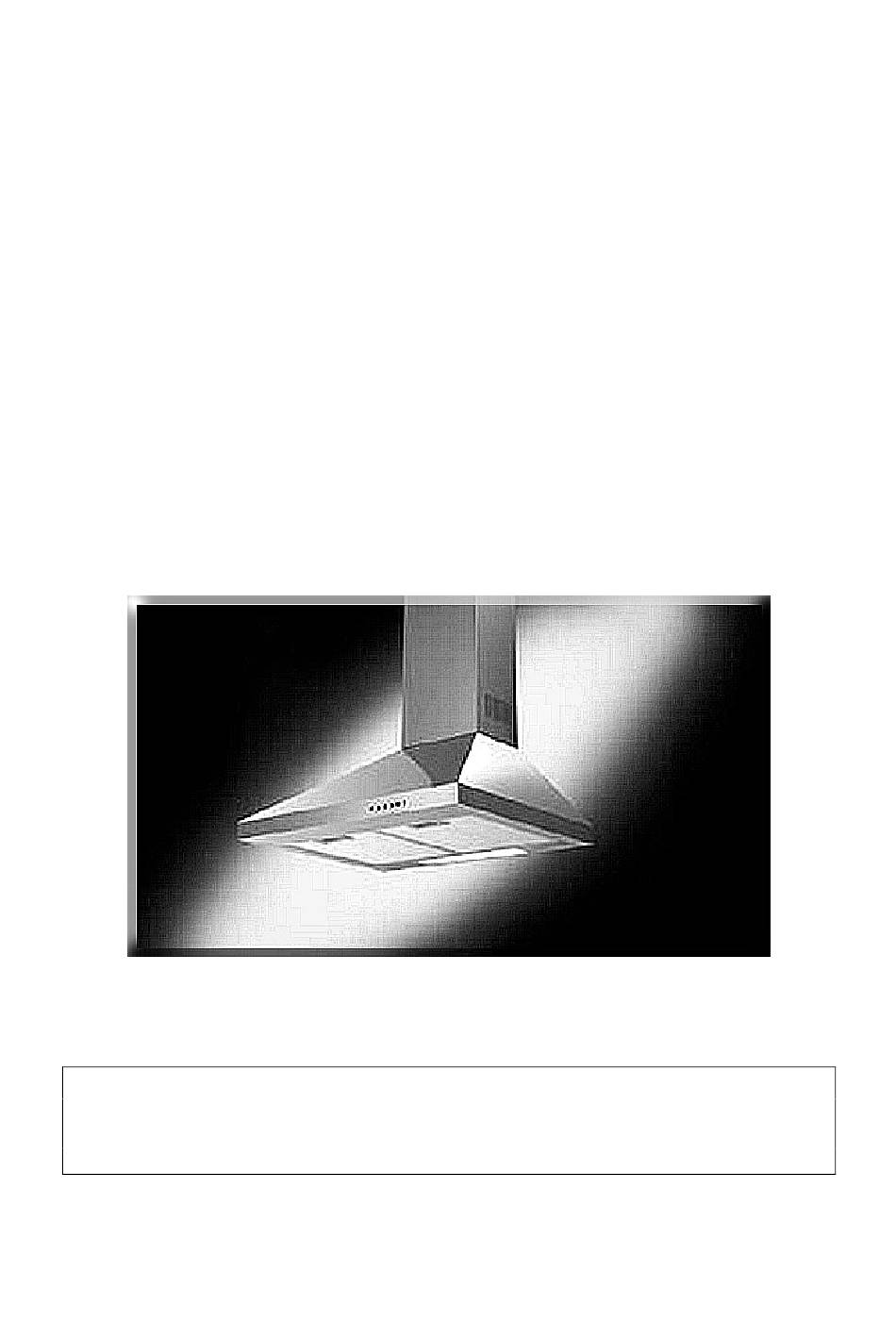

User Manual for your
GEH6009 Cooker
Hood
60 cm Chimney Hood in Stainless Steel
NOTE
: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference.
11/10/05

Advertisement

loading

Related Manuals for Baumatic GEH6009

Summary of Contents for Baumatic GEH6009

  • Page 1 User Manual for your GEH6009 Cooker Hood 60 cm Chimney Hood in Stainless Steel NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference.

  • Page 2: Table Of Contents

    CONTENTS YOUR COOKER HOOD’S SPECIFICATIONS ….……………..………….2 IMPORTANT SAFETY INFORMATION……………………………….…3-4 CARING FOR THE ENVIRONMENT…………………………………………5 USING YOUR COOKER HOOD………………………………..……………..6 MAINTAINING AND CLEANING YOUR COOKER HOOD ……….7-9 INSTALLING / CHANGING THE CARBON FILTER …………………10 INSTALLATION INSTRUCTIONS ……………………….……...….11-19 ELECTRICAL CONNECTION……………11 INSTALLING THE COOKER HOOD………12-14 FITTING THE CHIMNEY…………………15-16 INSTALLATION NOTES –...
  • Page 3 Specifications of your GEH6009 Cooker Hood Congratulations on purchasing a Cooker Hood! To fully enjoy using your appliance long into the future, please firstly familiarise yourself with its specifications, safety advice and operational instructions included in this manual. You will also need this manual to ensure that your Cooker Hood has been installed properly.

  • Page 4: Important Safety Information

    Important Safety Information: Please Read this before installing & using. Any installation work must be DO NOT SET YOUR * NOTE - carried out by a qualified COOKER HOOD LESS THAN electrician or competent person. 700mm ABOVE YOUR COOKER! o When installed between The hood must be installed in adjoining wall cabinets, accordance with the installation...
  • Page 5 Important Safety Information: Please Read this before installing & using. ventilation measures are o Ensure the ducting for being observed. Note the extractor function that it removes odours has the same diameter as from your room, not the outlet hole all the steam.
  • Page 6 fitted or if the filters are Never flambé cook under excessively greasy! this cooker hood . Environmental Note Note : Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless.

  • Page 7: Using Your Cooker Hood

    Using your Cooker Hood: To use your cooker hood: Make sure it has been properly installed. Find the CONTROL PANEL. It is located at the front of the canopy, to the right. The CONTROL PANEL contains buttons as shown in the Figure below.
  • Page 8 Cleaning your Cooker Hood: Before cleaning, always ensure that you IMPORTANT!: have switched your cooker hood OFF at the omni-polar switch, set at the wall from the cable: Cleaning Clean the external parts with Be sure to replace the mild liquid detergents on a carbon filters at the damp cloth.
  • Page 9 Maintenance - Cleaning the Anti-grease Filters First remove the grille by pulling down on it. Undo the side catches. You can now clean the anti-grease filter grilles. Soak them for about one hour in hot water with a grease-loosening detergent then rinse off thoroughly with hot water.
  • Page 10 Maintenance – Changing the Light Bulb and Carbon Filter Changing the light bulb Before changing the light bulb, ensure that the appliance is not live (i.e., ensure that you have switched it off at the wall switch). Remove the metal anti-grease filters (see Figure 2 below) and find the old bulb located in the light fixture up inside the exposed canopy.

  • Page 11: Installing / Changing The Carbon Filter

    Installing / Changing the Carbon Filter ______________________________________________________________________________________ Installing / Changing the Carbon Filter. Your Cooker Hood uses a pair of CARBON FILTERS to purify the air for the air recirculation function. You will find that the filters will attach to both sides of the fan motor (please see figures at bottom of page).
  • Page 12 INSTALLATION INSTRUCTIONS – Electrical Connection. INSTALLATION INSTRUCTIONS - Electrical Before installation and usage, read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the identification plate (found inside your Cooker Hood) and all the data inside the appliance are exactly the same as the voltage and frequency in your home.

  • Page 13: Installation Instructions

    INSTALLATION INSTRUCTIONS – Installing your Cooker Hood The cooker hood must not PLEASE NOTE THAT YOU WILL HAVE be fitted above stoves with a TO DECIDE BEFORE INSTALLING YOUR radiant top plate. COOKER HOOD THAT YOU CAN ADAPT IT AS AN EXTRACTION FAN. PLEASE We recommend that at least SEE PAGE 18 NOW TO UNDERSTAND two people install this hood.
  • Page 14 Rear view of your cooker hood. -------------------------------------------------------------------------- 3) Using a drill bit with an 8 mm diameter, make holes in the wall where you have marked these positions (see below). -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 4) Insert the expansion fixings (rawlplugs) in the holes and then screw the support screws halfway in (see below figure, at right).
  • Page 15 INSTALLATION INSTRUCTIONS – Attaching the Hood ------------------------------------------------------------------------------------------- ------------------------------------------------------------------------------------------- 6) (EXTRACTION FUNCTION ONLY) Connect the coupling to the top of the cooker hood (see below). Then connect the discharge pipe to the coupling as shown below. Remember that your ducting will have to match the specifications shown in the notes on Extraction / Air Purifier (Recirculation) Modes on p.18.

  • Page 16: Fitting The Chimney

    INSTALLATION INSTRUCTIONS – Fitting the Chimney FITTING THE PIPE – Once your Cooker Hood has been installed, you can now fit the pipe. 1) Take the two casings ‘A’ and ‘B’: 2) Rest the bottom of the casing ‘A’ on the top of the hood, taking care to position the tabs of the casing correctly on the back of the hood as shown as part ‘X’...
  • Page 17 INSTALLATION INSTRUCTIONS – Fitting the Chimney 6) Take the fixing bracket ‘G’ (Fig. 4 – previous page), centre it with respect to the mark you previously made, keeping it in contact with the ceiling, and then mark the anchoring holes (‘H’).
  • Page 18 Extraction / Air Purifier Modes of Operation EXTRACTION OPERATION – Installation Instructions Ensure that you have fitted the union (‘N’) to the upper part of the hood using the packaged two screws supplied inside the packing (Fig. 1 – on right). Using a 125 mm diameter pipe, connect the union (N) on the upper part of the hood (see Fig.
  • Page 19 If your Cooker Hood comes with a Lower Bracket * Note on what to do if your Cooker Hood is the version that comes with a BRACKET. Please note that your cooker hood may include a lower bracket. If this is the case, you will need to have it installed as such. This will mean a slight change in how the cooker hood is to be installed from the process shown on page 13.

  • Page 20: Troubleshooting

    Troubleshooting If something has gone wrong with your Cooker Hood, checking against this chart might keep you from having to call for service. Symptom Solution Check that the hood is connected • to the electricity supply. The cooker hood will not start! Check that the fan speed control is •...

  • Page 21: Conditions Of Guarantee

    CONDITIONS OF GUARANTEE Dear Customer, The conditions of guarantee which apply to your appliance are as follows:This product is guaranteed for 3 years from the date of original purchase.Think Appliances will repair any defect that arises due to faulty manufacturing or workmanship free of charge during this period.
  • Page 22 This guarantee does not cover: 1 Sinks and taps 2 Failure to comply with the manufacturer’s instructions for use. 3 The replacement of cosmetic components or accessories 4 Accidental damage or wilful abuse. 5 Subsequent loss or damage owing to the failure of the appliance or electrical supply.
