ENGLISH
Please read this manual carefully before operating your set and retain it for future reference.
ESPAÑOL
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
FRANÇAIS
Avant d'utiliser l'appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir vous y reporter
ultérieurement.
Head
washer
www.lg.com

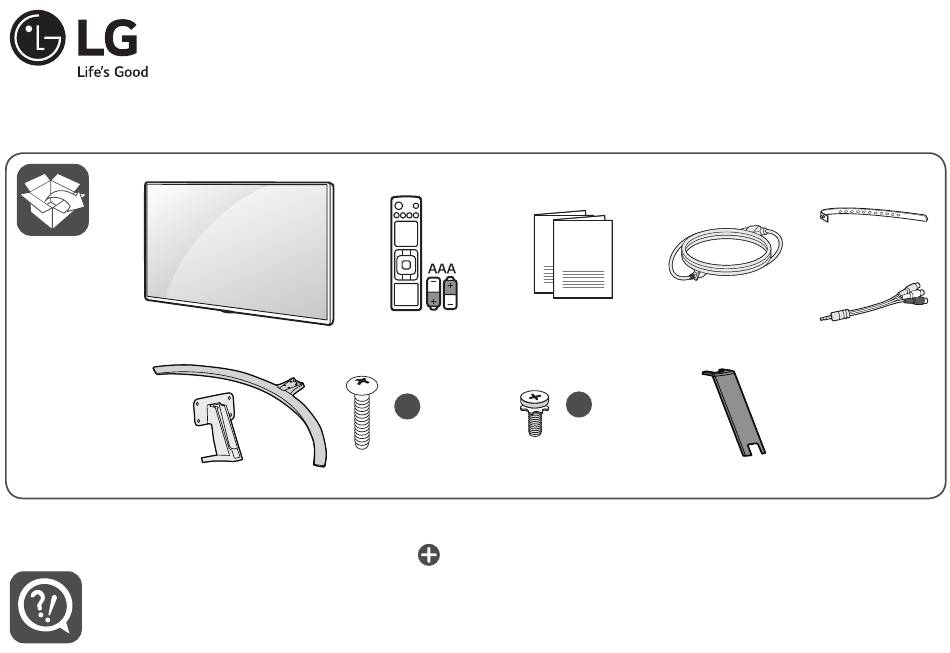

Easy Setup Guide
Guía Rápida de Configuración
Guide de configuration rapide
(M5 X L25)
Head
washer
b
a
X 4
(M4 X L12)
Depending upon model / Según el modelo / Selon le modèle
X 4

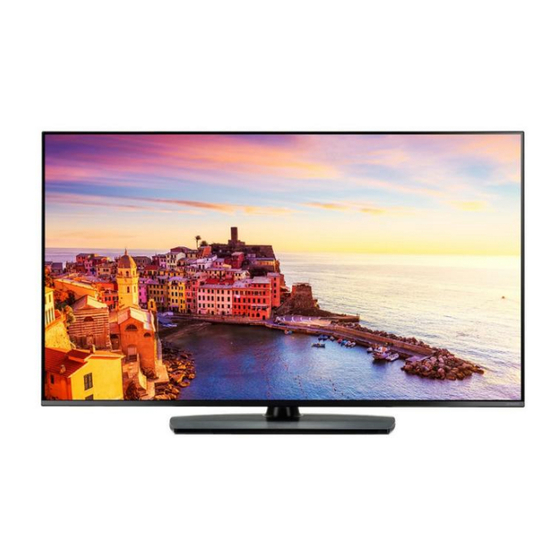

LED TV
65UT577H0UB
65UT567H0UB
Printed in Korea
Advertisement
Table of Contents
Related Manuals for LG 49UT567H0UA
Summary of Contents for LG 49UT567H0UA
- Page 1 Avant d’utiliser l’appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir vous y reporter ultérieurement. (M4 X L12) (M5 X L25) Head Depending upon model / Según el modelo / Selon le modèle Head washer www.lg.com washer Printed in Korea...
- Page 2 ENGLISH Read Safety and Reference. ESPAÑOL Leer Seguridad y Consultas. FRANÇAIS Lisez Sécurité et références.
- Page 6 SPEAKER OUT LINE OUT RS-232C IN (CONTROL & SERVICE) GAME CONTROL / M.P.I. M.P.I. RJP Use Only TV-LINK CFG...
- Page 9 65UT577H0UB 1,451 1 451 323.7 323,7 25.8 25,8 24.1 24,1 190 W 65UT567H0UB (57.1) (57,1) (35.8) (35,8) (12.7) (12,7) (33.0) (33,0) (2.5) (2,5) (56.8) (56,8) (53.1) (53,1) AC 120 V ~ 50 / 60 Hz...
- Page 13 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. 49UT567H0UA 49UT577H0UA 55UT567H0UA 55UT577H0UA 65UT567H0UB 65UT577H0UB www.lg.com *MFL71402076* Copyright ©...
-
Page 14: Important Safety Instruction
Important Safety Instruction • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. •... - Page 15 Warning! Safety instructions - Near flammable objects such as gasoline or candles, or expose the TV to direct air conditioning. - Do not install in excessively dusty places. Otherwise, this may result in fire, electric shock, CAUTION combustion/ explosion, malfunction or product deformation.
- Page 16 • Use only an authorized attachments / accessories - TV with a three-prong grounded AC plug must be approved by LG Electronics. Otherwise, this may connected to a three-prong grounded AC outlet. result in fire, electric shock, malfunction, or product Ensure that you connect the earth ground wire to damage.
- Page 17 • Moving • The device must be easily accessed to a location - When moving, make sure the product is turned outlet near the access. Some devices are not made off, unplugged, and all cables have been removed. by turning on / off button, turning off the device It may take 2 or more people to carry larger TVs.
-
Page 18: Optional Extras
VESA standard. Standard dimensions for the wall mount kits are described in the following table. • Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grille area. 49UT567H0UA 55UT567H0UA Model 49UT577H0UA 55UT577H0UA... -
Page 19: Mounting On A Table
Mounting on a Table • When transporting the TV by hand, hold the TV as shown in the following illustration. 1 Lift and tilt the TV into its upright position on a table. - Leave a 10 cm (4 inches) (minimum) space from the wall for proper ventilation. -
Page 20: Using The Kensington Security System (Optional)
Using the Kensington Security (TYPE A) System (optional) (Depending upon model) The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http:// www.kensington.com. -
Page 21: Mounting On A Wall
Detailed instructions will be included with the wall mount. We recommend that you use an LG brand wall mount. The LG wall mount is easy to adjust or to connect the cables. When you do not use LG’s wall (Depending upon model) - Page 22 Connections • Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse. You can connect various external devices to the TV. • For more information of screws and wall For more information on external device’s connection, mount bracket, refer to the Separate refer to the manual provided with each device.
-
Page 23: Other Connections
Other connections External Devices Supported external devices are: Blu-ray player, HD Connect your TV to external devices. For the best receivers, DVD players, VCRs, audio systems, USB picture and audio quality, connect the external device storage devices, PC, gaming devices, and other and the TV with the HDMI cable. -
Page 24: External Speakers
External Speakers Method of volume control port (Depending upon model) • Cable Spec. Each Up / Down pin is pulled to 3.3 V with CPU GPIO. EXTERNAL SPEAKER OUT SPEAKER OUT CPU detects transition GND / UP / DOWN LINE OUT from 3.3 V to GND level for volume VOLUME... -
Page 25: Using The Button
Using the Button Network setup (Depending upon model) You can simply operate the TV functions, using the button. Wired network connection This TV can be connected to a Pro:Centric server via the port. After making the physical connection, the TV needs to be set up for network communication. -
Page 26: Adjusting The Angle Of The Tv To Suit View
Adjusting the Angle of the TV to suit view (Depending on model) Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view. 20˚ 20˚ • When adjusting the angle of the product, watch out for your fingers. - Page 27 (Power) Turns the TV on or off. • Do not mix new batteries with old batteries. Not functional. This may cause the batteries to overheat Selects the remote’s operating mode: TV. and leak. Selects the remote’s operating mode: DVD. • Failure to match the correct polarities of the battery may cause the battery to burst Changes the input source.
-
Page 28: Troubleshooting
TV. Some minute dot performance. The customer is responsible to ensure defects may be visible on the screen, appearing the compatibility of their equipment with any LG as tiny red, green, or blue spots. However, they Electronics software. If needed, please consult with have no adverse effect on the TV’s performance. - Page 29 • Generated Sound - Cracking noise A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. - Electrical circuit humming/panel buzzing A low level noise is generated from a high- speed switching circuit, which supplies a large...
- Page 30 Settings To set additional picture options ) [Picture] [Picture Mode Settings] [Picture Options] To select Picture Mode Adjusts detailed setting for images. • [Noise Reduction] Eliminates noise in the picture. ) [Picture] [Picture • [MPEG Noise Reduction] Eliminates noise generated Mode Settings] [Picture Mode] while creating digital picture signals.
-
Page 31: Specifications
Specifications Product specifications may be changed without prior notice due to upgrade of product functions. Estimated yearly energy consumption indicated on the FTC label is measured in accordance with the Test Procedures for Television Sets (USA only). The actual energy consumption depends on the usage environment (The content watched, TV settings, etc.). Broadcasting Specifications Television system ATSC, NTSC-M, 64 &... - Page 32 HDMI (DTV) supported mode HDMI (PC) supported mode • Use HDMI IN 1 for PC mode. Horizontal Vertical (Depending upon model) Resolution Frequency (kHz) Frequency (Hz) Horizontal Vertical 31.46 59.94 Resolution 640 x 480p Frequency (kHz) Frequency (Hz) 31.50 60.00 640 x 350 31.46 70.09 31.47...
-
Page 33: Supported Audio Formats
Composite, AV Supported Mode Supported Audio Formats Horizontal Vertical File Format Info Resolution Frequency (kHz) Frequency (Hz) (Bit rate) 32 Kbps - 320 Kbps 15.73 59.94 720 x 480i (Sample freq.) 16 kHz - 48 kHz 15.75 60.00 .mp3 (Support) MPEG1, MPEG2 31.47 59.94 720 x 480p... -
Page 34: Supported Video Formats
• ULTRA HD Video : 3840 x 2160, 4096 x 2160 File • Some HEVC encoded ULTRA HD videos other than Codec Format the content officially provided by LG Electronics may not be played. VC-1 Advanced Profile • Some codecs can be supported after a software Video (except for WMVA), VC-1 .asf... -
Page 35: Key Codes
KEY CODES * This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) R/C Button (Green) R/C Button R/C Button (Red) R/C Button R/C Button (Yellow) R/C Button R/C Button (Blue) R/C Button R/C Button R/C Button R/C Button R/C Button... -
Page 36: External Control Device Setup
(TV) (TV) (PC) (PC) • LG TV supports PL2303 chip-based (Vendor ID : 0 x 0557, Product ID : 0 x 2008) USB to serial converter which is RS-232C IN (CONTROL & SERVICE) not made nor provided by LG. (TV) (PC) •... - Page 37 Connector type: D-Sub 9-pin male RS-232C (Serial port) RS-232C configurations 7-Wire Configurations 3-Wire Configurations (Standard RS-232C cable) (Not standard) D-Sub 9 D-Sub 9 D-Sub 9 D-Sub 9 Set ID For Set ID number, see “Real data mapping (Hexadecimal : Decimal)”. 1 Press to access the main menus.
-
Page 38: Communication Parameters
Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list * (Depending upon model) COMMAND1 COMMAND2... -
Page 39: Transmission / Receiving Protocol
TRANSMISSION / RECEIVING PROTOCOL * (Depending upon Model) Transmission (Command1)(Command2)( )([Set ID])( )(Data)(Cr) (Command 1) : First command to control the TV. (j, k, m or x) (Command 2) : Second command to control the TV. ([Set ID]) : You can adjust the set ID to choose desired monitor ID number in option menu. Adjustment range is 1 to 99. - Page 40 1 Power (Command: k a) 3 Screen Mute (Command: k d) ► To control power on or off of the set. ► To select screen mute on/off. Transmission Transmission (k)(a)( )([Set ID])( )(Data)(Cr) (k)(d)( )([Set ID])( )(Data)(Cr) Data 00 : [Off] Data 00 : Screen mute off (Picture on) / Video mute off Data 01 : [On] Data 01 : Screen mute on (Picture off)
- Page 41 7 [Brightness] (Command: k h) 11 OSD Select (Command: k l) ► To adjust screen brightness. You can also adjust ► To select OSD (On Screen Display) on/off when brightness in the picture settings. controlling remotely. Transmission Transmission (k)(h)( )([Set ID])( )(Data)(Cr) (k)(l)( )([Set ID])( )(Data)(Cr) Data Min : 00 to Max : 64 Data 00 : [Off]...
- Page 42 13 [Balance] (Command: k t) 16 Tune Command (Command: m a) * This command may work differently Depending ► To adjust balance. You can also adjust balance in upon model and signal. the audio settings. * For Europe, Mid-East, Colombia, Asia except South Transmission Korea and Japan Model (k)(t)( )([Set ID])( )(Data)(Cr)
- Page 43 • Tune Command Examples: • Analog Antenna/Cable 1 Tune to the Analog antenna (PAL) Channel 10. Data 00 : Physical Channel Number [Set ID] = All = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 00 & 01 = Channel Data is 10 = 00 0a - Cable (CATV) : 01 - 87 (Decimal : 1~135) Data 02 = Analog Antenna TV = 00 (Data 01 ~ 04): Major/Minor Channel Number...
- Page 44 • Tune Command Examples: • Digital Antenna/Satellite 1 Tune to the Analog cable (NTSC) channel 35. Data 00 : xx (Don’t care) (Data 01)(Data 02) : Major Channel Number [Set ID] = All = 00 Data 01 : High byte Channel Data Data 00 = Channel Data is 35 = 23 Data 02 : Low byte Channel Data Data 01 &...
- Page 45 17 [Channel] Skip/Add (Command: m b) 20 Input select (Command: x b) (Main Picture Input) ► To skip current channel for next time. ► To select input source for main picture. Transmission Transmission (m)(b)( )([Set ID])( )(Data)(Cr) (x)(b)( )([Set ID])( )(Data)(Cr) Data 00 : Del(ATSC,ISDB)/Skip(DVB) Data 00 : DTV Data 01 : Add...
- Page 46 If not use the remote-controller with data formats recommended, IR output signals will be suppressed automatically by IR receiver. In this case, LG does not guarantee IR working function. To make sure of this matter, here are two methods as below.
-
Page 47: Open Source Software Notice Information
Dolby Atmos, and the double-D symbol are available for download. trademarks of Dolby Laboratories. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. - Page 50 Symbols Refers to alternating current (AC). Refers to direct current (DC). Refers to class II equipment. Refers to stand-by. Refers to “ON” (power). Refers to dangerous voltage. • • • • • •...
-
Page 51: Child Safety
CHILD SAFETY: PROPER TELEVISION PLACEMENT MATTERS THE CONSUMER ELECTRONICS INDUSTRY CARES • Manufacturers, retailers and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable. • As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations. - Page 52 Supplier’s Declaration of Conformity Trade Name Responsible Party LG Electronics USA, Inc. Address 1000 Sylvan Ave Englewood Cliffs, NJ 07632 Telephone (201)266-2215 LG Customer Information Center The model and serial number of the product are located on the back and on one side of the product.
