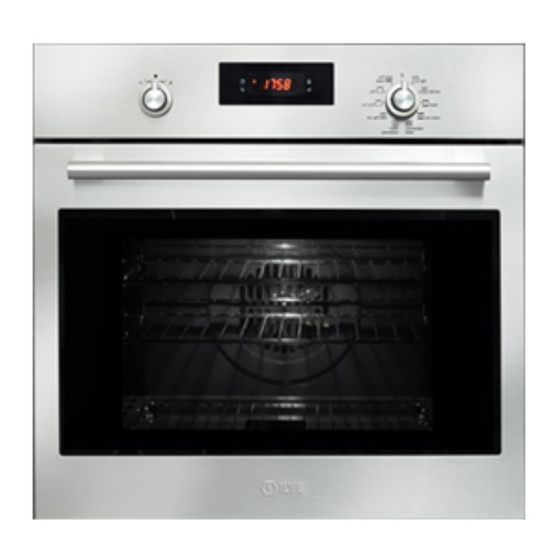

Omega 60 Series Instruction Manual

Built-in oven
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
FOR 60 SERIES BUILT-IN
OVEN 600SPYKT

Advertisement

Table of Contents
loading

Related Manuals for Omega 60 Series

Summary of Contents for Omega 60 Series

  • Page 1 INSTRUCTION MANUAL FOR 60 SERIES BUILT-IN OVEN 600SPYKT...
  • Page 2 OPEN 24 ILVE ACCESSORIES ONLINE SHOP For a wide range of coffee machines, pods, and other ILVE accessories at the click of a button shop.ilve.com.au...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Eco-Bake SAFETY INSTRUCTIONS Defrost INSTALLATION OF THE OVEN Pyrolyse (Self-Clean) Electricals Door lock for children safety (pyro) Respect for the environment Commands lock for children safety Connection to the electrical power (non pyro) mains Buzzer volume Failure declarations and error codes 16 INSTRUCTIONS FOR USE The first time you use the oven DOOR LOCKING SYSTEM...

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS - Do not disassemble any parts prior to having disconnected the oven from the mains. - Do not use the appliance if any part is broken (for example a glass). Disconnect it from the mains and call service. - Before using the oven, it is recommended to make it operate at noload at the maximum temperature for an hour to eliminate the insulating material odour.
  • Page 5 Refer to the figures below for the correct placement of the grills EMBOSSED GUIDES REMOVABLE GUIDES...

  • Page 6: Installation Of The Oven

    INSTALLATION OF THE OVEN To install the oven into the kitchen a cutout should be made in accordance with the dimensions shown in figure. The apparatus is to be fastened to the top by means of the two screws provided in the kit through the holes made on the oven uprights.

  • Page 7: Respect For The Environment

    Respect for the environment The documentation for this appliance is printed on paper bleached without chlorine or recycled paper to contribute to protecting the environment. The packaging was designed to prevent damage to the environment; they are ecological products that can be recovered or recycled. Recycling the packing saves raw materials and reduces the volume of industrial and domestic waste.
  • Page 8 Dimensions are in millimeters...
  • Page 9 Connection to the electrical power mains WARNING This apparatus must be earthed. The oven is only for domestic use. The feed voltage and the absorbed power are as indicated on the data plate attached to the left-hand side upright, which can be seen when the oven door is open. Connecting must be carried out by qualified personnel and in accordance with the regulations currently in force.

  • Page 10: Instructions For Use

    INSTRUCTIONS FOR USE The first time you use the oven Clean the oven thoroughly with soapy water and rinse well. Operate the oven for about 30 minutes at maximum temperature to burn off all traces of grease which might otherwise create unpleasant smells when cooking. Oven Racks WARNING Never use aluminum foil to cover the oven racks or to line the...

  • Page 11: Cooking Functions

    COOKING FUNCTIONS Each type of oven is provided for various cooking systems. A system can be selected by bringing the pointer of knob to the relating symbol. The Fig. 8 shows the controls available on the different oven models. Icon Mode Description Used for…...
  • Page 12 The Convection Bake mode uses Consequently different foods can be the circular or third heating element cooked simultaneously (maximum hidden behind the baffle at the three levels) and is suitable for back wall of the oven. The heat is preparing a complete dinner (small circulated throughout the oven by portions).

  • Page 13: Electronic Control

    ELECTRONIC CONTROL Control panel description (“EXTRA SMALL”) The oven control panel is made with one display and two knobs. - Time & Temperature display. - Time & Temperature knob (Push & Shuttle). - Mode (oven functions) knob. TEMP & TIME MODE The push &...

  • Page 14: Setting The Minute Minder

    - Turn the selector left/right, the hours flash. - Modify the flashing hours value turning the selector left/right. - Push the Temp&Time selector to switch back and forth between hours and minutes. - Modify the flashing minutes turning left/right. - After a few seconds the whole time of day value starts flashing: wait until the new time of day is steady.

  • Page 15: Setting An Oven Function Manually

    Setting an oven function manually Turn the mode knob into the desired position, the clock display shows On for a few seconds. The oven will work for a maximum time (12hours). Depending on the oven model, the number and type of available functions can be different. If the selected function works using any heating elements, the symbol is displayed (it doesn’t appear in light and defrost position).

  • Page 16: Oven Functions

    - Turn the knob left/right, the hours flash. - Modify the flashing hours value turning the knob left/right. - Push the knob to switch back and forth between hours and minutes or wait a few seconds until the minutes flash. - Modify the flashing minutes value the knob left/right.

  • Page 17: Eco-Bake

    Eco-Bake This function is defined in order to obtain a consistent energy saving. The cooling fan is initially off and turns on only when the inner parts temperature gets high. Cooking might be a little bit slower than the standard Bake, especially when the oven is heavily loaded. Defrost This function is used to defrost frozen food in a short time.

  • Page 18: Door Lock For Children Safety (Pyro)

    Door lock for children safety (pyro) This is an additional safety functions available only in pyrolityc ovens. The door latch mechanism that is managed automatically during pyrolyse can be actuated manually by the user in order to lock the oven door and prevent children from having free access to the oven.
  • Page 19 Cooking mode table with preset, minimum, maximum temperatures (°C) and nominal power (Watt) PRESE TMIN TMAX HEATING N° MODE NAME (°C) (°C) (°C) ELEMENTS (W) ZERO LIGHT KEEP WARM 2200 BAKE 2200 ECO-BAKE 1200 LOWER BAKE DEFROST LOWER 1200 CONVECTION BAKE 2200 CONVECTION ROAST 2300...

  • Page 20: Door Locking System

    DOOR LOCKING SYSTEM Automatic door locking during pyrolytic cycle For safety reasons, the door is locked automatically as soon as self-clean mode is selected (both standard, both eco clean). The door is also unlocked automatically when the clean time has expired but only after the temperature has fallen below the safety threshold.

  • Page 21: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Prior to taking any action for cleaning, make sure the apparatus is cut-out from the mains. It is recommended that the oven interior be frequently cleaned. In particular, it should be cleaned every time the grill is used to prevent excessive fouling of the oven interior that may generate fumes or odours during subsequent cooking.

  • Page 22: Removing The "Full

    Removing the “FULL GLASS” panoramic door WARNING Make sure that: • The oven is cool and power to the oven has been turned off before removing the door. Failure to do so could result in electrical shock or burns. • The oven door is heavy and fragile. Use both hands to remove the oven door.

  • Page 23: How To Remove The Inner Glass Of

    How to remove the inner glass of the “FULL GLASS” panoramic door 1. Wear protective gloves. 2. Place the door on a flat horizontal surface face down on a soft cloth to avoid scratching the visible part. 3. Simultaneously press the keys of the two side covers, removing the upper strip. 4.
  • Page 24 5. Replace the middle panes after cleaning in reverse order, checking that they are oriented so the words INTERNAL SIDE are properly legible. NOTE: a slight gap between the middle panes and the side supports is normal because it allows for the heat expansion of the glass. 6.

  • Page 25: Replacement Of The Oven Light

    Replacement of the oven light WARNING Make sure that: • The oven and lights are cool and power to the oven has been turned off before replacing the light bulb(s). Failure to do so could result in electrical shock or burns. •...

  • Page 26: Guidance Temperature An Time Schedule For Cooking

    GUIDANCE TEMPERATURE AN TIME SCHEDULE FOR COOKING Traditional cooking system Hot-air cooking system Rack position Cooking Cooking FOOD Mode Temperature Temperature (from the time in time in °C °C bottom) minutes minutes Poork,calf (roast) 200 ÷ 225 100 ÷ 150 175 ÷...
  • Page 27 2.006.50.0 ed. 05-2016...
  • Page 28 Warranty Card ilve.com.au Eurolinx Pty Limited A.B.N. 50 001 473 347 (a) damage through misuse (including failure trading as ILVE (“ILVE”) to maintain, service or use with proper care), neglect, accident or ordinary wear and Office: tear (including deterioration of parts and 48-50 Moore Street, Leichhardt N.S.W 2040 accessories and glass breakage);...

  • Page 29: Important

    Warranty Card continued ilve.com.au 3. Domestic Use (ii) cause any part of the Warranty to be void. Each ILVE product is made for domestic use. (c) ILVE excludes indirect or consequential loss This Warranty may not extend to ILVE products of any kind (including, without limitation, loss of used for commercial purposes;...
  • Page 30 Australia National Telephone Number 1300 MYILVE (694 583) New Zealand Telephone Number 0508 458 369 ilve.com.au ILVE showrooms are open daily from 9am-5pm and Saturdays 10am-4pm NSW & ACT (Head Office) VIC & SA WA & NT TAS (Crisp Ikin) New Zealand 48-50 Moore Street 1211 Toorak Road...
