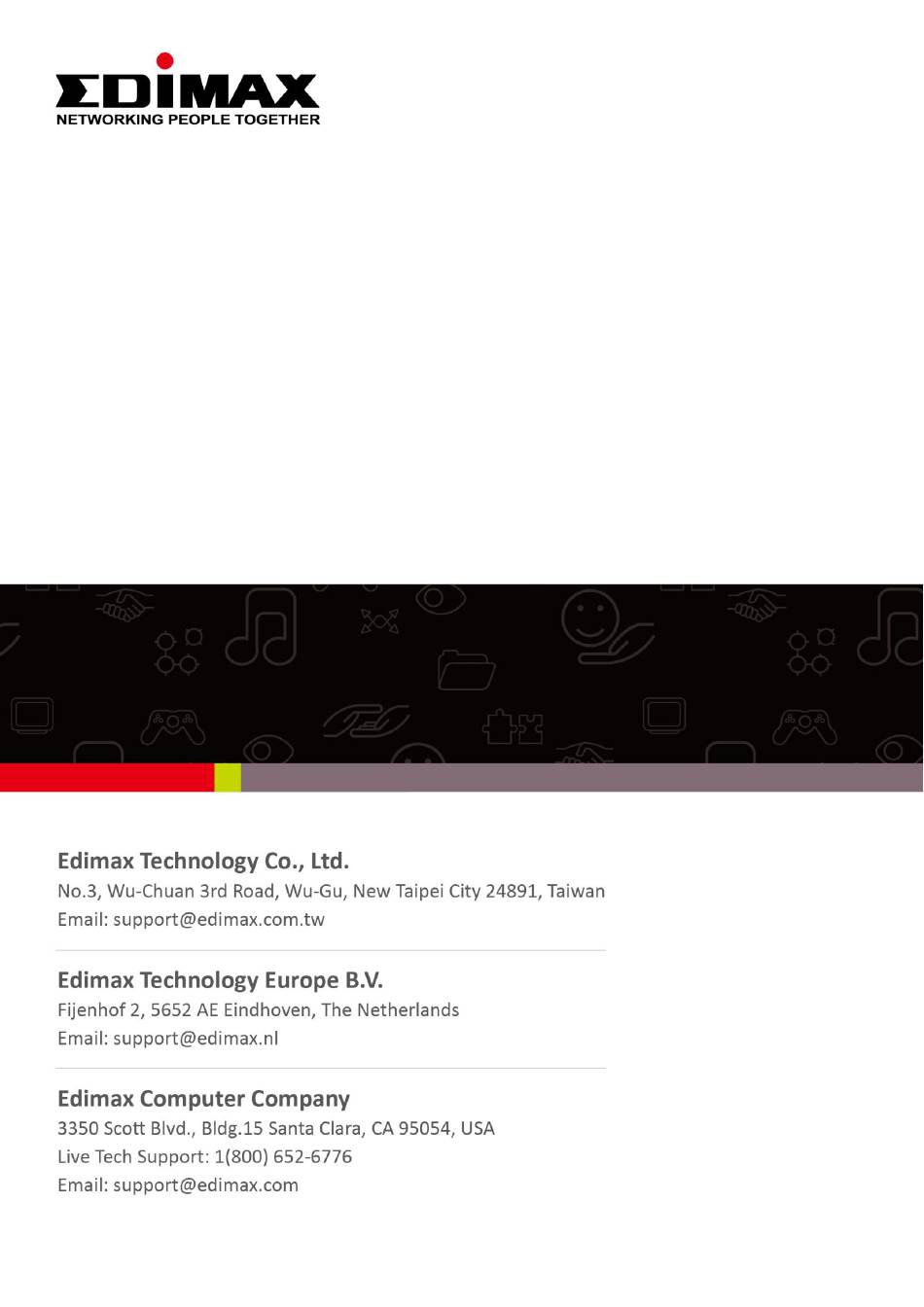

- Page 1 IC-5170SC Quick Installation Guide 09-2016 / v1.0...
-
Page 2: Package Contents
Package Contents USB Sensor IC-5170SC CD-ROM Dongle Power Ethernet Screws Adapter Cable Battery Door/Windows PIR Sensor Temperature Sensor x2 & Humidity Sensor... -
Page 3: Led Status
LED Status IC-5170SC LED Color LED Status Description Network camera is on and connected to cloud server. Quick Flashing Network camera is restarting. Power Green Network camera is starting upor Slow Flashing (1 x per network camera is not connected to second) cloud server. -
Page 4: Camera Setup
Camera Setup Follow the instructions below to first connect your network camera to your Wi-Fi using the EdiLife smartphone app. Then refer to the next chapter SmartSensors to setup your smart sensors. Your network camera’s unique SSID is displayed on the product label on the network camera and consists of “EdiView.Setup **”... - Page 5 Use a smartphone or tablet to search, download and install the EdiLifeapp from Google Play or the Apple App Store. For iOS users, go to your iPhone’s Wi-Fi settings and connect to your network camera’s SSID (EdiView.Setup**), before opening the EdiLife app. Continue to Step 7.
- Page 6 Android usersselect your camera from the available wireless device list and wait a moment for the app to make a connection. Tap refresh in the top right corner if your camera isn’t listed. For better security, enter a new device name and password when prompted.
- Page 7 Select your Wi-Fi from the list and enter your Wi-Fi password. Tap OK to continue. Tap refresh in the top right corner if your Wi-Fi isn’t listed. Please wait a moment while your camera connects to your Wi-Fi. When you see the Setup complete screen, click the LIVEicon or tap the arrow to continue.
- Page 8 Setup is complete. The camera’s greenpower LED &orange Internet LED should display on.Your camera should be listed on the EdiLife home screen.Tap your camera to see a live stream which you can view anytime you are connected to the Internet. You can configure your camera’s settings and functions using the icons below the live image.
- Page 9 The WPS (Wi-Fi Protected Setup) button is a quick and easy alternative to establish a secure wireless connection between your network camera and your wireless router/access point. Press and hold the WPS button on your wireless router/access point for the correct length of time to activate its WPS. Please check the instructions for your wireless router/access point for how long you need to hold down its WPS button to...
-
Page 10: Smart Sensors
Smart Sensors Your IC-5170SC includes a variety of smart sensors that can alert, notify and interact with smart rules via the EdiLife app. Eachdoor/windowsensor consists of two parts (larger sensor unit and smaller magnetic contact) and can monitor when a door or window is opened. The PIRsensor is a heat-based motion detector, and the temperature and humidity sensor can report temp &... - Page 11 Within 10 seconds use a pencil or other object to press the small button on the front of your sensor for two seconds. The sensor hub will pair with the sensor. The sensor’s LED will display for a few seconds to indicate successful pairing. Repeat for each sensor. Fix your sensors into the desired location using the high-strength adhesive strips on the back on each sensor.
- Page 12 Select your IC-5170SC and tap the Settings icon in the top right corner. Tap Sensors in the list and choose any of your sensors. If any of your sensors are not displayed, try pairing them again as explained in the previous chapter.
- Page 13 Adjust the settings for each sensor as you like and tap the check in the top right corner to confirm. To setup SmartRules, go back to the home screen and tap the menu icon in the top left, then select SmartRules.
- Page 14 SmartRules will be displayed here after you create them. Tap the + to create a new rule and choose which sensor to use. Select which device will be triggered by your sensor’s event. (For the temperature/humidity sensor, you can additionally set the level which will trigger the rule e.g.
- Page 15 Using Your Network Camera As well as the EdiLife app, you can use the camera’s web-based management interface to see a live stream and to configure the camera’s functions such as motion and sound detection. Go to the camera’s IP address in a web browser on a computer connected to the same local network: You can find your network camera’s IP address using EdiView Finder on a computer, or using the EdiLife smartphone app (go to Settings).
- Page 16 Reset If you experience problems with your network camera, you can reset the camera back to its factory default settings. This resets all settings back to default. Press and hold the WPS/Reset button found on the side panel for at least 10 seconds.
- Page 17 Federal Communication Commission Interference Statement Thisequipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 18 EU Declaration of Conformity English: This equipment is in compliance with the essential requirements and other relevant provisions of Directive 1995/95/EC, 2011/65/EC. Français: Cetéquipementestconforme aux exigencesessentielles et autres dispositions de la directive 1995/95/CE, 2011/65/CE. Čeština: Toto zařízení je v souladu se základnímipožadavky a ostatnímipříslušnýmiustanovenímisměrnic1995/95/ES, 2011/65/ES.
- Page 19 Declaration of Conformity We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the European R&TTE directive (1999/5/EC, 2006/95/EC) . Equipment: Wi-Fi Cam Smart Sensor Kit Model No.: IC-5170SC The following European standards for essential requirements have been followed: Spectrum: ETSI EN 300 328 V1.9.1 (2015-02)
- Page 20 Notice According to GNU General Public License Version 2 This product includes software that is subject to the GNU General Public License version 2. The program is free software and distributed without any warranty of the author. We offer, valid for at least three years, to give you, for a charge no more than the costs of physically performing source distribution, a complete machine-readable copy of the corresponding source code.
- Page 21 1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.
- Page 22 Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it. 6.
