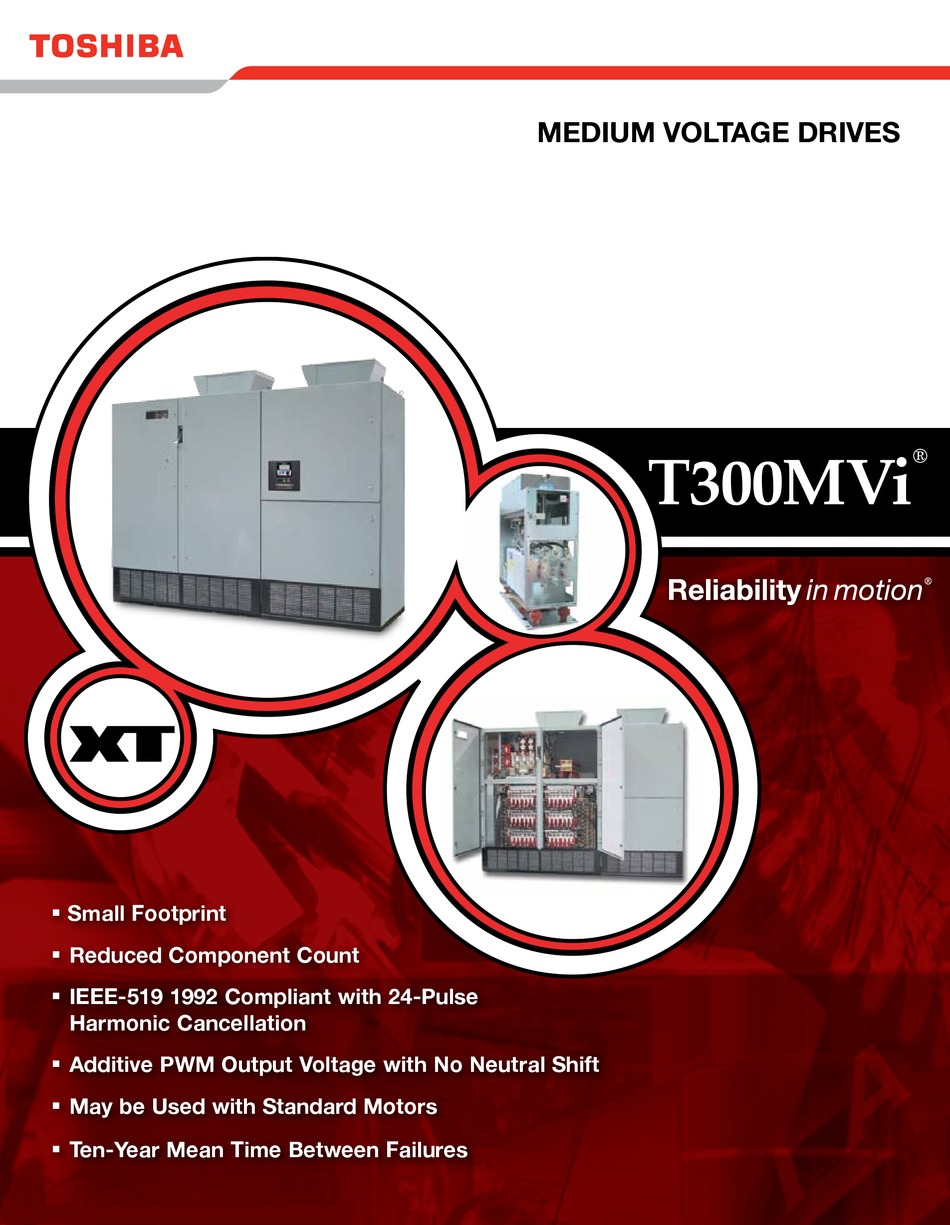

MEDIUM VOLTAGE DRIVES
T300MVi
 Small Footprint
 Reduced Component Count
 IEEE-519 1992 Compliant with 24-Pulse
Harmonic Cancellation
 Additive PWM Output Voltage with No Neutral Shift
 May be Used with Standard Motors
 Ten-Year Mean Time Between Failures

Advertisement

loading

Related Manuals for Toshiba T300MVi

Summary of Contents for Toshiba T300MVi

  • Page 1 MEDIUM VOLTAGE DRIVES T300MVi  Small Footprint  Reduced Component Count  IEEE-519 1992 Compliant with 24-Pulse Harmonic Cancellation  Additive PWM Output Voltage with No Neutral Shift  May be Used with Standard Motors  Ten-Year Mean Time Between Failures...
  • Page 2 Instead, the T300MVi medium voltage drive simply looks like a linear load on the incoming AC line. The drive also exceeds IEEE-519 requirements without the addition of any harmonic filters.
  • Page 3 High Speed Processor Using 32-Bit CPU • Enhanced Reliability through Surface-Mount and Multi-Level Printed Circuit Board Technology The T300MVi® Medium Voltage Drive -- Capable of Using a Windows® Interface for Easy Start-up and Monitoring Menu-Driven, Windows®-Based: • Programming of Parameters Prior to and During Installation •...
  • Page 4 Toshiba has mastered this technology, and continues to excel at it. The T300MVi is designed using both diodes and IGBTs in the main power circuit. We offer a control circuit topology providing higher performance than our competition while using fewer parts.
  • Page 5 T300MVi Specifications Item Voltage Class Drive Rating (A): 4160 Drive Output (kVA): Nominal HP 4160 V** Dimensions H x W x D (in) 104 x 74 x 44 Voltage Class Drive Rating (A): 2400 V Drive Output (kVA): Nominal HP 2400 V**...

  • Page 6: Product Warranty

    Product Warranty Toshiba offers a comprehensive warranty program on its full line of industrial products. Consult your salesperson or the factory for specific information. Need to Know More? Be sure to visit our website located at www.toshiba.com/ind for the latest...
