Washing Machine
OWNER'S MANUAL
MFW-1255CV
Read This Manual
Use all instructions and explanations of
the installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
application is sold or passed on then ensure
that the new owner always receives those
operation instructions.
Advertisement
Table of Contents
Related Manuals for Midea MFW-1255CV
Summary of Contents for Midea MFW-1255CV
- Page 1 Washing Machine OWNER’S MANUAL MFW-1255CV Read This Manual Use all instructions and explanations of the installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the application is sold or passed on then ensure that the new owner always receives those operation instructions.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ............ INSTALLATION Product Description ..........Installation area ............Unpacking the washing machine ....... Installation of drain hose .......... Levelling the washing machine ........Selection of Tap ............OPERATIONS Preparation Before Washing........Washing ..............After Washing............Washing matters needing attention ...... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: ！... - Page 4 SAFETY INSTRUCTIONS • Hands shall not be inserted into running spin-dry tub . • If the spin-dry tub does not stop within 15 seconds after opening the cover , please stop using the machine and have it repaired. • The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
- Page 5 SAFETY INSTRUCTIONS • Children should be supervised to ensure that they do not play with appliance. • Animals and children may climb into the machine. Check the machine before every operation. • Young children should be supervised that they do not play with the appliance.
- Page 6 SAFETY INSTRUCTIONS • It isn't intended to be built-in using. • The openings must not be obstructed by a carpet. • Washing machine shall not be installed in bath room or very wet rooms as well as in the rooms with explosive or caustic gases.
- Page 7 SAFETY INSTRUCTIONS Operating the appliance! • Before washing the clothes at first time, the product shall be operated in one round of the whole procedures without the clothes inside. • Flammable and explosive or toxic solvents are forbidden. Gasoline and alcohol etc.Shall not be used as detergents. Please only select the detergents suitable for machine washing, especially for drum.
-
Page 8: Installation

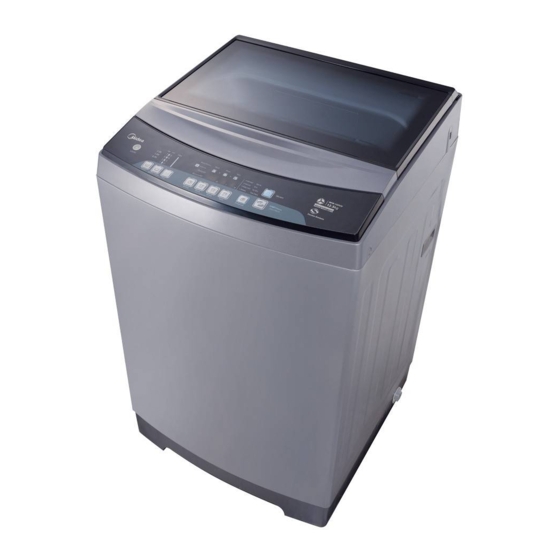

INSTALLATION Product Description Top lid Washing powder area Water inlet valve Detergent area Filter support Power line Control panel Impeller Handle Cabinet Adjustable foot knob Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. -
Page 9: Installation Area
INSTALLATION Installation area ！ Warning! • Stability is important to prevent the product from wandering! • Make sure that the product should not stand on the power cord. W> 20mm Before installing the machine, the location characterized follows shall be selected: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation... - Page 10 INSTALLATION ！ ！ Warning! Warning! • Do not kink or protract the drain hose. • Position drain hose properly ,otherwise damage might result of water leakage. • If drain hose is too long, do not force it into washing machine as it will cause abnormal noises.
-
Page 11: Selection Of Tap
INSTALLATION Selection of Tap Please select appropriate tap. Ordinary faucet Screw tap Special washing machine tap Connection of inlet hose, tap and washing machine 1:Connection between ordinary tap and inlet hose. Wall clamp nut 1.Loosen clamp nut to 2.Loosen four bolts 3.Set connecting base 4.Tighten clamp nut on tap and tighten... -
Page 12: Operations
OPERATIONS Preparation Before Washing Caution! • Before washing, please make sure it’s installed properly. • Before washing it at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. Open tap Plug in load and Close door Add detergent... -
Page 13: Washing Matters Needing Attention
OPERATIONS Washing matters needing attention • The working condition of the washer should be(0-40)℃.If used under 0℃,the inlet valve and draining system may be damaged. If the machine is placed under condition of 0℃or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. -
Page 14: Control Pane
OPERATIONS Control Panel (Power) Warm Cold (Power) Temp Note! • The chart is for reference only, Please refer to real product as standard. Start/Pause On/Off Product is switched on or off. Press the button to start or pause the washing cycle. Programmes Option Available according to the laundry type. - Page 15 OPERATIONS Option Water Level select water level according to clothing categories, degree of soiling and washing habits of customers Function washing time, rinsing times, spinning time and other settings can be selectable Temp. Press the button to regulate the Hot、warm、cold water for wash. Delay Set the Delay function: 1.
-
Page 16: Personalized Setting Of Washing Program
OPERATIONS personalized setting of washing program Customers can select washing program according to actual demand, and set washing time、rinsing times、spinning time、water volume and appointment time Wash Rinse Spin Program Start Water Level Delay (Power) operations of washing process customers can set single process or combinations of washing、rinsing and spinning freely according to demand. -
Page 17: Washing Programmes Table
OPERATIONS Washing Programmes Table Programmes are available according to the laundry type. Only for washers having these function XXXX XXXX XXXX XXXX Programmes XXXX XXXX XXXX XXXX Standard(Normal) Standard fabric washing program, suitable to wash ramie cotton fabric. Delicate wash, especially for silk fabrics. Delicate 1 time rising is suitable for light contaminated clothes in order to save water. -
Page 18: Maintenances
MAINTENANCES Cleaning And Care ！ Warning! • Before your maintenance starts, please unplug the machine and close the tap. Cleaning the cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. -
Page 19: Cleaning Drain Pump Filter
MAINTENANCES Cleaning drain pump filter ！ Warning! • Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing. -
Page 20: Trouble Shooting
MAINTENANCES Trouble Shooting The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre. Inspection Items Description If the power is off or the fuse is burned out. If the power supply voltage is too low. -
Page 21: Technical Information
MAINTENANCES Technical Information Technical Specifications Power Supply Grade of waterproof 220-240V~,50Hz IPX4 Standard Water Washing Dimension Rated Model Capacity (W*D*Hmm) Weight Pressure Power 12.5kg 46kg MFW-1255CV 0.03MPa~0.8MPa 601X630X1000 600W 24 10...
