DVD VIDEO PLAYER
DVD VIDEO PLAYER
Read your Quick Start Guide and/or User Manual first for quick tips
that make using your Philips product more enjoyable.
Register your product and get support
01_dvp5980K_93_eng2.indd 1
01_dvp5980K_93_eng2.indd 1
at www.philips.com/welcome
DVP5980K
2007-06-25 11:08:45 AM
2007-06-25 11:08:45 AM
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Philips HTP5980K/93
Summary of Contents for Philips HTP5980K/93

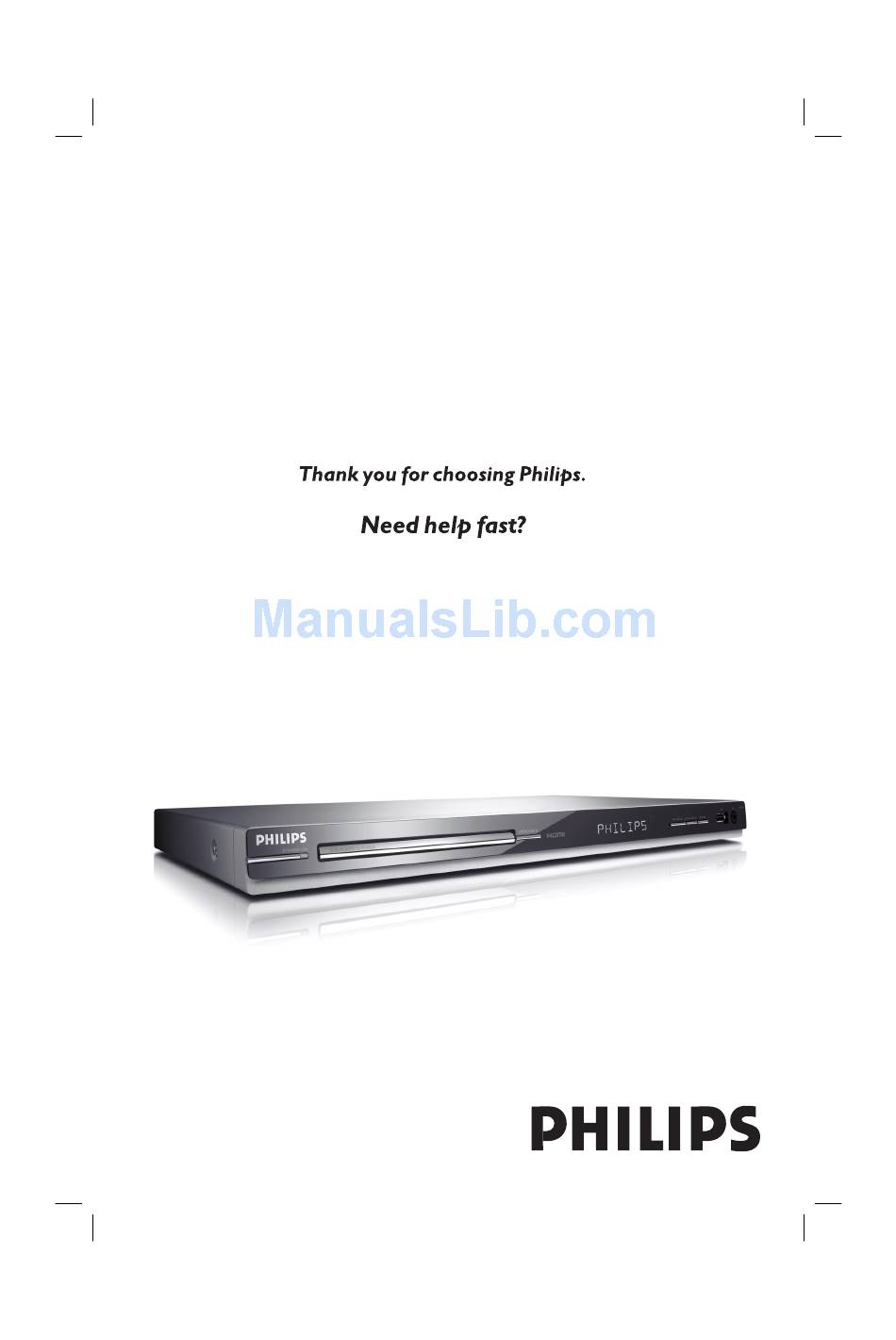

- Page 1 DVD VIDEO PLAYER DVD VIDEO PLAYER Read your Quick Start Guide and/or User Manual first for quick tips that make using your Philips product more enjoyable. Register your product and get support at www.philips.com/welcome 01_dvp5980K_93_eng2.indd 1 01_dvp5980K_93_eng2.indd 1 DVP5980K 2007-06-25 11:08:45 AM...
- Page 2 O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in SJ/T11363 – 2006. X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement in SJ/T11363 - 2006.
- Page 3 01_dvp5980K_93_eng2.indd 3 01_dvp5980K_93_eng2.indd 3 Index English ------------------------------------------6 --------------------------------- 56 This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized...
-
Page 4: Environmental Information
DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved Specifi cations are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. LASER Type Semiconductor laser... -
Page 5: Language Code
01_dvp5980K_93_eng2.indd 5 01_dvp5980K_93_eng2.indd 5 Language Code 2007-06-25 11:08:55 AM 2007-06-25 11:08:55 AM... -
Page 6: Table Of Contents
Contents Care and Safety Information Setup ... 8 Cleaning discs ... 8 General Information Accessories supplied ... 9 Region codes ... 9 Connections Connecting to television ...10 Using Composite Video jacks (CVBS) ...10 Using Component Video jacks (Y Pb Pr) ...10 Connecting the power cord ... - Page 7 Repeat A-B ...26 Preview...27 Viewing Audio CD playback information ...27 Disc Go To / Track Go To / Track Selection ...27 Repeat ...27 Special DVD Features ...28 Playing a Title ...28 Changing the Audio Language ...28 Subtitles ...28 Special VCD and SVCD Feature ...28 Playback Control (PBC) ...28 ®...
-
Page 8: Care And Safety Information
Care and Safety Information DANGER! High voltage! Do not open the device. You run the risk of getting an electric shock. The machine does not contain any user-serviceable parts. Please leave all maintenance work to qualifi ed personnel. Setup Finding a suitable location –... -
Page 9: General Information
Accessories supplied Composite video cable (yellow) and audio cables (white, red) Remote control and two AAA batteries 01_dvp5980K_93_eng2.indd 9 01_dvp5980K_93_eng2.indd 9 General Information Region codes This DVD player is designed to support the Region Management System. Check the regional code number on the disc package. -
Page 10: Connections
Connections Connecting to television COMPONENT VIDEO IN S-VIDEO V (Pr/Cr) U (Pb/Cb) VIDEO IN COMPONENT VIDEO IN S-VIDEO V (Pr/Cr) AUDIO U (Pb/Cb) VIDEO IN DIGITAL TV OUT COAXIAL AUDIO OUT HDMI OUT COMPONENT VIDEO OUT IMPORTANT! – You only need to make one video connection from the following options, depending on the capabilities of your television. -
Page 11: Connecting The Power Cord
Connecting the power cord HDMI OUT After everything is connected properly, plug in the AC power cord to the power outlet. Never make or change any connections with the power switched on. When no disc is loaded, press STANDBY-ON on the DVD player front panel. -
Page 12: Optional Connections
Optional connections Connecting to a stereo system STEREO DIGITAL TV OUT COAXIAL HDMI OUT COMPONENT VIDEO OUT Stereo system has right/ left Audio In jacks Select one of the video connections (CVBS VIDEO IN or COMPONENT VIDEO IN) depending on the options available on your television. -
Page 13: Connecting A Usb Flash Drive Or Usb Mass Storage Device
Connecting a USB Flash Drive or USB mass storage device Using USB port You can only view the content of following supported USB devices through this DVD player. Connect the supported USB device directly to the USB port on the front panel (as shown on the above illustration). -
Page 14: Hdmi Connections
HDMI connections Connecting to a HDMI or DVI TV HDTV / DVI TV HDMI IN TV OUT HDMI OUT COMPONENT VIDEO OUT IMPORTANT! – HDMI connects untouched and uncompressed digital transmission for the highest and crispest sound or image quality. –... -
Page 15: Connecting To An Analog Or Digital Av Receiver
Connecting to an Analog or Digital AV Receiver AV Receiver DIGITAL DIGITAL TV OUT COAXIAL AUDIO OUT HDMI OUT COMPONENT VIDEO OUT Use a HDMI cable (not supplied) or HDMI-DVI cable (not supplied) to connect the DVD player’s HDMI OUT to HDMI/DVI IN on the HDTV or DVI To hear sound via AUDIO OUT (L/R),... -
Page 16: Product Overview
Product Overview Front and Rear Panels STANDBY-ON – Turns on the player or switches to standby mode Disc Tray ç OPEN/CLOSE – Opens or closes the disc tray. Display panel – Shows information about the current status of the DVD player. –... -
Page 17: Remote Control
Remote Control DISC MENU – Enters or exits the disc contents menu – Switches on or off the playback control mode (for VCD 2.0 only) – Confi rms an entry or selection RETURN/TITLE – To go back to previous menu/ show title menu PREV í... -
Page 18: Getting Started
Getting Started Step 1: Inserting Batteries Open the battery compartment. Insert two batteries type R03 or AAA, following the indications (+ –) inside the compartment. Close the cover. CAUTION! – Remove batteries if they are exhausted or if the remote is not to be used for a long time. -
Page 19: Step 3: Setting Up Progressive Scan Feature
Step 3: Setting up Progressive Scan feature (for Progressive Scan TV only) The progressive scan displays twice the number of frames per seconds than interlaced scanning (ordinary normal TV system). With nearly double the number of lines, progressive scan offers higher picture resolution and quality. -
Page 20: Step 4: Selecting The Matching Color System
Getting Started (continued) Step 4: Selecting the matching color system The color system of the DVD player, disc and TV should match in order for the disc to play. Before changing the TV system, determine the color system of your TV. Video Setup Page TV Type NTSC... -
Page 21: Step 5: Setting The Language
Step 5: Setting the language The language options are different depending on your country or region. It may not correspond to the illustrations shown on the user manual. On-screen display (OSD) language Select this to change the language of this DVD player screen display menu. -
Page 22: Playback From Disc
Playback from Disc IMPORTANT! – If the inhibit icon appears on the TV screen when a button is pressed, it means the function is not available on the current disc or at the current time. – DVD discs and players are designed with regional restrictions. -
Page 23: Playback Features
Starting disc playback Turn on the TV to the correct program number for the DVD player (e.g. ‘EXT’, ‘0’, ‘AV’). Press STANDBY-ON 2 to turn on the DVD player. You can also press OPEN/CLOSE ç button to turn on the DVD player and the will be followed by disc tray open. -
Page 24: Operations For Video Playback
Playback Features Operations for video playback Using the Disc Menu Depending on the disc, a menu may appear on the TV screen once you load in the disc. To select a playback feature or item keys or numeric keypad (0-9) on the remote, then press OK to start playback. -
Page 25: Viewing The Disc Playback Information
Viewing the disc playback information Using the OSD menu OSD menu shows the disc playback information (for example, title or chapter number, elapsed playing time, audio/ subtitle language), a number of operations can be done without interrupting disc playback. For DVD disc playback, pressing SUBTITLE/DISPLAY will toggle between Subtitle and OSD menu. -
Page 26: Time Display
Playback Features Time Display Press to select { Time Disp. } (Time Display), then press to access. Depending on the disc in the DVD player, the following display types appear on the TV screen. For DVD – TT Elapsed (elapsed playing time of current Title) –... -
Page 27: Preview
Preview The preview function allows you to reduce the picture of 6 tracks enough to display in a full screen. Press to select { Preview }, then press to access. The preview menu appears on the TV screen. Select Digest Type: Select Digest Type: Title Digest Track Digest... -
Page 28: Special Dvd Features
Playback Features Special DVD Features Playing a Title Press DISC MENU. The disc title menu appears on the TV screen. keys or alphanumeric to select a play option. keypad 0-9 Press OK key to confi rm. Changing the Audio Language For DVD Press AUDIO repeatedly to select different audio languages. -
Page 29: Playing A Divx Disc
® Playing a DivX disc This DVD player supports the DivX movie playback that you download from your computer onto a CD-R/RW or DVD±R/RW (see page 36 for more information). ® Load a DivX disc. The data disc menu appears on the TV screen. -
Page 30: Usb Mass Storage Device
Playback Features USB mass storage device When connecting a USB mass storage device to the DVD player, you can enjoy the device’s stored music through the DVD player. Compatible USB mass storage device: – USB fl ash memory (USB 2.0 or USB 1.1) –... -
Page 31: Playing From Usb Fl Ash Drive Or Usb Memory Card Reader
Playing from USB fl ash drive or USB memory card reader You can play or view the data fi les (JPEG, MP3 or WMA) in the USB fl ash drive or USB memory card reader through this DVD player. However, editing and copying the data fi les are not possible. -
Page 32: Playing Mp3/Wma/Jpeg Picture Cd
Playback Features Playing MP3/WMA/JPEG Picture CD This DVD player can playback MP3, WMA, JPEG and Picture CD fi les on a personally recorded CD-R/RW disc, commercial CD or USB device. IMPORTANT! You have to turn on your TV and set to the correct Video In channel. -
Page 33: Playback With Multi-Angles (Jpeg)
Playback with multi-angles (JPEG) During playback, press rotate the picture on the TV screen. : fl ip the picture vertically by 180º : fl ip the picture horizontally by 180º : rotate the picture anti-clockwise by 90º : rotate the picture clockwise by 90º Tips: –... -
Page 34: Karaoke Operations
Karaoke Operations Playing Karaoke discs IMPORTANT! You have to turn on your TV and set to the correct Video In channel. (See page 18 ‘Finding your viewing channel’). General Operation Connect a microphone (not supplied) to MIC on the front panel of the DVD player. -
Page 35: Dvd Menu Options
This DVD Player setup is carried out via the TV, enabling you to customize the DVD player to suit your particular requirement. Using the General setup menu Press SETUP on the remote control. The system setup menu appears. General Setup Page Disc Lock OSD Language Sleep... -
Page 36: Sleep
DVD Menu Options Sleep Sleep function allows you to turn off the DVD player automatically after a preset time. In ‘General Setup Page’, press select { Sleep }, then press { 15 Mins } Turn off the DVD player after 15 minutes. -
Page 37: Using The Audio Setup Menu
Using the Audio setup menu Press SETUP on the remote control. The system setup menu appears. Audio Setup Page Analog Output Digital Audio Setup Sound Mode CD Upsampling Night Mode Press to select { Audio Setup Page }. Press to select an item, then press to access. - Page 38 DVD Menu Options Digital Output Set the Digital Output according to your optional audio equipment connection. { All } Select this if the connected device has a built-in multichannel decoder that supports one of the multichannel audio format (Dolby Digital, MPEG-2). { PCM Only } Select this if the connected device is not capable of decoding multichannel audio.
-
Page 39: Sound Mode
Sound Mode The options included in Sound Mode Setup are { 3D }, { Movie Mode }, { Music Mode }. In ‘Audio Setup Page’, press select { Sound Mode }, then press Press to select an item, then press to access. -
Page 40: Using The Video Setup Menu
DVD Menu Options Using the Video setup menu Press SETUP on the remote control. The system setup menu appears. Video Setup Page TV Type TV Display Progressive Picture Setting HD JPEG HDMI Video Setup Press to select { Video Setup Page }. -
Page 41: Progressive
Progressive In the progressive scan mode, you can enjoy the high quality picture with less fl ickers. It only works when you have connected the DVD player’s YPbPr jacks to your TV that supports the progressive video input. Otherwise, a distorted picture will appear on the TV. -
Page 42: Hd Jpeg
DVD Menu Options Press to highlight one of the following options. BRIGHTNESS Increase the value to brighten the picture or vice versa. Choose zero (0) for average setting. CONTRAST Increase the value to sharpen the picture or vice versa. Choose zero (0) to balance the contrast. -
Page 43: Hdmi Video Setup
HDMI Video Setup The options included in HDMI Video Setup are: { Resolution } and { Wide Screen Format }. In ‘Video Setup Page’, press select { HDMI Video Setup }, then press Press to select an item, then press to access. - Page 44 DVD Menu Options (For DVI TV only) If a DVI TV is connected (see page 15) all above resolution options can be chosen, including the resolution that are not supported by the TV. to select a resolution and press OK to confi rm. The menu will appear on the TV.
-
Page 45: Using The Preference Setup Menu
Using the Preference setup menu Press STOP Ç twice to stop playback, (if any), then press SETUP on the remote control. The system setup menu appears. Preference Page Audio Subtitle Disc Menu Parental Mp3 / Jpeg Nav Password Press to select { Preference Page }. -
Page 46: Pbc
DVD Menu Options Rating Explanations { 1.Kid Safe } Childsafe; acceptable for viewers of all ages. { 2. G } General Audience; recommended as acceptable for viewers of all ages. { 3. PG } Parental Guidance suggested. { 4. PG – 13 } Unsuitable for children under age 13. -
Page 47: Changing The Password
Changing the Password You need to enter your six-digit password to play a prohibited disc or if prompted for a password. The same default password is used for both Parental and Disc Lock. In ‘Preference Page’, press { Password }, then press { Change }. -
Page 48: Restoring To The Original Settings
DVD Menu Options Restoring to the original settings Setting the { Default } function will reset all options and your personal settings to the factory defaults, except your Parental and Disc Lock. In ‘Preference Page’, press { Default }, then press to select { Reset }. -
Page 49: Software Upgrade
Software upgrade Periodically Philips will issue software upgrade to enhance your user experience. IMPORTANT! – Power supply must not be interrupted during upgrade! To check the current software version of this DVD player; Press OPEN/CLOSE ç on the DVD player to open the disc tray. -
Page 50: Troubleshooting
Do not open the system as there is a risk of electric shock. If a fault occurs, fi rst check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help. Problem No power. - Page 51 Problem The aspect ratio of the screen cannot be changed. Not able to select some items in the setup/system menu. The DVD player does not start playback. Picture freezes momentarily during playback. Unable to select Progressive Scan on/off. ® Unable to play DivX movies.
-
Page 52: Troubleshooting
Troubleshooting Problem The contents of the USB fl ash drive cannot be read Slow operation of the USB fl ash drive No HDMI video output No HDMI audio output 01_dvp5980K_93_eng2.indd 52 01_dvp5980K_93_eng2.indd 52 (continued) Solution – The USB fl ash drive format is not compatible with the DVD player. -
Page 53: Specifi Cations
TV STANDARD (PAL/50Hz) (NTSC/60Hz) Number of lines Playback Multistandard (PAL/NTSC) VIDEO PERFORMANCE Video DAC 12 bit, 108 MHz YPbPr 0.7 Vpp ~ 75 ohm Video Output 1Vpp ~ 75 ohm VIDEO FORMAT Digital MPEG 2 for DVD,SVCD Compression MPEG 1 for VCD ®... -
Page 54: Frequently Asked Questions (Usb)
Frequently Asked Questions (USB) Why does it take so long to display the contents on my USB device? – This could be due to the large numbers of fi les (>500 fi les/folders) or size of the fi les (>1MB.) –... -
Page 55: Glossary
Analog: Sound that has not been turned into numbers. Analog sound varies, while digital sound has specifi c numerical values. These jacks send audio through two channels, the left and right. Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs. - Page 56 110 dvp5980K_93_back2.indd 110 Meet Philips at the Internet http://www.philips.com/welcome DVP 5980K CLASS 1 LASER PRODUCT SgpSL-0726/93-2_RC2 2007-06-25 11:08:29 AM 2007-06-25 11:08:29 AM...
