OWNER'S MANUAL
WASHING MACHINE
Before beginning installation, read these instructions
carefully. This will simplify installation and ensure that the
product is installed correctly and safely. Leave these
instructions near the product after installation for future
reference.
EN ENGLISH

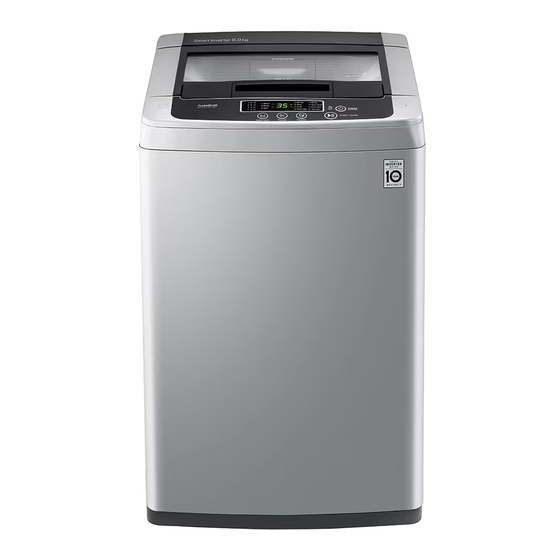

T6585NDHV
MFL70761367
Rev.00_071420
Copyright © 2020 LG Electronics Inc. All Rights Reserved.
www.lg.com
Advertisement
Table of Contents
Related Manuals for LG T6585NDHV
Summary of Contents for LG T6585NDHV
- Page 1 This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference. EN ENGLISH T6585NDHV www.lg.com MFL70761367 Rev.00_071420 Copyright © 2020 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
Preparing Laundry ...................14 Adding Detergents, Softeners and Bleaches..........16 Control Panel ....................18 Programme Table ....................19 Extra Options and Functions ................21 SMART FUNCTIONS LG ThinQ Application ..................23 Smart Diagnosis ....................23 MAINTENANCE Cleaning after Every Wash ................24 Cleaning the Appliance Periodically ..............24 TROUBLESHOOTING... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. Safety Messages This symbol is displayed to indicate matters and operations that can cause risk. - Page 4 SAFETY INSTRUCTIONS • Children should be supervised to ensure that they do not play with the appliance. • Cleaning and user maintenance shall not be made by children without supervision. • If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Page 5 SAFETY INSTRUCTIONS • Do not modify the power plug provided with the appliance. If it does not fit the power outlet, have a proper outlet installed by a qualified electrician. • This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.
- Page 6 • Make sure that drainage is working properly. If water is not drained properly, your floor may get flooded. • If, during spinning, opening the door does not stop the drum within about 10 seconds, immediately discontinue operating the appliance and contact your dealer or LG Electronics service centre.
- Page 7 • Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance. Contact an LG Electronics customer information centre if you move and install the appliance in a different location.
-
Page 8: Installation
INSTALLATION INSTALLATION Parts and Specifications NOTE • Appearance and specifications may change without notice to improve the quality of the appliance. Front View * This feature is only available on some models. Door Handle Tempered Glass Detergent Dispenser Drawer Fabric Softener Dispenser Bleach Dispenser Drum Levelling Feet... - Page 9 INSTALLATION Accessories *1 The included accessories vary depending on the model you purchased. *2 This accessory is not included in the product, but you can purchase it from the LG service centre. Cold and Hot Water Inlet Hoses Anti-Rat Cover...
-
Page 10: Installation Place Requirements
Contact your local WARNING authorised LG repairer. • The power plug must be plugged into an • This appliance must only be used for domestic appropriate outlet socket that is installed and... -
Page 11: Connecting The Water Inlet Hoses
INSTALLATION Connecting the Water Inlet Connecting the Hose to the Water Tap Hoses Connecting Screw-Type Hose to Tap with Thread Before connecting the water inlet hose to the water Screw the hose connector onto the water supply tap, check the hose fitting type and then choose tap. -
Page 12: Installing The Drain Hose
INSTALLATION NOTE NOTE • After completing connection, if water leaks from • The discharge height should be approximately the hose, repeat the same steps. Use the most 90 - 120 cm from the floor. conventional type of tap for the water supply. In case that the tap is square or too big, remove the guide plate before inserting the tap into the adaptor. - Page 13 INSTALLATION • Do not install the appliance on any elevated surface or platform, as it may become unstable and cause serious injury and damage. • If the appliance is installed on a uneven, weak or tilted floor causing excessive vibration, spin failure or error can occur.
-
Page 14: Operation Operation Overview
OPERATION OPERATION Operation Overview End of cycle. • When the cycle is finished, a melody will sound. Immediately remove your clothing Using the Appliance from the appliance to reduce wrinkling. Before the first wash, select the Normal programme and add a half amount of detergent. NOTE Start the appliance without laundry. - Page 15 OPERATION Checking the Fabric Care Label cause irreparable damage to both your appliance and clothes. This will tell you about the fabric content of your clothes and how it should be washed. Symbols on the Care Labels Symbol Wash / Fabric type •...
-
Page 16: Adding Detergents, Softeners And Bleaches
OPERATION Adding Detergents, CAUTION Softeners and Bleaches • Using liquid detergent without diluting, or leaving laundry for a long time after pouring Detergent Dosage diluted liquid detergent into the drum might cause the clothes to be damaged, bleached, • Detergent should be selected according to fabric discoloured. - Page 17 OPERATION Adding Fabric Softeners • Option washing is not designed to be used with fabric softener dispenser. • Dilute fabric softener with water. Undiluted fabric softener may result in spots that look like oil stain. Adding Liquid Bleaches • Measure and add the recommended amount of fabric softener into the compartment marked •...
-
Page 18: Control Panel
OPERATION Control Panel Control Panel Features POWER Button • Press this button to turn on or off the appliance. • The appliance automatically turns off once a certain time has passed after the wash has completed. START/PAUSE Button • Press this button to start or pause a wash cycle. •... -
Page 19: Programme Table
OPERATION - The time shown is only an estimate. Several external factors (laundry size, room temperature, incoming water temperature, etc.) can affect the actual time. • : This icon turns on when the load sensing has detected the laundry size. •... - Page 20 OPERATION Duvet Description Use this programme to wash a blanket or bedclothes that have the hand wash sign on the care label. • Cashmere bedclothes, acrylic blanket, mixed spinning blanket, woollen blanket, infilling (polyester 101), and bed sheets might be damaged if they are allowed to float.
-
Page 21: Extra Options And Functions
OPERATION Pre Wash+Normal Description Use this programme to pretreat immediate stain without handwash. • It is necessary for clothes which could smell bad if they are not washed promptly. Quick Wash Description Use this programme to wash lightly soiled clothes for a short time. •... - Page 22 OPERATION Using Basic Options Setting Process Child Lock When you need a wash+rinse+spin, spin only, Use Child Lock function to disable the controls. rinse+spin, rinse only, wash+rinse, wash only cycle, This function can prevent children from changing these can be set manually. programmes or operating this appliance.
-
Page 23: Smart Functions
SMART FUNCTIONS SMART FUNCTIONS LG ThinQ Application • Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions for audible diagnosis provided The LG ThinQ application allows you to in the LG ThinQ application. -
Page 24: Maintenance
MAINTENANCE MAINTENANCE WARNING • Unplug the appliance before cleaning to avoid the risk of electric shock. Failure to follow this warning may result in serious injury, fire, electric shock, or death. • Never use harsh chemicals, abrasive cleaners, or solvents to clean the appliance. They may damage the finish. - Page 25 MAINTENANCE Open the dispenser drawer and add anti- Turn off the power and the water tap and then limescale to the main wash compartment. unscrew the water inlet hose. WARNING • Do not add any detergent to the detergent dispenser drawer for this function. Doing so may generate excessive suds and leak out from the appliance and cause damage to property.
- Page 26 MAINTENANCE Cleaning the Drain Pump Filter Push down on the release tabs on both sides of the filter cover and pull forward. The drain filter collects threads and small objects left in the laundry. Check regularly that the filter is clean to ensure smooth running of the appliance.
- Page 27 MAINTENANCE • Securely turn the cap clockwise until it is tight. Turn on the power and check for leaks before repositioning the appliance. CAUTION • Be careful when draining, as any residual water may be hot.
-
Page 28: Troubleshooting
You can remedy most of the problems by yourself, consequently save time and money, since you do not need to call LG Electronics service centre. The following table should assist you by troubleshooting. - Page 29 TROUBLESHOOTING Symptoms Possible Cause & Solution Rebalancing operation is not successful. UNBALANCE ERROR • The automatic attempt to rebalance the laundry was not successful. The cycle has been paused to allow the laundry to be manually adjusted. The load is too small. •...
- Page 30 TROUBLESHOOTING Symptoms Possible Cause & Solution Staining Bleach or softener dispensed too soon. • Dispenser compartment is overfilled causing bleach or softener to dispense immediately. ALWAYS measure bleach to prevent overfilling. • Close the dispenser drawer gently. Bleach or softener was added directly to the laundry in the drum. •...
- Page 31 Memo...
