- Page 1 National Instruments SC-2061 Manual Get Pricing & Availability at ApexWaves.com Call Today: 1-800-915-6216 Email: sales@apexwaves.com https://www.apexwaves.com/modular-systems/national-instruments/sc-series/SC-2061...
- Page 2 SC-206X Series User Manual Optically Isolated and Electromechanical Relay Boards December 1996 Edition Part Number 371167A-01 © Copyright 1989, 1996 National Instruments Corporation. All Rights Reserved.
- Page 3 Any action against National Instruments must be brought within one year after the cause of action accrues. National Instruments shall not be liable for any delay in performance due to causes beyond its reasonable control. The warranty provided herein does not cover damages, defects, malfunctions, or service failures caused by owner's failure to follow the National Instruments installation, operation, or maintenance instructions;...
- Page 4 WARNING REGARDING MEDICAL AND CLINICAL USE OF NATIONAL INSTRUMENTS PRODUCTS National Instruments products are not designed with components and testing intended to ensure a level of reliability suitable for use in treatment and diagnosis of humans. Applications of National Instruments products involving medical or clinical treatment can create a potential for accidental injury caused by product failure, or by errors on the part of the user or application designer.
-
Page 5: Table Of Contents
Electromechanical Relay Digital Output ............4-3 Power Requirement (from Host Board or External Power Supply)....4-4 Physical ......................4-4 Operating Environment..................4-4 Storage Environment..................4-4 Mounting and Connection to Data Acquisition Boards..........4-4 © National Instruments Corporation SC-206X Series User Manual... - Page 6 Safety Information ......................5-9 Appendix A HCPL-2611-060 Technical Data ...................A-1 Appendix B Motorola Array Technical Data ...................B-1 Appendix C American Zettler Relay Technical Data ..............C-1 Appendix D Customer Communication ....................D-1 Glossary ........................Glossary-1 Index ..........................Index-1 SC-206X Series User Manual © National Instruments Corporation...
- Page 7 Table 2-1. Data Acquisition Boards for Use with the SC-2060 Board ....... 2-4 Table 3-1. Data Acquisition Boards for Use with the SC-2061 Board ....... 3-4 Table 4-1. Data Acquisition Boards for Use with the SC-2062 Board ....... 4-5 Table 5-1.
-
Page 8: About This Manual
This manual describes the mechanical and electrical aspects of the SC-206X Series boards and contains information about installing and operating the boards. The SC-206X Series consists of three digital signal conditioning boards you can use with National Instruments data acquisition boards–the SC-2060 optically isolated digital input board, the SC-2061 optically isolated digital output board, and the SC-2062 electromechanical relay digital output board. -
Page 9: Conventions Used In This Manual
• SC-205X Series User Manual (part number 320385-01) The following National Instruments documents may also be helpful to you depending on the type of system you are using with your SC-206X Series boards. • Macintosh NuBus users... -
Page 10: Customer Communication
MC-MIO-16 User Manual (part number 320130-01) Customer Communication National Instruments wants to receive your comments on our products and manuals. We are interested in the applications you develop with our products, and we want to help if you have problems with them. To make it easy for you to contact us, this manual contains comment and configuration forms for you to complete. -
Page 11: Introduction

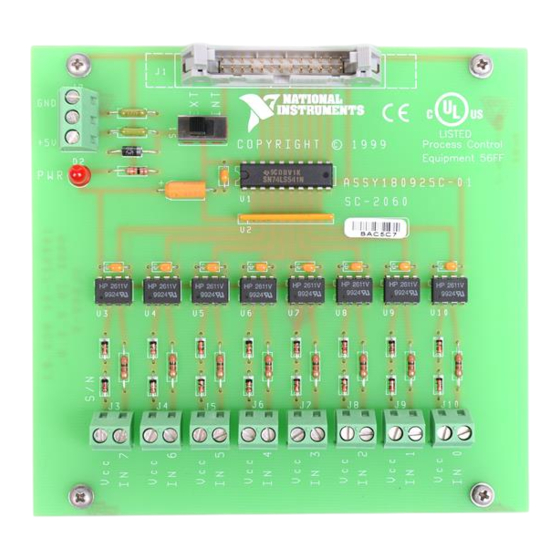

SC-206X Series board. The SC-206X Series consists of three digital signal conditioning boards (the SC-2060, SC-2061, and SC-2062) you can use with the National Instruments data acquisition boards. The SC-2060 optically isolated digital input board isolates digital signals received by data acquisition boards from the power system of the host computer. -
Page 12: Figure 1-1. Sc-2060 Board Connected To Host Data Acquisition Board Via An Sc-2050 Board
Figure 1-2 shows the SC-2060 mounted in a 19 in. rack mount with an SC-2050 mounted alongside it. Figure 1-2. SC-2060 Boards and SC-2050 Board Mounted in 19 in. Rack Mount with Connection to Host Data Acquisition Board SC-206X Series User Manual © National Instruments Corporation... -
Page 13: What Your Kit Should Contain
0.4 m cable Type NB7 0.4 m cable 180924-04 Contact National Instruments if your kit is missing any of its components or if you received the wrong version. Software The SC-206X Series boards require no additional software beyond that you are using for your data acquisition board. -
Page 14: Optional Equipment
• Remove the board from the package and inspect the board for loose components or any other sign of damage. Notify National Instruments if the board appears damaged in any way. Do not connect a damaged board to your computer. -
Page 16: Figure 2-2. Sc-2060 Power Circuit
Figure 2-2. SC-2060 Power Circuit +5 V J3 through J10 L5541 IN4148 IN4148 4.7 k +V ccx TO J1 (DAQ Board) 1/4 W IN x Ω HCPL-2611-060 Opto-coupler Figure 2-3. Onboard Equivalent Circuit SC-206X Series User Manual © National Instruments Corporation... -
Page 17: Specifications
SC-2060 board can result in damage to any or all of the boards connected to the SC-206X Series, to the host computer, and to the SC- 2060 board. National Instruments is not liable for any damages resulting from incorrect signal connections. -
Page 18: Power Requirement (From Host Board Or External Power Supply)
The SC-2060 must be completely enclosed if any onboard voltages or voltage differences across the optoisolators can exceed 30 V. The SC-2060 connects to the data acquisition boards listed in Table 2-1 via the appropriate SC-205X Series cable adapter board. SC-206X Series User Manual © National Instruments Corporation... -
Page 19: Table 2-1. Data Acquisition Boards For Use With The Sc-2060 Board
I/O port on any SC-205X Series board. The digital I/O port that is connected to the SC-2060 must be configured and operated on the data acquisition board as input only. For more information on mounting and connection, see Chapter 5, Installation and Operation. © National Instruments Corporation SC-206X Series User Manual... - Page 21 +5 V. The lines between +5 V and GND indicate the boundary between channels. The digital output of the SC-2061 is positive logic; that is, high output states from the data acquisition board create high output at the screw terminals. The SC-2061 has eight channels of optocoupler output.
-
Page 22: Specifications
Chapter 3 SC-2061 Board Specifications The following sections list the specifications of the SC-2061 digital signal conditioning accessory board. These ratings are typical at 25° C unless otherwise stated. The operating temperature range for this board is 0° to 70° C. -
Page 23: Physical
Mounting and Connection to Data Acquisition Boards The SC-2061 has metal standoffs so the board can sit on a workbench near the host computer. You can use an optional rack-mount chassis, which can be fitted with a flat acrylic plastic cover. The SC-2061 grounds to its metal standoffs, and thus to the rack, when it is mounted in the chassis. -
Page 25: Figure 4-2. Sc-2062 5 V Onboard Equivalent Circuit
SC-2062 can result in damage to any or all of the boards connected to the SC-206X Series, to the host computer, and to the SC-2062 board. National Instruments is not liable for any damages resulting from incorrect signal connections. -
Page 26: Specifications
This product complies with IEC-1010 for Voltage Installation Category II Pollution Degree 2. Turn-on delay (operate time) Typical 5 ms Maximum 6 ms Turn-off delay (release time) Typical 3 ms Maximum 3 ms © National Instruments Corporation SC-206X Series User Manual... -
Page 27: Power Requirement (From Host Board Or External Power Supply)
The SC-2062 grounds to its metal standoffs, and thus to the rack, when it is mounted in the chassis. Warning: The SC-2062 must be completely enclosed if any onboard voltages or any voltages connected to the relays can exceed 30 V. SC-206X Series User Manual © National Instruments Corporation... -
Page 28: Table 4-1. Data Acquisition Boards For Use With The Sc-2062 Board
I/O port on any SC-205X Series board. The digital I/O port that is connected to the SC-2062 must be configured and operated on the data acquisition board as output only. For more information on mounting and connection, see Chapter 5, Installation and Operation. © National Instruments Corporation SC-206X Series User Manual... -
Page 29: Installation And Operation
SC-2054 board, which occupies half of the rack chassis. You can mount your SC-206X Series board on the left side, in the center, or on the right side of the 19-in. rack mount as shown in Figure 5-1. © National Instruments Corporation SC-206X Series User Manual... -
Page 30: Figure 5-1. Mounting Locations For Sc-205X And Sc-206X Series Boards
You can mount a second row of SC- 205X Series and SC-206X Series boards on these brackets the same way you mount the first row. Figure 5-3 illustrates double-height mounting. SC-206X Series User Manual © National Instruments Corporation... -
Page 32: Internal Or External Power Selection
0.2 A These limitations are caused by a series fuse on the +5 V out on these boards, rather than the remaining power per slot. DIO-32F boards do not supply +5 V power. SC-206X Series User Manual © National Instruments Corporation... -
Page 34: Figure 5-6. Connecting Sc-206X Series Boards To Data Acquisition Boards Via The Sc-205X Series Cable Adapter Boards
SC-206X Series PORT SC-206X Series SC-2054 PORT SC-206X Series PORT SC-206X Series PORT SC-206X Series Figure 5-6. Connecting SC-206X Series Boards to Data Acquisition Boards via the SC-205X Series Cable Adapter Boards SC-206X Series User Manual © National Instruments Corporation... -
Page 35: Figure 5-7. Pinout For I/O Connector J1
Installation and Operation For more detailed information about the SC-206X Series boards, see Chapter 2, SC-2060 Board, Chapter 3, SC-2061 Board, or Chapter 4, SC-2062 Board. A 26-pin ribbon cable (type SC1) connects your SC-206X Series board to an SC-205X Series board. -
Page 36: Operation
Incorrect connection can result in damage to the SC-206X Series board and all components connected to the SC- 206X Series board, including the host computer. National Instruments is not liable for any damages resulting from incorrect connections. -
Page 37: Safety Information
Notice that the SC-2060 board has only input capability. Therefore, you must configure and operate the digital port used with the SC-2060 board as only an input port. Likewise, the SC-2061 and SC- 2062 boards have only output capability. You must configure the digital ports used with either the SC- 2061 board or the SC-2062 board for only digital output. - Page 38 Chapter 5 When using the device with high common-mode voltages, you MUST insulate your signal wires for the highest input voltage. National instruments is NOT liable for any damages or injuries resulting from inadequate signal wire insulation. Use only 26-14 AWG wire with a voltage rating of 300 V and 60˚ C for controlling 250 V.
-
Page 39: Hcpl-2611-060 Technical Data
This appendix contains technical data on the Hewlett-Packard Company HPCL-2611-060 high- speed TTL compatible optocoupler. The HCPL-2611-060 is used on the SC-2060 and the SC-2061. * Copyright © Hewlett-Packard Company. Reprinted with permission of copyright owner. All rights reserved. © National Instruments Corporation SC-206X Series User Manual... -
Page 60: Motorola Array Technical Data
This appendix contains technical data on the Motorola Corporation ULN2801 array. Motorola arrays are used on the SC-206X. * Copyright © Motorola Corporation, 1990. Reprinted with permission of copyright owner. All rights reserved. Motorola Corporation. 1990 Linear and Interface integrated Circuits. © National Instruments Corporation SC-206X Series User Manual... -
Page 66: American Zettler Relay Technical Data
This appendix contains technical data on an American Zettler Corporation relay. American Zettler relays are used on the SC-2062. * Copyright © American Zettler Corporation, 1992-93. Reprinted with permission of copyright owner. All rights reserved. American Zettler Corporation, 1992-93 Relay Technical Data Book. © National Instruments Corporation SC-206X Series User Manual... -
Page 69: Customer Communication
Filling out a copy of the Technical Support Form before contacting National Instruments helps us help you better and faster. National Instruments provides comprehensive technical assistance around the world. In the U.S. and Canada, applications engineers are available Monday through Friday from 8:00 a.m. to 6:00 p.m. - Page 70 National Instruments for technical support helps our applications engineers answer your questions more efficiently. If you are using any National Instruments hardware or software products related to this problem, include the configuration forms from their user manuals. Include additional pages if necessary.
- Page 71 Completing this form accurately before contacting National Instruments for technical support helps our applications engineers answer your questions more efficiently.
- Page 72 Documentation Comment Form National Instruments encourages you to comment on the documentation supplied with our products. This information helps us provide quality products to meet your needs. Title: SC-206X Series User Manual Edition Date: December 1996 Part Number: 371167A-01 Please comment on the completeness, clarity, and organization of the manual.
-
Page 73: Glossary
SPDT single-pole dual-throw propagation delay, high-to-low propagation delay, low-to-high transistor-transistor logic volts volt-ampere volts alternating current positive voltage supply volts direct current volts in Vrms volts, root mean square watts © National Instruments Corporation Glossary-1 SC-206X Series User Manual... -
Page 74: Index
COM connection, SC-2062 board, 4-1, 4-2 specifications for optically isolated digital computers supported by SC-206X Series input, 2-3 boards digital output circuitry, SC-2061 board, 3-3 data acquisition boards for SC-206X digital port operation of SC-206X Series Series boards (table), 1-1 boards, 5-8 to 5-9 SC-2060 board, 2-1 DIO<0..7>... - Page 75 SC-2062 board, 4-4 boards (table), 5-4 operation of SC-206X Series boards, 5-8 SC-2060 board, 2-2 to 5-9 SC-2061 board, 3-1 to 3-2 optically isolated digital input, SC-2060 SC-2062 board, 4-2 board, 2-3 switch S1, 5-4, 5-5 optically isolated digital output, SC-2061...
- Page 76 2-4 connection, 5-7 power requirements, 2-3 pinout (illustration), 5-7 storage environment, 2-4 SC-2061 board, 3-1 to 3-4 signal descriptions, 5-7 connectors compatible with SC-206X computers supported, 3-1 connecting to data acquisition board via Series boards (table), 5-8...
- Page 77 See connecting or disconnecting signal lines. single-pole, dual-throw (SPDT) relays, 4-1 specifications SC-2060 board, 2-3 to 2-4 SC-2061 board, 3-3 to 3-4 SC-2062 board, 4-3 to 4-4 storage environment specifications SC-2060 board, 2-4 SC-2061 board, 3-4 SC-2062 board, 4-4...
